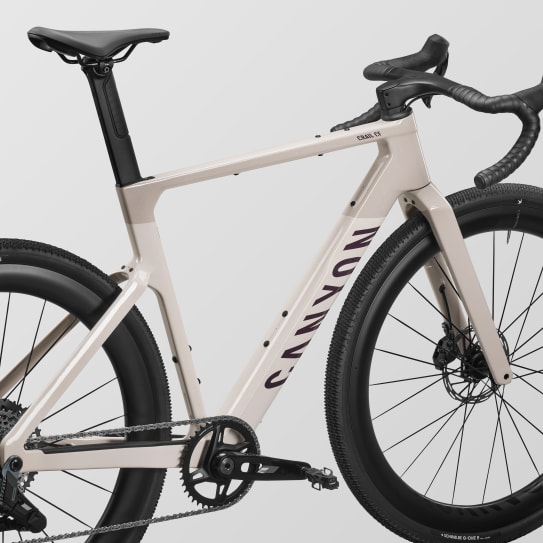

Grail CF 7 Speed

£3,499

All-terrain speed and exploration
Benchmark 57 mm tyre clearance
Carbon gravel cockpit with Gear Groove
SRAM Rival XPLR AXS wireless shifting
Canyon GR 50 CF carbon wheels

30-day return policy

6 Year Guarantee

Weight: 9.16 kg
Material: Carbon (CF)

All components

Product Configuration

Colour:

Sandstone

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Bike geometry

Delivery: Select frame size

Current delivery times information. Read more

Members only product.

Buying reasons

Financing with Klarna

Klarna offers direct payments, pay later options, or installment plans
Calculate amount

Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
This bike is available through Cyclescheme

Save 26–40% on your Canyon with Cyclescheme. If your employer participates, select Cyclescheme at checkout. When requesting your voucher, make sure it's equivalent to the total cost of the cart (including shipping and Bikeguard). Learn more

This bike is available through Green Commute Initiative

Get up to 47% off with tax-free savings. Select your Canyon bike or e-bike, include the approved gear and accessories, and apply.

Learn more
We ship direct to your local bike shop. They build it, you pick it up ready to ride.
How to choose Collect & Ride
95% built on arrival. We include the tools — the Canyon app walks you through every step. No workshop experience needed.

Explore in the Canyon app
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.

Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Your bike arrives in our custom Bike Guard – built to absorb impacts in transit and keep every component locked in place. Tough, reusable, and ready to double as a stable stand for a fast setup.

Delivery: Select frame size

£3,499

Product added to cart

Select frame size

Highlights Grail CF 7 Speed

Explore off-road performance

Gravel was never meant to be this fast

WorldTour watts. Aero obsession. As gravel racing’s rapid rise continues, how do you keep pace? When developing the new Grail, we worked with the world’s fastest racers to give them everything they need - and then some. Here’s the story behind how we continue to progress racing speed over all terrain.

The Inside Line on the new Grail

Nothing this capable goes this hard. We engineered the Grail to be highly adaptable so you can unlock pure all-terrain speed. Get the full lowdown behind all the tech and features that make this the most accomplished, fastest gravel race bike ever.

SpeedQuests: Fast isn’t just for race day

You don't have to pin a number on to experience the thrill of riding all-out on all terrain. The Grail is built for your own personal SpeedQuests. Whether a weekend FKT, KOM mission with the crew, or a thrashfest group ride, take the pressure off performance and have some fast fun.

Test ride a Grail near you

Visit us at our flagship showrooms, authorised partner stores or at an experience centre near you for your chance to get up-close and ride the new Grail. You’ll also find locations for buying and fitting advice, as well as all your service needs. Here’s where you can find us.

Key features

Grail CF - Explore off-road speed

Welcome to the start line of true all-terrain speed. Sharing core features trickled down from the Traka-winning Grail CFR including benchmark tyre clearance, outstanding handling, one-by shift accuracy plus carbon wheel lightness, the Grail CF opens up a new world of off-road performance, ready for race day, perfect for every day.

Monster 57 mm tyre clearance

When it comes to picking the fastest tyre for race day, the Grail won’t ever hold you back. We’ve engineered space for 57 mm (2.25") tyres front and rear with 4 mm ISO clearance to spare. Go big on volume to unlock speed over the rough or keep things tight to maximise mud clearance where others have to get off and walk, the Grail charges through it all.

All-terrain aero advantage

Even the world’s fastest take 9 hours to complete Unbound 200. The longer you‘re out there, the more aero matters. The goal for the Grail was maximum aero performance at real-world race pace (35 km/h). Benchmarked in the wind tunnel against the fastest competitors, including Cervélo’s Aspero-5, the Grail tops the charts – nothing this capable goes this hard.

Carbon control and comfort

You’ll notice our CP0039 Gravel Cockpit's sculpted ergonomics and backsweep from the very first ride as they provide natural resting places for your hands with reduced pressure points across multiple positions. 17° flare boosts control when things get technical, and Gear Groove lets you adapt your cockpit with the accessories you need for your ride.

VCLS Aero: Fast meets smooth

Aero seatposts are built for speed, not comfort. Our groundbreaking SP0093 VCLS Aero seatpost changes that. Its sleek design and precision layup boost vertical compliance by over 25% compared to a rigid equivalent. Taking the sting out of rough surfaces to reduce the impact on critical muscle groups, VCLS Aero is your key to riding stronger, for longer.

Frame mounts for fast packs

The Grail CF features standard top tube mounts plus mounts within the frame specifically for the Canyon x Cyclite Midloader. We've collaborated with Cyclite to create a premium, lightweight-yet-durableTop Tube Bag and Midloader set that is the perfect match for the Grail, sitting flush with the frame and cockpit, with no straps required for a precision fit.

Components

Content is loading

All components are based on size M

Frame

Frame
- Canyon Grail CF SL
- Axle dimension 12x142 mm
- Material Carbon (CF)
- Weight 1322 g
Fork
- Canyon FK0155 CF Disc
- Axle dimension 12x100 mm
- Fork steer tube diameter 1 1/8"
- Material Carbon (CF)
- Weight 471 g
Seatpost Clamp
- Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM Rival XPLR AXS RD 13s
- Weight 447 g
Cassette
- SRAM Rival XPLR XG-1351
- Number of sprockets 13
- Range 10-46
Crank
- SRAM Rival XPLR
- Number of chainrings 1
Bottom bracket
- SRAM Pressfit DUB Wide
- Bottom bracket standard PF 86,5
- Weight 65 g
Chain
- SRAM Rival E1

Brakes

Shift-/ Brake Lever
- SRAM Rival AXS HRD
- Number of pistons 2
- Weight 376 g
Shift-/ Brake Lever
- SRAM Rival AXS HRD
- Number of pistons 2
- Weight 383 g
Brake Rotor
- SRAM Paceline
- Size 160 mm
- Weight 139 g

Wheels

Front Wheel
- Canyon GR 50 CF
- Axle dimension 12x100 mm
- Rotor mount Center Lock
- Rim height 50 mm
- Inner width 27 mm
- Rim material Carbon
- Weight 768 g
Rear Wheel
- Canyon GR 50 CF
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Inner width 27 mm
- Rim material Carbon
Tyre
- Schwalbe G-One R Performance TLE
- Width 45 mm
- Weight 546 g
Thru Axle
- Canyon Through Axle
- Axle dimension 12x100 mm
Thru Axle
- Canyon Through Axle
- Axle dimension 12x142 mm
Thru Axle
- Canyon Injection Lever

Cockpit

Cockpit
- Canyon Cockpit CP0039
- One-piece carbon cockpit with specialist gravel ergonomics and design, and versatile Gear Groove interface for mounting a range of accessories. 16° flare on at drops, 5° backsweep on tops.
- Material Carbon (CF)
- Weight 352 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color Black

Seat

Saddle
- Selle Royal SRX
- Gender Unisex
- Weight 296 g
Seatpost
- SP0093 VCLS Aero
- Material Carbon (CF)
- Weight 197 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon 1CX Bike Category Manual
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Quick Start Guide Grail

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
a Seat Height in mm	624 - 724	654 - 754	684 - 784	714 - 814	744 - 844	774 - 874	804 - 904
b Seat Tube Length in mm	432	462	492	522	552	582	612
c Top Tube Length in mm	522	543	556	578	600	614	640
d Head Tube Length in mm	98	103	120	138	162	182	205
e Head Tube Angle	68,5°	70°	71,5°	71,5°	71,5°	71,8°	71,8°
f Seat Tube Angle	74,1°	73,6°	73,9°	73,8°	73,8°	73,8°	73,8°
g Chainstay Length in mm	435	435	435	435	435	435	435
h Wheel Base in mm	1.034	1.037	1.039	1.062	1.085	1.097	1.123
i Stack in mm	525	537	558	575	598	618	640
j Reach in mm	372	385	394	411	427	435	454
k Stand-over Height in mm	763	784	809	832	858	882	907
l Bottom Bracket Offset in mm	75	75	75	75	75	75	75
o Effective stack: Vertical distance between the bottom bracket and the hand position Learn more	619	626	646	663	686	707	729
p Effective reach: Horizontal distance between the bottom bracket and the hand position Learn more	508	523	543	560	576	593	612

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15	15	15	15	15	15	15
Cockpit Dimensions in mm	60-400	60-400	70-420	70-420	70-420	80-440	80-440
Crank Length in mm	160,0	160,0	165,0	165,0	170,0	170,0	170,0
Chainring size	40	40	40	40	40	40	40
Seat Post Length in mm	310	310	310	310	310	310	310
Maximum Seat Post Insertion Depth in mm	166	166	166	166	166	166	166
Minimum Seat Post Insertion Depth in mm	66	66	66	66	66	66	66
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
Rim height in mm	50	50	50	50	50	50	50
