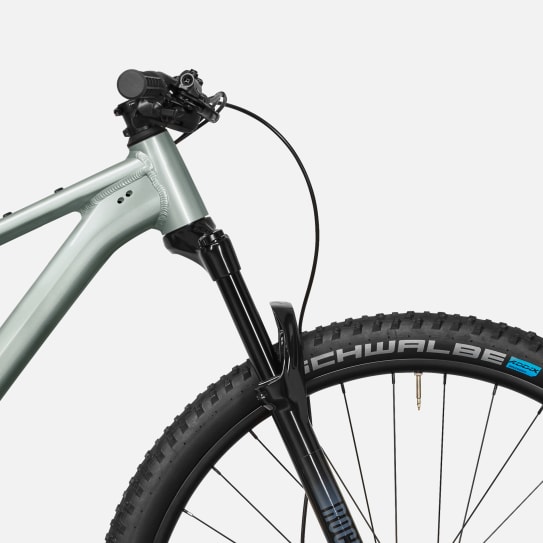

Mountain Bikes Trail Grand Canyon Grand Canyon AL

Grand Canyon AL 7

£999

Award-winning, do-it-all hardtail
Our most affordable performance model.
Versatile. 8 mounting points for racks, bags, etc.
Reliable and precise Shimano XT drivetrain
RockShox Judy Gold suspension fork boosts control

Front Fork Travel: 120 mm
Weight: 12.8 kg

Colour: Aloe

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Size XS features 27.5” wheels. Sizes S–XL feature 29” wheels.

Members only product.

£999

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Financing with Klarna

Klarna offers direct payments, pay later options, or installment plans
Calculate amount

Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount

Financing with PayPal
This bike is available through Cyclescheme

Cyclescheme allows you to save between 26% and 40% on your next Canyon. If your employer is signed up to Cyclescheme you can build your basket and checkout using Cyclescheme as the payment method. Learn more

This bike is available through Green Commute Initiative

Get up to 47% off with tax-free savings. Select your Canyon bike or e-bike, include the approved gear and accessories, and apply.

Learn more
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Your bike arrives in our custom Bike Guard – built to absorb impacts in transit and keep every component locked in place. Tough, reusable, and ready to double as a stable stand for a fast setup.

Delivery: Select frame size

Highlights Grand Canyon AL 7

Key features

Built to last

Built to endure season after season of all-out trail riding, the Grand Canyon’s aluminium frame is designed for durability. Each bike meets our rigorous Category 3 testing standards (on par with our full-suspension Neuron), significantly tougher than other aluminium hardtails on the market. The high grade alloy is lightweight too, ensuring you can rack up the kilometers with ease and speed.

Perfect fit at every size

You'll always find a Grand Canyon that fits you. We offer five sizes of Grand Canyons (sizes XS-XL) for adults, accomodating riders from less than 166 cm in height on up to 202 cm. Thanks to adjusted top tube and chainstay lengths in each individual size, the frame always maintains its perfectly balanced geometry. Finally, to ensure that riders of all heights experience the same confidence-inspiring handling, we scale each Grand Canyon's wheel size to its respective frame size – using 27.5" wheels on XS-S Grand Canyons and 29" wheels on M – XL models.

The most versatile Canyon MTB. Ever.

Load and pack as much or as little as you need: with 8 mounting points at key points across the frame, the Grand Canyon has you covered for everything from bikepacking epics to quick grocery runs. Attach a rack with mudguard, up to three bottle cages, a kickstand, bags on the upper and under side of the top tube, lights or bike computers on the stem’s gear interface, and even fit a trailer. Or strip it down again for pure trail riding vibes

Truly trail-capable components

This is a proper trail hardtail with high-quality parts from top to bottom. Robust 120 mm suspension forks dramatically increase grip and comfort on rough terrain. Powerful, precise hydraulic disc brakes boost control and stopping power on the trail when you need it most, and wide, stiff aluminium handlebars enhance steering precision in quick corners.

Components

Content is loading

Frame

Frame
- Canyon Grand Canyon AL
- Axle dimension 12x148 mm
- Material Aluminium (AL)
Suspension Fork
- Rockshox Judy Gold RL
- Axle dimension 15x110 mm
- Stanchion Diameter 30 mm
- Travel 120 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 51 mm
- Weight 1780 g
Headset
- Acros Headset AZX Fiber
Seatpost Clamp
- Canyon SC0001

Drivetrain

Rear Derailleur
- Shimano M8200
- Cage length short
- Weight 361 g
Shift Lever
- Shimano M6200
- Weight 133 g
Cassette
- Shimano M6200
- Number of sprockets 12
- Range 10-51
Crank
- Shimano FC-MT520
- Number of chainrings 1
Bottom bracket
- Shimano BB-MT501
- Bottom bracket standard BSA HT2 68/73
- Weight 73 g
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano MT410
- Number of pistons 2
Disc Brake
- Shimano MT410
- Number of pistons 2
Brake Rotor
- Shimano RT30
- Size 180 mm
- Weight 191 g

Wheels

Front Wheel
- Alex Rims DP25 with Shimano HB-TC500 front hub
- Axle dimension 15X100 mm
- Rotor mount Center Lock
- Rim height 17 mm
- Inner width 25 mm
- Rim material Aluminium
- Weight 969 g
Rear Wheel
- Alex Rims DP25 with Shimano FH-TC500 rear hub
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Rim height 17 mm
- Inner width 25 mm
- Rim material Aluminium
- Weight 1100 g
Tyre
- Schwalbe Rocket Ron
- Width 2,25"
- Weight 630 g
Thru Axle
- Canyon GP0255-01
- Axle dimension 12x148 mm

Cockpit

Stem
- ST0039
- Fork steer tube diameter 1 1/8"
- Clamping diameter 31,8 mm
- Material Aluminium (AL)
Handlebar
- Canyon HB0073
- Clamping diameter 31,8 mm
- Rise 18 mm
Grips
- VELO VLG-1812D2 Circular

Seat

Saddle
- VELO VL1C28 Trail
- Gender Unisex
- Weight 293 g
Seatpost
- Canyon SP20198-01
- Seatpost diameter 31,6 mm
- Material Aluminium (AL)

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- BAND 003-V01 BIKE CATEGORY 3
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Canyon Quick Start Guide
Manuals and Accessories
- Canyon Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	465 - 735	548 - 773	498 - 818	538 - 858	578 - 898
b Seat Tube Length in mm	387	400	420	460	500
c Top Tube Length in mm	567	593	617	641	666
d Head Tube Length in mm	105	90	105	125	145
e Head Tube Angle	66°	66°	66°	66°	66°
f Seat Tube Angle	75°	74,3°	74,3°	74,4°	74,4°
g Chainstay Length in mm	425	435	435	435	435
h Wheel Base in mm	1.122	1.155	1.181	1.209	1.237
i Stack in mm	587	608	622	640	658
j Reach in mm	410	430	450	470	490
k Stand-over Height in mm	746	770	777	784	789
l Bottom Bracket Offset in mm	49	65	65	65	65

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15	15	15	15	15
Stem Length in mm	45	45	45	45	45
Handlebar Width in mm	760	760	760	760	760
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	30	30	30	30	30
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Seat Post Length in mm	400	425	450	450	450
Maximum Seat Post Insertion Depth in mm	370	325	420	420	420
Minimum Seat Post Insertion Depth in mm	100	100	100	100	100
Wheel Size	27.5"	29"	29"	29"	29"
Disc Size in mm	180	180	180	180	180
Front Fork Travel in mm	120	120	120	120	120
Rim height in mm	17	17	17	17	17

Download PDF

Grand Canyon AL 7 support

Canyon MTB Shorts

£66.99

Canyon Mud Guard

£11.99

Canyon Men's Baselayer Light

£37.99

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

£14.99

-50%

Canyon MTB Pants

£47.99

Original price ~~£95.99~~

You save £48

Canyon Deflectr Helmet

£159.99

Canyon Bikestand

£56.99

Canyon MTB Nylon Flat Pedals

£56.99

Canyon 3-in-1 Minitool

£61.99

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
