Mountain Bikes Trail Lux Trail CF

Lux Trail CF 8

£4,749

Expert grade. Electronic shifting, carbon wheels.
Ultralight carbon frame. Spacious internal storage
Progressive geometry for max speed and control
FOX Performance Elite 36 SL fork and Float shock
Quick-shifting SRAM GX electronic drivetrain

Front Fork Travel: 140 mm
Weight: 12.3 kg

Colour: Moonlit

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

£4,749

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Financing with Klarna

Klarna offers direct payments, pay later options, or installment plans
Calculate amount

Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
This bike is available through Cyclescheme

Save 26–40% on your Canyon with Cyclescheme. If your employer participates, select Cyclescheme at checkout. When requesting your voucher, make sure it's equivalent to the total cost of the cart (including shipping and Bikeguard). Learn more

This bike is available through Green Commute Initiative

Get up to 47% off with tax-free savings. Select your Canyon bike or e-bike, include the approved gear and accessories, and apply.

Learn more
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Your bike arrives in our custom Bike Guard – built to absorb impacts in transit and keep every component locked in place. Tough, reusable, and ready to double as a stable stand for a fast setup.

Delivery: Select frame size

Highlights Lux Trail CF 8

Play the trail

The perfect combination

We fused the award-winning Neuron CF and second-generation Lux Trail together to create an ultralight trail bike like no other. The new Lux Trail gains Neuron’s all-rounder capability and is even quicker and more efficient than before. This is a light and lively trail bike that lets you rocket up climbs with ease and fly downhill with complete confidence.

Lean. Light. Capable.

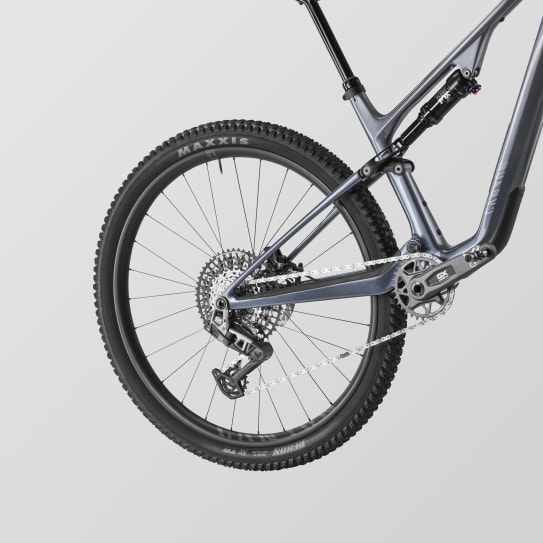

At the heart of the Lux Trail is a svelte, carbon-fiber chassis that delivers 125mm of refined rear suspension travel via a carefully-engineered, flex-stay rear suspension. The ultralight, 1,850-gram carbon frame is strong, capable, and packed with clever features.

Key features

Quick and playful

The Lux Trail is a rocket. Stomp on the pedals and it goes. Fast. Pedal response is snappy and crisp, making it perfect for hard out-of-the-saddle efforts and pumping into trail features. And when the going (fast) gets rough, you’ve got 140/125mm of rock and root-eating suspension travel waiting to turn any trail into your personal playground.

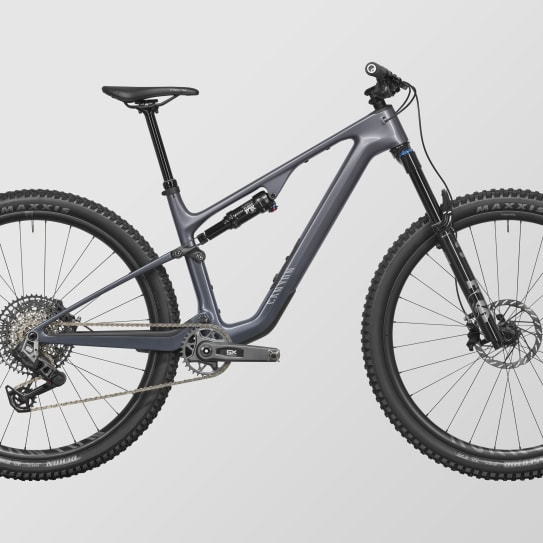

Ride-fast geometry

Borrowing much of its geometry from our supremely confident, award-winning Spectral, the Lux Trail has a little more reach, a little more stack, and a little more wheelbase to play with than on most bikes in this class. It all adds up to a bike that’s surefooted at any speed, on any terrain.

Trail-tough components

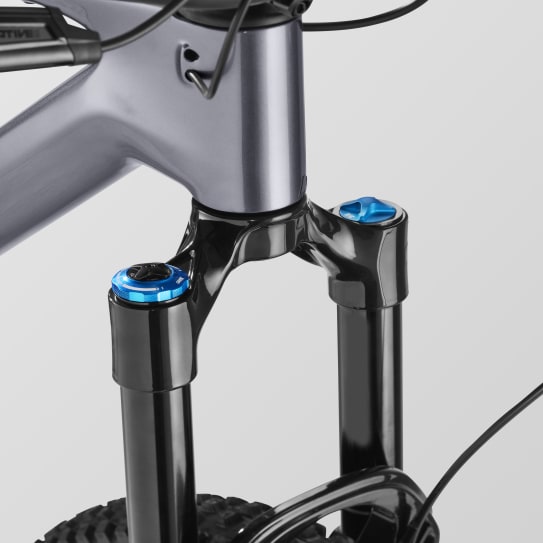

The Lux Trail is dressed to go fast and play rough; with an emphasis on versatility, capability, efficiency, and lively performance. Fox 36 SL forks and Float shocks, Maxxis Dissector front tires, and 180mm rotors (front and rear) deliver confident handling and braking without dulling responsiveness or climbing prowess.

Durable and hassle-free

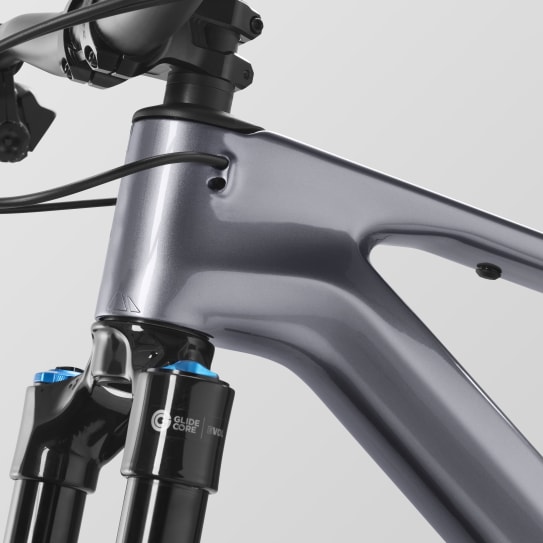

The Lux Trail is ultralight yet holds up to real trail riding. A clever, 3D-forged rocker bridge and redesigned, circlip-retained bearings enhance frame stiffness – improving both handling and durability. Headache-free maintenance is a hallmark of its design, which is why all cables and hydraulic lines are fully guided through the frame and also why we equip each Lux Trail with an easily-serviced, threaded bottom bracket.

All you need. Always in reach.

The Lux Trail frame sports room for two water bottles, and features a large, watertight, internal storage system that makes carrying all your essentials a breeze. No straps or heavy packs required. A clever multi-tool and storage sleeve us included with every bike.

Components

Content is loading

Frame

Frame
- Canyon Lux CF
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 1850 g
Rear Shock
- FOX Float Performance Elite
- Weight 345 g
Suspension Fork
- FOX 36 SL Performance Elite Series
- Axle dimension 15x110 mm
- Stanchion Diameter 36 mm
- Travel 140 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Weight 1875 g
Seatpost Clamp
- Canyon SC0001

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight 462 g
Shift Lever
- SRAM AXS Pod Controller Rocker Paddle
- Weight 56 g
Cassette
- SRAM XS-1275
- Number of sprockets 12
- Range 10-52
Crank
- SRAM GX Eagle
- Number of chainrings 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard BSA 73
- Weight 78 g
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- SRAM Motive Silver
- Number of pistons 4
Disc Brake
- SRAM Motive Silver
- Number of pistons 4
Brake Rotor
- SRAM HS2 Rounded
- Size 180 mm
- Weight 212 g

Wheels

Front Wheel
- Canyon XC 30 CF
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim height 25 mm
- Inner width 30 mm
- Rim material Carbon
- Weight 738 g
Rear Wheel
- Canyon XC 30 CF
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Aluminium
- Weight 895 g
Tyre
- Maxxis Dissector
- Width 2.4"
- Weight 930 g
Tyre
- Maxxis Rekon
- Width 2.4"
- Weight 890 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- Race Face Turbine SL Stem
- Fork steer tube diameter 1 1/8"
- Material Aluminium (AL)
Handlebar
- RaceFace Era
- Clamping diameter 35,0 mm
Grips
- Ergon GXR

Seat

Saddle
- Ergon SPR20 NEO
- Gender Unisex
- Weight 219 g
Seatpost
- Canyon SP0081
- Robust, dependable seatpost compatible with all common saddles.
- Seatpost diameter 31,6 mm
- Material Aluminium (AL)
- Weight 668 g

Light

Lights
- Reflector Set

Accessories

Workshop
- Canyon FIX Minitool 6+1
- The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System.
- Features Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx)
- Material S2 Steel
- Dimensions 55mm x 29mm x 6,9mm
- Weight 62g
Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- BAND 003-V01 BIKE CATEGORY 3
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Quick Start Guide

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	637 - 816	647 - 826	687 - 886	717 - 916	747 - 946
b Seat Tube Length in mm	390	400	420	450	480
c Top Tube Length in mm	556	578	600	623	648
d Head Tube Length in mm	93	93	95	108	125
e Head Tube Angle	64,8°	64,8°	64,8°	64,8°	64,8°
f Seat Tube Angle	76,4°	76,2°	76,1°	76,1°	76°
g Chainstay Length in mm	435	435	435	440	440
h Wheel Base in mm	1.159	1.179	1.200	1.231	1.258
i Stack in mm	603	603	605	616	632
j Reach in mm	410	430	450	470	490
k Stand-over Height in mm	809	807	808	812	817
l Bottom Bracket Offset in mm	38	38	38	38	38

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15	15	15	15	15
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	760	760	760	760	760
Crank Length in mm	165,0	170,0	170,0	175,0	175,0
Chainring Size	32	32	32	32	32
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Dropper post travel in mm	150	150	170	170	170
Seat Post Length in mm	458	458	498	498	498
Maximum Seat Post Insertion Depth in mm	259	259	279	279	279
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	140	140	140	140	140
Fitting Length in mm	210X55	210X55	210X55	210X55	210X55
Rim height in mm	25	25	25	25	25

Download PDF

Lux Trail CF 8 support

Canyon Sideloader Carbon Bottle Cage

£33.99

Canyon Disruptr CFR Helmet

£199.99

Canyon Top Tube Bag Gravel/MTB

£28.99

Canyon LOAD Trail Tool Pack

£18.99

Canyon Mud Guard

£11.99

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

£14.99

Canyon Tempr Off-Road Cycling Shoes

£149.99

Dynamic Slick Wax

£12.99

Canyon Bikestand

£56.99

Canyon 3-in-1 Minitool

£61.99

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
