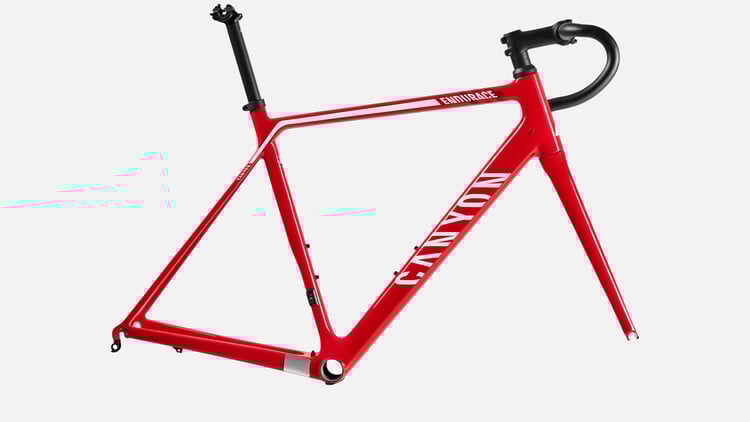

Endurace CF Frameset
- Material: Carbon (CF)
-
Weight:
2.26 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
-
This bike is available through CycleschemeCyclescheme allows you to save between 26% and 40% on your next Canyon. If your employer is signed up to Cyclescheme you can build your basket and checkout using Cyclescheme as the payment method. Learn moreThis bike is available through Green Commute InitiativeGet up to 47% off with tax-free savings. Select your Canyon bike or e-bike, include the approved gear and accessories, and apply.
Learn more -
Financing with KlarnaKlarna offers direct payments, pay later options, or installment plansCalculate amountFinancing with SplititNo credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

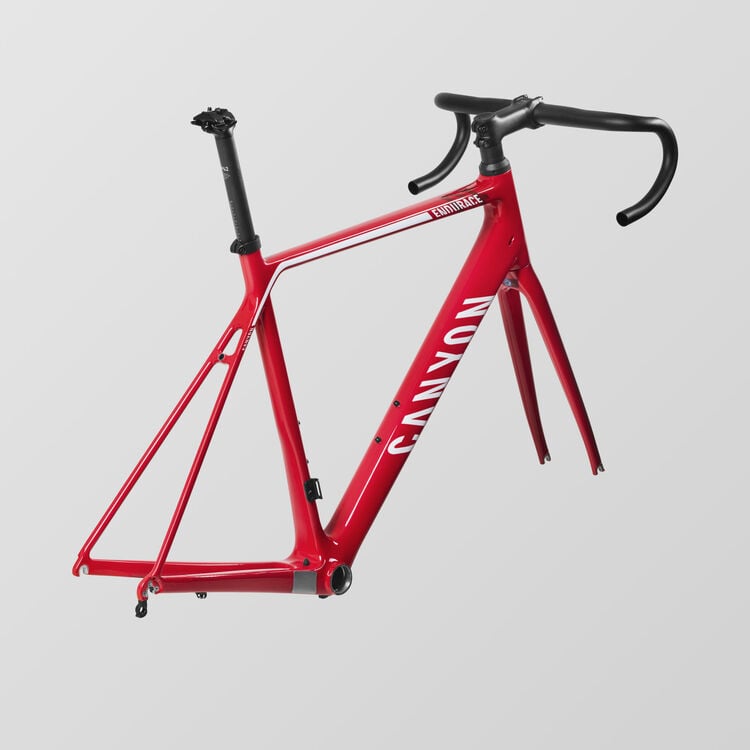

Highlights Endurace CF Frameset

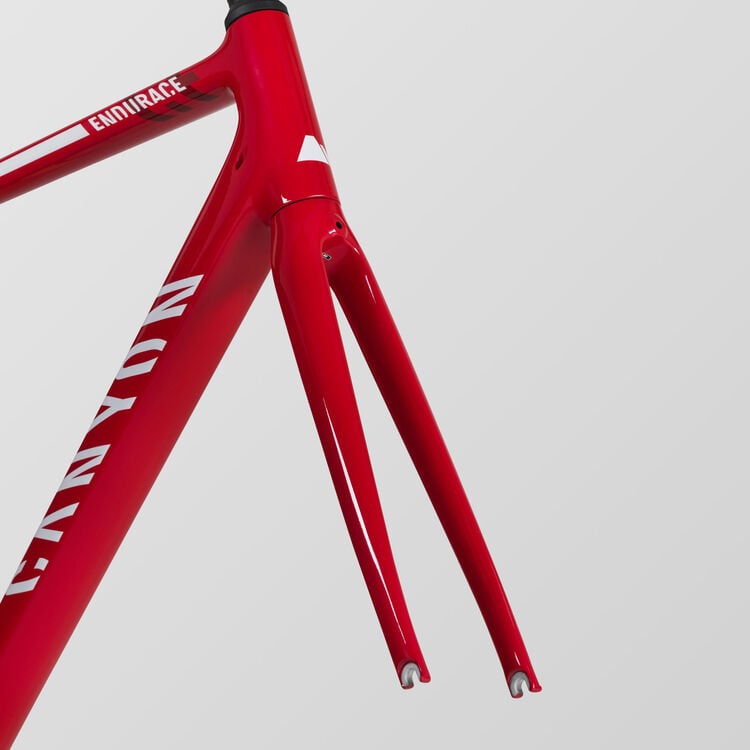

Rim brake compatible

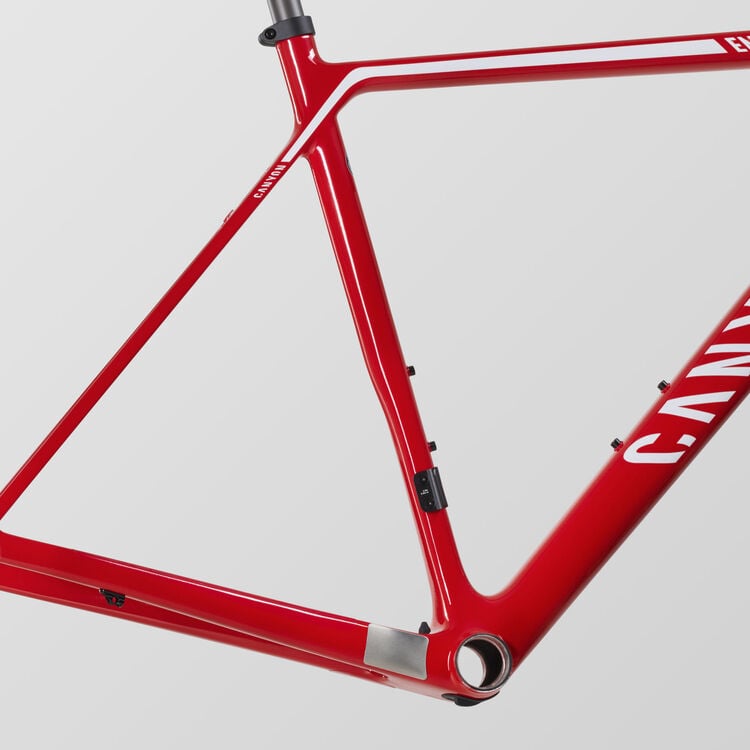

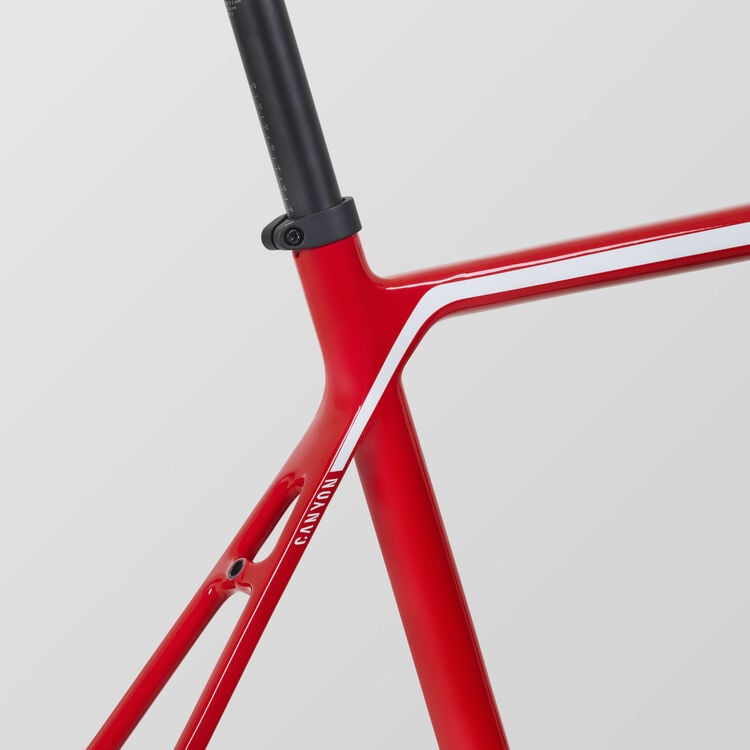

Stiff, comfort-boosting seat tube

Compliant and stiff

Clean, clear design
Frame
-
Frame
- Canyon Endurace CF
- Comfortable carbon road frame with Canyon's hallmark relaxed-yet-responsive Sport geometry.
- Material: Carbon
- Axle Dimension: 9 x 130 mm
- Brake Mount: Rim Brake
-
Fork
- Canyon F 28 CF
- Superlight carbon fork, engineered for high stiffness-to-weight and compliance.
- Axle dimension: 10x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 25 mm
- Material: Carbon (CF)
- Weight: 395 g
-
Headset
- Acros Ai-70F
Cockpit
-
Stem
- Canyon V13
- High-grade aluminium stem. With new handlebar clamp design for up to 40% more torsional stiffness.
- Clamp diameter: 31.8 mm
- Head tube diameter: 1 1/4”
-
Handlebar
- Canyon H17 Ergobar AL
- Ergonomic aluminium handlebar with curved design for optimal pressure distribution.
- Material: Aluminium
- Shape: Ergo
- Reach: 70 mm
- Drop: 130 mm
Seat
-
Seatpost
- Canyon SP0042 VCLS CF
- Material: Carbon
- Setback: 8 mm
- Technology: VCLS
-
Seat Clamp
- Canyon Clamp SL
Accessories
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Body Height in cm
|
≤ 172 | 172 - 177 | 177 - 182 | 182 - 187 | 187 - 192 | ≥ 192 |
---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
666 - 766 | 701 - 801 | 736 - 836 | 756 - 856 | 786 - 886 | 811 - 911 |
Seat Tube Length in mm
(b)
|
475 | 510 | 545 | 565 | 595 | 620 |
Top Tube Length in mm
(c)
|
526 | 538 | 547 | 555 | 576 | 586 |
Head Tube Length in mm
(d)
|
127 | 143 | 159 | 175 | 196 | 215 |
Head Tube Angle
(e)
|
70,9° | 71,6° | 72,4° | 73,3° | 73,3° | 73,3° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
979 | 986 | 989 | 989 | 1.010 | 1.020 |
Stack in mm
(i)
|
541 | 556 | 571 | 590 | 610 | 628 |
Reach in mm
(j)
|
366 | 373 | 378 | 380 | 395 | 400 |
Bottom Bracket Offset in mm
(l)
|
75 | 73 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
629 | 646 | 662 | 681 | 702 | 722 |
Reach+ in mm
|
424 | 442 | 457 | 471 | 486 | 500 |
Spacer in mm
|
18 | 18 | 18 | 18 | 18 | 18 |
---|---|---|---|---|---|---|
Stem Length in mm
|
80 | 90 | 100 | 110 | 110 | 120 |
Handlebar Width in mm
|
400 | 420 | 420 | 420 | 440 | 440 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 |
Endurace CF Frameset support
Other riders also bought
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
