Pathlite:ON 8 SUV
-
Weight:
28.86 kg
WeightWeight is based on a size medium frame.
- Front Fork Travel: 100 mm
- Colour: Tundra Green
- Colour: Ivory
-
-
Members only product. Log in here
Highlights Pathlite:ON 8 SUV

Bosch Performance Line CX and Smart System

Everything in plain view

Maxxis CrossMark II 57mm

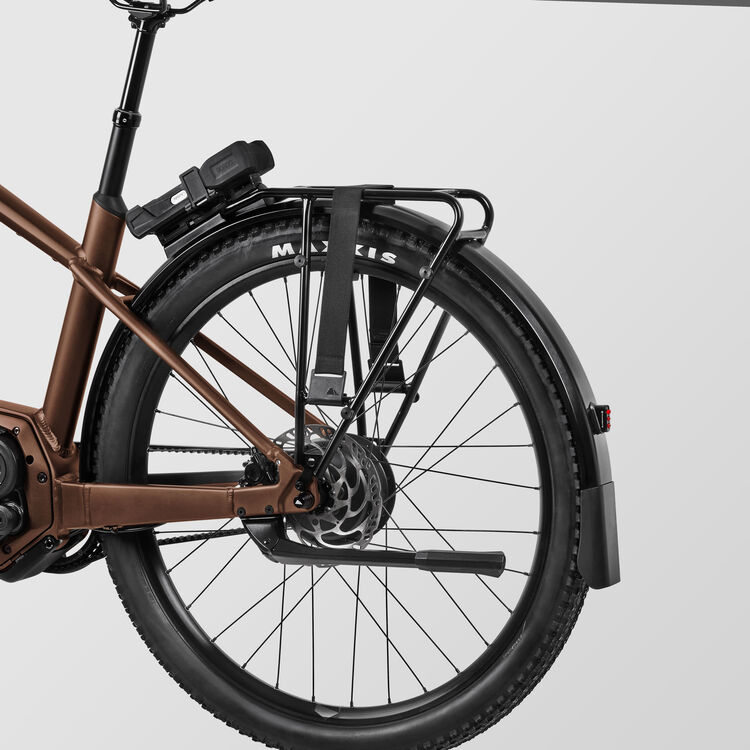

Fenders, rack and trailer
Frame
-
Frame
- Canyon Pathlite:ON
- A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,254 g
-
Suspension Fork

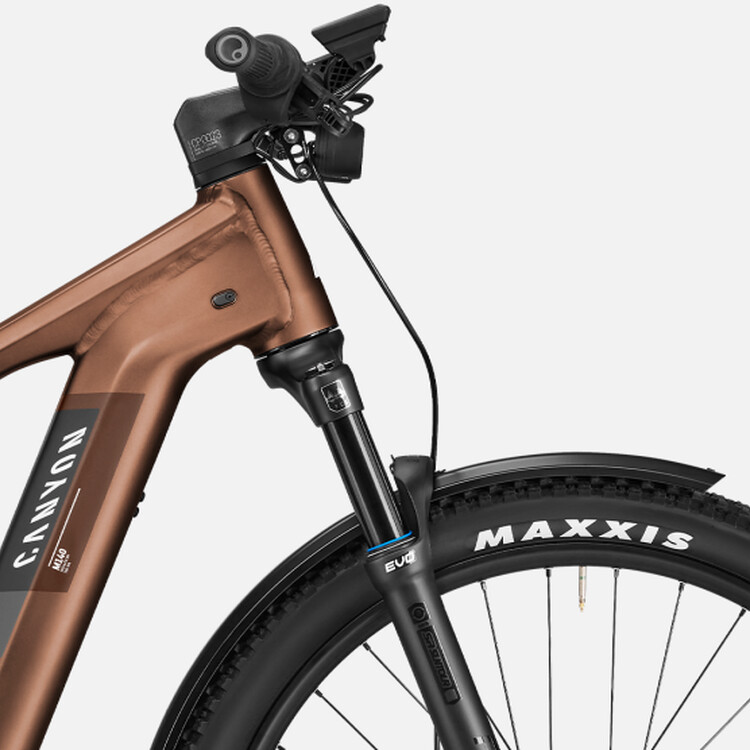

- SR Suntour AION35 EVO BOOST
- Axle dimension: 15x110 mm
- Stanchion Diameter: 35 mm
- Travel: 100 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 2,110 g
Drivetrain
-
Motor

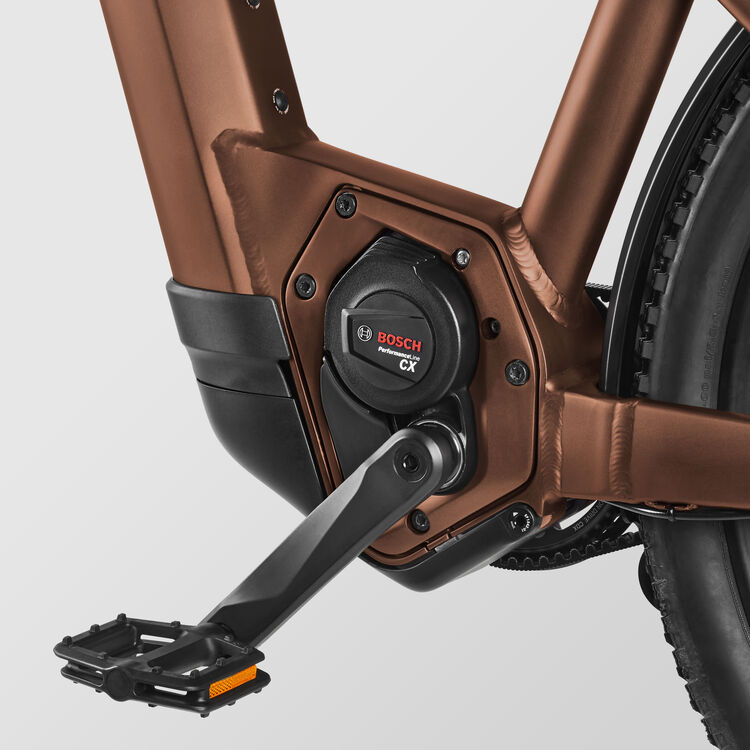

- Bosch Performance Line CX
-
Battery
- Bosch PowerTube 750Wh
-
Chainguard
- Gates Belt Tensioner
-
Chainguard
- Canyon EP1331-01
-
Chainguard
- Enviolo manual hub interface
-
Chainguard
- Canyon EP2129-01
-
Shift Lever
- Enviolo shifting, Gates belt
- Weight: 128 g
-
Cassette
- Gates CDX 22T rear sprocket
- Number of sprockets: 1
- Range: 22
-
Crank
- FSA CK 220
- Number of chainrings: 1
-
Chainring
- Gates CDX 50T incl. Guard
-
Chain
- Gates CDX Belt
Brakes
-
Disc Brake
- Magura MT thirty rear
- Number of pistons: 2
-
Disc Brake
- Magura MT30
- Number of pistons: 4
-
Brake Rotor
- Magura MDR-C
- Size: 180 mm
- Weight: 138 g
-
Brake Rotor
- Magura MDR-C
- Size: 180 mm
- Weight: 138 g
Wheels
-
Front Wheel
- Alexrims MD25 | Promax DR850
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 905 g
-
Rear Wheel
- Alexrims MD25 | Enviolo heavy duty hub
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 1,244 g
-
Tyre

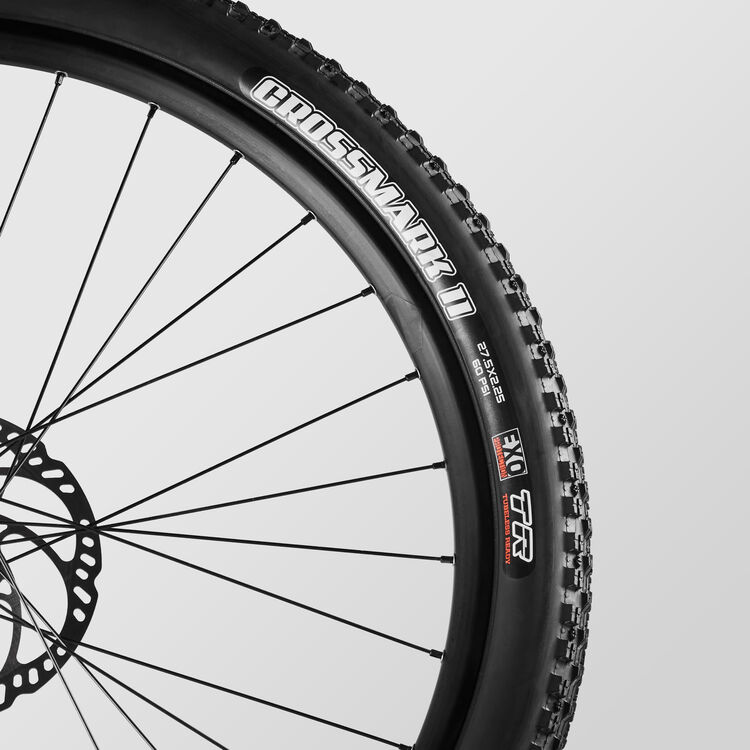

- Maxxis Crossmark II EXO TR
- Weight: 735 g
Cockpit
-
Cockpit
- Canyon CP23
- A one-piece aluminium cockpit with internal cable routing.
- Material: Aluminium (AL)
- Weight: 380 g
-
Grips
- Ergon GA30 Twist Shift Supernova down left
-
Bells
- Knog Oi Classic
-
Display
- Bosch SmartphoneGrip
-
Display

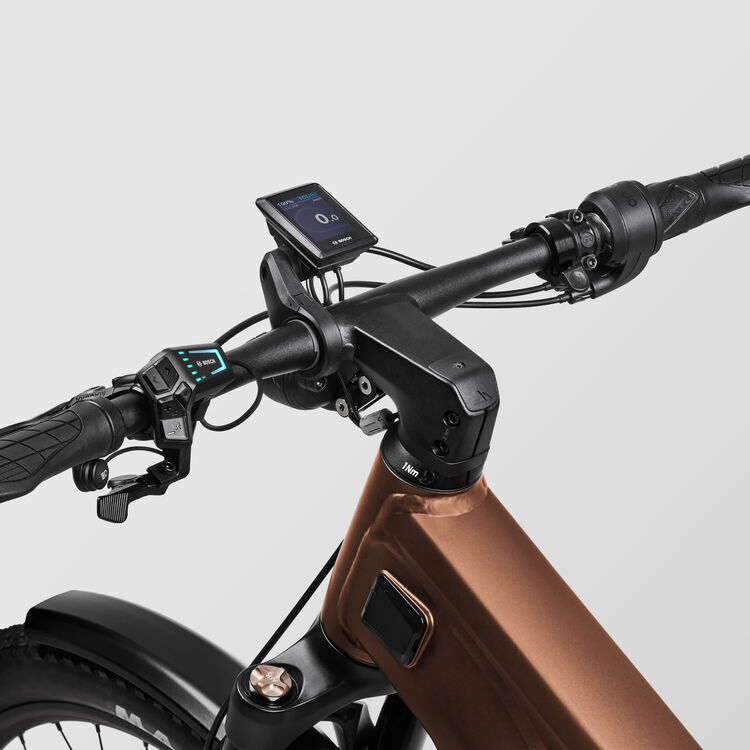

- Bosch Kiox 300
Seat
-
Saddle
- SR Royal Essenza+
- Width: 225 mm
- Gender: Unisex
- Weight: 561 g
-
Seatpost
- Canyon SP0062 Supension Dropper Post
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 518 g
-
Seat Clamp
- Canyon GP0170-01 Seatclamp
Light
-
Lights
- Supernova M99 Mini Pro
-
Lights
- Supernova Mini 2 Pro Frontlight
-
Lights
- Supernova E3 Tail Light 2
Accessories
-
Battery Charger
- Bosch 4A
-
Pedals
- VP-536 f
-
Bike Racks
- Aluminium Fenders with Canyon Rack
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Drybag
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- QSG 015-V02 M140 141 PTL[ON]
-
Manuals and Accessories
- QSG 015-V02 M140 141 PTL[ON]
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Body Height in cm
|
≤ 180 | 180 - 190 | ≥ 190 |
---|---|---|---|
Seat Height in mm
(a)
|
633 - 813 | 678 - 858 | 723 - 903 |
Seat Tube Length in mm
(b)
|
430 | 475 | 520 |
Top Tube Length in mm
(c)
|
598 | 625 | 652 |
Head Tube Length in mm
(d)
|
137 | 164 | 191 |
Head Tube Angle
(e)
|
68,5° | 68,5° | 68,5° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
460 | 460 | 460 |
Wheel Base in mm
(h)
|
1.138 | 1.168 | 1.198 |
Stack in mm
(i)
|
650 | 675 | 700 |
Reach in mm
(j)
|
405 | 425 | 445 |
Stand-over Height in mm
(k)
|
775 | 800 | 825 |
Bottom Bracket Offset in mm
(l)
|
65 | 65 | 65 |
Spacer in mm
|
10,0 | 10,0 | 10,0 |
---|---|---|---|
Cockpit Dimensions in mm
|
80-680 | 80-680 | 80-680 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
25 | 25 | 25 |
Seat Post Length in mm
|
415 | 415 | 415 |
Maximum Seat Post Insertion Depth in mm
|
260 | 260 | 260 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 |
Wheel Size
|
27.5" | 27.5" | 27.5" |
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 |
Front Fork Travel in mm
|
100 | 100 | 100 |
Battery capacity
|
750 Wh | 750 Wh | 750 Wh |
Pathlite:ON 8 SUV support
Other riders also bought
Bike classification
Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
