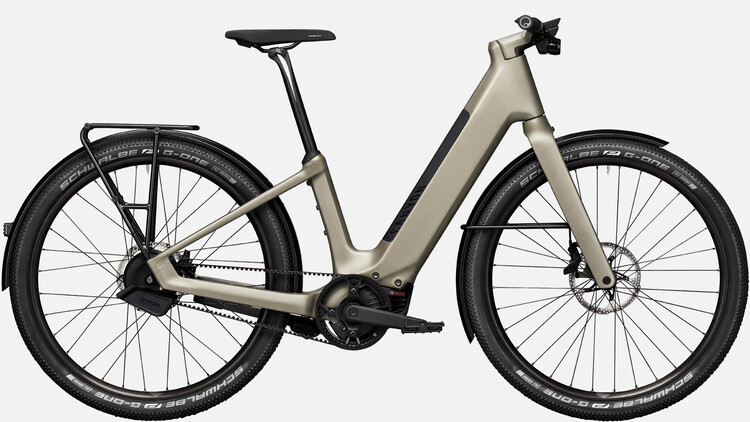

Precede:ON CF 9 step-through
- Range: 100 km
- Colour: Anchor Grey
-
-
Members only product. Log in here
Highlights Precede:ON CF 9 step-through

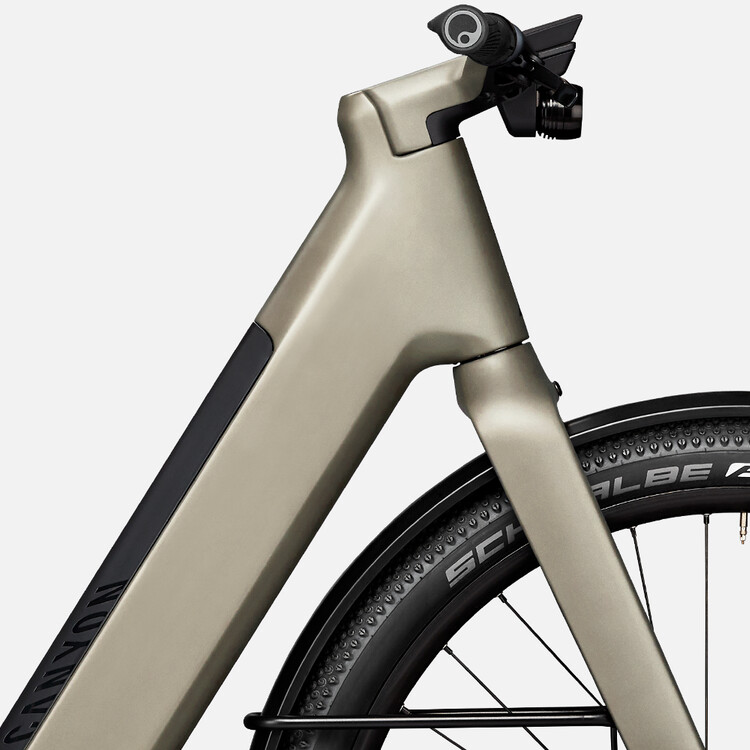

Beautiful, Feature-rich Cockpit

Kickstand: Maximum Mobility

An Aesthetic Seatpost Clamp

Bosch Performance Line CX motor
Frame
-
Frame
- Canyon Precede:ON CF
- Elegant, sleek carbon urban e-bike frame with maximum feature integration and packed with functional features.
- Material: Carbon (CF)
- Weight: 1,800 g
-
Fork
- Canyon FK0052 Disc
- Stylish, elegant, light carbon fork.
- Fork steer tube diameter: 1 1/8"
- Material: Carbon (CF)
- Weight: 365 g
Drivetrain
-
Motor
- Bosch Performance Line CX
-
Battery
- Bosch PowerTube
-
Hub gear
- Enviolo Heavy Duty 32H 10x135 mm 40T Solid Axle
-
Cassette
- Gates CDX 24T
- Number of sprockets: 1
- Range: 24
-
Crank
- Miranda Delta
-
Chainring
- Gates 50T Beltring with Guard
-
Chain
- Gates CDX Belt
Brakes
-
Disc Brake
- Canyon GP0164 brakes integrated by TRP
-
Disc Brake
- CANYON GP0164 brakes integrated by TRP
-
Brake Rotor
- Tektro R180C01E 180mm Center Lock
- Size: 180 mm
- Weight: 408 g
-
Brake Rotor
- Tektro R180S01E 180mm 6-Hole
- Size: 180 mm
- Weight: 19 g
Wheels
-
Front Wheel
- Alexrims MD25 | Shimano MT400
- Axle dimension: 15X100 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Rim material: Aluminium
- Weight: 882 g
-
Rear Wheel
- Alexrims MD25 | Enviolo CA Automatiq
- Rotor mount: IS 6-bolt
- Weight: 3,170 g
-
Tyre
- Schwalbe G-One Allround 57mm
- Width: 2.25"
- Weight: 500 g
-
Thru Axle
- Canyon EP1142 Front Thru Axle
- Axle dimension: 15X100 mm
Cockpit
-
Cockpit
- Canyon CP02 Cockpit
- Beautiful, feature-rich cockpit that integrates a range of features into a streamlined form at your fingertips: ergonomic brake levers, powerful light, ride computer, bell.
- Material: Carbon (CF)
- Weight: 320 g
-
Grips
- Ergon GA3
-
Bells
- Knog Oi Classic
-
Display
- Bosch Kiox
Seat
-
Saddle
- SR Royal Essenza
- Gender: Unisex
- Weight: 330 g
-
Seatpost
- Canyon S25 VCLS 2.0 CF
- Material: Carbon
- Setback: -2 mm / 10 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 235 g
-
Seat Clamp
- Canyon GP0170-01 Seatclamp
Light
-
Lights
- Supernova Universal Fender Tail Light
-
Lights
- Supernova Mini2
Accessories
-
Battery Charger
- Bosch Compact 2A
-
Pedals
- VP-536 f
-
Bike Racks
- Canyon Rack
-
Fender
- AL Fenders with Canyon Rack
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- QSG 008-V02 U015/U016 PRE[ON]
Body Height in cm
|
≤ 160 | 160 - 170 | 170 - 180 | ≥ 180 |
---|---|---|---|---|
Seat Height in mm
(a)
|
623 - 723 | 658 - 758 | 698 - 798 | 743 - 843 |
Seat Tube Length in mm
(b)
|
365 | 400 | 440 | 485 |
Top Tube Length in mm
(c)
|
547 | 565 | 585 | 622 |
Head Tube Length in mm
(d)
|
148 | 154 | 167 | 194 |
Head Tube Angle
(e)
|
70,5° | 71,5° | 72° | 72° |
Seat Tube Angle
(f)
|
72,5° | 72,5° | 72,5° | 72,5° |
Chainstay Length in mm
(g)
|
499 | 499 | 499 | 499 |
Wheel Base in mm
(h)
|
1.100 | 1.108 | 1.122 | 1.159 |
Stack in mm
(i)
|
608 | 618 | 632 | 658 |
Reach in mm
(j)
|
375 | 390 | 406 | 434 |
Bottom Bracket Offset in mm
(l)
|
80 | 80 | 80 | 80 |
Spacer in mm
|
0,0 | 0,0 | 0,0 | 0,0 |
---|---|---|---|---|
Cockpit Dimensions in mm
|
80-640 | 80-640 | 80-640 | 80-640 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Seat Post Length in mm
|
400 | 400 | 400 | 400 |
Maximum Seat Post Insertion Depth in mm
|
190 | 190 | 190 | 190 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 | 90 |
Wheel Size
|
27.5" | 27.5" | 27.5" | 27.5" |
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 |
Battery capacity
|
500 Wh | 500 Wh | 500 Wh | 500 Wh |
Precede:ON CF 9 step-through support
Other riders also bought
Bike classification
Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
