Exceed CF SLX CLLCTV

Name: Exceed CF SLX CLLCTV
Brand: Canyon
Price: 4419.00 USD
Availability: OutOfStock
Rating: 4 (11 reviews)

Out of stock
-18%

4,419 US$

Original price ~~5,399 US$~~

You save 980 US$

This is an eye-wateringly rapid cross-country hardtail combining the race-proven handling and speed of the Exceed CF SLX frame with incredible SRAM shifting and DT Swiss carbon wheels.

Customer reviews (11)

Members only product.

4,419 US$

Original price ~~5,399 US$~~

You save 980 US$

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Delivery: Select frame size

Highlights Exceed CF SLX CLLCTV

Key features

CF SLX – Advanced carbon fibre

Light enough to fly up singletrack and durable for serious trail riding, the CF SLX carbon frame was born from the finest material and cutting-edge engineering. A high-level stiffness-to-weight ratio and an optimized fibre layup guarantee a bike that is always ready to kick, as long as you’ve got the legs.

Impact protection unit

To protect your frame in the event of a crash, the Exceed uses an integrated Impact Protection Unit. The useful feature prevents your handlebars from over-rotating and striking the top tube if you go rubber side up.

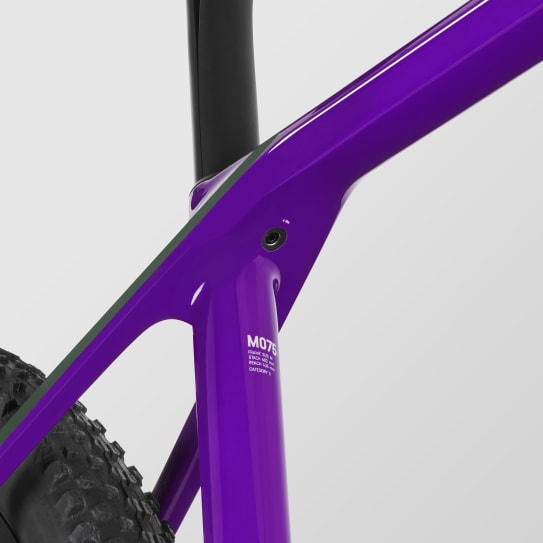

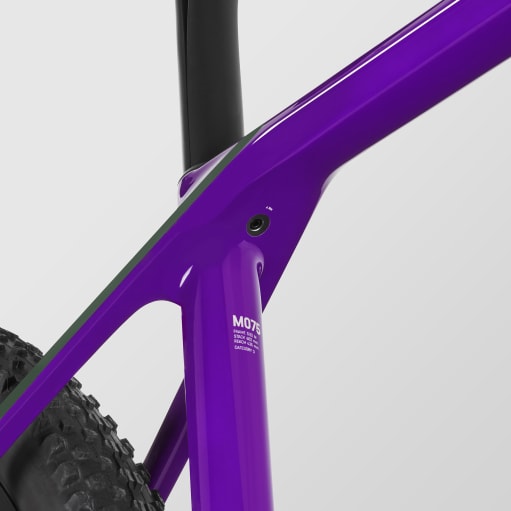

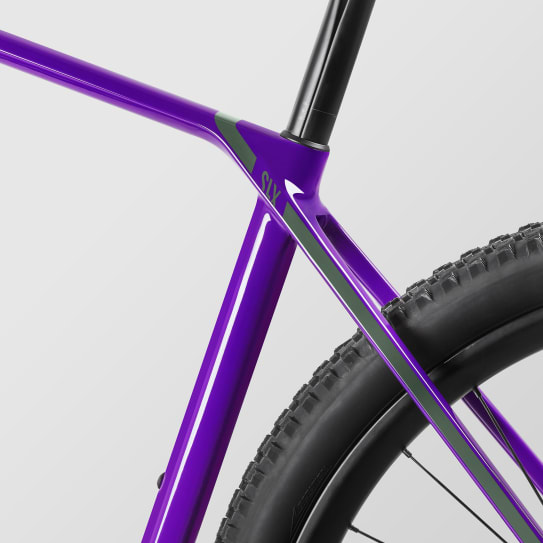

Integrated seat clamp

An internal clamp design secures the seatpost deeper in the seat tube increasing the post’s effective bending length and improving ride comfort. The special clamp is built into the frame making it more aero than traditional designs.

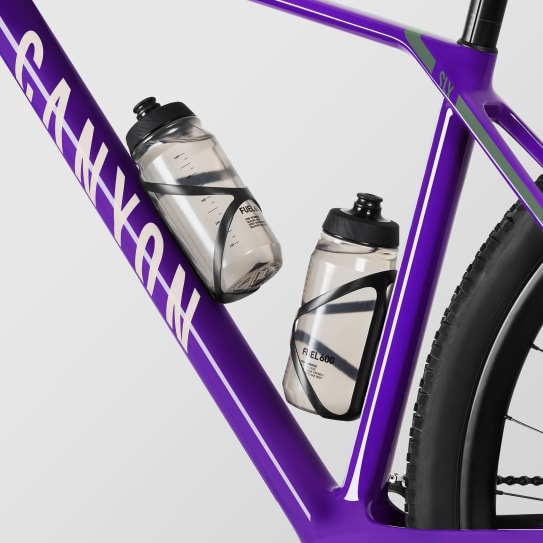

Stay hydrated

Leave your hydration pack at home and keep your thirst quenched on even the longest rides and races. Mount two bottle cages within the frame to easily carry 1.5 litres of fluid in Canyon Fuel bottles. There’s ample room in every frame size, although we do recommend Canyon Sideloader cages on XS frames.

Components

Content is loading

Frame

Frame
- Canyon Exceed CF SLX
- Superlight XC race hardtail, engineered for optimum stiffness-to-weight. 29 inch wheels, 100 mm forks, high-grade carbon for peak performance between the tapes or on the trails.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 1,121 g
Suspension Fork
- RockShox SID SL Ultimate RaceDay Remote
- Axle dimension 15x110 mm
- Stanchion Diameter 32 mm
- Travel 100 mm
- Fork steer tube diameter 1 1/8" - 1 1/4"
- Weight 1,600 g

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM XX1 Eagle AXS
- Cage length long
- Weight 264 g
Shift Lever
- SRAM Eagle AXS Controller
- Weight 70 g
Cassette
- SRAM XG-1295
- Number of sprockets 12
- Range 10-52 12S
Crank
- SRAM XX1 Eagle DUB 34T
- Number of chainrings 1
Bottom bracket
- SRAM Pressfit DUB
- Bottom bracket standard PF 92
- Weight 79 g
Chain
- SRAM X01 Eagle 12s

Brakes

Disc Brake
- SRAM Level Ultimate
Disc Brake
- SRAM Level Ultimate
Brake Rotor
- SRAM Centerline, 160mm
- Size 160 mm
- Weight 117 g
Brake Rotor
- SRAM Centerline X Rounded Edges
- Size 180 mm
- Weight 147 g

Wheels

Front Wheel
- DT Swiss XRC1200
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Carbon
- Weight 684 g
Rear Wheel
- DT Swiss XRC1200
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Carbon
- Weight 791 g
Tyre
- Maxxis Ikon EXO MaxxSpeed
- Width 2.35"
- Weight 835 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

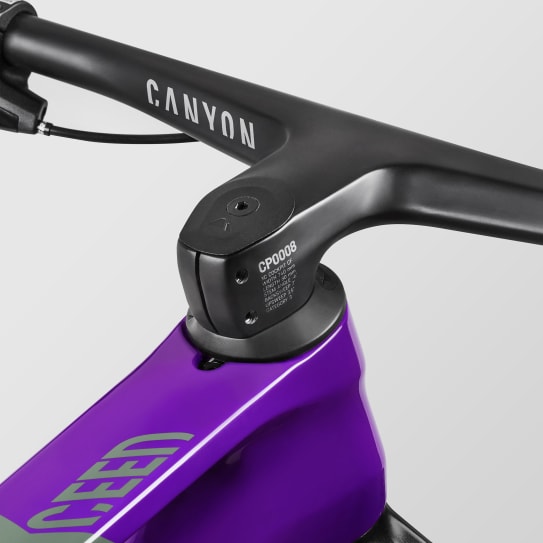

Cockpit

Cockpit
- Canyon CP0008 Cockpit
- Light, stiff one-piece carbon cockpit designed with Canyon’s pro riders for XC riding. Special shape allows ergonomic, comfortable grip near stem and aerodynamic position on straight, flat sections.
- Material Carbon (CF)
- Weight 325 g
Grips
- Ergon GA20

Seat

Saddle
- Selle Italia SLR KC Boost
- Gender Unisex
- Max. Rider Weight 100 kg
- Weight 136 g
Seatpost
- Canyon VCLS 2.0
- Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing.
- Seatpost diameter 30,9 mm
- Material Carbon (CF)
- Weight 350 g

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	629 - 731	669 - 771	712 - 814	749 - 851	789 - 891
Seat Tube Length in mm (b)	375	415	458	495	535
Top Tube Length in mm (c)	552	575	596	620	645
Head Tube Length in mm (d)	90	90	95	110	130
Head Tube Angle (e)	69°	69°	69°	69°	69°
Seat Tube Angle (f)	75°	75°	75°	75°	75°
Chainstay Length in mm (g)	425	425	425	430	435
Stack in mm (i)	597	597	602	616	634
Reach in mm (j)	392	415	435	455	475
Stand-over Height in mm (k)	781	803	828	854	883
Bottom Bracket Offset in mm (l)	58	58	58	58	58

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Cockpit Dimensions in mm	80-740	80-740	80-740	80-740	80-740
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	100	100	100	100	100
Seat Post Length in mm	400	400	400	400	400
Maximum Seat Post Insertion Depth in mm	194	194	194	194	194
Minimum Seat Post Insertion Depth in mm	92	92	92	92	92
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	100	100	100	100	100
