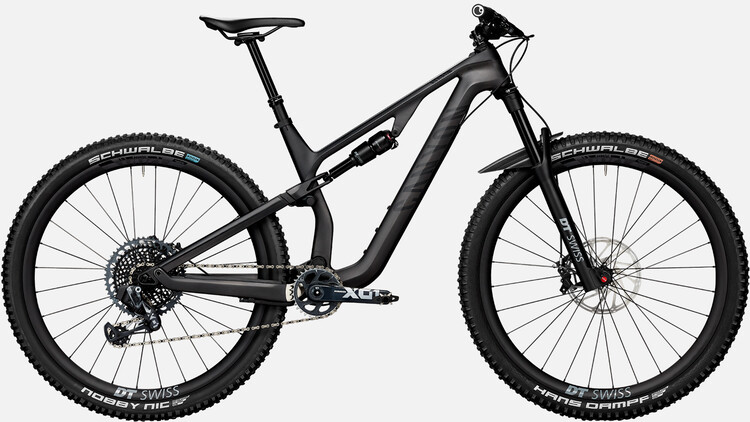

Neuron CF LTD

Out of stock

4,799 US$

Original price ~~4,899 US$~~

You save 100 US$ (-2%)

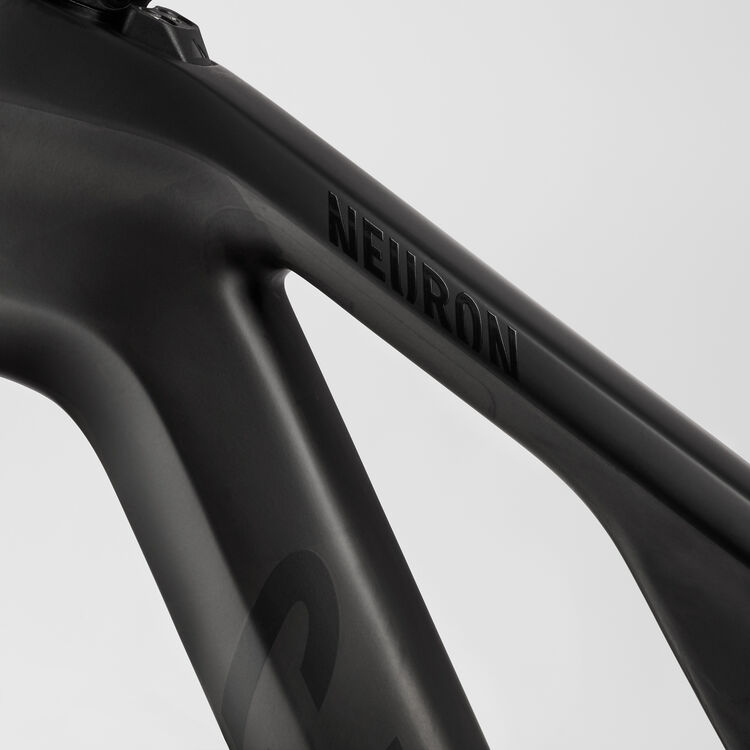

High-end DT Swiss parts. Premium frame finish. Only 100 models available. The Neuron CF LTD is a true one-of-a-kind, all-round trail bike

All components

Customer reviews (12)

Product Configuration

Members only product.

Buying reasons

Delivery: Select frame size

4,799 US$Original price ~~4,899 US$~~

You save 100 US$ (-2%)

Product added to cart

Select frame size

Highlights Neuron CF LTD

Key features

Top tube protection

Our patented Impact Protection Unit (IPU) prevents your handlebars and brake levers from impacting and damaging the Neuron’s top tube during a hard hit.

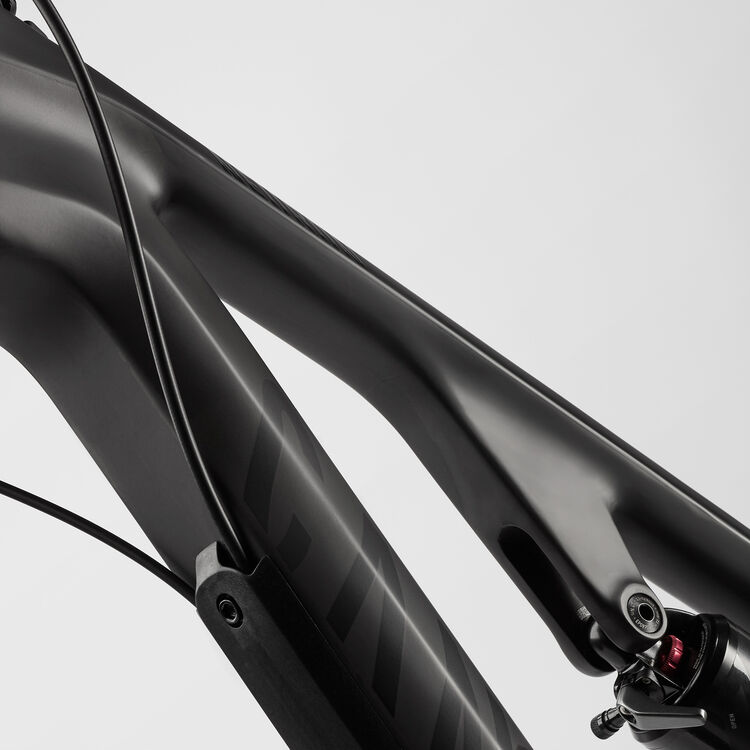

Cable and frame protection

We’ve integrated a plastic cable channel into the down tube to protect the frame from flying stones and ground impacts. This feature also makes swapping cables quick and easy.

Components

Content is loading

All components are based on size M

Frame

Frame
- Canyon Neuron CF
- null
- null
Rear Shock
- DT Swiss R535
Suspension Fork
- DT Swiss F535
- null
- null

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM X01 Eagle AXS
- null
Shift Lever
- SRAM Eagle AXS Controller
- null
Cassette
- SRAM XG-1295
- null
- null
Crank
- SRAM X01 Eagle DUB
- null
Bottom bracket
- SRAM BSA DUB
- null
- null
Chain
- SRAM GX Eagle

Brakes

Disc Brake
- SRAM G2 RSC
Disc Brake
- DB SRAM G2 RSC 1550 PM bk
Brake Rotor
- SRAM Centerline Rounded
- null
- null
Brake Rotor
- SRAM Centerline Rounded
- null
- null

Wheels

Front Wheel
- DT Swiss XMC 1200
- null
- null
Rear Wheel
- DT Swiss XMC 1200 XD
- null
Tyre
- Schwalbe Hans Dampf
- null
- null
Tyre
- Schwalbe Nobby Nic
- null
- null
Thru Axle
- Canyon Quixle Thru Axle, Boost 148

Cockpit

Stem
- Race Face Turbine 35
- null
Handlebar
- Race Face Next 35
- null
- null
- null
Grips
- Ergon GA20

Seat

Saddle
- Ergon SM10 Sport
- null
- null
Seatpost
- Race Face Turbine R
- null
- null
- null
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 165	165 - 174	174 - 182	182 - 192	≥ 192
a Seat Height in mm	614 - 764	657 - 814	702 - 859	737 - 894	777 - 934
b Seat Tube Length in mm	400	400	445	480	520
c Top Tube Length in mm	558	581	603	626	654
d Head Tube Length in mm	88	100	102	112	143
e Head Tube Angle	67°	66,5°	67°	67°	67°
f Seat Tube Angle	74,5°	74,5°	74,5°	74,5°	74,5°
g Chainstay Length in mm	430	430	440	440	440
h Wheel Base in mm	1.121	1.146	1.167	1.190	1.222
i Stack in mm	578	589	614	623	651
j Reach in mm	398	418	433	453	473
k Stand-over Height in mm	761	765	784	788	799
l Bottom Bracket Offset in mm	18	18	38	38	38

Component geometry

Detailed geometry table
Frame size
Spacer in mm	5,0	5,0	10,0	15,0	15,0
Stem Length in mm	60	60	60	60	60
Handlebar Width in mm	740	740	760	760	760
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	32	32	32	32	32
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	150	150	150
Seat Post Length in mm	406	456	456	456	456
Maximum Seat Post Insertion Depth in mm	240	247	247	247	247
Minimum Seat Post Insertion Depth in mm	90	90	90	90	90
Wheel Size	27.5"	27.5"	29"	29"	29"
Disc Size in mm	200 / 180	200 / 180	200 / 180	200 / 180	200 / 180
Front Fork Travel in mm	140	140	140	140	140
Rear Suspension Travel in mm	130	130	130	130	130
Fitting Length	190X45	190X45	210X50	210X50	210X50

Download PDF

Content is loading

Neuron CF LTD support

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
