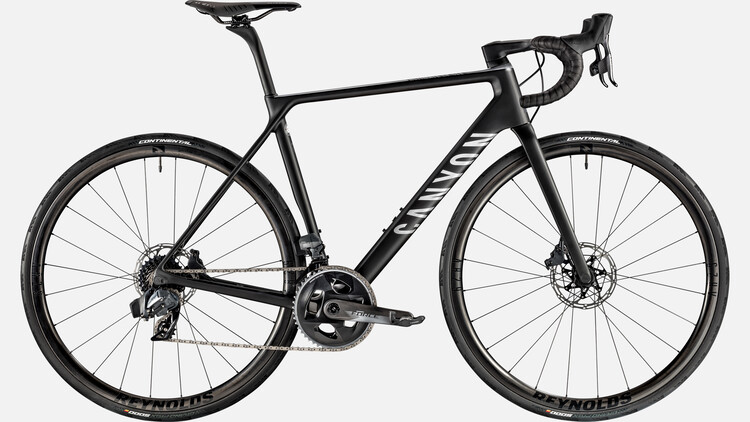

Ultimate CF SLX Disc 8.0 SL
-
Out of stock
4,099 US$
Original price
You save 600 US$
With a multiple award-winning frame and excellent components, this bike has all the performance you need for the hardest training sessions and fastest races.
Members only product.
Log in here
Additional information
Current delivery times information.
Read more
Not included:
Delivery:
Select frame size
Highlights Ultimate CF SLX Disc 8.0 SL
Content is loading
Frame
-
Frame
- Canyon Ultimate CF SLX Disc
- Material: Carbon
- Axle Dimension: 12 x 142 mm
- Brake Mount: Flat Mount
-
Fork
- Canyon F38 CF Disc
- High-end carbon road bike fork designed to deliver optimal strength and stiffness-to-weight.
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 2,000 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM Force eTap AXS, 12-speed
- Weight: 300 g
-
Front Derailleur
- SRAM Force eTap AXS
- Weight: 180 g
-
Cassette
- SRAM Force XG-1270, 12-speed, 10-28T
- Number of sprockets: 12
-
Crank
- SRAM Force D1
- Number of chainrings: 2
-
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
-
Chain
- SRAM FORCE D1 12-speed
- With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Brakes
-
Shift-/ Brake Lever
- SRAM Force eTap AXS HRD 2s
- Weight: 605 g
-
Shift-/ Brake Lever
- SRAM Force eTap AXS HRD 12s
- Weight: 610 g
-
Brake Rotor
- SRAM Centerline, 160mm
- Size: 160 mm
- Weight: 117 g
Wheels
-
Front Wheel
- Reynolds AR 29 DB
- Rotor mount: Center Lock
- Rim height: 29 mm
- Weight: 1,520 g
-
Rear Wheel
- Reynolds AR 29 Disc
- Rotor mount: Center Lock
- Rim height: 29 mm
- Weight: 1,520 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 260 g
-
Thru Axle
- Canyon Through Axle
- Axle dimension: 12x100 mm
- Material: Aluminium (AL)
-
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0030 Aerocockpit
- One-piece carbon cockpit integrating bar and stem into a single sleek unit.
- Material: carbon
- Shape: Ergo
- Reach: 74 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
Seat
-
Saddle
- Fizik Antares R3
- Weight: 222 g
-
Seatpost
- Canyon S13 VCLS CF
- Material: Carbon
- Setback: 15 - 35 mm
- Technology: VCLS
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
620 - 720 | 653 - 753 | 680 - 780 | 708 - 808 | 740 - 840 | 770 - 870 | 800 - 900 |
Seat Tube Length in mm
(b)
|
434 | 467 | 494 | 522 | 554 | 584 | 614 |
Top Tube Length in mm
(c)
|
513 | 529 | 543 | 556 | 571 | 596 | 612 |
Head Tube Length in mm
(d)
|
89 | 107 | 130 | 148 | 174 | 195 | 213 |
Head Tube Angle
(e)
|
69,6° | 71° | 72,3° | 73,3° | 73,3° | 73,5° | 73,8° |
Seat Tube Angle
(f)
|
73,9° | 73,8° | 73,8° | 73,8° | 73,8° | 73,8° | 73,8° |
Chainstay Length in mm
(g)
|
415 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
983 | 988 | 993 | 996 | 1.011 | 1.034 | 1.046 |
Stack in mm
(i)
|
500 | 522 | 546 | 567 | 592 | 613 | 631 |
Reach in mm
(j)
|
369 | 378 | 385 | 391 | 399 | 418 | 428 |
Stand-over Height in mm
(k)
|
720 | 748 | 775 | 801 | 828 | 851 | 874 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
633 | ||||||
Reach+ in mm
|
479 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-370 | 90-390 | 90-390 | 100-410 | 110-410 | 110-430 | 120-430 |
Crank Length in mm
|
170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
48/35 | 48/35 | 48/35 | 48/35 | 48/35 | 48/35 | 48/35 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
345 | 345 | 345 | 345 | 345 | 345 | 345 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Download PDF
Content is loading
Ultimate CF SLX Disc 8.0 SL support
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
