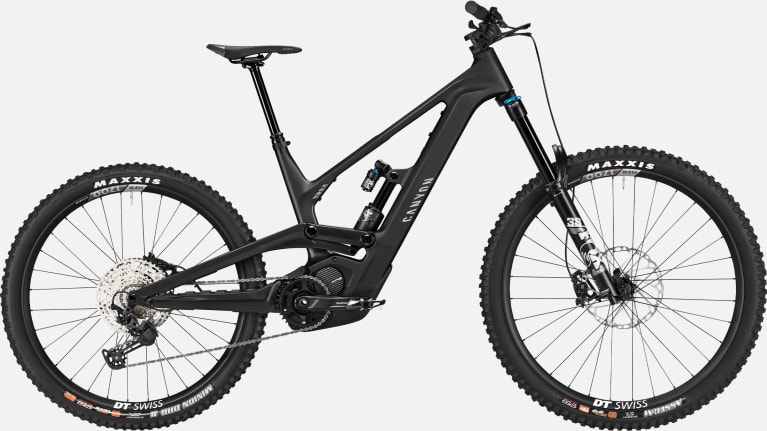

Outlet Mountain Outlet

Torque:ON CF 8

88.499 SEK

Original price ~~113.799 SEK~~

You save 25.300 SEK (-22%)

Simply the best value in gravity e-MTBs today. Full carbon frame, stellar components, and a price that just can’t be beat.

Bomber, long-travel e-gravity frame
Proven power, courtesy of Shimano EP8 motor
FOX Rhythm 38 fork and Float X2 shock
Reliable Shimano SLX drivetrain and brakes
Rugged, removable 800 Wh aluminium battery
Up to 85 km range and 1,900 m of elevation gain

30-day return policy

6 Year Guarantee

Front Fork Travel: 180 mm
Weight: 24,84 kg

All components

Customer reviews (39)

Product Configuration

Colour:

Stealth

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

88.499 SEK

Original price ~~113.799 SEK~~

You save 25.300 SEK (-22%)

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Buying reasons

Financing with Klarna Instalments

Klarna offers direct payments, pay later options, or installment plans
Calculate amount

Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
95% built on arrival. We include the tools — the Canyon app walks you through every step. No workshop experience needed.

Explore in the Canyon app
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Your bike arrives in our custom Bike Guard – built to absorb impacts in transit and keep every component locked in place. Tough, reusable, and ready to double as a stable stand for a fast setup.

Delivery: Select frame size

Highlights Torque:ON CF 8

Play:ON repeat

A masterpiece in raw carbon

Experience the refined elegance of this bike’s premium stealth artwork, designed to showcase its advanced unidirectional carbon structure. By revealing the intricate carbon layup, we’ve reduced weight and created a distinctive, textured aesthetic.

Ride before you decide

Want to see and test ride a Canyon before you make your decision? Check out this and other Canyon models at our CLLCTV Sessions group rides, at Canyon stores, and at our growing number of global Canyon Experience Partners.

See locations

Let’s set-up your new bike

Wondering how to properly adjust your suspension or take full advantage of all the technology on your new bike? Our set-up guide in the Canyon App will help you quickly build and tune your new ride to your tastes. Stay composed and in control with the capable trail geometry.

See the set-up guide

Key features

True gravity frame

Inspired by downhill and motocross design, this full carbon frame features true gravity geometry and bombproof Category 5e strength to make it our toughest and most capable e-MTB ever. The low slung, responsive carbon chassis delivers dialled handling so you can rail every turn and boost any jump.

Hydration station

A low-slung gravity focussed frame is no place for a conventional water bottle and cage but sending it is thirsty work. That’s why we integrated a sleek 650 ml water bottle behind the headtube. To keep the bottle secure through big hits, every Torque:ON CF will ship with the bottle, mount and a shred proof security strap.

Proven Shimano power

A great e-MTB needs to pack serious power under the hood without compromising handling and that’s exactly what the EP801 does. With a whopping 85 Nm of torque and 400% pedal assist, the motor will have you flying up steep trails and its compact size and light 2.7 kg weight ensure that the bike still handles like a champ.

Next-gen power. Smart and robust.

The new 800 Wh aluminium battery redefines e-MTB performance. Built with next-generation cells, it boasts faster charging, smarter energy management, and improved efficiency. With IP57 dust protection and waterproofing, double-sealed protection, and the seal of approval from independent testing authority SGS, it’s as durable as it is advanced.

Components

Content is loading

All components are based on size M

Frame

Frame
- Canyon Torque:ON CF
- A progressive, hugely capable carbon freeride e-MTB engineered to crush challenging trails with ease and power.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 3350 g
Rear Shock
- Fox X2 Performance
Suspension Fork
- Fox 38 Rhythm Grip
- Axle dimension 15x110 mm
- Stanchion Diameter 38 mm
- Travel 180 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Weight 2180 g
Seatpost Clamp
- Canyon SC0001

Drivetrain

Motor
- Shimano EP801
Battery
- Canyon BT010
Rear Derailleur
- Shimano SLX 12s
- Cage length long
- Weight 310 g
Chainguard
- Canyon EP1189-01 Chain Guide Nut
Chainguard
- Canyon GP0397-01 Chainguide
Chainguard
- Canyon EP1539-01 Chain Guide
Shift Lever
- Shimano Deore SLX M7100
- Weight 143 g
Cassette
- Shimano Deore M6100
- Number of sprockets 12
- Range 10-51
Crank
- Shimano Steps
- Number of chainrings 1
Chainring
- Canyon EP1110-01 Chainring 34T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano SLX M7120
- Number of pistons 2
Disc Brake
- Shimano SLX M7120
- Number of pistons 4
Brake Rotor
- Shimano RT-EM600
- Size 203 mm
- Weight 10 g
Brake Rotor
- Shimano Center Lock Bremsscheibe 220mm SM-RT64
- Size 220 mm
- Weight 190 g

Wheels

Front Wheel
- DT Swiss HFR1700
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Weight 893 g
Rear Wheel
- DT Swiss HFR1700
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Weight 1135 g
Tyre
- Maxxis Minion DHR II 3C MaxxTerra
- Width 2.4"
- Weight 900 g
Tyre
- Maxxis Assegai 3C MaxxGrip
- Width 2,5"
- Weight 1160 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031
- Canyon E-MTB stem.
- Length 45 mm
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
Handlebar
- Handlebar HB0057
- Clamping diameter 35,0 mm
- Rise 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Gravita Alpaca X5
- Gender Unisex
- Weight 220 g
Seatpost
- Iridium Dropper
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 602 g

Light

Lights
- Reflector Set

Accessories

Battery Charger
- Canyon Charger
Pedals
- Flat Pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- QSG 034-V04 M124 TRQ[ON]

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 177	172 - 185	180 - 194	≥ 189
a Seat Height in mm	648 - 778	693 - 813	737 - 858	762 - 883
b Seat Tube Length in mm	395	420	435	460
c Top Tube Length in mm	592	619	646	673
d Head Tube Length in mm	105	115	125	135
e Head Tube Angle	63,5°	63,5°	63,5°	63,5°
f Seat Tube Angle	77,5°	77,5°	77,5°	77,5°
g Chainstay Length in mm	445	445	445	445
h Wheel Base in mm	1.247	1.276	1.306	1.335
i Stack in mm	639	648	657	666
j Reach in mm	450	475	500	525
k Stand-over Height in mm	738	745	765	777
l Bottom Bracket Offset in mm	32	32	32	32

Component geometry

Detailed geometry table
Frame size
Spacer in mm	20,0	20,0	20,0	20,0
Stem Length in mm	45	45	45	45
Handlebar Width in mm	780	800	800	800
Crank Length in mm	165,0	165,0	165,0	165,0
Chainring Size	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	150	170	200	200
Seat Post Length in mm	425	465	525	525
Maximum Seat Post Insertion Depth in mm	220	240	271	271
Minimum Seat Post Insertion Depth in mm	90	120	150	150
Wheel Size	29"	29"	29"	29"
Disc Size in mm	220 / 203	220 / 203	220 / 203	220 / 203
Front Fork Travel in mm	180	180	180	180
Rear Suspension Travel in mm	175	175	175	175
Battery capacity	800 Wh	800 Wh	800 Wh	800 Wh
Fitting Length in mm	225X70	225X70	225X70	225X70
