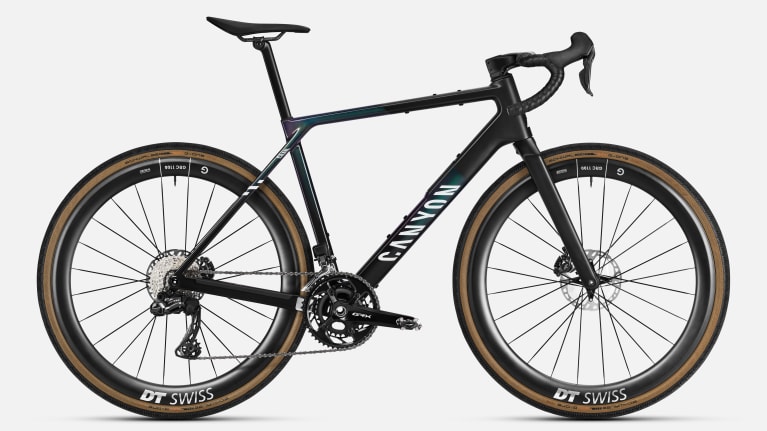

Grail CFR Di2
- CFR- the pinnacle of our carbon frame construction
- Shimano GRX RX825 Di2 12-speed groupset
- Shimano RX820 4iiii Power Meter
- DT Swiss GRC 1100 carbon wheels
-
Weight:
8.26 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CFR)
-
-
Members only product. Log in here
-
Financing with Klarna InstalmentsKlarna offers direct payments, pay later options, or installment plansCalculate amountFinancing with SplititNo credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Highlights Grail CFR Di2

Pro-proven at Traka
Canyon Factory Racing

The latest, greatest GRX Di2
Canyon Factory Racing goes gravel
Exceeding efficiency
Ergonomic evolution
Get in the groove
Integrated storage
Loaded and locked
Frame
-
Frame
- Canyon Grail CFR
- Superlight pro-level build of the latest-generation Grail gravel race bike. Benchmark stiffness-to-weight, more capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility.
- Axle dimension: 12x142 mm
- Tyre clearance: 42 mm
- Material: Carbon (CFR)
- Weight: 1,033 g
-
Fork
- Canyon FK0118 CF Disc
- Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 46 mm
- Material: Carbon (CF)
- Weight: 428 g
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-
Rear Derailleur
- Shimano GRX Di2 RD-RX825
- Weight: 290 g
-
Front Derailleur
- Shimano GRX Di2 FD-RX825
- Weight: 130 g
-
Cassette
- Shimano CS-R8101
- Number of sprockets: 12
- Range: 11-34
-
Crank
- 4iiii Shimano RX820
- Number of chainrings: 2
-
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
-
Chain
- Shimano XT
Brakes
-
Shift-/ Brake Lever
- Shimano GRX Di2 Dual Control ST-RX825
- Number of pistons: 2
- Weight: 389 g
-
Shift-/ Brake Lever
- Shimano GRX Di2 Dual Control ST-RX825
- Number of pistons: 2
- Weight: 389 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g
Wheels
-
Front Wheel
- DT Swiss GRC 1100
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 50 mm
- Inner width: 24 mm
- Rim material: Carbon
- Weight: 747 g
-
Rear Wheel
- DT Swiss GRC 1100
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 50 mm
- Inner width: 24 mm
- Rim material: Carbon
- Weight: 904 g
-
Tyre
- Schwalbe G-One RS Evo
- Width: 40 mm
- Weight: 445 g
-
Thru Axle
- Canyon Through Axle
- Axle dimension: 12x100 mm
- Material: Aluminium (AL)
-
Thru Axle
- Canyon Through Axle
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
Cockpit
-
Cockpit
- Canyon Cockpit CP0039
- One-piece carbon cockpit with specialist gravel ergonomics and design, and versatile Gear Groove interface for mounting a range of accessories. 16° flare on at drops, 5° backsweep on tops.
- Material: Carbon (CF)
- Weight: 360 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Vento Argo X1
- Width: 140 mm
- Gender: Unisex
- Weight: 179 g
-
Seatpost
- Canyon SP0072
- Material: Carbon (CF)
- Weight: 133 g
-
Seat Clamp
- Canyon GP0224-02 Adapter seatstay 7x9
Accessories
-
Workshop
- Canyon FIX Minitool 6+1
- The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System.
- Features: Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx)
- Material: S2 Steel
- Dimensions: 55mm x 29mm x 6,9mm
- Weight: 62g
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
420 | 450 | 480 | 510 | 540 | 570 | 600 |
Top Tube Length in mm
(c)
|
533 | 550 | 564 | 586 | 609 | 623 | 648 |
Head Tube Length in mm
(d)
|
123 | 129 | 145 | 163 | 187 | 207 | 230 |
Head Tube Angle
(e)
|
69,5° | 71° | 71,5° | 71,5° | 71,5° | 71,8° | 71,8° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
425 | 425 | 425 | 425 | 425 | 425 | 425 |
Wheel Base in mm
(h)
|
1.021 | 1.024 | 1.034 | 1.057 | 1.080 | 1.092 | 1.118 |
Stack in mm
(i)
|
545 | 556 | 573 | 591 | 613 | 633 | 655 |
Reach in mm
(j)
|
372 | 385 | 394 | 411 | 427 | 435 | 454 |
Stand-over Height in mm
(k)
|
745 | 766 | 789 | 813 | 838 | 863 | 901 |
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 75 | 75 | 75 | 75 | 75 |
Stack+ in mm
|
625 | 632 | 652 | 669 | 692 | 713 | 735 |
Reach+ in mm
|
405 | 420 | 439 | 456 | 472 | 489 | 508 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
60-420 | 60-420 | 70-420 | 70-440 | 70-440 | 80-460 | 80-460 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 |
Chainring Size
|
48/31 | 48/31 | 48/31 | 48/31 | 48/31 | 48/31 | 48/31 |
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
180 | 180 | 180 | 180 | 180 | 180 | 180 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 | 80 | 80 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
-
2024Bike Of The YearWith its high level of compliance, refined geometry, riding stability and well thought-out luggage solutions, the Grail is perfect for long days in the saddle.Bike Of The YearWith its high level of compliance, refined geometry, riding stability and well thought-out luggage solutions, the Grail is perfect for long days in the saddle.
-
2024Design & Innovation AwardWith the Grail CFR, Canyon bring functionality to a whole new level and significantly increase the bike’s range of applications.Design & Innovation AwardWith the Grail CFR, Canyon bring functionality to a whole new level and significantly increase the bike’s range of applications.
Grail CFR Di2 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
