Grail CF SLX 8 Di2

Name: Grail CF SLX 8 Di2
Brand: Canyon
Price: 4119.00 EUR
Availability: OutOfStock
Rating: 5 (110 reviews)

Uniting the Grail CF SLX’ class-leading versatility and lightness with high-end Di2 electronic shifting and carbon wheels, this bike has the speed to mix it up at the fastest gravel races.

Weight: 8.5 kg

Weight

Weight is based on a size medium frame.
Material: Carbon (CF)

Reviews (110)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Sizing tip: the new Grail is a race bike with a longer reach for high-speed stability. If you fall between two sizes, we recommend the smaller bike for a more relaxed riding position.

Members only product.

Sold out

Highlights Grail CF SLX 8 Di2

Meet the New Fast

Professional pace pusher

Each year the competition in gravel racing levels up. Course records are broken as athletes train harder and bike technology advances. At Canyon, we work together with our pros to supply them with the best bike and it’s already paid off. Ridden to victory by Caro Schiff at Unbound, the Grail is a pure gravel race bike proven by the world’s fastest.

Ride all out on all terrain

Lining up to race or hauling down your local doubletrack, the new Grail is ready to be ridden at the highest level or embark on a gravel odyssey. Its inspiring handling and compliant chassis will have you pinning it over rough stuff, while the lightweight aero frame lets you push the pace uphill and down. Factor the integrated storage and you have a bike born for long rides and all-terrain speed. Gone are the old days of compromised gravel bikes. This is The New Fast.

Key features

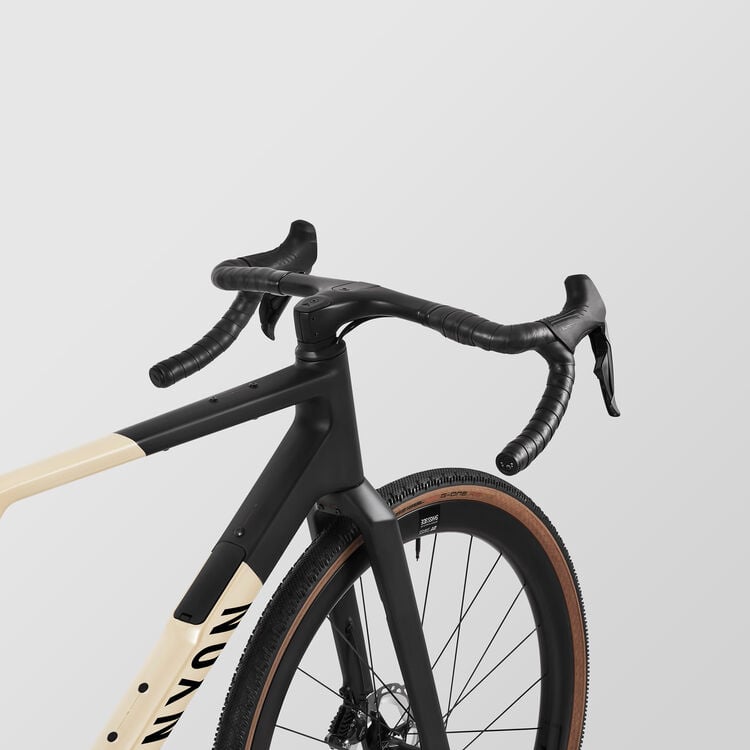

Ergonomic evolution

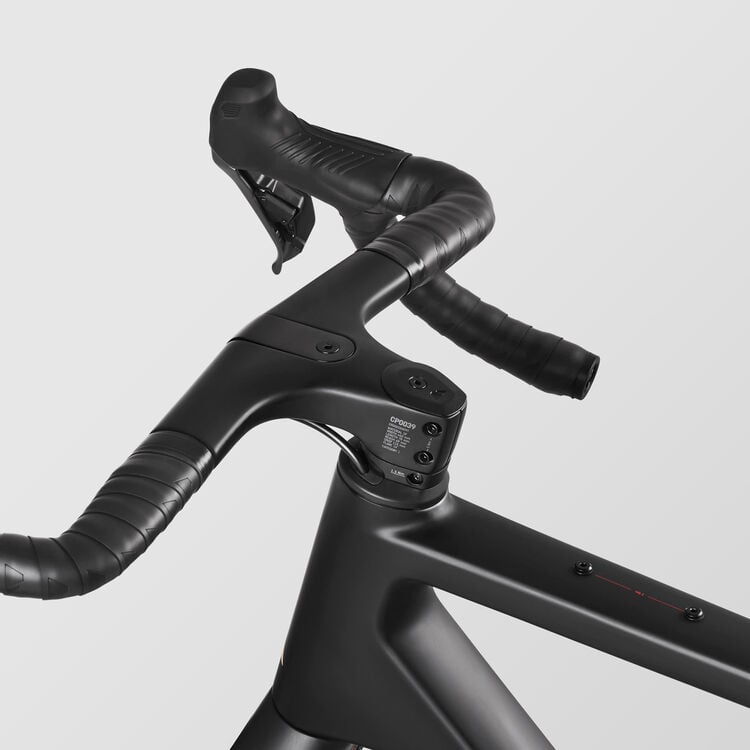

For long days on gravel roads your contact points have to be on point and the new Double Drop Bar delivers the perfect mix of ergonomic and aggressive riding positions thanks to in-depth testing and collaboration with our pro riders. The aero-optimised bar is easy to travel with thanks to semi-internal cable routing.

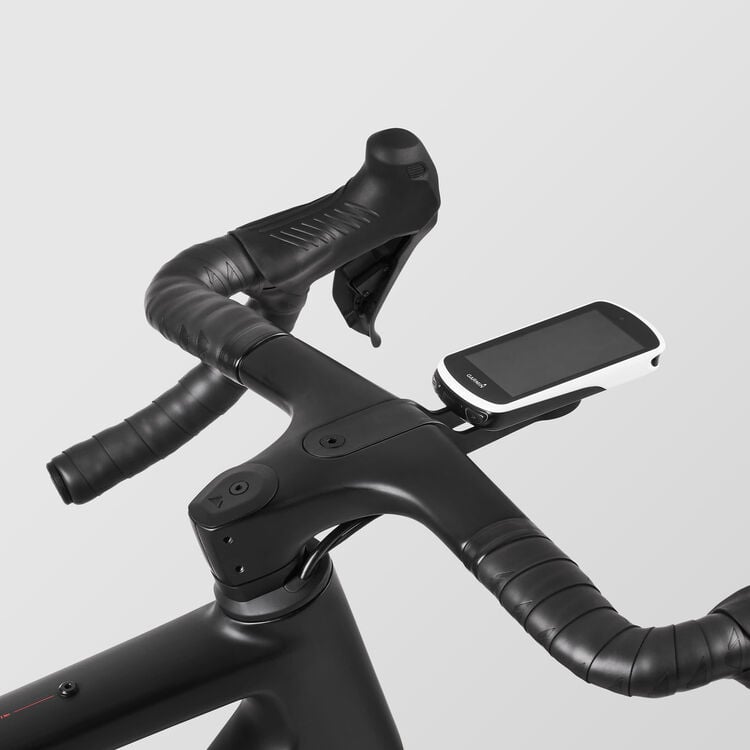

Get in the groove

From pushing to finish the race before sunset to big days out exploring with friends, gravel riding comes in many forms and the best bike can adapt to however you want to ride. The Gear Groove on the Grail’s new Double Drop Bar allows you to elegantly integrate aero bars as well as smartphone, bike computer and light mounts to the handlebars.

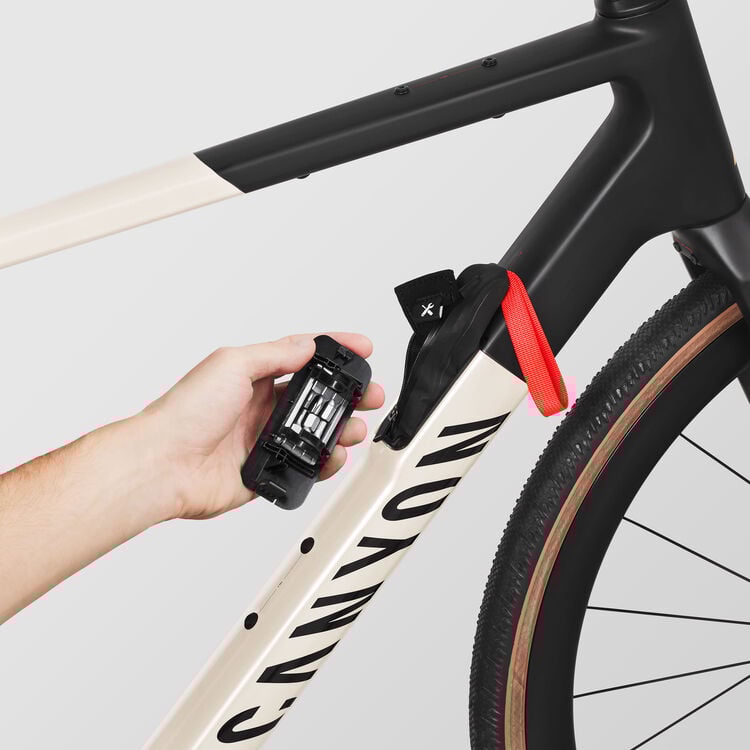

Integrated storage

Never hit the road without your repair kit thanks to the down tube integrated storage system. The unique design allows you to securely stash an inner tube*, levers*, and inflator* in a special noise-dampening pouch*, while your mini tool (included) and pump* lock into an easy-to-access hatch within the down tube. *Parts sold separately

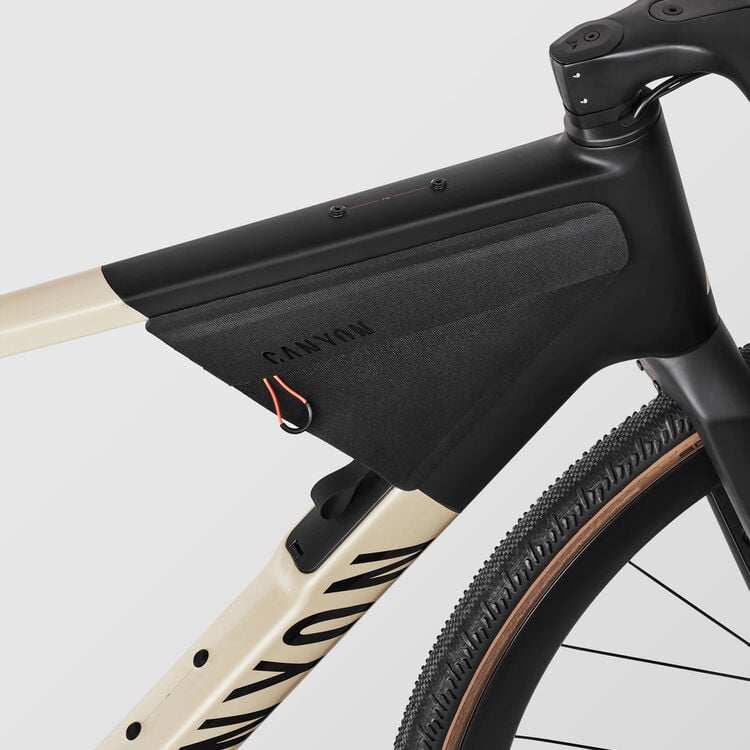

Loaded and locked

The Canyon LOAD FidLock QuickLoader bag* was made specially for the Grail and can be easily attached and removed using a special magnetic clip system. The bag fits seamlessly into the frame and even improves aerodynamics by 1.5 watts in the wind tunnel. *Parts sold separately

Components

Content is loading

Frame

Frame
- Canyon Grail CF SLX
- Lightweight build of the latest-generation Grail gravel race bike. More capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility.
- Axle dimension: 12x142 mm
- Tyre clearance: 42 mm
- Material: Carbon (CF)
- Weight: 1,135 g
Fork
- Canyon FK0117 CF Disc
- Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 42 mm
- Material: Carbon (CF)
- Weight: 472 g

Drivetrain

Battery
- Shimano BT-DN110 Di2 Battery
Rear Derailleur
- Shimano RD-RX815
- Cage length: long
- Weight: 308 g
Front Derailleur
- Shimano GRX Di2 RX815
- Weight: 135 g
Cassette
- Shimano Ultegra HG800 11-34 11s
- Number of sprockets: 11
Crank
- Shimano GRX810
- Number of chainrings: 2
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
Chain
- Shimano CN-HG701 11s

Brakes

Shift-/ Brake Lever
- Shimano RX815 Gravel
- Weight: 621 g
Shift-/ Brake Lever
- Shimano GRX Di2 RX815
- Weight: 621 g
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g

Wheels

Front Wheel
- DT Swiss GRC1400 Spline db
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 42 mm
- Inner width: 24 mm
- Rim material: Carbon
- Weight: 750 g
Rear Wheel
- DT Swiss GRC1400 Spline db SH11
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 42 mm
- Rim material: Carbon
- Weight: 861 g
Tyre
- Schwalbe G-One RS Evo
- Width: 40 mm
- Weight: 445 g
Thru Axle
- Canyon Through Axle
- Axle dimension: 12x100 mm
- Material: Aluminium (AL)
Thru Axle
- Canyon Through Axle
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)

Cockpit

Cockpit
- Canyon Cockpit CP0039
- One-piece carbon cockpit with specialist gravel ergonomics and design, and versatile Gear Groove interface for mounting a range of accessories. 16° flare on at drops, 5° backsweep on tops.
- Material: Carbon (CF)
- Weight: 360 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black

Seat

Saddle
- Fizik Vento Argo X3
- Gender: Unisex
- Weight: 213 g
Seatpost
- Canyon SP0072
- Material: Carbon (CF)
- Weight: 133 g
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7

Accessories

Workshop
- Canyon FIX Minitool 6+1
- The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System.
- Features: Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx)
- Material: S2 Steel
- Dimensions: 55mm x 29mm x 6,9mm
- Weight: 62g
Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon starter box

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 169	167 - 175	172 - 181	179 - 187	185 - 193	190 - 199	≥ 196
Seat Height in mm (a)	623 - 723	653 - 753	683 - 783	713 - 813	743 - 843	773 - 873	803 - 903
Seat Tube Length in mm (b)	420	450	480	510	540	570	600
Top Tube Length in mm (c)	533	550	564	586	609	623	648
Head Tube Length in mm (d)	123	129	145	163	187	207	230
Head Tube Angle (e)	69,5°	71°	71,5°	71,5°	71,5°	71,8°	71,8°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	425	425	425	425	425	425	425
Wheel Base in mm (h)	1.021	1.024	1.034	1.057	1.080	1.092	1.118
Stack in mm (i)	545	556	573	591	613	633	655
Reach in mm (j)	372	385	394	411	427	435	454
Stand-over Height in mm (k)	745	766	789	813	838	863	901
Bottom Bracket Offset in mm (l)	75	75	75	75	75	75	75
Stack+ in mm	625	632	652	669	692	713	735
Reach+ in mm	405	420	439	456	472	489	508

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15	15	15	15
Cockpit Dimensions in mm	60-420	60-420	70-420	70-440	70-440	80-460	80-460
Crank Length in mm	170,0	170,0	170,0	172,5	172,5	175,0	175,0
Chainring Size	48/31	48/31	48/31	48/31	48/31	48/31	48/31
Seat Post Length in mm	335	335	335	335	335	335	335
Maximum Seat Post Insertion Depth in mm	180	180	180	180	180	180	180
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80	80	80
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160

Download PDF

Content is loading

Grail CF SLX 8 Di2 support

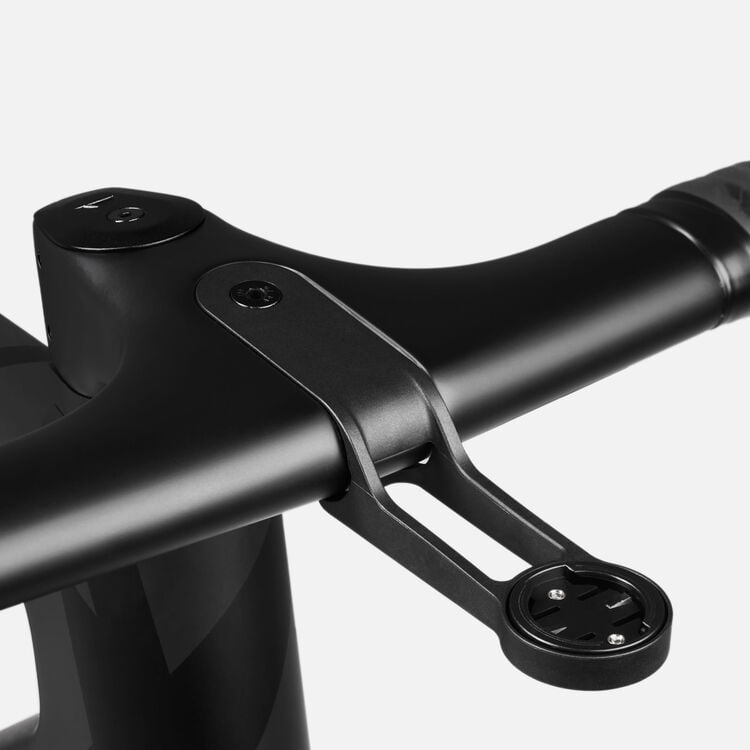

Canyon GEAR GROOVE Computer Mount

39,95 €

Canyon GEAR GROOVE Aero Extension

559,95 €

Weather-ready

Canyon DEFEND Grail Fast Fenders

139,95 €

Canyon LOAD Tool Pack

22,95 €

Canyon LOAD FidLock QuickLoader Grail

119,95 €

Canyon Fork Cage

33,95 €

-23%

Canyon Men's Signature Pro Longsleeve Cycling Jersey

123,95 €

Original price ~~159,95 €~~

You save 36 €

Canyon LOAD Fork Sleeves

51,95 €

Canyon FLASH 800 GEAR GROOVE Light Computer Mount

44,95 €

Canyon Tool Capsule

13,95 €

-55%
Weather-ready

Canyon Cycling Rain Jacket

98,95 €

Original price ~~219,95 €~~

You save 121 €

-41%

Abus X Canyon Airbreaker Road Cycling Helmet

165,95 €

Original price ~~279,95 €~~

You save 114 €

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
