Exceed CFR Team

Each Canyon Factory Racing bike is made to for the best racers on the planet to compete at the highest level and the Exceed CFR does just that. With its high-end frame and unparalleled components, it’s right at home pushing the pace on the global stage!

Front Fork Travel: 100 mm
Weight: 9 kg

Weight

Weight is based on a size medium frame.

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Members only product.

Sold out

Highlights Exceed CFR Team

Key features

Integrated Seat Clamp

An internal seat clamp design grips the seatpost further down, increasing the effective bending length for more comfort. The clean, frame-integrated clamp is also more aero than a traditional design.

It Protects What Matters Most

Think of it as frame insurance. Should you crash, the Exceed’s integrated Impact Protection Unit prevents your handlebars from over rotating and striking your top tube.

Stay Hydrated

You can mount two bottle cages in the frame and carry up to 1.5 litres of fluid using our Canyon Fuel bottles. It’s possible on all frame sizes (though we recommend Canyon Sideloader cages on XS frames). Never run out of liquid, even on long races and training rides. Alternatively, you can fit a tool capsule in one of the cages.

Components

Content is loading

Frame

Frame
- Canyon Exceed CFR
- The pinnacle of hardtail XC racing. This bike is the fastest, lightest and best of the bunch. Ridden by Canyon Factory Racing riders including Mathieu van der Poel and Emily Batty.
- Axle dimension: 12x142 mm
- Material: Carbon (CFR)
- Weight: 900 g
Suspension Fork

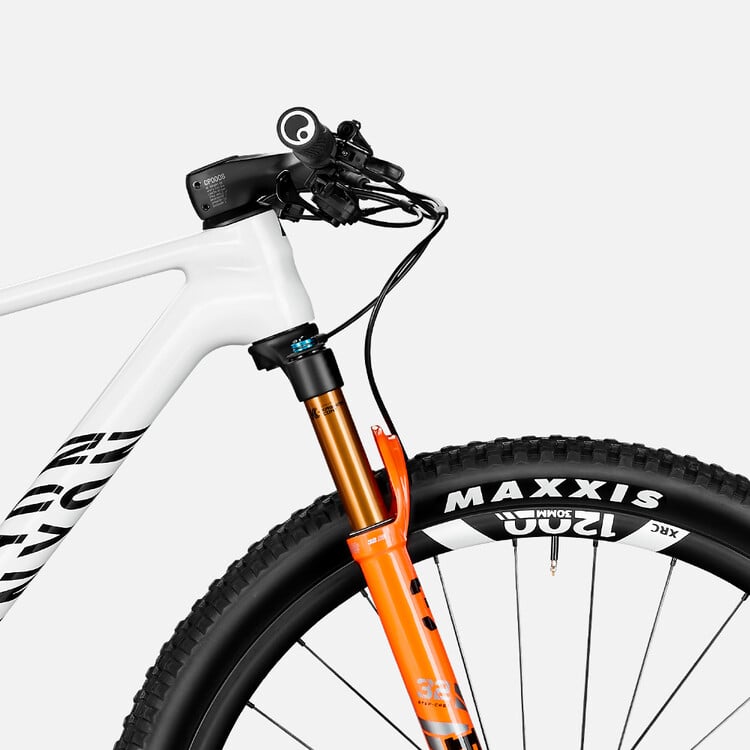

- FOX 32 Step-Cast Factory Remote
- Axle dimension: 15x110 mm
- Stanchion Diameter: 32 mm
- Travel: 100 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1,412 g

Drivetrain

Rear Derailleur
- Shimano XTR, 12-speed
- Cage length: long
- Weight: 243 g
Shift Lever
- Shimano XTR, 12-speed
- Weight: 128 g
Cassette
- Shimano XTR CS-M9101 12s 10-51
- Number of sprockets: 12
- Range: 10-51 12S
Crank
- Race Face Next SL G5 Carbon 34T
- Number of chainrings: 1
Bottom bracket
- Race Face Pressfit Cinch
- Bottom bracket standard: PF 92
- Weight: 69 g
Chain
- Shimano M9100 12-speed

Brakes

Disc Brake
- Shimano XTR M9100
Disc Brake
- Shimano XTR M9110
Brake Rotor
- Shimano RT-MT900, 180mm
- Size: 180 mm
- Weight: 146 g
Brake Rotor
- Shimano RT-MT900
- Size: 160 mm
- Weight: 122 g

Wheels

Front Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 679 g
Rear Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 799 g
Tyre
- Maxxis Ikon Exo 2.35"
- Width: 2.35"
- Weight: 740 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Cockpit
- Canyon CP0008 CF
- Light, stiff one-piece carbon cockpit designed with Canyon’s pro riders for XC riding. Special shape allows ergonomic, comfortable grip near stem and aerodynamic position on straight, flat sections.
- Material: Carbon (CF)
- Weight: 325 g
Grips
- Ergon GA20

Seat

Saddle
- Selle Italia SLR KC Boost
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 136 g
Seatpost
- Canyon VCLS 2.0
- Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing.
- Seatpost diameter: 30,9 mm
- Material: Carbon (CF)
- Weight: 350 g

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	629 - 731	669 - 771	712 - 814	749 - 851	789 - 891
Seat Tube Length in mm (b)	375	415	458	495	535
Top Tube Length in mm (c)	552	575	596	620	645
Head Tube Length in mm (d)	90	90	95	110	130
Head Tube Angle (e)	69°	69°	69°	69°	69°
Seat Tube Angle (f)	75°	75°	75°	75°	75°
Chainstay Length in mm (g)	425	425	425	430	435
Wheel Base in mm (h)	1.079	1.102	1.123	1.154	1.186
Stack in mm (i)	597	597	602	616	634
Reach in mm (j)	392	415	435	455	475
Stand-over Height in mm (k)	781	803	828	854	883
Bottom Bracket Offset in mm (l)	58	58	58	58	58

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Cockpit Dimensions in mm	80-740	80-740	80-740	80-740	80-740
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	100	100	100	100	100
Seat Post Length in mm	400	400	400	400	400
Maximum Seat Post Insertion Depth in mm	194	194	194	194	194
Minimum Seat Post Insertion Depth in mm	92	92	92	92	92
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	100	100	100	100	100
