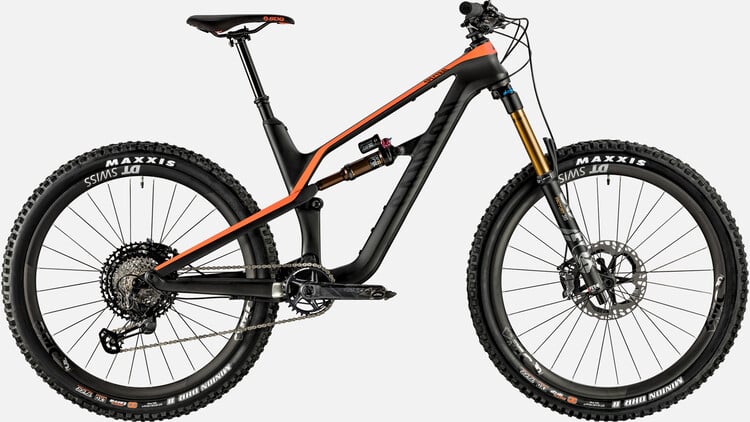

Spectral CFR 9.0 SL

This is a bike that simply exceeds all expectations of the ambitious trail rider. Light for the steepest and longest climbs, yet capable of handling the most technical descents. It’s a trail weapon without rival.

Front Fork Travel: 160 mm
Weight: 13 kg

Customer reviews (2)

Colour: infrablack

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.

Members only product.

Sold out

Highlights Spectral CFR 9.0 SL

Components

Content is loading

Frame

Frame
- Canyon Spectral CFR
- Material Carbon
- Axle Dimension 12 x 148 mm
- Brake Mount Post Mount 180
Rear Shock
- FOX FLOAT DPX2 Factory
Suspension Fork
- FOX 36 Factory
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1 1/4"
- Weight 2,020 g

Drivetrain

Rear Derailleur
- Shimano XTR, 12-speed
- Cage length long
- Weight 243 g
Shift Lever
- Shimano XTR, 12-speed
- Weight 128 g
Cassette
- Shimano XTR CS-M9101 12s 10-51
- Number of sprockets 12
- Range 10-51 12S
Crank
- Race Face Next SL G5 Carbon 32T
- Number of chainrings 1
Bottom bracket
- Race Face Pressfit Cinch
- Bottom bracket standard PF 92
- Weight 69 g
Chain
- Shimano M9100 12-speed

Brakes

Disc Brake
- Shimano XTR M9120
Disc Brake
- Shimano XTR M9120
Brake Rotor
- Shimano RT-MT900
- Size 203 mm
- Weight 171 g
Brake Rotor
- Shimano RT-MT900
- Size 180 mm
- Weight 147 g

Wheels

Front Wheel
- DT Swiss XMC 1200
- Rotor mount Center Lock
Rear Wheel
- DT Swiss XMC 1200 SH12
- Rotor mount Center Lock
Tyre
- MAXXIS Minion DHR II 2.4''
- Width 2.4"
- Weight 900 g
Tyre
- MAXXIS Minion DHR II 2.4''
- Width 2.4"
- Weight 900 g
Thru Axle
- Canyon Quixle

Cockpit

Stem
- Canyon G5
- Fork steer tube diameter 1 1/8"
Handlebar
- Canyon G5
- Material Carbon
- Rise 20 mm
Grips
- Canyon G5

Seat

Saddle
- SDG Radar
- Weight 242 g
Seatpost
- FOX Transfer Performance Elite
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 170	170 - 178	178 - 186	≥ 186
Seat Height in mm (a)	659 - 779	700 - 845	740 - 885	780 - 925
Seat Tube Length in mm (b)	425	440	480	520
Top Tube Length in mm (c)	582	608	636	664
Head Tube Length in mm (d)	84	108	147	163
Head Tube Angle (e)	66°	66°	66°	66°
Seat Tube Angle (f)	70°	70,7°	70,9°	71,1°
Chainstay Length in mm (g)	430	430	430	430
Wheel Base in mm (h)	1.139	1.169	1.202	1.233
Stack in mm (i)	588	605	634	655
Reach in mm (j)	419	440	460	482
Stand-over Height in mm (k)	742	763	783	797
Bottom Bracket Offset in mm (l)	27	22	22	22

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0
Stem Length in mm	40	50	50	50
Handlebar Width in mm	760	780	780	780
Crank Length in mm	170,0	170,0	170,0	170,0
Chainring Size	32	32	32	32
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125
Seat Post Length in mm	406	457	457	457
Maximum Seat Post Insertion Depth in mm	220	245	245	245
Minimum Seat Post Insertion Depth in mm	100	100	100	100
Wheel Size	27.5"	27.5"	27.5"	27.5"
Disc Size in mm	203 / 180	203 / 180	203 / 180	203 / 180
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	140	150	150	150
Fitting Length	210X55	230X65	230X65	230X65
