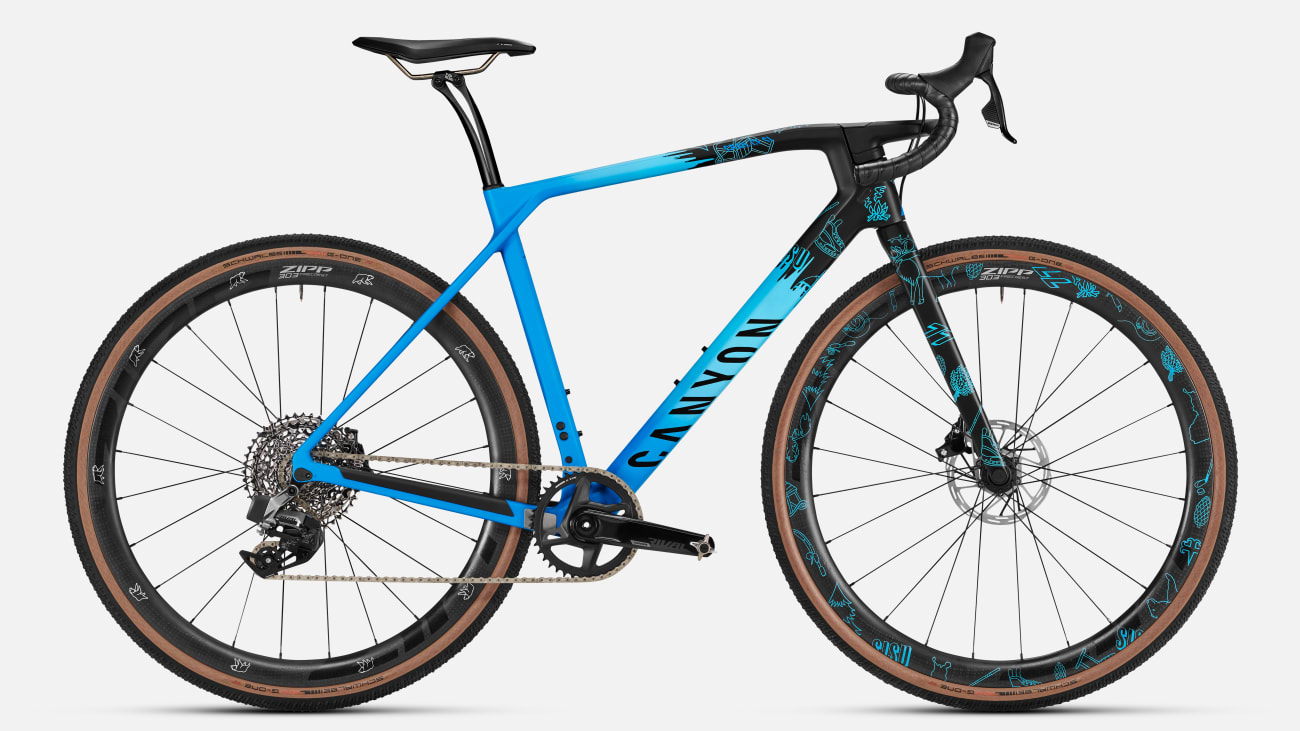

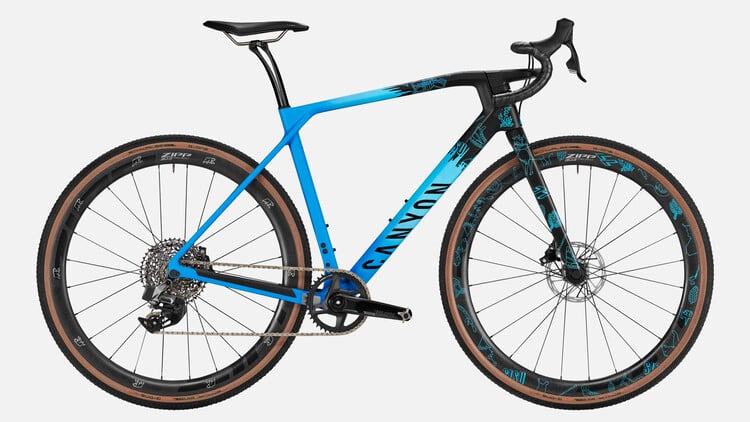

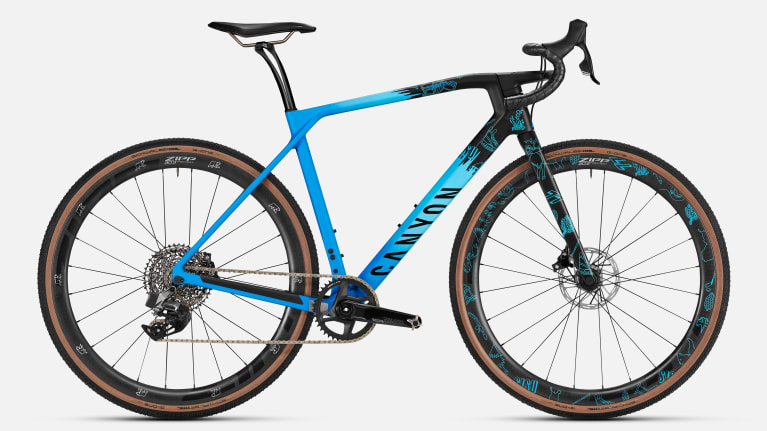

Grail CF SL VB77
-
Out of stock
-
Weight:
8.46 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CF)
Highlights Grail CF SL VB77

Innovative, comfortable gravel cockpit

Exclusive frame design

Striking, unique artwork

Custom wheels

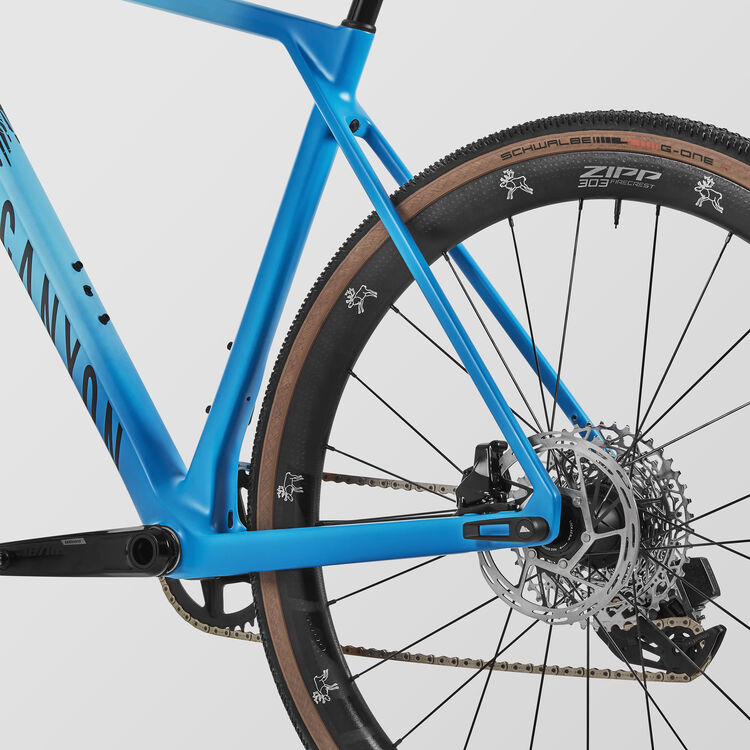

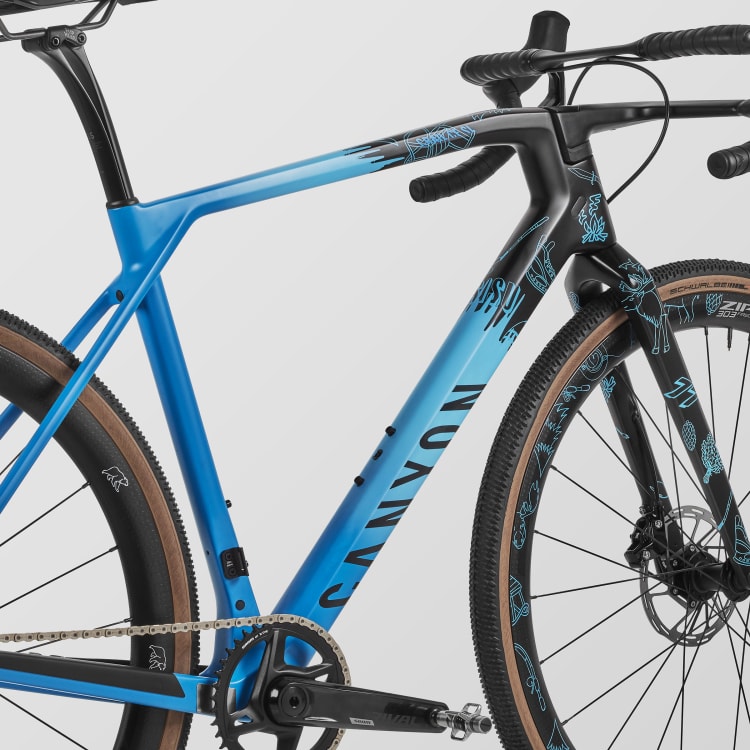

Frame
-
Frame
- Canyon Grail CF SL Disc
- Light, comfortable carbon frame with Gravel Pro geometry.
- Axle dimension: 12x142 mm
- Tyre clearance: 42 mm
- Material: Carbon (CF)
- Weight: 1,620 g
-

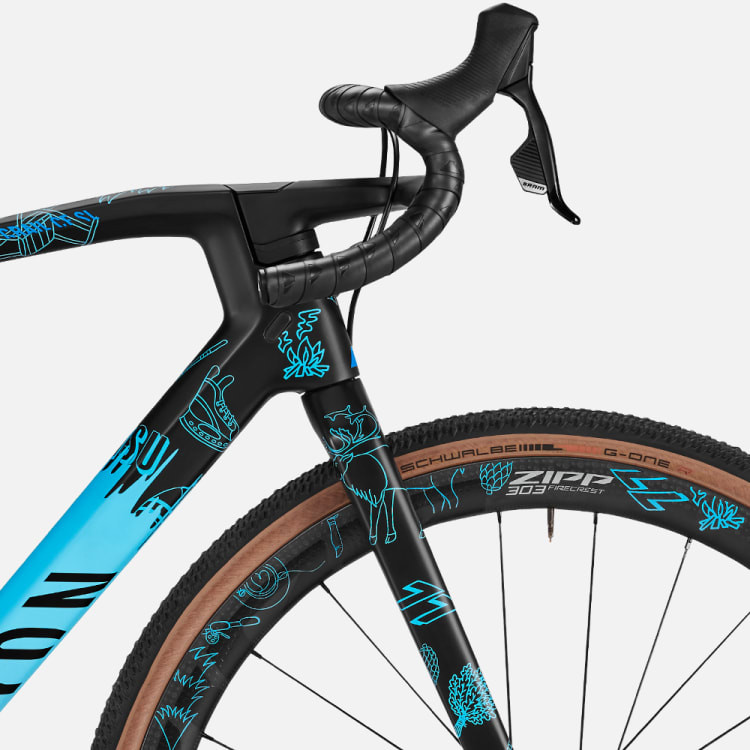

Fork
- Canyon FK0070 CF Disc
- Carbon fork with mudguard mounting eyelets. Designed for optimal lightness, stiffness, and durability. Quality controlled using CT scanning technology.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 42 mm
- Material: Carbon (CF)
- Weight: 362 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM Rival XPLR eTap AXS
- Weight: 340 g
-
Cassette
- SRAM Rival XPLR XG-1251, 12-speed, 10-44T
- Number of sprockets: 12
- Range: 10-44 12S
-
Crank
- SRAM Rival D1 Wide, 40T
- Number of chainrings: 1
-
Bottom bracket
- SRAM Pressfit DUB Wide
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- SRAM Rival D1 12s
Brakes
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS
- Weight: 468 g
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS 12s
- Weight: 468 g
-
Brake Rotor
- SRAM Paceline
- Size: 160 mm
- Weight: 159 g

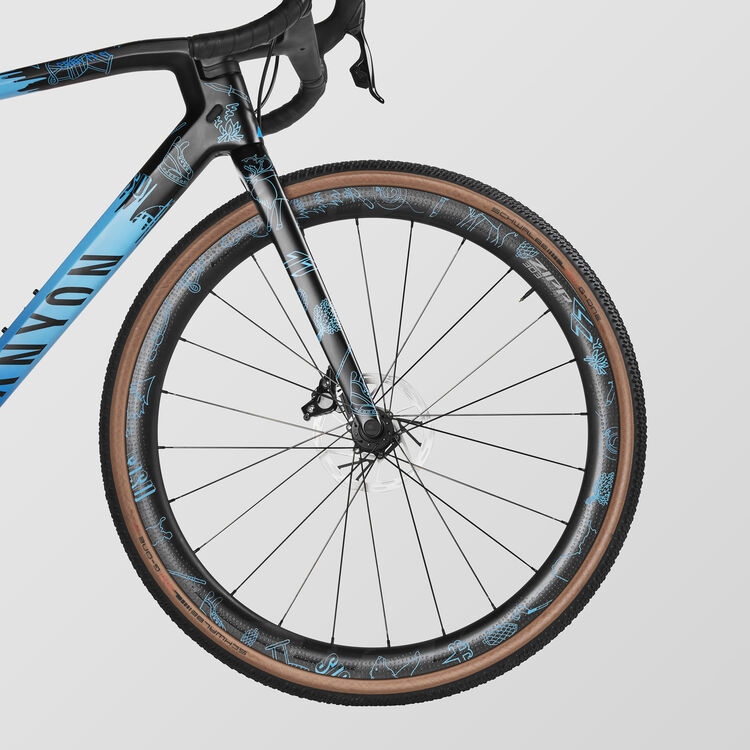

Wheels
-
Front Wheel
- Zipp 303 Firecrest Force Launch Edition
- Rotor mount: Center Lock
- Rim height: 40 mm
- Weight: 644 g
-
Rear Wheel
- Zipp 303 Firecrest Force Launch Edition XDR
- Rotor mount: Center Lock
- Rim height: 40 mm
- Weight: 785 g
-
Tyre
- Schwalbe G-One R, 40mm
- Width: 40 mm
- Weight: 480 g
-
Thru Axle
- Canyon GP0197-01
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm

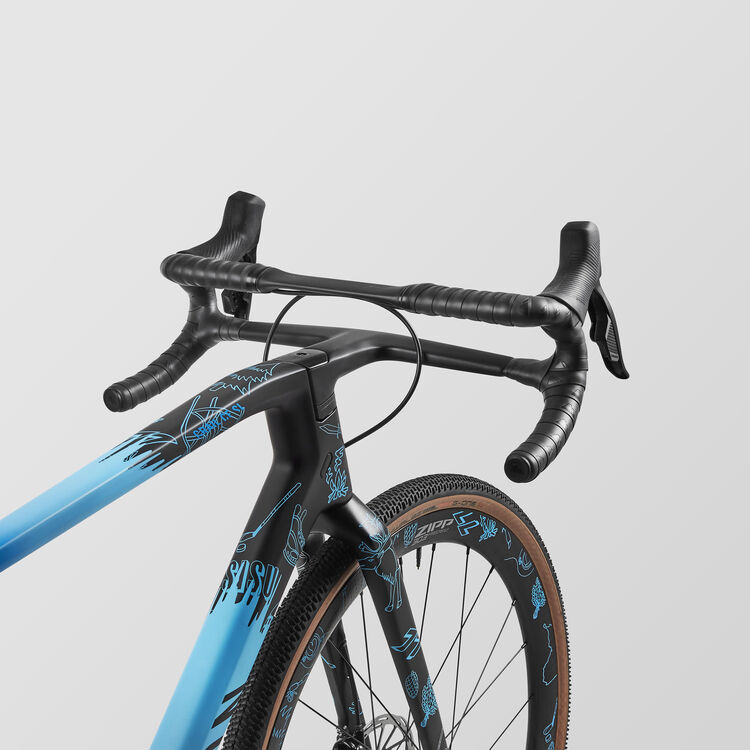

Cockpit
-
Cockpit
- Canyon CP07 Gravel Cockpit CF
- Iconic Double Decker Cockpit.
- Material: Carbon (CF)
- Weight: 350 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Argo Terra X3
- Gender: Unisex
- Weight: 238 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- QSG 006 Cockpit Quick Start Guide
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Body Height in cm
|
≤ 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
547 | 569 | 580 | 604 | 615 |
Head Tube Length in mm
(d)
|
78 | 97 | 125 | 146 | 167 |
Head Tube Angle
(e)
|
71° | 72,5° | 72,5° | 72,75° | 72,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
425 | 425 | 425 | 425 | 425 |
Wheel Base in mm
(h)
|
1.020 | 1.029 | 1.040 | 1.063 | 1.073 |
Stack in mm
(i)
|
513 | 536 | 563 | 582 | 604 |
Reach in mm
(j)
|
405 | 421 | 423 | 441 | 466 |
Stand-over Height in mm
(k)
|
805 | 834 | 860 | 888 | 912 |
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 75 | 75 | 75 |
Stack+ in mm
|
638 | 660 | 688 | 709 | 729 |
Reach+ in mm
|
442 | 461 | 478 | 497 | 516 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|---|
Cockpit Dimensions in mm
|
75-420 | 75-440 | 90-440 | 90-460 | 105-460 |
Crank Length in mm
|
170,0 | 172,5 | 172,5 | 175,0 | 175,0 |
Chainring Size
|
40 | 40 | 40 | 40 | 40 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Grail CF SL VB77 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
