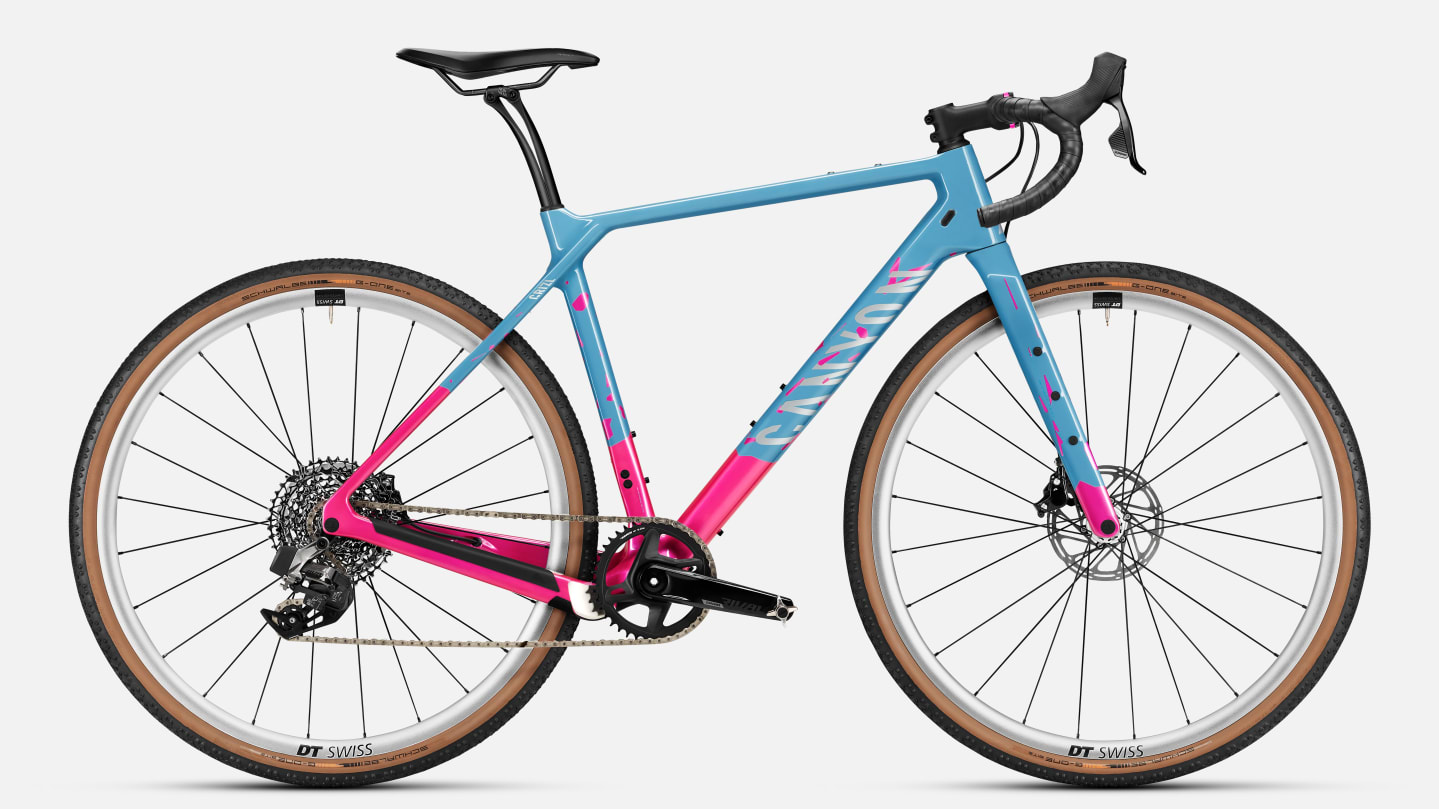

Grizl CF SL 7 Throwback
Highlights Grizl CF SL 7 Throwback
Old-school 90s style
50 mm tyre clearance

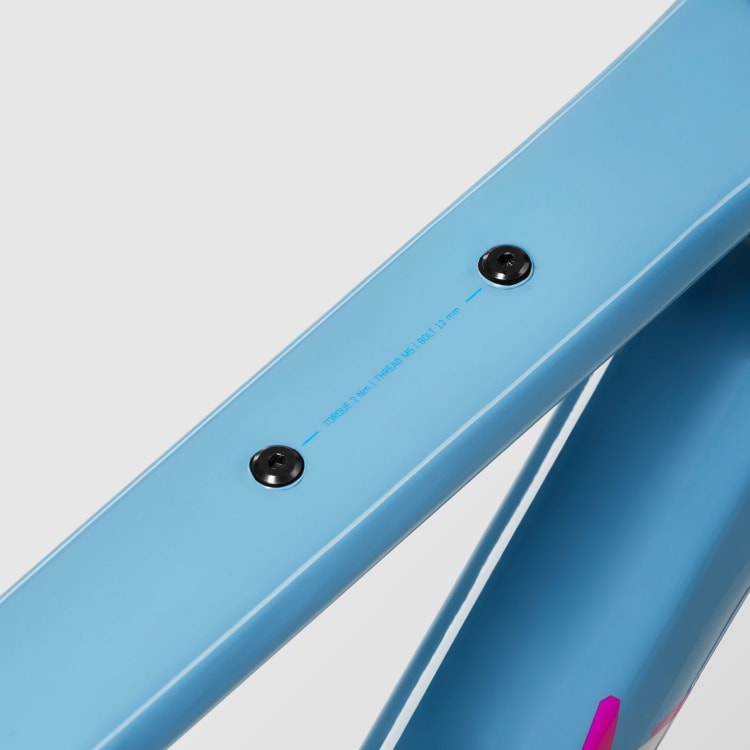

Top tube mounts

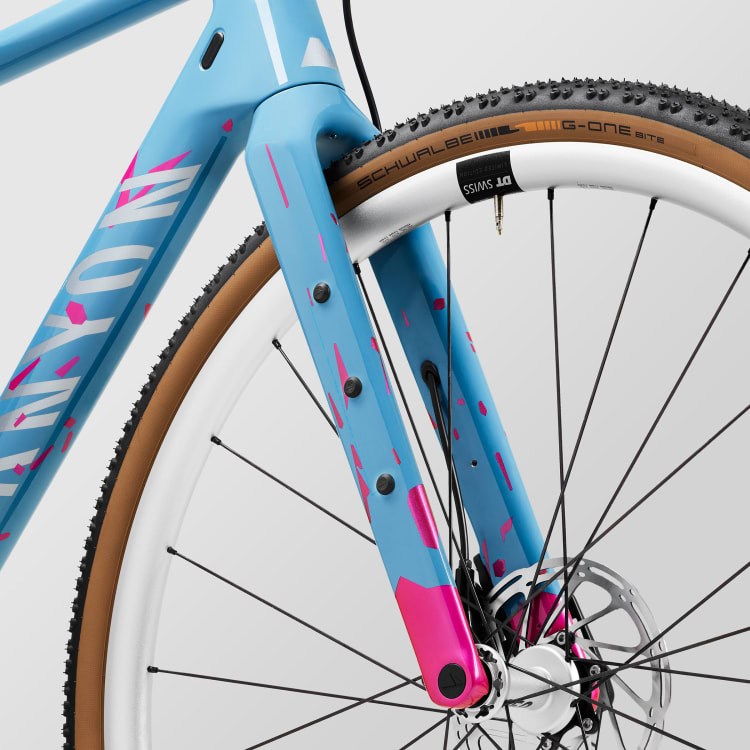

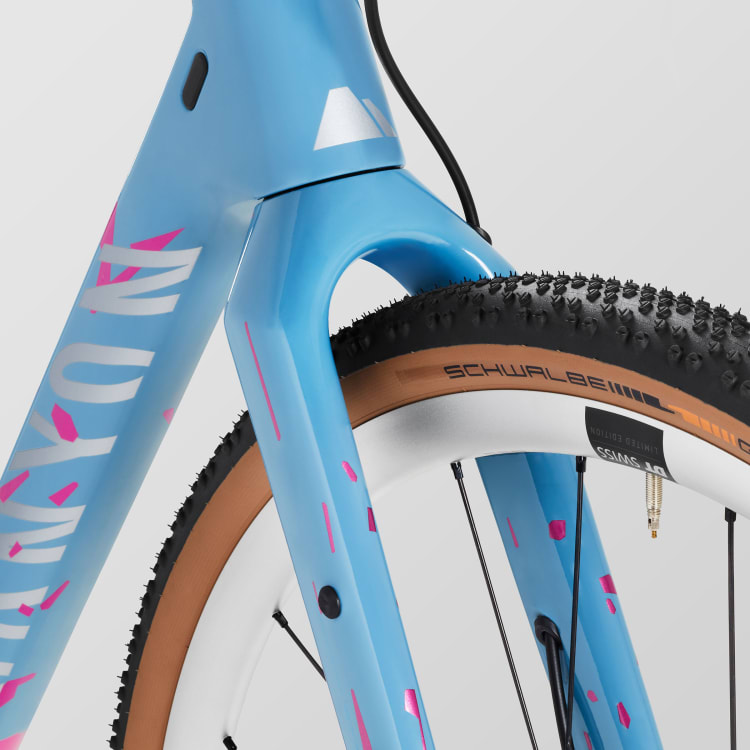

Fork mounts
Frame
-
Frame
- Canyon Grizl CF SL LTD
- Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability.
-
Axle dimension 12x142 mm
-
Tyre clearance 50 mm
-
Material Carbon (CF)
-
Weight 1,030 g
-
Fork
- Canyon FK0087 CF Disc LTD
- Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages.
-
Axle dimension 12x100 mm
-
Fork steer tube diameter 1 1/4"
-
Tyre clearance 54 mm
-
Material Carbon (CF)
-
Weight 500 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM Rival XPLR eTap AXS
-
Weight 340 g
-
Cassette
- SRAM Rival XPLR XG-1251, 12-speed, 10-44T
-
Number of sprockets 12
-
Range 10-44 12S
-
Crank
- SRAM Rival D1 Wide, 40T
-
Number of chainrings 1
-
Bottom bracket
- SRAM Pressfit DUB Wide
-
Bottom bracket standard PF 86,5
-
Weight 65 g
-
Chain
- SRAM Rival D1 12s
Brakes
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS, 2-speed
-
Weight 468 g
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS, 12-speed
-
Weight 468 g
-
Brake Rotor
- SRAM Centerline Rounded
-
Size 160 mm
-
Weight 154 g
Wheels
-
Front Wheel
- DT Swiss GR 1600 LTD
-
Axle dimension 12x100 mm
-
Rotor mount Center Lock
-
Rim height 25 mm
-
Weight 828 g
-
Rear Wheel
- DT Swiss GR 1600 XDR LTD
-
Axle dimension 12x142 mm
-
Rotor mount Center Lock
-
Rim height 25 mm
-
Weight 946 g
-
Tyre
- Schwalbe G-One Bite 45mm
-
Width 45 mm
-
Weight 540 g
-
Thru Axle
- Canyon GP0197-01
-
Axle dimension 12x100 mm
-
Material Aluminium (AL)
-
Thru Axle
- Canyon GP0235-01
-
Axle dimension 12x142 mm
-
Material Aluminium (AL)

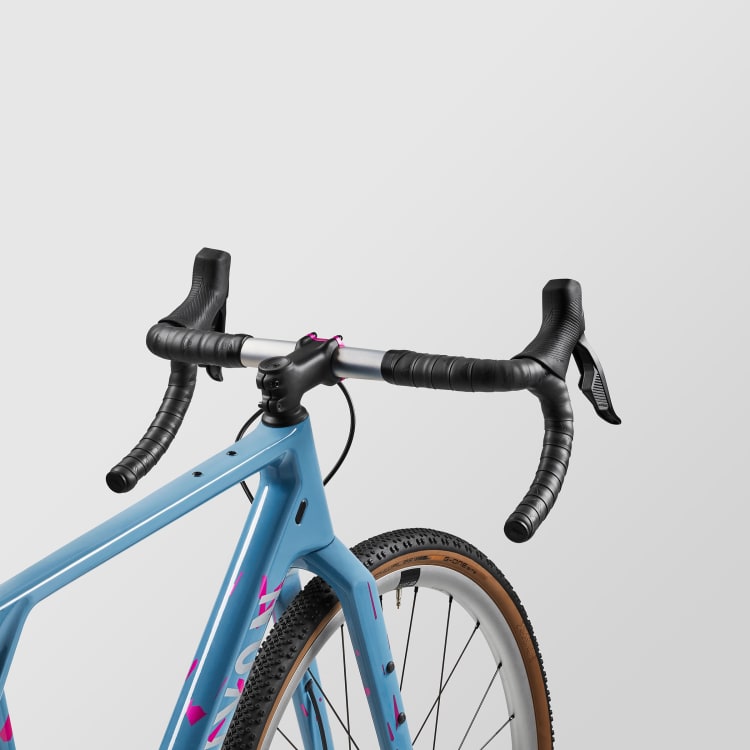

Cockpit
-
Stem
- Canyon V13
-
Fork steer tube diameter 1 1/4"
-
Stem
- ST CAYN E244-15 Frontplate V13/V15 vt
-
Handlebar
- Canyon HB0050 Ergo
-
Clamping diameter 31,8 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
-
Color Black
Seat
-
Saddle
- Fizik Argo Terra X3
-
Gender Unisex
-
Weight 238 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
-
Seatpost diameter 27,2 mm
-
Material Carbon (CF)
-
Weight 247 g
Light
-
Lights
- Reflector Set
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Quick Start Guide
-
Manuals and Accessories
- Smallbox
|
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 189 | 189 - 194 | ≥ 194 |
|---|---|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
|
Seat Tube Length in mm
(b)
|
432 | 462 | 492 | 522 | 552 | 582 | 612 |
|
Top Tube Length in mm
(c)
|
522 | 531 | 552 | 564 | 578 | 602 | 617 |
|
Head Tube Length in mm
(d)
|
121 | 133 | 118 | 138 | 164 | 185 | 204 |
|
Head Tube Angle
(e)
|
70° | 71° | 71° | 72,25° | 72,5° | 72,75° | 72,75° |
|
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
|
Chainstay Length in mm
(g)
|
420 | 420 | 435 | 435 | 435 | 435 | 435 |
|
Wheel Base in mm
(h)
|
1.007 | 1.007 | 1.036 | 1.037 | 1.050 | 1.072 | 1.086 |
|
Stack in mm
(i)
|
522 | 537 | 556 | 579 | 605 | 626 | 644 |
|
Reach in mm
(j)
|
377 | 382 | 397 | 402 | 409 | 427 | 436 |
|
Stand-over Height in mm
(k)
|
737 | 761 | 789 | 816 | 845 | 870 | 892 |
|
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 75 | 75 | 75 | 75 | 75 |
|
Stack+ in mm
|
608 | 624 | 642 | 666 | 693 | 714 | 733 |
|
Reach+ in mm
|
413 | 429 | 444 | 461 | 478 | 497 | 515 |
|
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
|---|---|---|---|---|---|---|---|
|
Stem Length in mm
|
70 | 70 | 70 | 80 | 90 | 90 | 100 |
|
Handlebar Width in mm
|
400 | 400 | 420 | 440 | 440 | 460 | 460 |
|
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 172,5 | 175,0 | 175,0 | 175,0 |
|
Chainring Size
|
40 | 40 | 40 | 40 | 40 | 40 | 40 |
|
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
|
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 |
|
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 |
|
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 |
|
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" |
|
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
|
Rim height in mm
|
25 | 25 | 25 | 25 | 25 | 25 | 25 |
Grizl CF SL 7 Throwback support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
-
