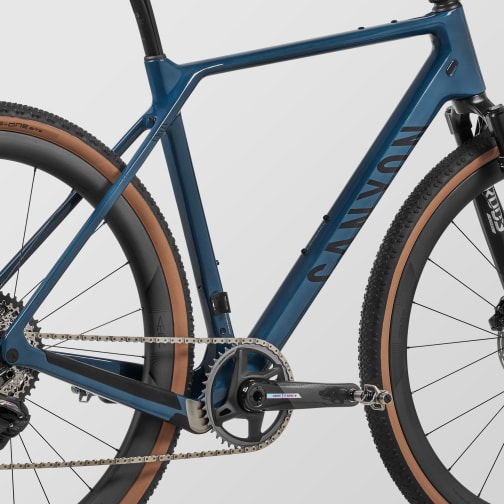

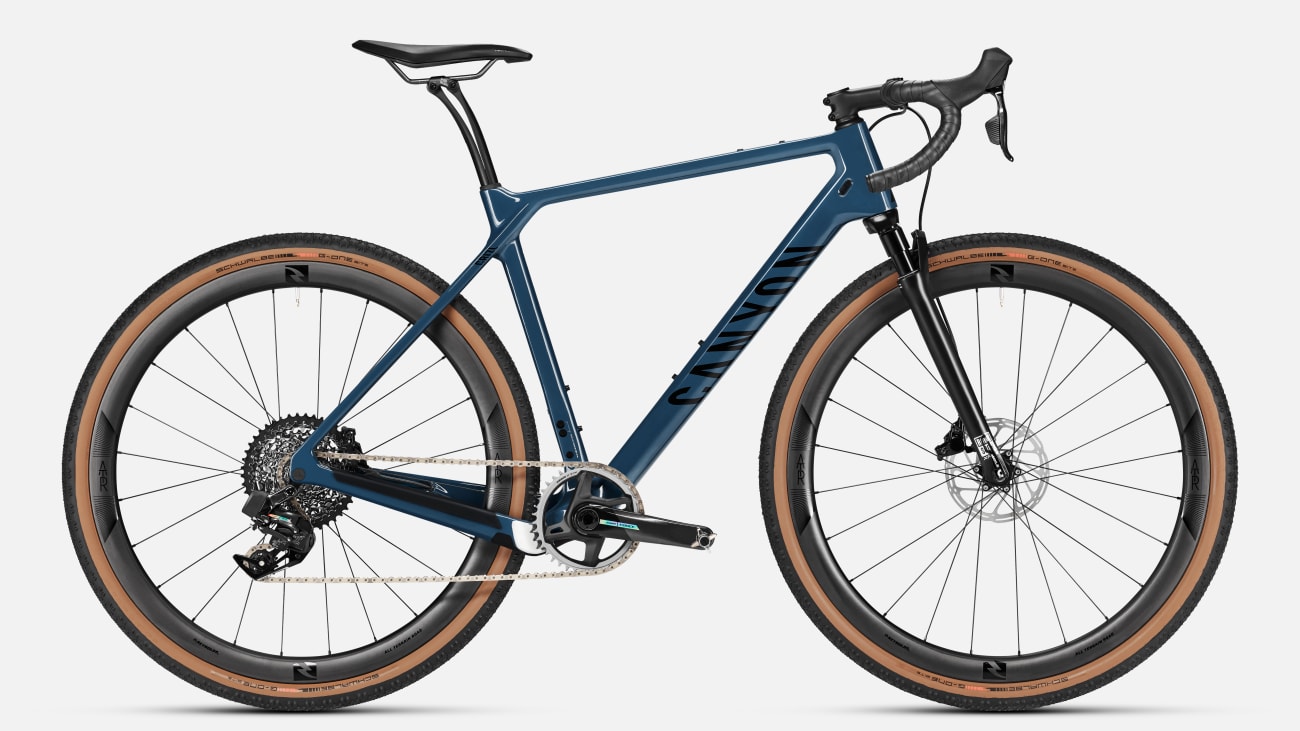

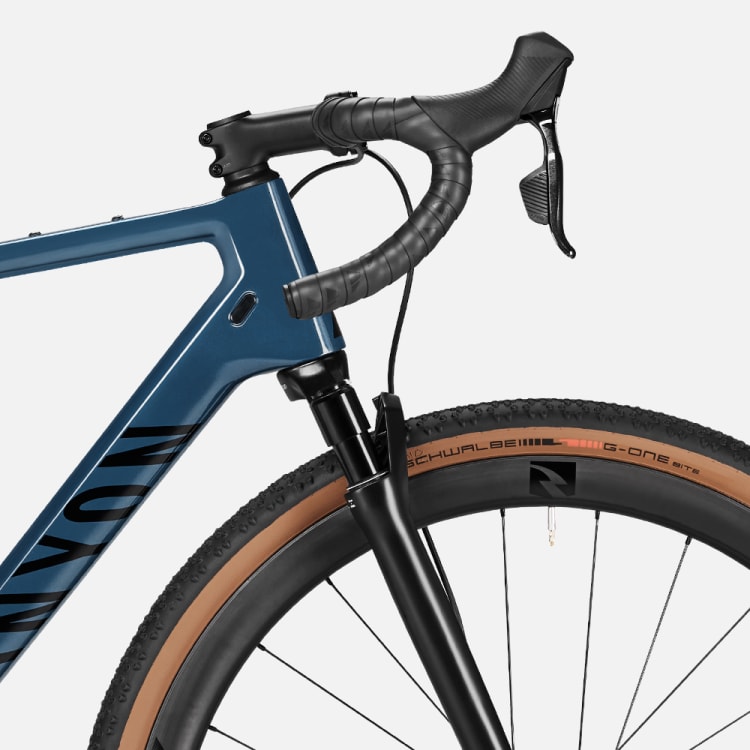

Grizl CF SLX 8 Force AXS Trail

A lightweight gravel bike built for heavyweight gravel riding. With a superlight carbon frame, gravel fork, and chunky 50 mm tyres, this bike's rapid on rough gravel and light trails alike.

Customer reviews (3)

Members only product.

Sold out

Highlights Grizl CF SLX 8 Force AXS Trail

Key features

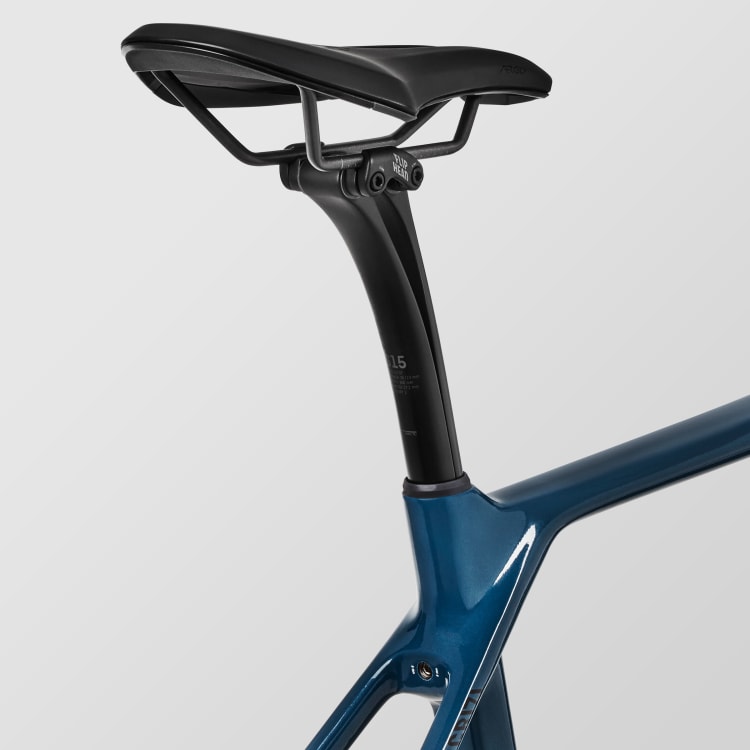

A shock-absorbing carbon seatpost

Combining the shock-absorbing properties of carbon with our revolutionary Leaf Spring design, get outstanding comfort for the long haul with this S15 seatpost. Enjoy a stable, supportive feel on the flats with up to 20 mm of flex to soak up hits and vibrations – all without the need for any suspension components.

50 mm tyre clearance

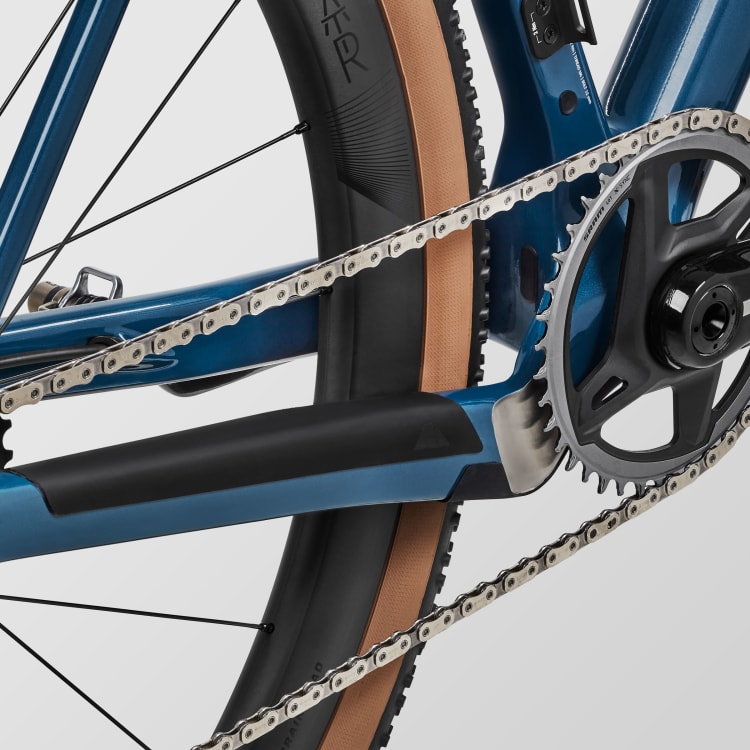

We developed the frame to provide 50 mm of tyre clearance with 700C wheels (45 mm with fenders). For this we had to push the boundaries in many areas, like with the dropped drive-side chainstay. It is extremely thin while still providing structural support and internal cable routing.

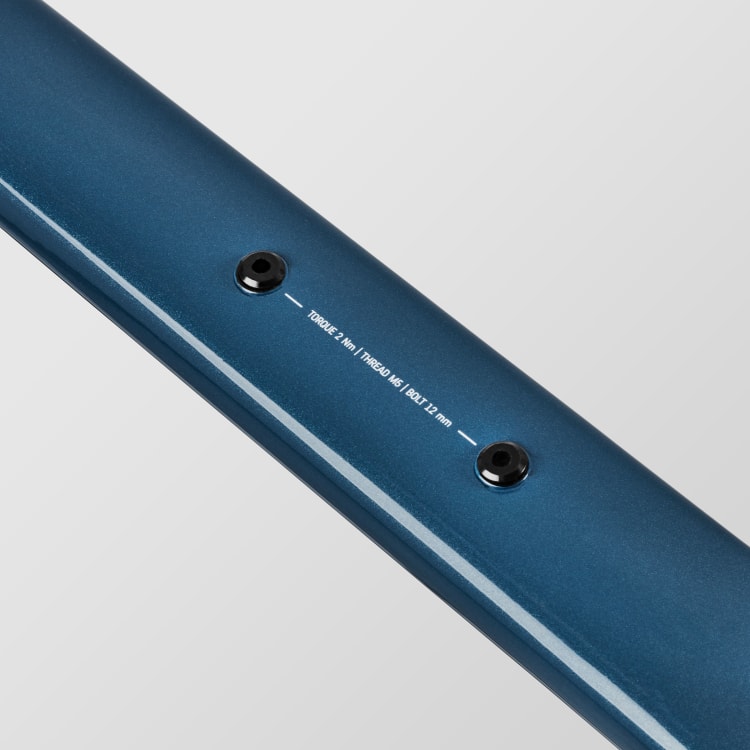

Top tube mount

The easiest way to access your most frequently used items. Ideal for storing your phone, gels, and small tools. The bolt-on design and waterproof construction keeps everything safe, secure, and dry.

Lightweight, robust 950 g frame

Burly and fast. The Grizl CF SLX uses advanced carbon materials and layup techniques for a complete frame weight of just 950 g – outshining many classic road bike frames on the market.

Components

Content is loading

Frame

Frame
- Canyon Grizl CF SLX
- null null
- null null
- null null
- null null
- null null
Suspension Fork
- Rock Shox Rudy Ultimate XPLR
- null null

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM Force XPLR AXS, 12-speed
- null null
Cassette
- SRAM Force XPLR XG-1271, 12-speed, 10-44
- null null
- null null
Crank
- SRAM Force AXS Powermeter
- null null
Bottom bracket
- SRAM DUB Pressfit
- null null
- null null
Chain
- SRAM Force D1 12s

Brakes

Shift-/ Brake Lever
- SRAM Force eTap AXS, 1-speed
Shift-/ Brake Lever
- SRAM Force eTap, 12speed
Brake Rotor
- SRAM Centerline Rounded
- null null
- null null

Wheels

Front Wheel
- Reynolds ATR
- null null
- null null
Rear Wheel
- Reynolds ATR XDR
- null null
- null null
Tyre
- Schwalbe G-One RX PRO V-Guard TLR
- null null
- null null
Thru Axle
- Canyon Thru Axle
- null null

Cockpit

Stem
- Canyon ST0035
- null null
- null null
- null null
- null null
Handlebar
- Canyon HB0063
- null null
- null null
Handlebar Tape
- Canyon Ergospeed Gel
- null null
- null null

Seat

Saddle
- Fizik Argo Terra X3
- null null
- null null
Seatpost
- Canyon S15 VCLS 2.0 CF
- null null
- null null
- null null
- null null

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Quick Start Guide
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 178	178 - 184	184 - 189	189 - 194	≥ 194
Seat Height in mm (a)	683 - 783	713 - 813	743 - 843	773 - 873	803 - 903
Seat Tube Length in mm (b)	492	522	552	582	612
Top Tube Length in mm (c)	552	564	578	602	617
Head Tube Length in mm (d)	118	138	164	185	204
Head Tube Angle (e)	71°	72,25°	72,5°	72,75°	72,75°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	435	435	435	435	435
Wheel Base in mm (h)	1.036	1.037	1.050	1.072	1.086
Stack in mm (i)	556	579	605	626	644
Reach in mm (j)	397	402	409	427	436
Stand-over Height in mm (k)	789	816	845	870	892
Bottom Bracket Offset in mm (l)	75	75	75	75	75
Stack+ in mm	642	666	693	714	733
Reach+ in mm	444	461	478	497	515

Component geometry

Detailed geometry table

Spacer in mm	27,5	27,5	27,5	27,5	27,5
Stem Length in mm	70	80	90	90	100
Handlebar Width in mm	420	440	440	460	460
Crank Length in mm	172,5	172,5	175,0	175,0	175,0
Chainring Size	40	40	40	40	40
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107
Wheel Size	28"	28"	28"	28"	28"
Disc Size in mm	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
Front Fork Travel in mm	30	30	30	30	30

Download PDF

Content is loading

Grizl CF SLX 8 Force AXS Trail support

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
