Spectral CF 8 K.I.S.
2,939 US$
Original price
You save 1,960 US$
Smoother in the rough. Faster through every corner. Our mullet Spectral CF 8 K.I.S. features the revolutionary Keep It Stable steering system, for next level agility and control.
- Front Fork Travel: 160 mm
-
Weight:
15.3 kg
WeightWeight is based on a size medium frame.
Members only product.
Log in here
Additional information
Patent information: Jo Klieber, Syntace K.I.S pat. pend. DE 10 2021 115 055.8, DE 10 2021 119 189.0, DE 10 2021 005 4653.5.
Current delivery times information.
Read more
Not included:
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Delivery:
Select frame size
Highlights Spectral CF 8 K.I.S.

The K.I.S. innovation
Smoother. Faster. More control. Three things that all riders want on the trail. Keep It Stable is a unique and groundbreaking steering stabiliser that is brand new to the world of mountain biking. Designed to benefit riders of every level from newcomers to seasoned racers, bike handling has truly turned a corner with K.I.S.

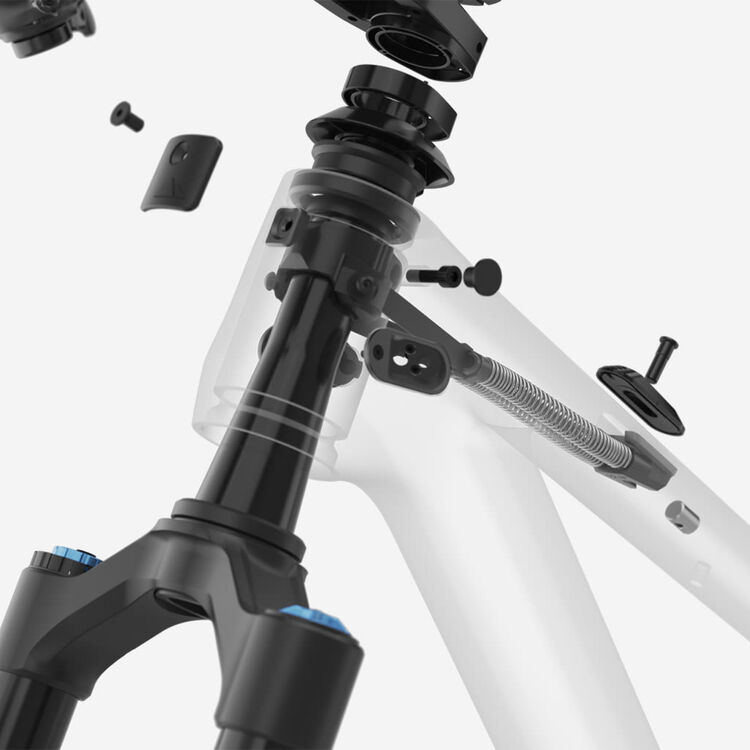

How does K.I.S. work?

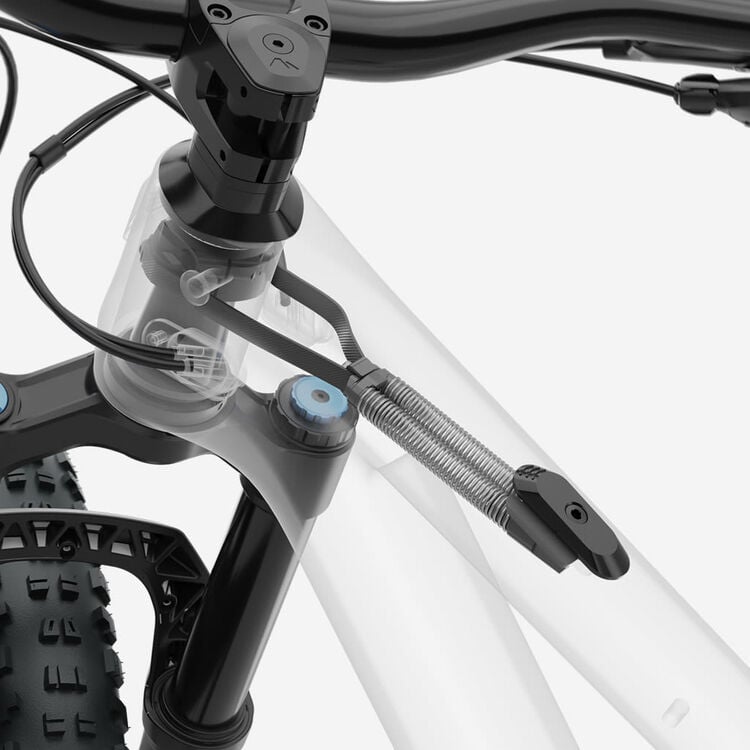

Keep It Stable is a steering stabiliser that actively centres your steering through an ingenious spring mechanism connecting your top tube and fork steerer. Expertly engineered to offer perfectly weighted steering throughout its range of motion, K.I.S. won't hold you back even through the tightest turns. Featuring adjustable system strength to match your trails and ridestyle, this 'set and forget' technology is maintenance-free, protected from damage, and carries a lifetime warranty.

K.I.S. on the trail
The centring effect of Keep It Stable helps boost handling, confidence, and control across a wide range of trails and terrain. Feel more stable on high-speed courses. Find more predictability and grip when it's loose. Hold your line through rough and off-camber sections. Be more efficient and precise on steep climbs.

Track proven
The test for any new MTB technology is whether it can deliver results at the highest level of the sport. Keep It Stable has already been used by our CLLCTV team riders (including Troy Brosnan) to help find more speed at UCI DH World Cup races. Imagine what it can do for you on your home trails.

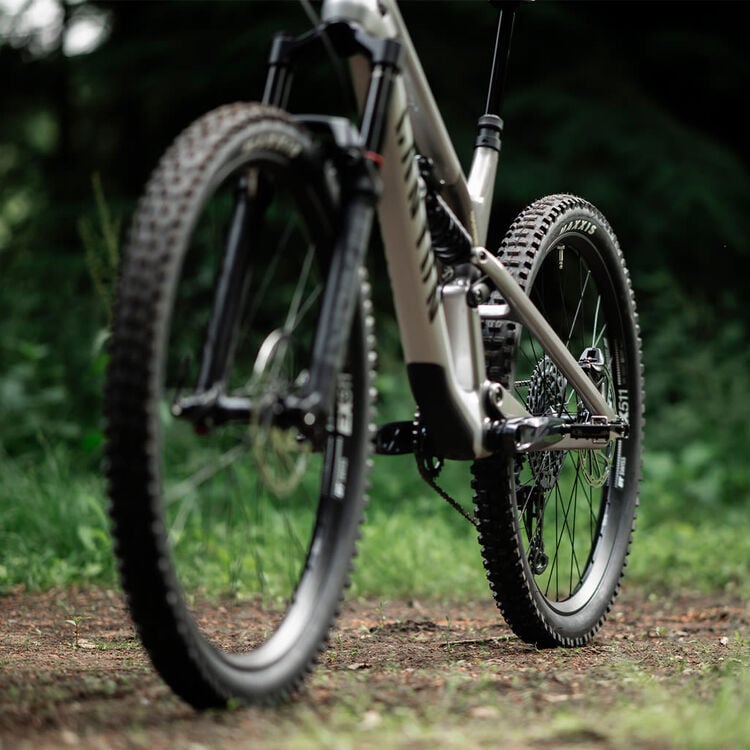

Mullet wheels. Max fun
The hairstyle divides opinion, but the wheelsize is always a hit. Give yourself the rollover ability and top speed of a 29" wheel up front and a playful, berm-ripping 27.5" out the back. Keep your mullet under control with Keep It Stable and there's no way this setup is going out of style.

Adjustable Flip Chip geo
Incredible stability and control in corners or more ground clearance for technical climbing? Get both. Use the Flip Chip to change the bike’s geometry to suit your riding style with a head tube and seat tube angle adjustment of 0.5 degrees and bottom bracket height adjustment of 8 mm in seconds.
Content is loading
Frame
-
Frame
- Canyon Spectral CF
- Full-carbon frame with optimised stiffness-to-weight ratio and integrated K.I.S. technology. Our famous triple phase suspension design with the Flip Chip system for simple geometry adjustment.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 1,620 g
-

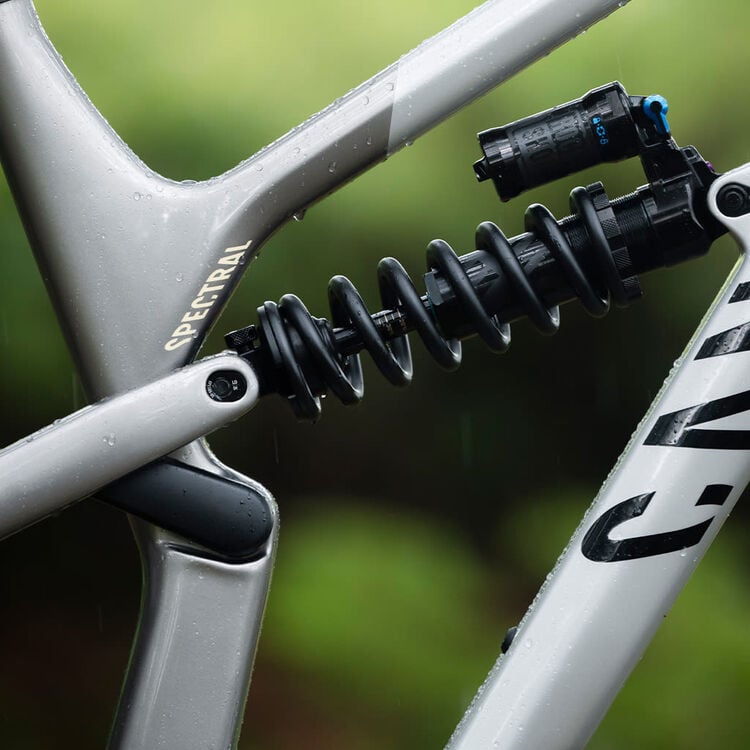

Rear Shock
- RockShox Super Deluxe Coil Select+ RT
- Spring: 400
-

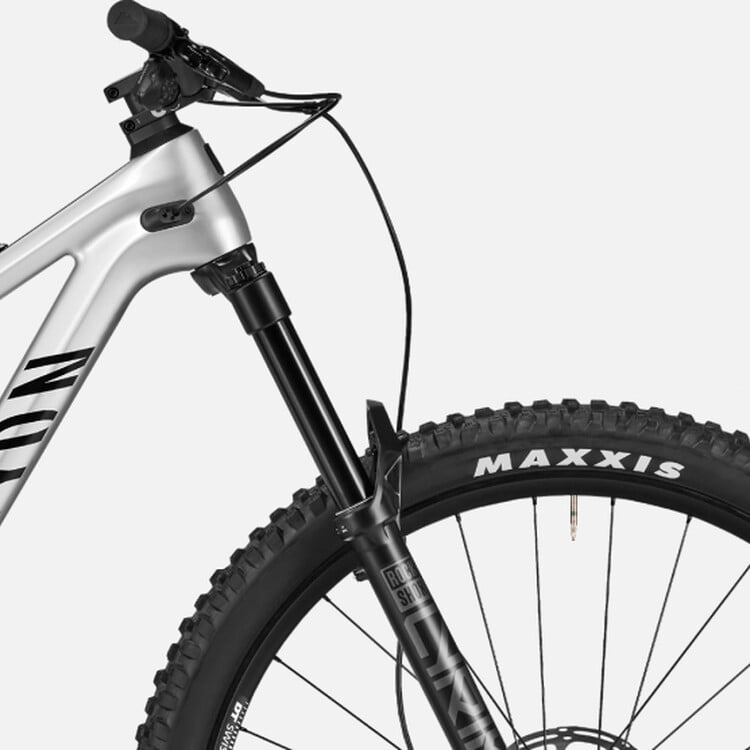

Suspension Fork
- RockShox Lyrik Select+ RC
- Axle dimension: 15x110 mm
- Stanchion Diameter: 35 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Weight: 2,340 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight: 462 g
-
Chainguard
- Canyon EP1266-01 ISCG05 Plate
-
Chainguard
- Canyon Chainguide
-
Shift Lever
- SRAM AXS Pod Ultimate
- Weight: 130 g
-
Cassette
- SRAM XS-1275 Eagle Transmission
- Number of sprockets: 12
- Range: 10-52
-
Crank
- SRAM GX Eagle
- Number of chainrings: 1
-
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
Brakes
-
Disc Brake
- SRAM Code R
-
Disc Brake
- SRAM Code R
-
Brake Rotor
- SRAM Centerline
- Size: 200 mm
- Weight: 190 g
Wheels
-
Front Wheel
- DT Swiss EX511 370LN
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Weight: 988 g
-
Rear Wheel
- DT Swiss EX511
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Weight: 1,044 g
-
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
-
Tyre
- Maxxis Minion DHR II Exo+
- Width: 2.4"
- Weight: 1,000 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon G5
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Rise: 30 mm
-
Grips
- Canyon G5
Seat
-
Saddle
- Ergon SM10 Enduro Comp
- Gender: Unisex
- Weight: 300 g
-
Seatpost
- Canyon G5
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 534 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Quick Start Guide
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 177 | 172 - 185 | 180 - 194 | ≥ 189 |
---|---|---|---|---|
Seat Height in mm
(a)
|
655 - 780 | 690 - 815 | 750 - 875 | 780 - 905 |
Seat Tube Length in mm
(b)
|
395 | 430 | 460 | 490 |
Top Tube Length in mm
(c)
|
583 | 610 | 637 | 664 |
Head Tube Length in mm
(d)
|
95 | 105 | 115 | 125 |
Head Tube Angle
(e)
|
65° | 65° | 65° | 65° |
Seat Tube Angle
(f)
|
68,9° | 69,3° | 69,8° | 70,2° |
Chainstay Length in mm
(g)
|
437 | 437 | 437 | 437 |
Wheel Base in mm
(h)
|
1.197 | 1.226 | 1.255 | 1.285 |
Stack in mm
(i)
|
615 | 624 | 633 | 642 |
Reach in mm
(j)
|
431 | 456 | 481 | 506 |
Stand-over Height in mm
(k)
|
751 | 758 | 761 | 775 |
Bottom Bracket Offset in mm
(l)
|
33 | 33 | 33 | 33 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Stem Length in mm
|
40 | 40 | 40 | 40 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
32 | 32 | 32 | 32 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
170 | 170 | 200 | 200 |
Seat Post Length in mm
|
457 | 457 | 517 | 517 |
Maximum Seat Post Insertion Depth in mm
|
245 | 245 | 275 | 275 |
Minimum Seat Post Insertion Depth in mm
|
120 | 120 | 150 | 150 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
200 / 180 | 200 / 200 | 200 / 200 | 200 / 200 |
Front Fork Travel in mm
|
160 | 160 | 160 | 160 |
Rear Suspension Travel in mm
|
150 | 150 | 150 | 150 |
Rear shock spring rate
|
350 | 400 | 450 | 500 |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Download PDF
Content is loading
Spectral CF 8 K.I.S. support





Other riders also bought
18.95 US$
Original price
You save 6 US$
14.95 US$
Bike classification
This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
