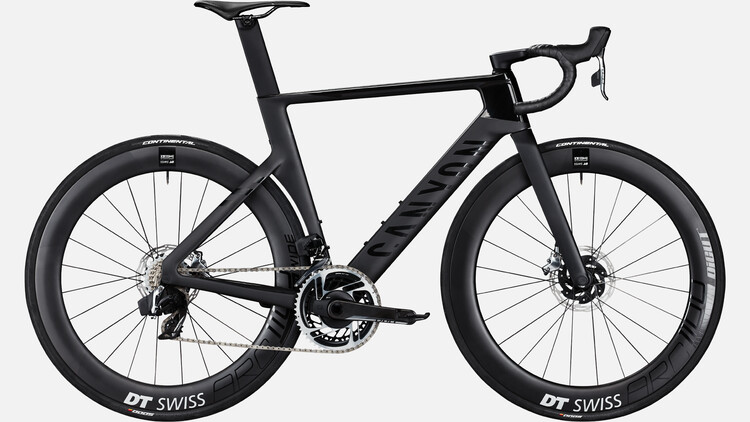

Aeroad CFR Disc AXS
7,799 US$
Original price
You save 50 US$
An aero race bike ready to compete at the very highest levels of professional cycling. With components ridden by the fastest riders in the pro peloton, complete system integration, and special premium finish, the Aeroad CFR sets a new industry standard for aero road disc performance. This is the Next Level. This is CFR. This is Canyon Factory Racing.
-
Weight:
7.37 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CFR)
Members only product.
Log in here
Additional information
Current delivery times information.
Read more
Not included:
Delivery:
Select frame size
Highlights Aeroad CFR Disc AXS

The lightest possible frame
The entire Aeroad CFR frameset weighs in at 1,752 grams. That’s a huge 238 gram saving over the previous generation’s flagship CF SLX. We do it by using the highest-grade materials, the most advanced manufacturing techniques, and collaborating with the very best partners in the industry.

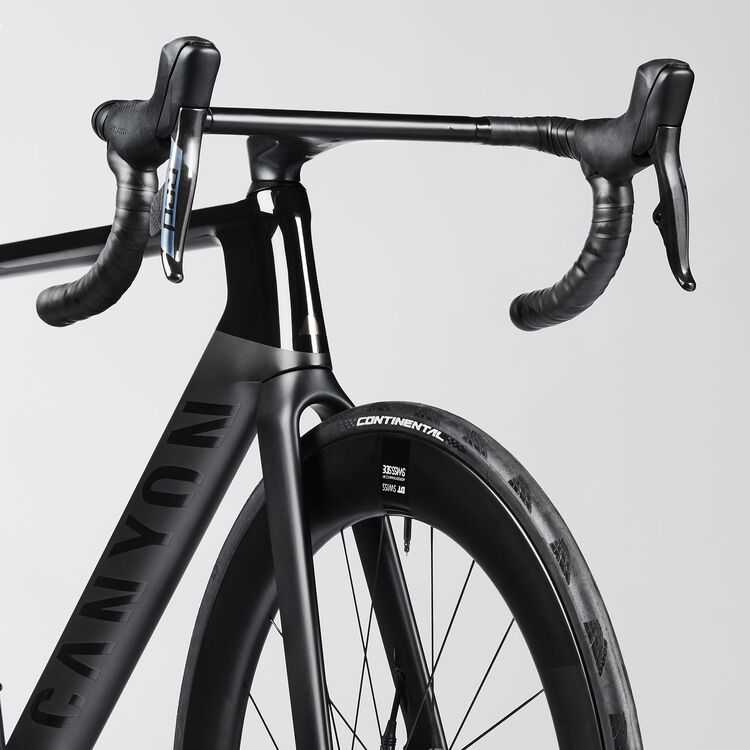

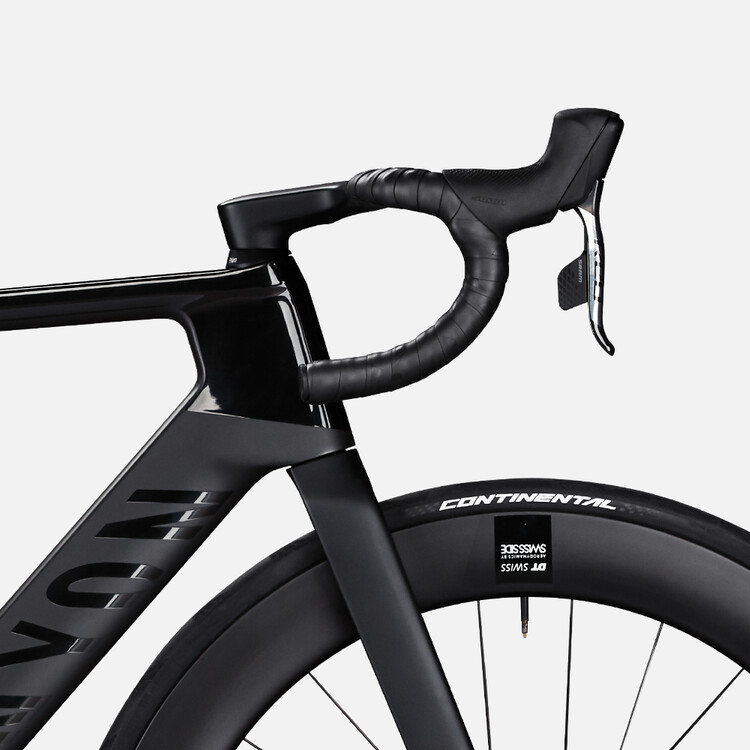

Aero cockpit innovation
The CP0018 goes way beyond aerodynamically optimised cockpits. Achieve +/-40 mm simple width adjustability for a dialled fit with a single tool. An innovative no-cut stem allows you to move seamlessly between a slammed stem and 15 mm rise with no cutting or spacer stacks above the stem. The new wing design makes cable management and travelling with your bike easy and simple.
Content is loading
Frame
-
Frame
- Canyon Aeroad CFR Disc
- Canyon Factory Racing R065 aero carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard. Weight: 915 g
-
Fork
- Canyon FK0060 CF Disc
- Aero design shaped using advanced CFD technology. Disc flat-mount disc standard. CT scanner tested and approved.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 330 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM RED eTap AXS 12s
- Weight: 280 g
-
Front Derailleur
- SRAM RED eTap AXS
- Weight: 170 g
-
Cassette
- SRAM RED XG-1290, 12-speed, 10-28
- Number of sprockets: 12
-
Crank
- SRAM RED Powermeter
- Number of chainrings: 2
-
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
-
Chain
- SRAM Red D1 12-speed
- Premium 12-speed chain. Signature flat-top design enables a narrower design with quieter operation and increased strength and durability. With HollowPin construction and hard chrome plated inner link plates and rollers for reduced wear and prolonged life.
Brakes
-
Shift-/ Brake Lever
- SRAM RED eTap AXS HRD, 12-speed
- Weight: 310 g
-
Shift-/ Brake Lever
- SRAM RED eTap AXS HRD, 12-speed
- Number of pistons: 2
- Weight: 610 g
-
Brake Rotor
- SRAM Centerline X
- Size: 160 mm
- Weight: 130 g
Wheels
-
Front Wheel
- DT Swiss ARC 1100 Dicut
- Rotor mount: Center Lock
- Weight: 890 g
-
Rear Wheel
- DT Swiss ARC 1100 Dicut
- Rotor mount: Center Lock
- Rim height: 62 mm
- Weight: 850 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 260 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLR Kit Carbonio Boost Superflow
-
Seatpost
- Canyon SP0046 Aero Seatpost
- Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
- Clamp diameter: 27,2 mm
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
624 - 704 | 654 - 734 | 684 - 764 | 714 - 794 | 744 - 824 | 774 - 854 | 804 - 884 |
Seat Tube Length in mm
(b)
|
443 | 473 | 503 | 533 | 563 | 593 | 623 |
Top Tube Length in mm
(c)
|
520 | 533 | 549 | 559 | 572 | 598 | 613 |
Head Tube Length in mm
(d)
|
89 | 106 | 126 | 147 | 167 | 193 | 211 |
Head Tube Angle
(e)
|
70,5° | 71,5° | 72,75° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
410 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
972 | 977 | 984 | 989 | 1.002 | 1.025 | 1.038 |
Stack in mm
(i)
|
498 | 521 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
733 | 759 | 785 | 810 | 834 | 860 | 884 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
573 | 596 | 613 | 635 | 656 | 681 | 701 |
Reach+ in mm
|
429 | 446 | 459 | 473 | 490 | 509 | 529 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
50/37 | 50/37 | 50/37 | 50/37 | 50/37 | 50/37 | 50/37 |
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
202 | 202 | 202 | 202 | 202 | 202 | 202 |
Minimum Seat Post Insertion Depth in mm
|
122 | 122 | 122 | 122 | 122 | 122 | 122 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Download PDF
Content is loading
Aeroad CFR Disc AXS support
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
