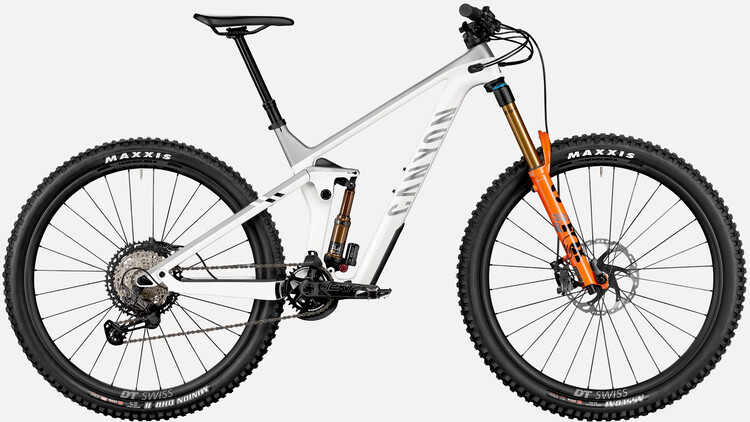

Strive CFR
Pairing the next-generation of lightweight CFR carbon technology with the best mountain bike components available, the Strive CFR was designed together with pro riders to compete at the highest level. It is a thoroughbred Enduro race bike without compromise.
- Front Fork Travel: 170 mm
-
Weight:
14.25 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
Select frame size
Sold out
Members only product.
Log in here
Sold out
Highlights Strive CFR

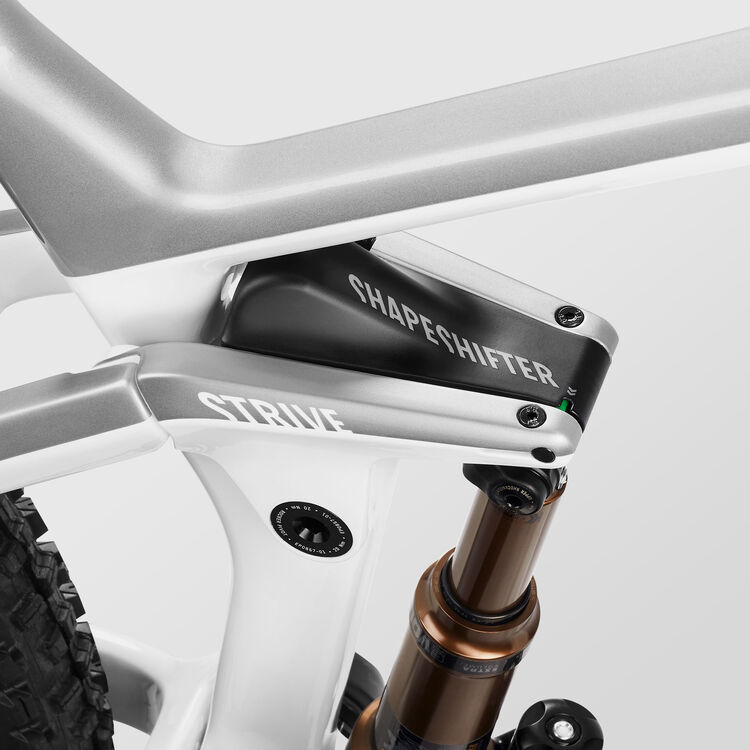

Shapeshifter
With Shapeshifter tech, you can switch between geometries with the press of a button as you ride, for more downhill stability or pedalling efficiency as required. Just push the handlebar-mounted switch to engage the FOX gas spring located above the shock. Changing between modes modifies the bike’s fork and seat angle, rear travel, bottom bracket height, and wheelbase.

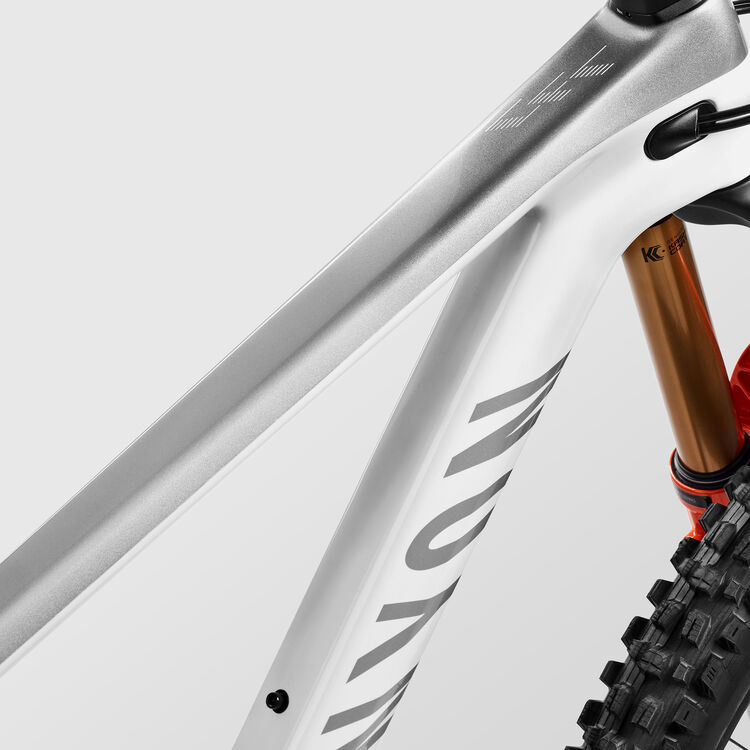

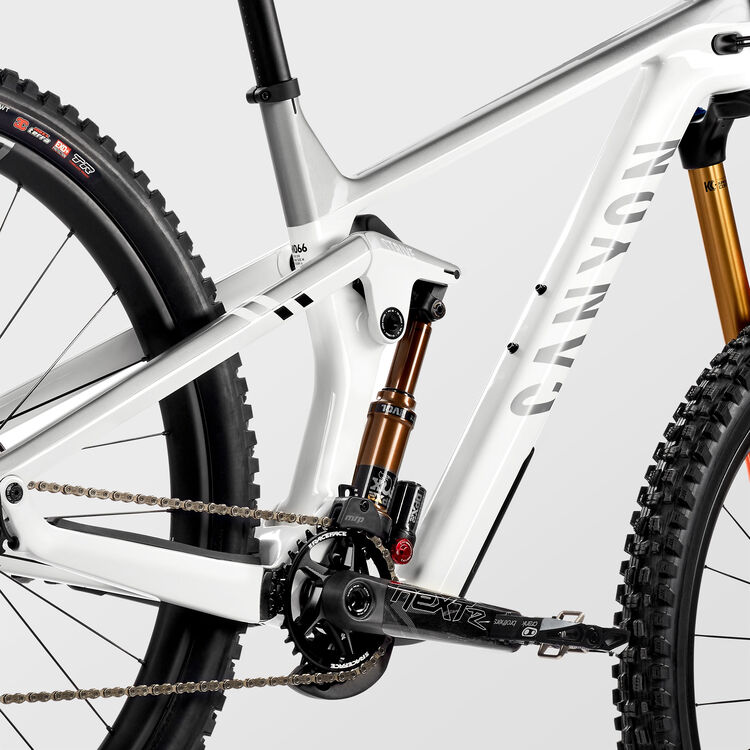

Full-carbon frame
Tested to the limit in our labs and on the world’s most punishing trails. Rated at a maximum category 4 on our toughness scale, the Strive’s full-carbon frame is engineered to meet the demands of the world’s rowdiest riders. In terms of stability and durability, it’s Enduro World Series tough. And with its carbon rear triangle, the Strive achieves a more balanced stiffness-to-weight ratio.

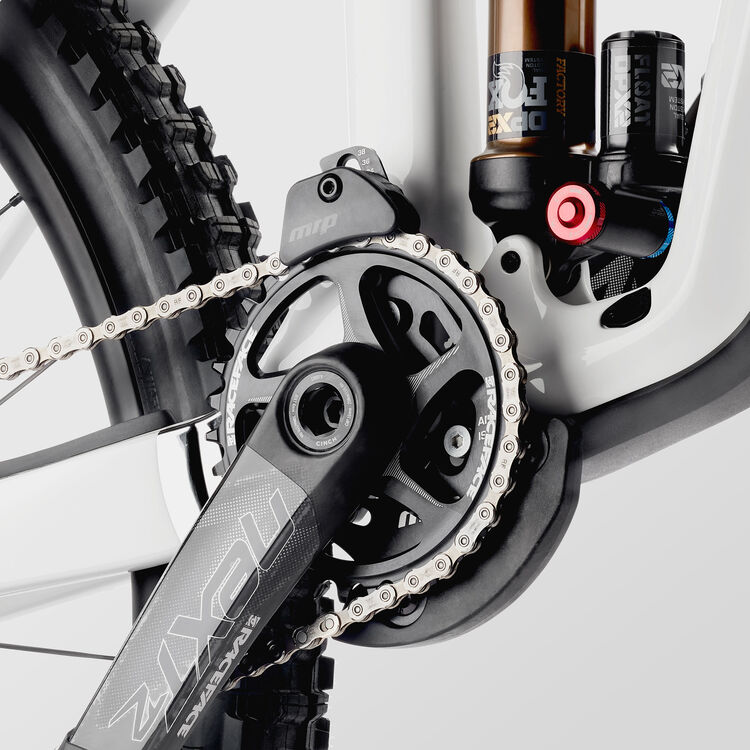

Downtube and chainstay protectors
The downtube protector shields the carbon frame from ground hits and flying stones. And a further protector on the drive side chainstay dampens noises caused by chain slap on rough trails.
Content is loading
Frame
-
Frame
- Canyon Strive CF
- The Strive CFR chassis has carried the Canyon Enduro World Series team to two fastest-team titles. Light (just 2,400 grams), burly, and remarkably versatile, the Strive CFR is one bike that does it all.
-
Rear Shock
- Fox DPX2 Factory
-

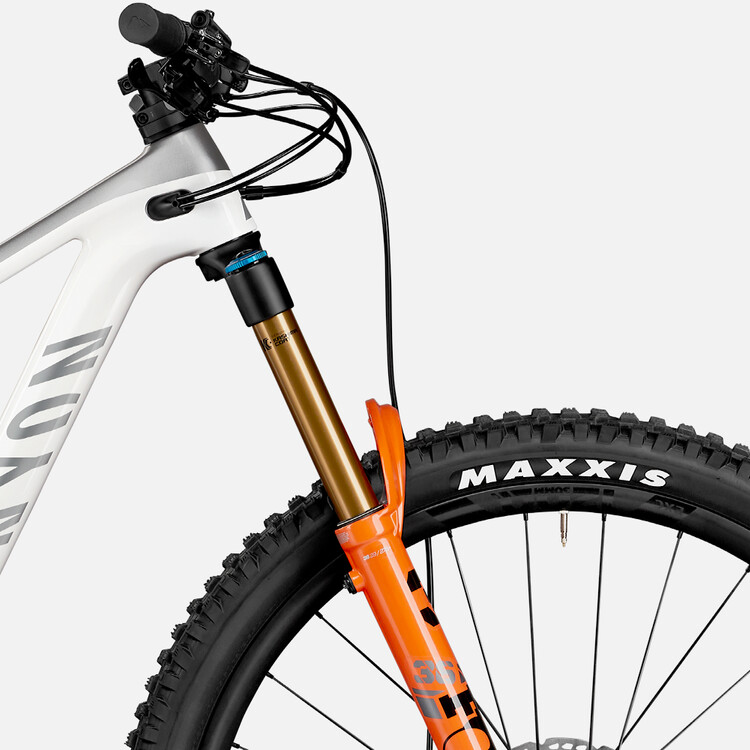

Suspension Fork
- Fox 36 Factory 29"
- Travel: 170 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
-
Rear Derailleur
- Shimano XTR, 12-speed
- Cage length: long
- Weight: 243 g
-
Chainguard
- MRP V2 ISCG Chainguide
-
Shift Lever
- Shimano XTR, 12-speed
- Weight: 128 g
-
Shift Lever
- SRAM MMX XO1
- Weight: 15 g
-
Cassette
- Shimano Deore XT CS-M8100
- Number of sprockets: 12
- Range: 10-51 12S
-
Crank
- Race Face Next R
- Number of chainrings: 1
-
Bottom bracket
- Race Face BSA Cinch
- Bottom bracket standard: BSA 73
- Weight: 93 g
-
Chain
- Shimano M7100
- SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly.
Brakes
-
Disc Brake
- Shimano XTR 4-piston front brake
-
Disc Brake
- Shimano XTR 4-piston rear brake
-
Brake Rotor
- Shimano RT86, 180mm
- Size: 180 mm
- Weight: 148 g
-
Brake Rotor
- Shimano RT86
- Size: 203 mm
- Weight: 182 g
Wheels
-
Front Wheel
- DT Swiss EXC1200
- Rotor mount: IS 6-bolt
-
Rear Wheel
- DT Swiss EXC1200
- Rotor mount: IS 6-bolt
-
Tyre
- MAXXIS Minion DHR II 2.4''
- Width: 2.4"
- Weight: 10 g
-
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
-
Thru Axle
- Canyon Quixle Thru Axle, Boost 148
Cockpit
-
Stem
- Canyon G5
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon G5
- Our carbon-fiber G5 Riser bar offers the perfect combination of width (780mm) and rise (30mm).
-
Grips
- Canyon G5
Seat
-
Saddle
- Ergon SM10 Enduro Comp
- Gender: Unisex
- Weight: 300 g
-
Seatpost
- OneUp Components V2
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 10 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Shapeshifter
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
661 - 793 | 701 - 833 | 716 - 848 | 761 - 893 |
Seat Tube Length in mm
(b)
|
400 | 440 | 455 | 500 |
Top Tube Length in mm
(c)
|
603 | 629 | 662 | 698 |
Head Tube Length in mm
(d)
|
95 | 100 | 110 | 130 |
Head Tube Angle
(e)
|
65,2-66,7° | 65,2-66,7° | 65,2-66,7° | 65,2-66,7° |
Seat Tube Angle
(f)
|
72,7-74,2° | 72,7-74,2° | 72,7-74,2° | 72,7-74,2° |
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 |
Wheel Base in mm
(h)
|
1.168 | 1.195 | 1.229 | 1.267 |
Stack in mm
(i)
|
630 | 637 | 645 | 663 |
Reach in mm
(j)
|
406 | 413 | 461 | 491 |
Stand-over Height in mm
(k)
|
803 | 799 | 793 | 814 |
Bottom Bracket Offset in mm
(l)
|
17 - 32 | 17 - 32 | 17 - 32 | 17 - 32 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Stem Length in mm
|
40 | 40 | 40 | 40 |
Handlebar Width in mm
|
780 | 780 | 780 | 780 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
32 | 32 | 32 | 32 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
180 | 180 | 180 | 180 |
Seat Post Length in mm
|
465 | 465 | 465 | 465 |
Maximum Seat Post Insertion Depth in mm
|
252 | 252 | 252 | 252 |
Minimum Seat Post Insertion Depth in mm
|
120 | 120 | 120 | 120 |
Wheel Size
|
29" | 29" | 29" | 29" |
Disc Size in mm
|
203 / 180 | 203 / 180 | 203 / 180 | 203 / 180 |
Front Fork Travel in mm
|
170 | 170 | 170 | 170 |
Rear Suspension Travel in mm
|
150 | 150 | 150 | 150 |
Download PDF
Content is loading
Strive CFR support
Other riders also bought
- Colour: black
- Colour: Green
- Colour: Brown
- Colour: Blue
- Colour: light green
37.95 US$
Original price
You save 16 US$
Bike classification
This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
