Spectral:ON CF 8

Name: Spectral:ON CF 8
Brand: Canyon
Price: 5499.00 CAD
Availability: InStock
Rating: 4 (10 reviews)

-11%

C$ 5,499

Original price ~~C$ 6,199~~

You save C$ 700

Simply the best value in trail e-MTBs today. Full carbon frame, stellar components, and a price that just can’t be beat.

Bomber-yet-lightweight, full-carbon frame
Proven power, courtesy of Shimano EP8 motor
Reliable FOX 38 Rhythm fork and Float X shock
Durable Shimano XT/SLX drivetrain and brakes
Rugged, removable 800 Wh aluminium battery
Up to 85 km range and 1,900 m of elevation gain

Front Fork Travel: 160 mm
Weight: 24.72 kg

Customer reviews (10)

Colour: Stealth

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

C$ 5,499

Original price ~~C$ 6,199~~

You save C$ 700

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
Ready to ride delivery with velofix DIRECT

With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.

Delivery: Select frame size

Highlights Spectral:ON CF 8

Play:ON repeat

Uniquely nimble

There’s no other full-power e-MTB like the Spectral:ON. The bike’s big battery gives you the power to ride all-day while also improving the Spectral:ON’s handling. The battery’s unique, horizontal fuel-cell architecture helps lower the bike’s centre of gravity and creates an absolute ground-hugging, corner-slaying marvel.

Tough yet lightweight

The heart and soul of the Spectral:ON CF is its light-yet-durable, full-carbon frame. Built to withstand rigorous Category 4e strength and impact testing, the Spectral:ON CF easily shrugs off hard riding, season after season, while boasting a truly impressive frame weight of 3,180 grams (7.01 pounds).

A masterpiece in raw carbon

Experience the refined elegance of this bike’s premium stealth artwork, designed to showcase its advanced unidirectional carbon structure. By revealing the intricate carbon layup, we’ve reduced weight and created a distinctive, textured aesthetic.

Ride before you decide

Want to see and test ride a Canyon before you make your decision? Check out this and other Canyon models at our CLLCTV Sessions group rides, at Canyon stores, and at our growing number of global Canyon Experience Partners.

See locations

Let’s set-up your new bike

Wondering how to properly adjust your suspension or take full advantage of all the technology on your new bike? Our set-up guide in the Canyon App will help you quickly build and tune your new ride to your tastes. Stay composed and in control with the capable trail geometry.

See the set-up guide

Key features

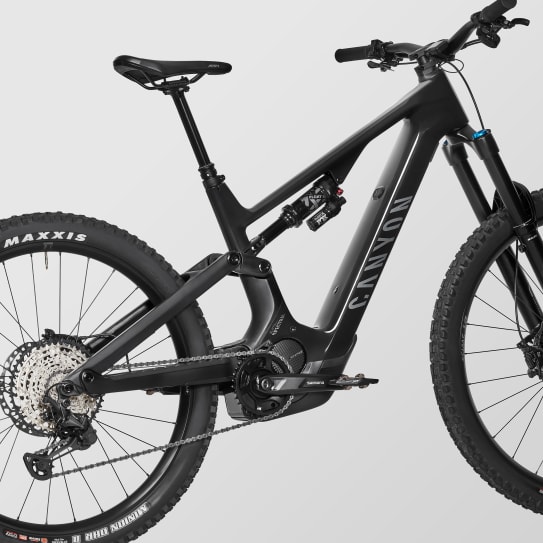

Crafted Carbon Trail e-MTB chassis

Our Spectral:ON CF sets the bar for high torque e-MTB trail bikes. From flowing singletrack to burly enduro trails and everything in between, the Spectral:ON’s lightweight carbon frame, 160mm fork and 155mm of rear travel deliver a trail taming ride feel combining capability and agility into a tough, category 4e rated package.

Next-gen power. Smart and robust.

This new 800 Wh aluminium battery raises the bar for e-MTB performance. Advanced cell technology unlocks faster charging, smarter energy management, and greater overall efficiency. With IP57-certified water resistance and a double-sealed design to resist the elements, it’s been independently validated by Dekra and SGS – built for long-term durability, shaped by progressive engineering.

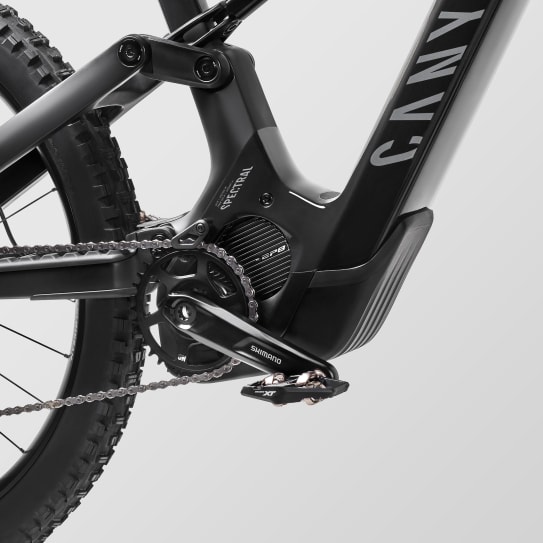

Proven Shimano power

A great e-MTB needs to pack serious power under the hood without compromising handling and that’s exactly what the EP8 does. With a whopping 85 Nm of torque and 400% pedal assist, the motor will you have flying up steep trails and its compact size and light 2.7 kg weight ensure that the bike still handles like a champ.

GPS Enabled

Whether you’re logging miles ridden and vert crushed or just keeping tabs on your baby, the GPS function of the Spectral:ON has got you covered. The new Canyon app logs the location of your bike and can even send an alarm notification if your bike gets tampered with. The GPS locator stays enabled if the bike runs out of battery.

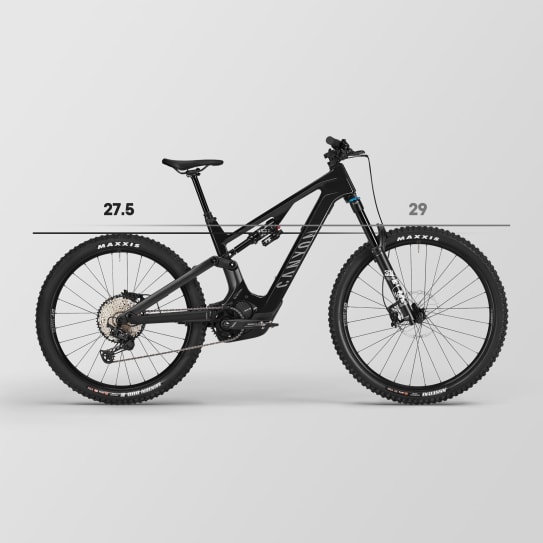

Perfectly Balanced Mullet Setup

A key part of the Spectral:ON’s outstanding handling and agility is the mullet wheelsize setup. The 27.5 rear wheel increases manoeuvrability on tight trails, while the larger 29er front wheel boosts grip and rollover creating a composed, yet nimble ride. The trail focussed geometry combines roomy reach numbers with a balanced 65.5 headtube angle for a do-it-all setup

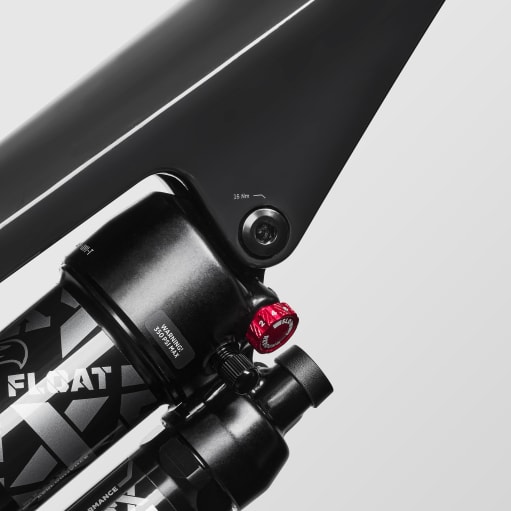

Trail tough hardware

Double-sealed bearings at the pivot points keep dirt and moisture out so you can keep riding through the crud. When it’s eventually time to service the bike, you can wrench with confidence thanks to the replaceable thread inserts which prevent stripped or crossed threads causing terminal damage to the frame.

Components

Content is loading

Frame

Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 3,597 g
Rear Shock
- Fox Float X Performance Evolution
- Tune CL, RM, Rezi LM
- Weight 280 g
Suspension Fork
- Fox 38 Rhythm
- Axle dimension 15x110 mm
- Stanchion Diameter 38 mm
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
Seatpost Clamp
- Canyon GP0279-01 Seatclamp

Drivetrain

Motor
- Shimano EP801
Battery
- Canyon BT010
Rear Derailleur
- Shimano Deore XT M8100
- Cage length long
- Weight 282 g
Chainguard
- Canyon Chainguide M091/M129
Shift Lever
- Shimano Deore SLX M7100
- Weight 143 g
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets 12
- Range 10-51
Crank
- Shimano Steps
- Number of chainrings 1
Chainring
- Canyon EP1110-01 Chainring 34T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano SLX M7120
- Number of pistons 2
Disc Brake
- Shimano SLX M7120
- Number of pistons 4
Brake Rotor
- Shimano RT64
- Size 203 mm
- Weight 206 g
Brake Rotor
- RT SHIM EM600 203 CL W/LR INT
- Size 203 mm
- Weight 10 g

Wheels

Front Wheel
- DT Swiss HLN350 15x110 30mm Centerlock
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Weight 1,026 g
Rear Wheel
- DT Swiss HLN350 12x142 30mm Centerlock
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Weight 1,258 g
Tyre
- Maxxis Assegai
- Width 2.5"
- Weight 1,072 g
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width 2.6"
- Weight 900 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length 45 mm
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter 35,0 mm
- Rise 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender Unisex
- Weight 272 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 567 g

Light

Lights
- Reflector Set

Accessories

Battery Charger
- Canyon Charger
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox
Manuals and Accessories
- Quick Start Guide Spectral:ON

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	647 - 756	693 - 823	733 - 853	753 - 873
Seat Tube Length in mm (b)	420	440	460	480
Top Tube Length in mm (c)	586	613	641	668
Head Tube Length in mm (d)	115	125	135	145
Head Tube Angle (e)	65,5°	65,5°	65,5°	65,5°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.194	1.223	1.252	1.281
Stack in mm (i)	630	639	648	657
Reach in mm (j)	435	460	485	510
Stand-over Height in mm (k)	809	814	820	825
Bottom Bracket Offset in mm (l)	32	32	32	32

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	165,0	165,0	165,0	165,0
Chainring Size	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170
Seat Post Length in mm	378	425	465	465
Maximum Seat Post Insertion Depth in mm	199	220	240	240
Minimum Seat Post Insertion Depth in mm	90	90	120	120
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	155	155	155	155
Battery capacity	800 Wh	800 Wh	800 Wh	800 Wh
Fitting Length	230X60	230X60	230X60	230X60

Download PDF

Content is loading

Spectral:ON CF 8 support

Canyon Bikestand

C$ 81.99

Canyon MTB Backpack 16L with D3O Protector

C$ 169.99

Limited edition

Canyon MTB Performance Pedals LTD

C$ 159.99

Canyon Scampr Trail Cycling Shoes

C$ 219.99

Sale

Canyon Mid Cycling Socks

C$ 13.95

Original price ~~C$ 13.99~~

You save C$ 0.04

Canyon MTB Pants

C$ 139.99

-36%
Weather-ready

Canyon PocketLight Rain Jacket Loose Fit

C$ 179.99

Original price ~~C$ 279.99~~

You save C$ 100

Weather-ready
New

Canyon Mid Season Gloves

C$ 61.99

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

C$ 20.99

CLLCTV T-Shirt

C$ 54.99

-56%

View

CLLCTV Core Snap Back

C$ 17.99

Original price ~~C$ 40.99~~

You save C$ 23

Bike classification

This category also covers the requirements of categories 1e-3e. In addition, bicycles of this category are suitable for very rough and partly blocked terrain with steep slopes and higher speeds as a result thereof. Regular, moderate jumps by experienced riders are no problem for these bicycles. The regular and durable use of the bicycles on North Shore trails and in bike parks should, however, be excluded. Due to the higher stresses, these bicycles should be checked for possible damage after every ride. Full suspension bikes with medium suspension travel are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
