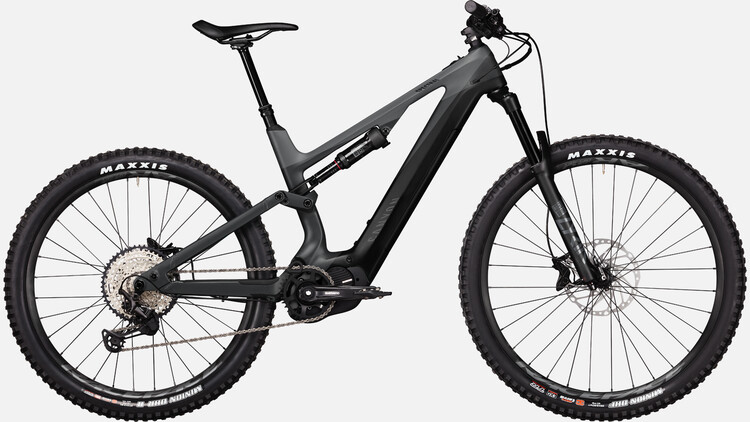

Spectral:ON CF 7.0

Name: Spectral:ON CF 7.0
Brand: Canyon
Availability: OutOfStock
Rating: 5 (45 reviews)

Combining a modern trail geometry and 150 mm of dialled suspension with a new, lighter carbon frame and sleek integrated battery, the Spectral:ON CF 7.0 and its powerful Shimano motor will have you out running laps until the sun goes down.

Customer reviews (45)

Colour: Shades of Stealth

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Low temperature advisory: this bike’s motor may not activate in sub-zero conditions.

Members only product.

Sold out

Highlights Spectral:ON CF 7.0

Components

Content is loading

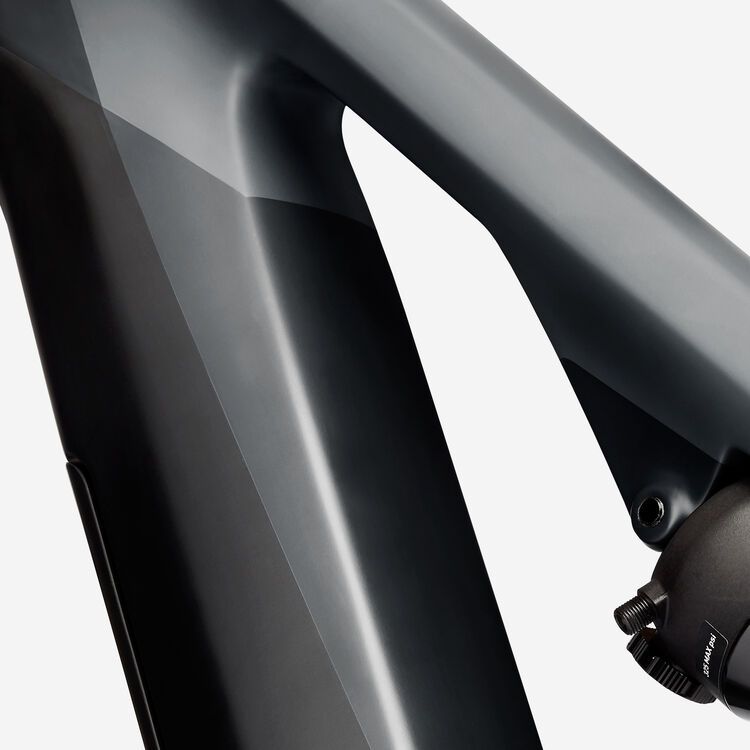

Frame

Frame
- Canyon Spectral:On
- Material Carbon
- Travel 150 mm
- Axle Dimension 12 x 148 mm
- Brake Mount Post Mount 203

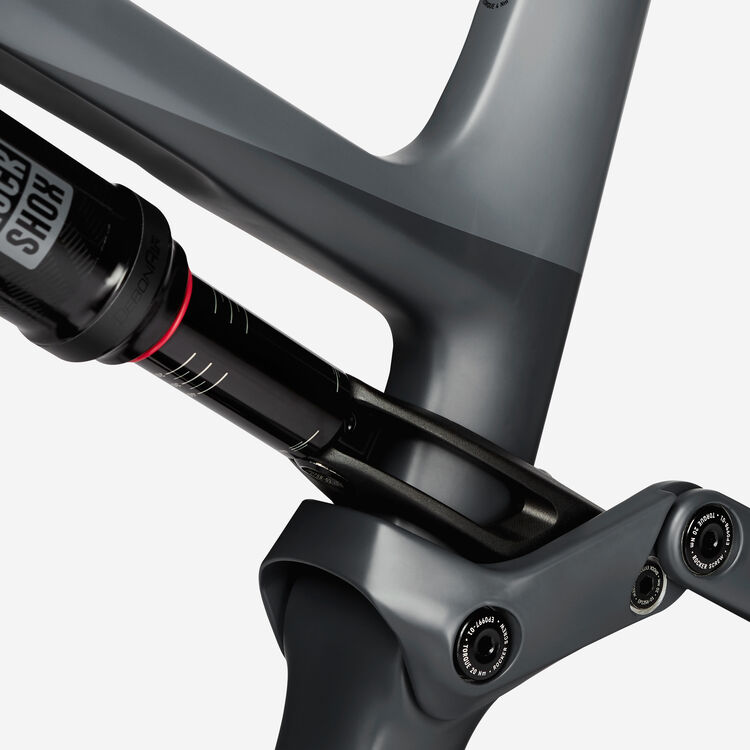

Rear Shock
- RockShox Deluxe Select, 230x60
- Weight 365 g

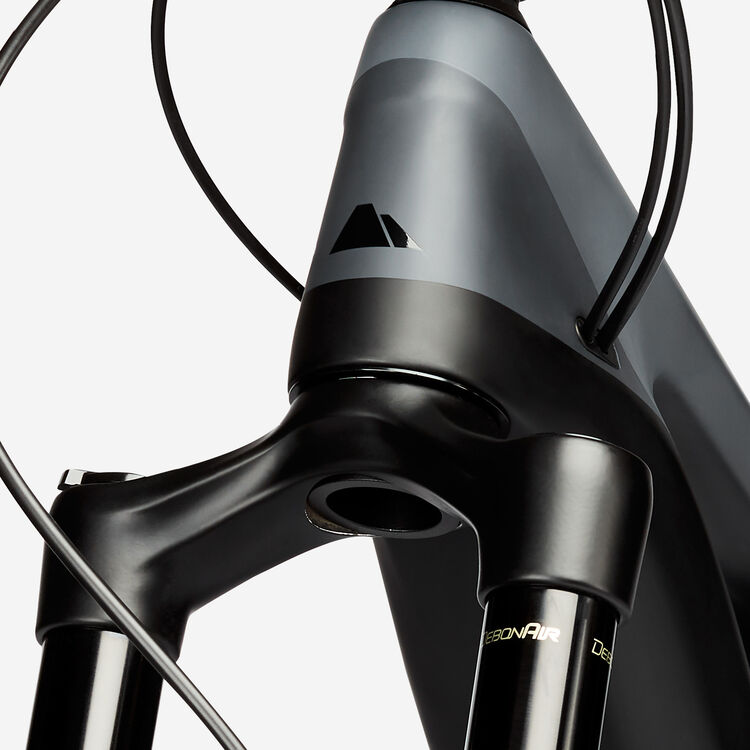

Suspension Fork
- Rock Shox Lyrik Select, 150mm
- Travel 150 mm
- Fork steer tube diameter 1 1/8" - 1 1/4"
- Weight 2,100 g

Drivetrain

Motor
- Shimano Steps E8000
Battery
- Shimano BT-E8035-L Battery
Rear Derailleur
- Shimano Deore XT M8100
- Cage length long
- Weight 248 g
Shift Lever
- Shimano SLX M7100 12s
- Weight 143 g
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets 12
- Range 10-51
Crank
- Shimano E8000
- Number of chainrings 1
Chainring
- Canyon EP1110-01 Chainring 34T
Chain
- Shimano M7100 12-speed

Brakes

Disc Brake
- Shimano MT520
Disc Brake
- Shimano MT520
Brake Rotor
- Shimano RT64
- Size 203 mm
- Weight 206 g
Brake Rotor
- RT SHIM EM600 203 CL W/LR INT
- Size 203 mm
- Weight 10 g

Wheels

Front Wheel
- RaceFace AR30 | Shimano MT400
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Weight 1,200 g
Rear Wheel
- RaceFace AR35 | Shimano MT510
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Weight 1,250 g
Tyre
- Maxxis Minion DHF, 2.5"
- Width 2.5"
- Weight 250 g
Tyre
- Maxxis Minion DHR II, 2.6"
- Width 2.6"
- Weight 10 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON Stem
- 35mm clamp diameter, 50mm length
Stem
- ST [ON] ST0030-01 FRONTPLATE
Handlebar
- Canyon:ON HB0056 Riser bar
- Clamping diameter 35,0 mm
- Width 780 mm
- Rise 20 mm
Grips
- Canyon Lock-On
Display
- Shimano Steps SC-E7000 Display
Modeswitch
- Shimano STEPS power mode switch

Seat

Saddle
- Canyon SD:ON
- Weight 302 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 567 g

Accessories

Pedals
- VP-536 f
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- CAYN Manual MTB W/CD
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Drybag
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- QSG M094/M096/M098 [ON] eMTB MY20
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Pedelec Manual 005-V04

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 172	172 - 183	183 - 194	≥ 194
Seat Height in mm (a)	632 - 731	693 - 823	733 - 863	773 - 903
Seat Tube Length in mm (b)	430	440	480	520
Top Tube Length in mm (c)	590	612	632	653
Head Tube Length in mm (d)	100	115	125	135
Head Tube Angle (e)	66,5°	66,5°	66,5°	66,5°
Seat Tube Angle (f)	74,5°	74,5°	74,5°	74,5°
Chainstay Length in mm (g)	435	435	435	435
Wheel Base in mm (h)	1.171	1.197	1.221	1.245
Stack in mm (i)	620	625	635	645
Reach in mm (j)	425	445	465	485
Stand-over Height in mm (k)	784	788	792	806
Bottom Bracket Offset in mm (l)	33	33	33	33

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0
Stem Length in mm	50	50	50	50
Handlebar Width in mm	760	780	780	780
Crank Length in mm	165,0	165,0	165,0	165,0
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	100	150	150	150
Seat Post Length in mm	323	425	425	425
Maximum Seat Post Insertion Depth in mm	169	220	220	220
Minimum Seat Post Insertion Depth in mm	70	90	90	90
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	150	150	150	150
Rear Suspension Travel in mm	150	150	150	150
Battery capacity	504 Wh	504 Wh	504 Wh	504 Wh
Fitting Length	230X60	230X60	230X60	230X60

Download PDF

Content is loading

Spectral:ON CF 7.0 support

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
