E-Bikes // E-Mountain // Spectral:ON

New

Spectral:ON CF 7

$5,499.00

Financing available for this product

Color only available to members.

Find your size:

Find your size

For the best results, click on the "Help" texts for detailed explanations on how to carry out each specific measurement.

Your height

Your inseam

Select frame size:

S

Coming soon: 5/10/21 - 5/14/21
M

Coming soon: 5/10/21 - 5/14/21
L

Coming soon: 5/10/21 - 5/14/21
XL

Coming soon: 5/10/21 - 5/14/21

Color only available to members.

$5,499.00

(Financing available for this product)

Assists Up To

20 mph
Front Fork Travel

150 mm
Material

Carbon (CF)

Spectral:ON CF 7 An e-MTB with attitude: with its powerful Shimano EP8 motor and stable-yet-agile handling to match, the Spectral:ON CF 7 is pure fun on the most technical of singletrack.

See components

See geometry & dimensions

Recommended gear

Shimano EP8

10% lighter, 21% more power, and more range: with the new Shimano EP8, you can get in more downhill time than ever before. The drive system’s huge 85 Nm of torque and up to 630 Wh of battery capacity* make it easy to fly up the climbs time after time. The motor ticks all the performance boxes with an even more natural ride feel, and app-controlled tuning to fit your riding style and course profile.

USB-C

Extra power on tap! To activate the Shimano EP8 motor, simply press the top tube-integrated :ON button. You can pick between three support modes – Eco, Trail, and Boost. And there’s also an integrated USB-C charging socket for charging your smartphone, lights, or other devices.

Triple Phase Suspension

Our Triple Phase Suspension provides proven performance on the most demanding trails – all the way up to racing at World Cup level. Sensitive small-bump response provides top traction and control. In the mid-stroke, a stable feel lets you keep momentum and speed out of berms and over bumps. And on big hits, the suspension ramps up progressively through the final third of the travel, for a bottomless feel.

The highlights of this component set

This e-bike’s ready for the trail with its carbon front triangle, Shimano EP8 motor, and mullet wheel sizing (29” front/ 27.5” rear). Combined with a plush RockShox suspension, powerful brakes and precise shifting from Shimano, and our inhouse-developed ON: Bar and Stem, this is a top all-round package.

View all components

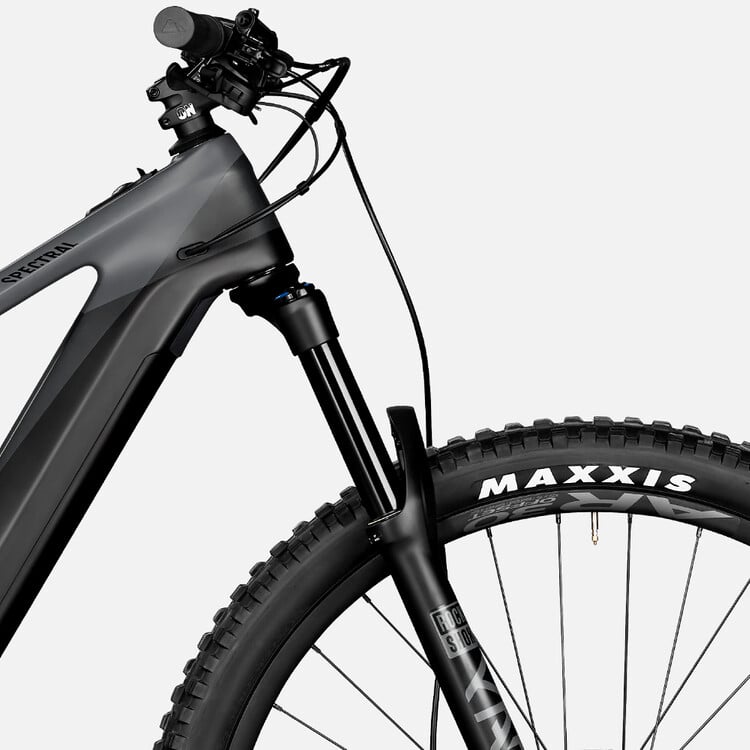

Suspension Fork

RockShox Yari RC, 150mm

With its 35 mm thick stanchions and 150 mm of trail-ready travel, the Yari fork gives you the traction and control you need to carry big speed through technical sections. We pair it with a Deluxe Select rear shock for a setup that takes care of the hard work so you can focus on what’s most important: flying down the trail.
Disc Brake

Shimano Deore 4-piston, front brake

Specially developed for trail riding: with overhauled levers, four-piston callipers, and big 203 mm brake rotors front and rear, Shimano MT6120 gives you reliable, precise stopping power on any terrain.
Rear Derailleur

Shimano Deore XT, 12-speed

Shimano’s accurate and reliable XT shifting pairs with a 12-speed 10-51 cassette to give you a huge 510% gearing range. And with the extra power of an electric motor, you can power up the steepest, most technical the ascents out there.
Handlebar

Canyon:ON HB0056 Riser bar

Developed inhouse by our designers and engineers, the ON: Bar and Stem was specially designed for our e-MTB range. The bombproof construction is not just durable and ergonomic but makes it easy to internally route the battery display’s cable through the handlebar to the integrated battery in the downtube protecting it from any damage. *USB cable not included

View all components

Geometry Table

Understanding your bike's geometry is the key to a great fit and comfortable ride.

Basic geometry

Detailed geometry table
	S Your selected size	M Your selected size	L Your selected size	XL Your selected size
Body Height in cm	< 172	172 - 183	183 - 194	> 194
Seat Height in mm (a)	657 - 766	693 - 823	733 - 863	773 - 903
Seat Tube Length in mm (b)	430	440	480	520
Top Tube Length in mm (c)	590	612	632	653
Head Tube Length in mm (d)	100	115	125	135
Head Tube Angle (e)	66,5°	66,5°	66,5°	66,5°
Seat Tube Angle (f)	74,5°	74,5°	74,5°	74,5°
Chainstay Length in mm (g)	435	435	435	435
Wheel Base in mm (h)	1.171	1.197	1.221	1.245
Stack in mm (i)	620	625	635	645
Reach in mm (j)	425	445	465	485
Stand-over Height in mm (k)	784	788	792	806
Bottom Bracket Offset in mm (l)	33	33	33	33

Component geometry

Detailed geometry table
	S Your selected size	M Your selected size	L Your selected size	XL Your selected size
Spacer in mm	20,0	20,0	20,0	20,0
Stem Length in mm	50	50	50	50
Handlebar Width in mm	760	780	780	780
Crank Length in mm	165,0	165,0	165,0	165,0
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	150	150
Seat Post Length in mm	378	425	425	425
Maximum Seat Post Insertion Depth in mm	199	220	220	220
Seat Post Insertion Depth in mm	90	90	90	90
Wheel Size	29"	29"	29"	29"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	150	150	150	150
Rear Suspension Travel in mm	150	150	150	150
Battery capacity	630 W	630 W	630 W	630 W

All components
Frame
Frame

Canyon Spectral:ON

Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)

Rear Shock

RockShox Deluxe Select, 230x60

150mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.

Suspension Fork

RockShox Yari RC, 150mm

150mm of front suspension, 29er fork, Boost 110 spacing, 35mm stanchions, Motion Control compression and rebound damping adjuster
Drivetrain
Motor

Shimano Steps EP8 Motor

Battery

Shimano BT-E8036 Akku 630WH

Rear Derailleur

Shimano Deore XT, 12-speed

1x12 drivetrain for simpler, intuitive shifting. Proven Shimano XT performance.

Shift Lever

Shimano SLX, 12-speed

Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 133 g

Cassette

Shimano Deore, 12-speed (10-51)

Cassette packed with tricke-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.

Crank

Shimano STEPS e-MTB crank arms

Designed for the rigors of E-MTB riding, 24mm spindle, 165mm crank arms

Chainring

Canyon:ON 34T

Canyon E-MTB specific, direct-mount chainring, 34-tooth

Chain

Shimano M6100 12-speed

HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Brakes
Disc Brake

Shimano Deore 4-piston, front brake

High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads

Disc Brake

Shimano Deore 4-piston, rear brake

High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads

Brake Rotor

Shimano EM600 STEPS rear rotor, 203mm

Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal

Brake Rotor

Shimano SLX rotor, 203mm

High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Wheels
Wheel

RaceFace AR30 | Shimano MT400

Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width

Wheel

RaceFace AR35 | Shimano MT510

Shimano MT510 rear hub with Boost 148 spacing, RaceFace AR35 aluminum rim, 35mm inner rim width

Tyre

Maxxis Minion DHF, 2.5"

EXO casing, Tubeless Ready design

Tyre

Maxxis Minion DHR II, 2.6"

EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Cockpit
Stem

Canyon:ON Stem

35mm clamp diameter, 50mm length

Handlebar

Canyon:ON HB0056 Riser bar

Aluminum, 780mm width, 35mm clamp diameter, 20mm rise

Grips

Canyon Lock-On Grips

Modeswitch

Shimano STEPS power mode switch

Handlebar-mounted unit lets you quickly and easily change power modes or activate walk-assist mode
Seat
Saddle

Canyon SD:ON

Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g

Seatpost

Iridium Dropper Post

Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Accessories
Battery Charger

Shimano STEPS - Battery Charger

Flat Pedals

VP-536 Pedals

Flat pedals made from robust polypropylene plastic.

Manuals and Accessories

Canyon tool case

Manuals and Accessories

Canyon Smallbox

Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste

Manuals and Accessories

Quickstartguide Canyon eMTB
Spare & Wear Parts
Derailleur hanger

SRAM UDH Derailleur Hanger
