E-Bikes // E-Mountain // Spectral:ON

New

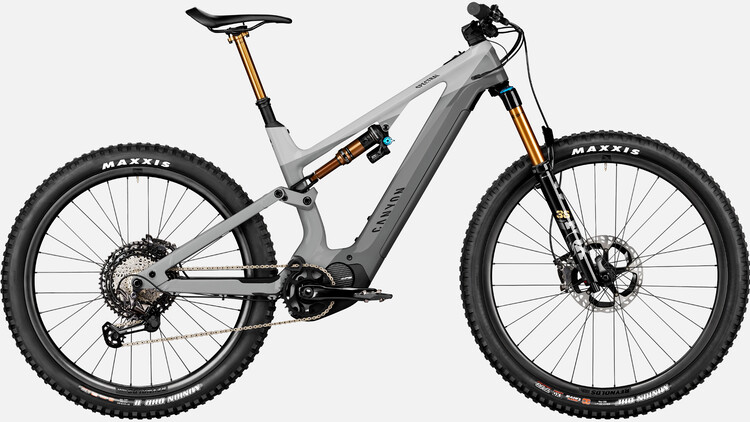

Spectral:ON CF 9

$8,500.00

Financing available for this product

Color only available to members.

Find your size:

Find your size

For the best results, click on the "Help" texts for detailed explanations on how to carry out each specific measurement.

Your height

Your inseam

Select frame size:

S

Coming soon: 5/3/21 - 5/7/21
M

Coming soon: 5/3/21 - 5/7/21
L

Coming soon: 5/3/21 - 5/7/21
XL

Coming soon: 5/3/21 - 5/7/21

Color only available to members.

$8,500.00

(Financing available for this product)

Assists Up To

20 mph
Front Fork Travel

150 mm
Material

Carbon (CF)

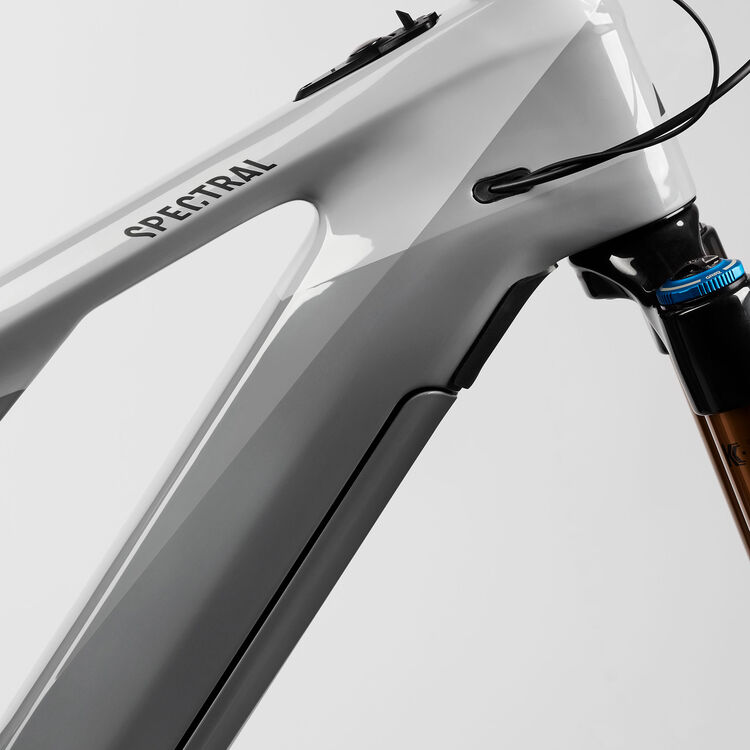

Spectral:ON CF 9 A 2020 Red Dot Design Award winner in the e-mountain bike category, this bike looks as good as it shreds. Experience full-blooded e-trail performance with agile handling, a powerful new Shimano EP8 motor, and high-end components.

See components

See geometry & dimensions

Recommended gear

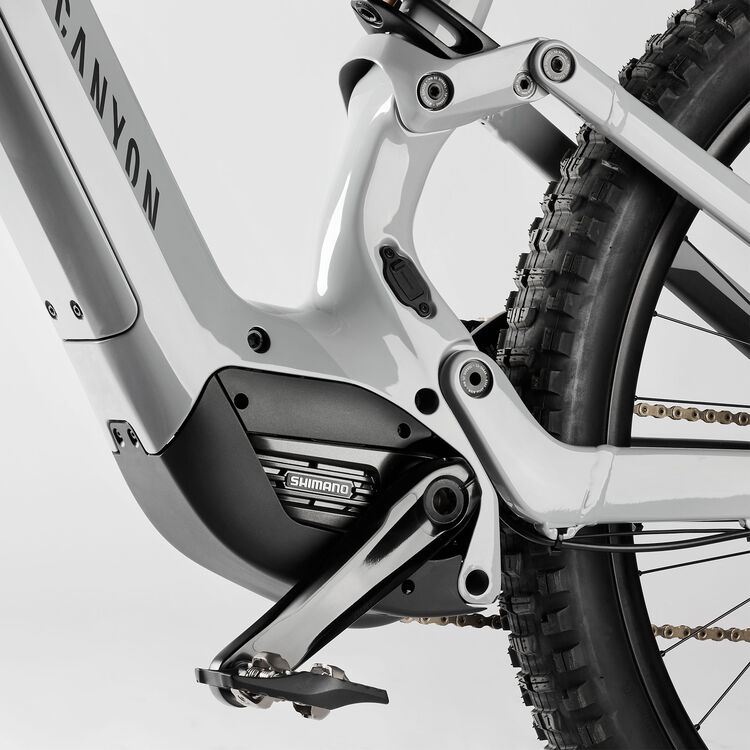

Shimano EP8

10% lighter, 21% more power, and more range: with the new Shimano EP8, you can get in more downhill time than ever before. The drive system’s huge 85 Nm of torque and 630 Wh of battery capacity make it easy to fly up the climbs time after time. The motor ticks all the performance boxes with an even more natural ride feel, and app-controlled tuning to fit your riding style and course profile.

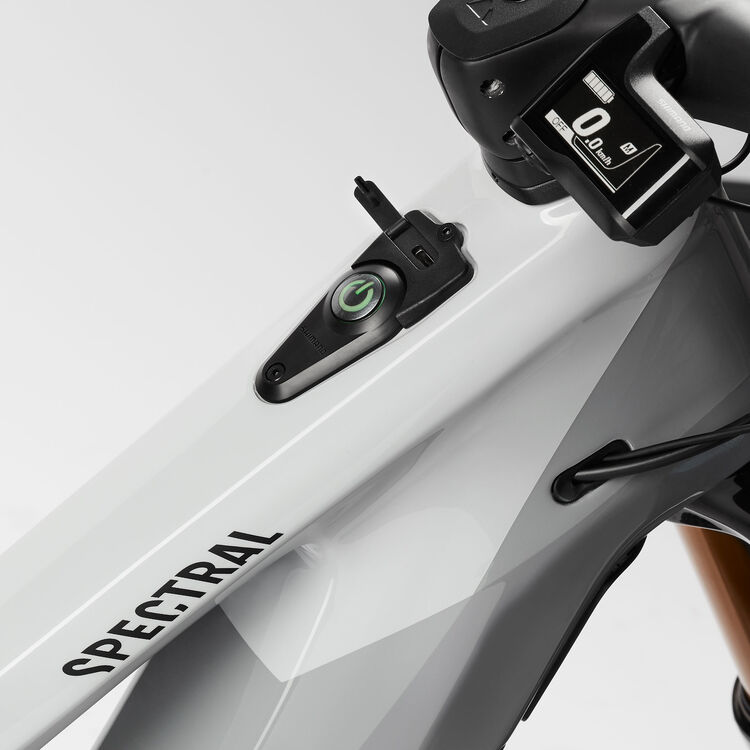

USB-C

Extra power on tap! To activate the Shimano EP8 motor, simply press the top tube-integrated :ON button. You can pick between three support modes – Eco, Trail, and Boost. And there’s also an integrated USB-C charging socket for charging your smartphone, lights, or other devices.

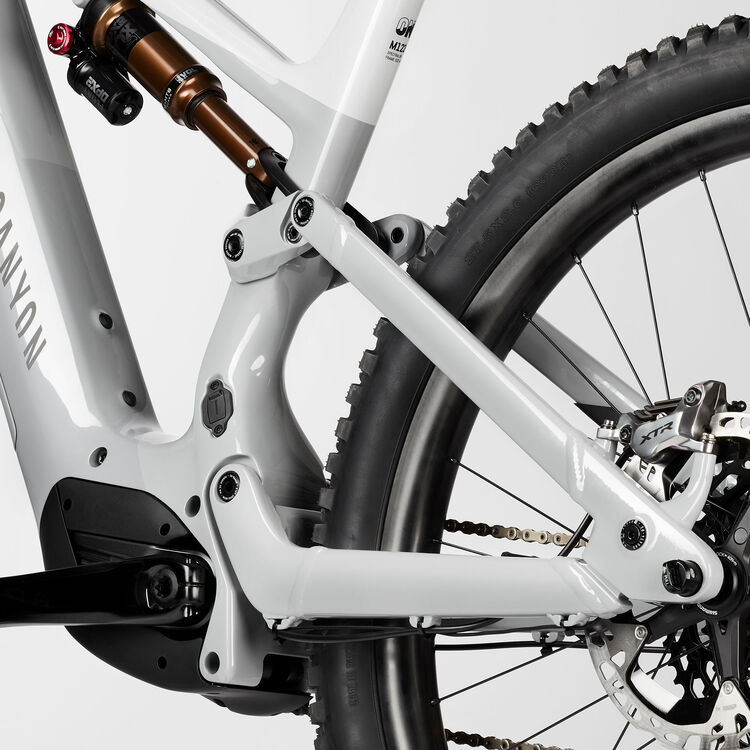

Triple Phase Suspension

Our Triple Phase Suspension provides proven performance on the most demanding trails – all the way up to racing at World Cup level. Sensitive small-bump response provides top traction and control. In the mid-stroke, a stable feel lets you keep momentum and speed out of berms and over bumps. And on big hits, the suspension ramps up progressively through the final third of the travel, for a bottomless feel.

The highlights of this component set

Do you want to smash steep climbs, or run laps on your favourite descents? With its top-end parts – 1x12 shifting and brakes from Shimano, Fox Factory suspension and Reynolds carbon wheels – this e-mountain bike does it all.

View all components

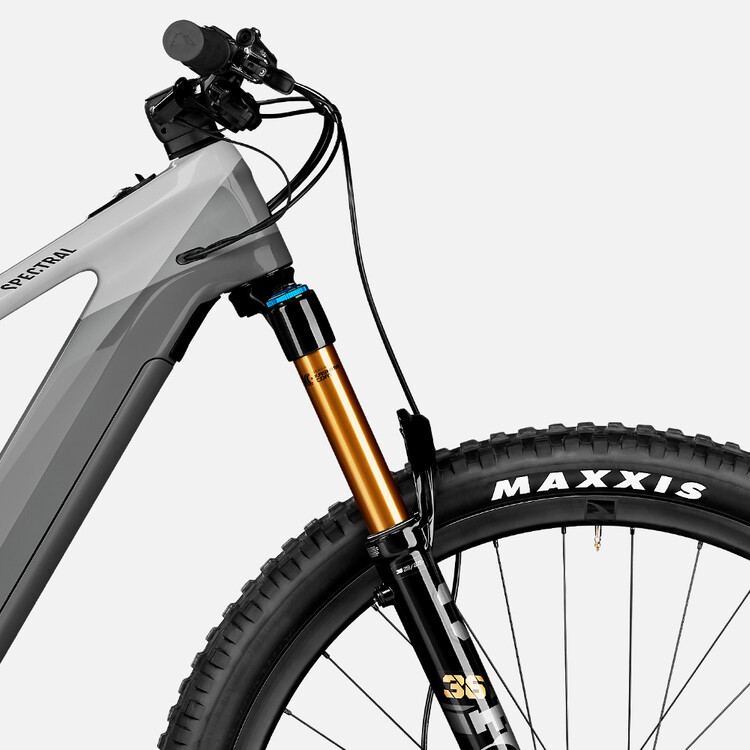

Suspension Fork

Fox 36 Factory Grip2, 150mm

The Fox 36 Factory fork is hard to beat with its iconic, Kashima-coated 36 mm stanchions ensuring steering precision and rigidity, while the Fit4 damper provides compression and rebound adjustment. The DPX2 rear shock is Fox’s most advanced trail shock ever and guarantees excellent responsiveness and sensitivity.
Cockpit

Canyon:ON CP12 carbon cockpit

Clean optics, high-grade manufacturing and materials: this handlebar-stem combination is machined from a single piece of material, achieving the ideal combination of high stiffness levels and low weight. The battery display’s cable is routed through the handlebar, protecting it from any damage.
Disc Brake

Shimano XTR 4-piston rear brake

With four-piston callipers and large disc rotors, these XTR brakes deliver ensure peak power, excellent modulation and plenty bite in all conditions. Offering world-class ergonomics and manufacturing quality, these are the ideal choice for our top-of-the-line e-MTB.
Wheel

Reynolds TR 367 E, 27.5"

A durable, lightweight, carbon wheelset that is strong enough to handle the added forces of e-mountain biking? With the TRe Carbon that’s exactly what Reynolds has created. The oversized hubs feature steel axles and a steel freehub body, providing the added durability you need with the extra power of an e-bike.

View all components

Geometry Table

Understanding your bike's geometry is the key to a great fit and comfortable ride.

Basic geometry

Detailed geometry table
	S Your selected size	M Your selected size	L Your selected size	XL Your selected size
Body Height in cm	< 172	172 - 183	183 - 194	> 194
Seat Height in mm (a)	639 - 734	700 - 845	740 - 885	780 - 925
Seat Tube Length in mm (b)	430	440	480	520
Top Tube Length in mm (c)	590	612	632	653
Head Tube Length in mm (d)	100	115	125	135
Head Tube Angle (e)	66,5°	66,5°	66,5°	66,5°
Seat Tube Angle (f)	74,5°	74,5°	74,5°	74,5°
Chainstay Length in mm (g)	435	435	435	435
Wheel Base in mm (h)	1.171	1.197	1.221	1.245
Stack in mm (i)	620	625	635	645
Reach in mm (j)	425	445	465	485
Stand-over Height in mm (k)	784	788	792	806
Bottom Bracket Offset in mm (l)	33	33	33	33

Component geometry

Detailed geometry table
	S Your selected size	M Your selected size	L Your selected size	XL Your selected size
Spacer in mm	20,0	20,0	20,0	20,0
Cockpit Dimensions	50-760	50-780	50-780	50-780
Crank Length in mm	165,0	165,0	165,0	165,0
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	100	150	150	150
Seat Post Length in mm	356	457	457	457
Maximum Seat Post Insertion Depth in mm	195	245	245	245
Seat Post Insertion Depth in mm	100	100	100	100
Wheel Size	29"/27,5"	29"/27,5"	29"/27,5"	29"/27,5"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	150	150	150	150
Rear Suspension Travel in mm	150	150	150	150

All components
Frame
Frame

Canyon Spectral:ON

Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)

Rear Shock

FOX FLOAT DPX2 Factory, 230x60

150mm of rear suspension. Kashima coat, 3-setting switch (Open, Medium, Firm) , low-speed compression adjuster, rebound adjuster, piggyback design resists overheating

Suspension Fork

Fox 36 Factory Grip2, 150mm

150mm of front suspension, 29er fork, Boost 110 spacing, 36mm stanchions, Kashima coat, air bleeders, floating axle, EVOL Float air spring, Grip2 high and low-speed compression damping adjuster, rebound damping adjuster
Drivetrain
Battery

Shimano STEPS 630-Wh Battery

Shimano's highest-capacity Lithium-Ion battery, IPX5 water resistant, 3.7 Kg, adaptor for external charging not included

Rear Derailleur

Shimano XTR, 12-speed

12-speed, max cassette size: 51T. Weight: 240 g, Shadow RD+ chain stabilizing system

Shift Lever

Shimano XTR, 12-speed

Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g

Cassette

Shimano XTR, 12-speed (10-51)

Primarily-steel cogs with aluminium 39, 45 and 51T cogs, Microspline interface, Gear range: 10-51T, weight: 376 g, Hyperglide+ technology provides better chain engagement.

Crank

Shimano STEPS HOLLOWTECH e-MTB crank arms

Designed for the rigors of E-MTB riding and featuring Shimano's Hollowtech crank arm design, 24mm spindle, 165mm crank arms

Chainring

Canyon:ON 34T

Canyon E-MTB specific, direct-mount chainring, 34-tooth

Chain

Shimano M9100 XTR Chain

SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Brakes
Disc Brake

Shimano XTR 4-piston front brake

Shimano's premier 4-piston brake, 1-piece caliper for maximize rigidity, ceramic pistons, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 385 g

Disc Brake

Shimano XTR 4-piston rear brake

Shimano's premier 4-piston brake, 1-piece caliper for maximize rigidity, ceramic pistons, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 385 g

Brake Rotor

Shimano XTR front rotor, 203mm

Shimano's top-end rotor, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal

Brake Rotor

Shimano XTR STEPS rear rotor, 203mm

Specifically designed to work with E-MTB speed sensors. ICE TECH FREEZA design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal
Wheels
Wheel

Reynolds TR 309 E, 29er

Front wheel made for the demands of E-MTBs. Features Reynolds Tre front hub, Boost 110 spacing, 32 Sapim E-Lite spokes, carbon TR rims, 30mm inner width

Wheel

Reynolds TR 367 E, 27.5"

Rear wheel made for the demands of E-MTBs. Features Reynolds Tre rear hub, Boost 148 spacing, 36 Sapim E-Lite spokes, carbon TR rims, 30mm inner width

Tyre

Maxxis Minion DHF, 2.5"

EXO casing, Tubeless Ready design

Tyre

Maxxis Minion DHR II, 2.6"

EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound

Thru Axle

Canyon Quixle Thru Axle

Our "Quixle" Boost 148 through axle is stiff and secure, yet lets you remove your rear wheel quickly and without tools.
Cockpit
Cockpit

Canyon:ON CP12 carbon cockpit

Your cockipit made streamlined and perfectly positioned. Our all-in-one carbon fiber bar and stem combo is durable, sleek, and truly sets the standard for clean aesthetics with internal routing for display wiring

Grips

Canyon Lock-On Grips
Seat
Saddle

Canyon SD:ON

Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g

Seatpost

FOX Transfer Factory

FOX Transfer Factory dropper post provides 150 of seat heigh adjustability, Kashima coating for extra durability, 30.9mm diameter, 456mm length.
Accessories
Battery Charger

Shimano STEPS - Battery Charger

Shimano's E6000 charger plugs directly into your Canyon e-bike and charges your SHIMANO STEPS battery. Adapter (available aftermarket) allows you to also charge the battery when removed from bike.

Flat Pedals

VP-536 Pedals

Composite flat-pedal, 7mm boron steel axle

Manuals and Accessories

Canyon tool case

Manuals and Accessories

Canyon Smallbox

Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste

Manuals and Accessories

Quickstartguide Canyon eMTB
Spare & Wear Parts
Derailleur hanger

SRAM UDH Derailleur Hanger

We’re in Control

Our business model gives us the advantage of knowing exactly where our products come from, how they are made and what they are capable of. Canyon products are exclusively available at Canyon.com, so you can trust the quality you are getting.

Proposition 65 Warning

Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.

YOUR SIZE.
READY TO SHIP.

Spectral:ON CF 9
