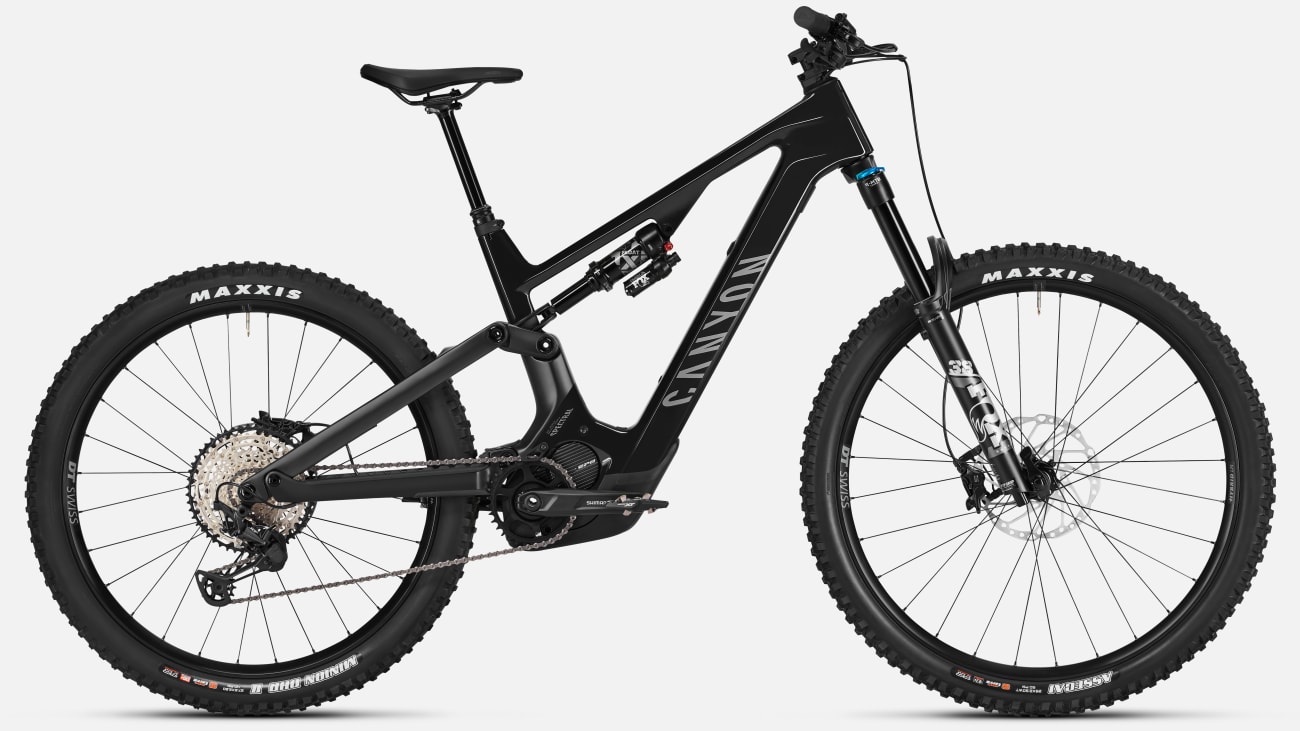

Spectral:ON CF 8
-
Out of stock
- Front Fork Travel: 160 mm
-
Weight:
54.51 lbs
WeightWeight is based on a size medium frame.
- Colour: Stealth
-
-
Members only product. Log in here
This bike is strictly compatible with the following Canyon batteries: BT0003-01 (all frame sizes) and BT0004-01 (size Med-XL frames).
-
Financing with PayPalFinancing with Affirm FinancingFinancing available for this product
-
-
Stress free New Bike DayOur most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.
How to choose New Bike DayGet ready-to-ride DeliveryReady to ride delivery with velofix DIRECT
With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Collect & RideNervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
-
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Highlights Spectral:ON CF 8

Uniquely nimble

CLLCTV approved
Crafted Carbon Trail e-MTB chassis
Powerful batteries for more miles and more stoke
The new EP8
GPS Enabled
Perfectly Balanced Mullet Setup
Trail tough hardware
Frame
-
Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 3,597 g
-
Rear Shock
- Fox Float X Performance Evolution
- Tune: CL, RM, Rezi LM
- Weight: 280 g
-
Suspension Fork
- Fox 38 Rhythm
- Axle dimension: 15x110 mm
- Stanchion Diameter: 38 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
Drivetrain
-
Motor
- Shimano EP801
-
Battery
- CANYON BT010
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 248 g
-
Chainguard
- Canyon Chainguide M091/M129
-
Shift Lever
- Shimano Deore SLX M7100
- Weight: 143 g
-
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano Steps
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano SLX M7120
- Number of pistons: 2
-
Disc Brake
- Shimano SLX M7120
- Number of pistons: 2
-
Brake Rotor
- Shimano RT64
- Size: 203 mm
- Weight: 206 g
-
Brake Rotor
- RT SHIM EM600 203 CL W/LR INT
- Size: 203 mm
- Weight: 10 g
Wheels
-
Front Wheel
- DT Swiss HLN350 15x110 30mm Centerlock
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Weight: 1,026 g
-
Rear Wheel
- DT Swiss HLN350 12x142 30mm Centerlock
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Weight: 1,258 g
-
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
-
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
Seat
-
Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
-
Seat Clamp
- Canyon GP0279-01 Seatclamp
Accessories
-
Battery Charger
- CANYON CHARGER
-
Battery Charger
- CANYON CHARGER
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
-
Manuals and Accessories
- QSG 027-V04 M091/M129 SPT[ON]
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
647 - 756 | 693 - 823 | 733 - 853 | 753 - 873 |
Seat Tube Length in mm
(b)
|
420 | 440 | 460 | 480 |
Top Tube Length in mm
(c)
|
586 | 613 | 641 | 668 |
Head Tube Length in mm
(d)
|
115 | 125 | 135 | 145 |
Head Tube Angle
(e)
|
65,5° | 65,5° | 65,5° | 65,5° |
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° |
Chainstay Length in mm
(g)
|
440 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.194 | 1.223 | 1.252 | 1.281 |
Stack in mm
(i)
|
630 | 639 | 648 | 657 |
Reach in mm
(j)
|
435 | 460 | 485 | 510 |
Stand-over Height in mm
(k)
|
809 | 814 | 820 | 825 |
Bottom Bracket Offset in mm
(l)
|
32 | 32 | 32 | 32 |
Spacer in mm
|
15 | 15 | 15 | 15 |
---|---|---|---|---|
Stem Length in mm
|
45 | 45 | 45 | 45 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
125 | 150 | 170 | 170 |
Seat Post Length in mm
|
378 | 425 | 465 | 465 |
Maximum Seat Post Insertion Depth in mm
|
199 | 220 | 240 | 240 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 120 | 120 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
Front Fork Travel in mm
|
160 | 160 | 160 | 160 |
Rear Suspension Travel in mm
|
155 | 155 | 155 | 155 |
Battery capacity
|
800 Wh | 800 Wh | 800 Wh | 800 Wh |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Spectral:ON CF 8 support
Proposition 65 Warning
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
