E-Bikes Electric Mountain Bikes Spectral:ON Spectral:ONfly CF

Spectral:ONfly CF 8

-25%

$4,499

Original price ~~$5,999~~

You save $1,500

Financing available for this product

An epic trail-capable eMTB with a compact motor, wrapped up in an affordable ‘ready for anything’ package.

Front Fork Travel: 160 mm
Weight: 41.67 lbs

Colour: Barely Olive

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Delivery: Select frame size

Members only product.

$4,499

Original price ~~$5,999~~

You save $1,500

Financing available for this product

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Financing with PayPal

Financing with Klarna

Financing with Affirm Financing

Financing available for this product
Get ready-to-ride Delivery

Ready to ride delivery with velofix DIRECT

With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.

Collect & Ride

Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
On all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.

Delivery: Select frame size

Highlights Spectral:ONfly CF 8

Trail through and through

More control. More fun.

We’ve equipped each Spectral:ONfly with K.I.S.—an ingenious spring mechanism housed inside the top tube that helps center your steering. End result? You experience more control on sketchy descents, more grip when its loose, and more fun in rough, off-camber conditions.

Fine tune your handling

You can custom tune how K.I.S. feels—with a simple twist of an allen wrench—to suit your own ride style and conditions. What’s more, K.I.S. is totally maintenance-free, protected from damage, and has a lifetime warranty. Don’t fancy K.I.S.? Each bike comes with an easy to install blanking plate that covers the adjuster slot.

What is :ONfly?

:ONfly is our line of innovative, lightweight e-bikes that range from e-MTB to e-gravel machines. Featuring sleek, compact motors and batteries, our :ONfly models hit the elusive sweetspot between traditional bikes and full power e-bikes.

CLLCTV approved

“Wait, this is an e-bike? There were multiple moments on the trail when I forgot I was riding an E-MTB. The bike feels super playful and lightweight. It’s nice to just pedal and not worry about how hard you are working.” — Samantha Soriano, Professional Freeride MTB athlete.

Key features

Flyweight e-MTB carbon chassis

They say you can’t build a featherlight e-MTB that can tackle any terrain. Clearly, “they” haven’t met the Spectral:ONfly, which boasts a 2.7kg carbon frame (size M) that shrugs off whatever you throw its way. Charge with confidence, thanks to trail-tough components and the bike’s plush 160/150mm of front and rear-suspension travel.

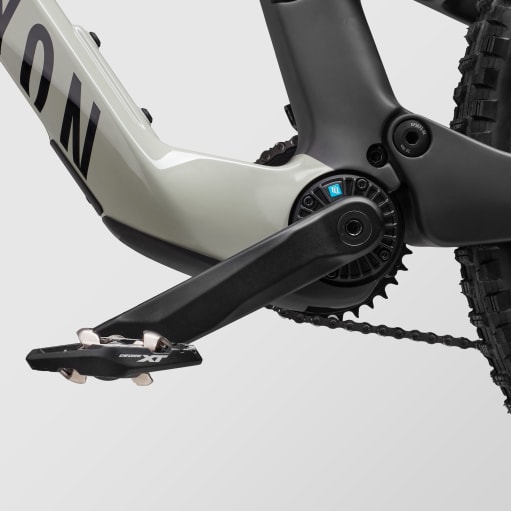

Smooth, silent, revolutionary

We’ve paired the lightest, smoothest and most silent drive unit available to the Spectral:ONfly’s cutting-edge, carbon chassis. Weighing an astonishingly lightweight 1,850g, TQ’s HPR50 motor is small enough to fit in the palm of your hand yet doubles your own pedalling power by cranking out an impressive 50Nm of torque and 300W of peak support. It all adds up to an e-MTB that boasts playful handling, stunning looks, and the power to nab more descents and rail more corners than you’ve ever imagined possible.

Go light, go far

The Spectral:ONfly is powered by a lightweight (1,830g) 360Wh battery. We’ve fully integrated that battery within the frame to create the lightest, strongest, and sleekest chassis possible. Though tiny, the TQ’s battery is mighty—letting you nab an impressive 1,000m of elevation gain on a single charge. Want to ride further still? You can quickly and easily add the optional 160Wh TQ Range Extender and boost your range by 44%.

Playful yet capable

The Spectral:ONfly’s trail-taming capabilities come courtesy of progressive geometry inspired by our award-winning Spectral CF trail bikes. The slack 64-degree headtube, long reach, 440mm chainstays and steep 76.5-degree seat tube instil confidence at speed and help you maintain composure on climbs. The bike’s mullet wheelsize setup levels up agility and control: a 29er front wheel boosts rollover and traction, while the smaller 27.5 rear wheel improves agility and butt-to-tire clearance on steep descents.

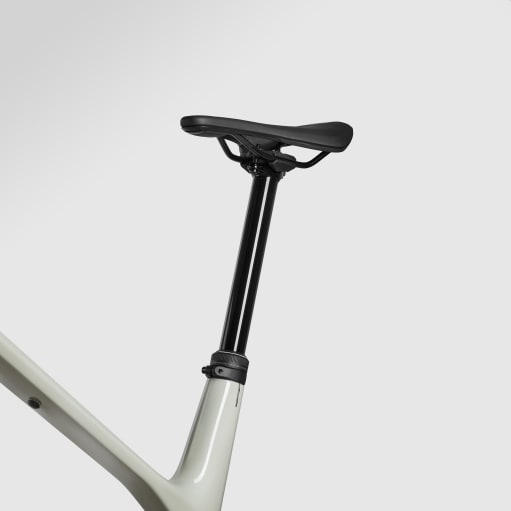

More room to get rowdy

When it came to maximising this bike’s manoeuvrability, no detail was too small for our engineers. Case in point, each Spectral:ONfly boasts a super-short seat tube and extra-long dropper posts. This lets you slam the saddle on steep and sketchy descents for more control. Our wide-diameter (34.9mm) dropper posts are uber-durable. What’s more you can easily adjust the amount of available saddle drop by up to 25mm to achieve your perfect fit and function.

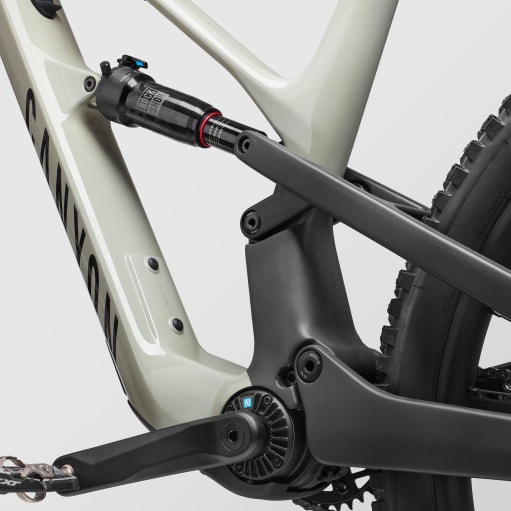

Hardcore hardware

The Spectral:ONfly is built to last. Since servicing frame pivot bearings is, frankly, a drag, we’ve equipped the bike with double-sealed bearings filled with proprietary, wash-resistant bearing grease. When it eventually comes time to service your frame’s pivot bearings, we’ve reduced the risk of wrenching mishaps with our innovative, replaceable thread inserts. Brilliant.

Components

Content is loading

Frame

Frame
- Canyon Spectral:ONfly CF
- null null
- null null
- null null

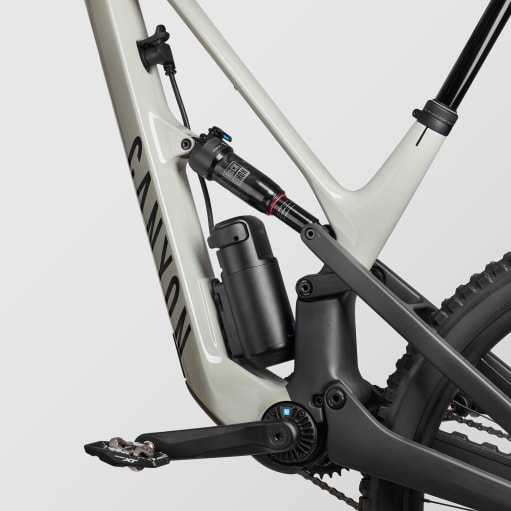

Rear Shock
- Rockshox Deluxe Select +
Suspension Fork
- RockShox Lyrik
- null null
- null null
- null null
- null null
- null null
- null null
- null null
Seatpost Clamp
- Canyon GP0446-01

Drivetrain

Motor
- TQ HPR 50 Motor
Battery
- TQ HPR Battery
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- null null
- null null
Chainguard
- Canyon GP0480-01 slim
Shift Lever
- Shimano Deore M6100, 12-Speed
- null null
Cassette
- Shimano Deore M6100
- null null
- null null
Crank
- FSA CK-745/IS Armset
Chainring
- Chainring FSA W0190
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- SRAM Code R
- null null
Disc Brake
- SRAM Code R
- null null
Brake Rotor
- SRAM Centerline Rounded
- null null
- null null

Wheels

Front Wheel
- Sunringle 329 Trail Expert
- null null
- null null
- null null
- null null
Rear Wheel
- Sunringle 327 Trail Expert
- null null
- null null
- null null
- null null
Tyre
- Maxxis Minion DHR II Exo
- null null
- null null
Tyre
- Maxxis Minion DHR II Exo+
- null null
- null null
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- null null

Cockpit

Stem
- Canyon:ON ST0031 Stem
- null null
- null null
- null null
- null null
- null null
Handlebar
- Canyon:ON HB0057 Riser bar
- null null
- null null
- null null
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- null null
- null null
Seatpost
- Canyon SP0070-01
- null null
- null null
- null null
- null null
- null null

Light

Lights
- Reflector Set

Accessories

Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Declaration of confirmity M095
Manuals and Accessories
- QSG M095
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	635 - 785	680 - 830	710 - 860	750 - 900
Seat Tube Length in mm (b)	400	415	445	455
Top Tube Length in mm (c)	594	621	648	675
Head Tube Length in mm (d)	105	115	125	135
Head Tube Angle (e)	64°	64°	64°	64°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.221	1.251	1.280	1.309
Stack in mm (i)	620	629	638	647
Reach in mm (j)	445	470	495	520
Stand-over Height in mm (k)	734	739	743	747
Bottom Bracket Offset in mm (l)	31	31	31	31

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	170,0	170,0	170,0	170,0
Seat Post Diameter in mm	34,9	34,9	34,9	34,9
Dropper post travel in mm	170	200	200	230
Seat Post Length in mm	457	517	517	587
Maximum Seat Post Insertion Depth in mm	270	300	300	340
Minimum Seat Post Insertion Depth in mm	120	150	150	190
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	200 / 200	200 / 200	200 / 200	200 / 200
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	150	150	150	150
Battery capacity	360 Wh	360 Wh	360 Wh	360 Wh
Fitting Length	210X55	210X55	210X55	210X55
