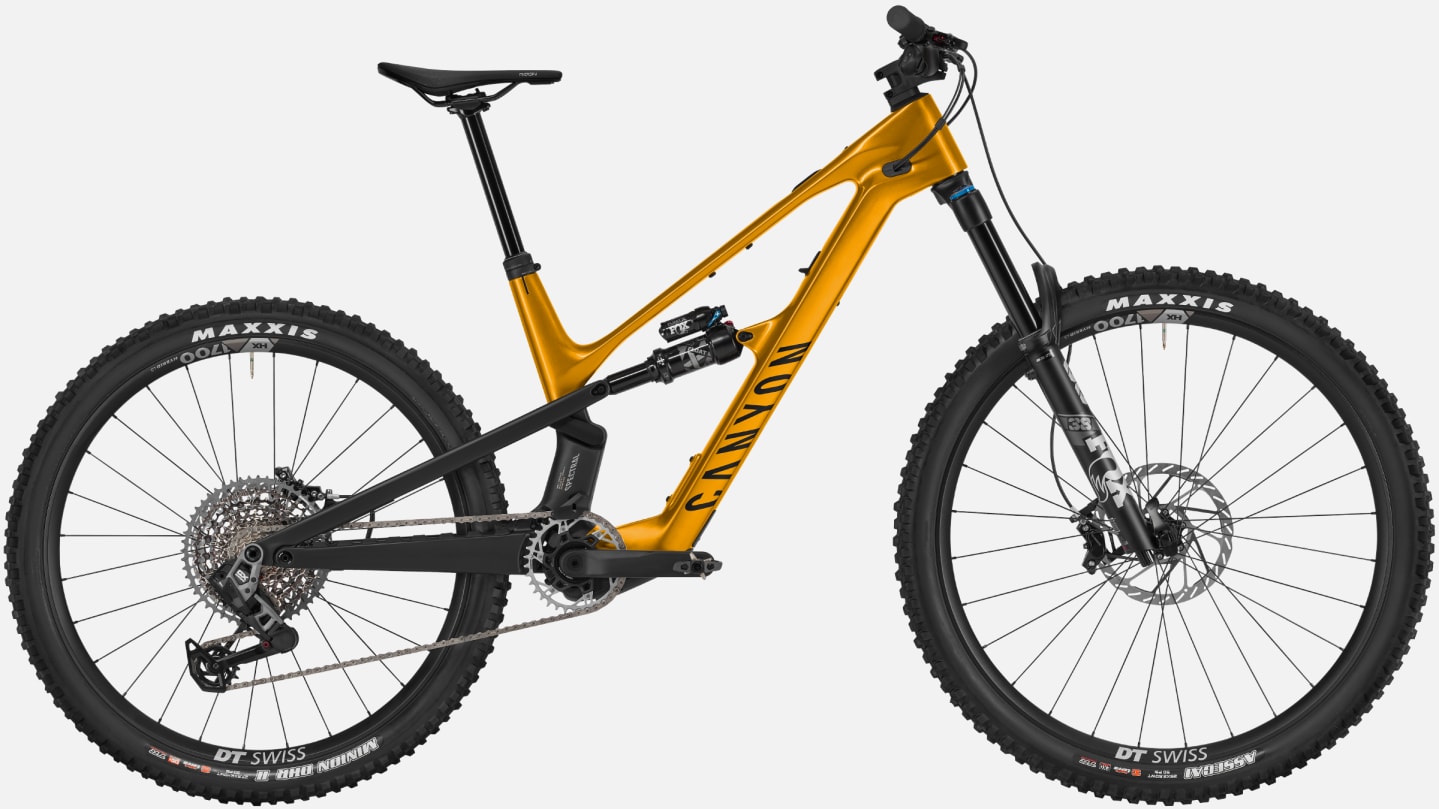

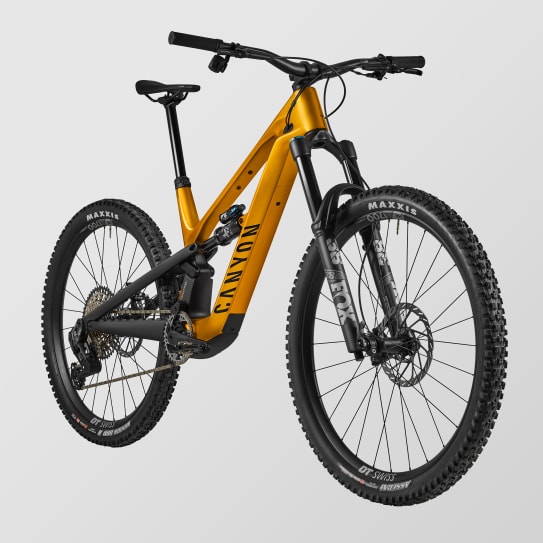

E-Bikes Electric Mountain Bikes Spectral:ON Spectral:ONfly CF

Spectral:ONfly CF CLLCTV

-35%
Bike of the Week

$4,899

Original price ~~$7,499~~

You save $2,600

Financing available for this product

Hard hitting capability, meets no frills performance with a compact motor. If you’re looking for a bike that loves to be pushed hard – you’ve found it.

Front Fork Travel: 160 mm
Weight: 43.00 lbs

Colour: Stadtwald Sunset

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Delivery: Select frame size

Members only product.

$4,899

Original price ~~$7,499~~

You save $2,600

Financing available for this product

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Financing with PayPal

Financing with Affirm Financing

Financing available for this product
Stress free New Bike Day

Our most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic, which includes a basic fit. You’ll receive a full, in-depth walkthrough of all your new Canyon’s parts, accessories, and features to ensure you're ready to ride.

How to choose New Bike Day

Get ready-to-ride Delivery

Ready to ride delivery with velofix DIRECT

With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.

Collect & Ride

Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.

How to choose Collect & Ride
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More

Delivery: Select frame size

Highlights Spectral:ONfly CF CLLCTV

Trail through and through

More control. More fun.

We’ve equipped each Spectral:ONfly with K.I.S.—an ingenious spring mechanism housed inside the top tube that helps center your steering. End result? You experience more control on sketchy descents, more grip when its loose, and more fun in rough, off-camber conditions.

Fine tune your handling

You can custom tune how K.I.S. feels—with a simple twist of an allen wrench—to suit your own ride style and conditions. What’s more, K.I.S. is totally maintenance-free, protected from damage, and has a lifetime warranty. Don’t fancy K.I.S.? Each bike comes with an easy to install blanking plate that covers the adjuster slot.

What is :ONfly?

:ONfly is our line of innovative, lightweight e-bikes that range from e-MTB to e-gravel machines. Featuring sleek, compact motors and batteries, our :ONfly models hit the elusive sweetspot between traditional bikes and full power e-bikes.

CLLCTV approved

“Wait, this is an e-bike? There were multiple moments on the trail when I forgot I was riding an E-MTB. The bike feels super playful and lightweight. It’s nice to just pedal and not worry about how hard you are working.” — Samantha Soriano, Professional Freeride MTB athlete.

Key features

It’s a game changer

They say you can’t build a featherlight e-MTB that can tackle any terrain. Clearly, “they” haven’t met the Spectral:ONfly, which boasts a 2.7kg carbon frame (size M) that shrugs off whatever you throw its way. Charge with confidence, thanks to trail-tough components and the bike’s plush 160/150mm of front and rear-suspension travel.

Smooth, silent, revolutionary

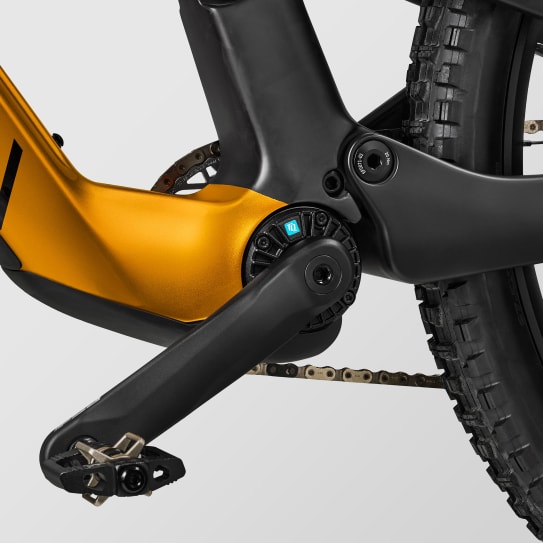

We’ve paired the lightest, smoothest and most silent drive unit available to the Spectral:ONfly’s cutting-edge, carbon chassis. Weighing an astonishingly lightweight 1,850g, TQ’s HPR50 motor is small enough to fit in the palm of your hand yet doubles your own pedalling power by cranking out an impressive 50Nm of torque and 300W of peak support. It all adds up to an e-MTB that boasts playful handling, stunning looks, and the power to nab more descents and rail more corners than you’ve ever imagined possible.

Go light, go far

The Spectral:ONfly is powered by a lightweight (1,830g) 360Wh battery. We’ve fully integrated that battery within the frame to create the lightest, strongest, and sleekest chassis possible. Though tiny, the TQ’s battery is mighty—letting you nab an impressive 1,000m of elevation gain on a single charge. Want to ride further still? You can quickly and easily add the optional 160Wh TQ Range Extender and boost your range by 44%.

Playful yet capable

The Spectral:ONfly’s trail-taming capabilities come courtesy of progressive geometry inspired by our award-winning Spectral CF trail bikes. The slack 64-degree headtube, long reach, 440mm chainstays and steep 76.5-degree seat tube instil confidence at speed and help you maintain composure on climbs. The bike’s mullet wheelsize setup levels up agility and control: a 29er front wheel boosts rollover and traction, while the smaller 27.5 rear wheel improves agility and butt-to-tire clearance on steep descents.

More room to get rowdy

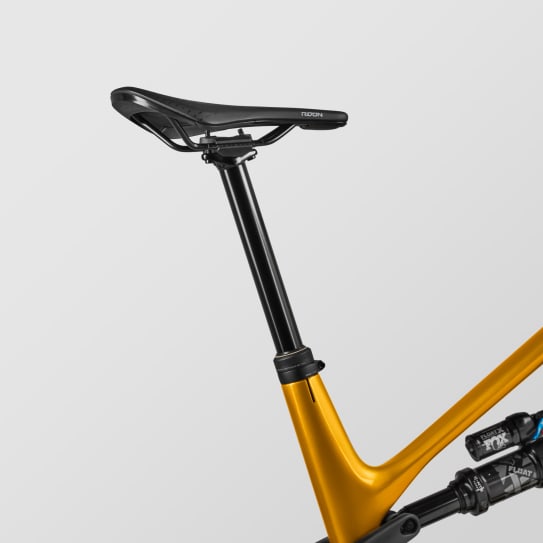

When it came to maximising this bike’s manoeuvrability, no detail was too small for our engineers. Case in point, each Spectral:ONfly boasts a super-short seat tube and extra-long dropper posts. This lets you slam the saddle on steep and sketchy descents for more control. Our wide-diameter (34.9mm) dropper posts are uber-durable. What’s more you can easily adjust the amount of available saddle drop by up to 25mm to achieve your perfect fit and function.

Components

Content is loading

Frame

Frame
- Canyon Spectral:ONfly CF
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,700 g
Rear Shock
- Fox Float x Performance
- Weight: 500 g
Suspension Fork
- Fox 38 Performance Elite
- Axle dimension: 15x110 mm
- Stanchion Diameter: 38 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
Seatpost Clamp
- Canyon GP0446-01

Drivetrain

Motor
- TQ HPR 50 Motor
Battery
- SRAM Powerpack
Battery
- TQ HPR Battery
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight: 462 g
Chainguard
- Canyon GP0480-01 slim
Shift Lever
- SRAM AXS Pod
- Weight: 67 g
Cassette
- SRAM XS-1275 Eagle Transmission
- Number of sprockets: 12
- Range: 10-52
Crank
- FSA CK-745/IS Armset
Chainring
- SRAM XX Eagle Transmission DM E-MTB Chainring
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- SRAM Code Silver Stealth
- Number of pistons: 4
Disc Brake
- SRAM Code Silver Stealth
- Number of pistons: 4
Brake Rotor
- SRAM HS2
- Size: 200 mm
- Weight: 255 g

Wheels

Front Wheel
- DT Swiss HX1700
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim height: 21 mm
- Inner width: 30 mm
- Rim material: Aluminium
- Weight: 997 g
Rear Wheel
- DT Swiss HX 1700 Spline LS
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 1,115 g
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
Tyre
- Maxxis Minion DHR II Exo+
- Width: 2.4"
- Weight: 1,000 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Rise: 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 251 g
Seatpost
- Canyon SP0070-01
- Air cartridge. Cable actuated.
- Travel: Dependent on frame size (see component geometry table.)
- Seatpost diameter: 34,9 mm
- Material: Aluminium (AL)
- Weight: 34 g

Light

Lights
- Reflector Set

Accessories

Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Declaration of confirmity M095
Manuals and Accessories
- QSG M095
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	635 - 785	680 - 830	710 - 860	750 - 900
Seat Tube Length in mm (b)	400	415	445	455
Top Tube Length in mm (c)	594	621	648	675
Head Tube Length in mm (d)	105	115	125	135
Head Tube Angle (e)	64°	64°	64°	64°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.221	1.251	1.280	1.309
Stack in mm (i)	620	629	638	647
Reach in mm (j)	445	470	495	520
Stand-over Height in mm (k)	734	739	743	747
Bottom Bracket Offset in mm (l)	31	31	31	31

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	170,0	170,0	170,0	170,0
Seat Post Diameter in mm	34,9	34,9	34,9	34,9
Dropper post travel in mm	170	200	200	230
Seat Post Length in mm	457	517	517	587
Maximum Seat Post Insertion Depth in mm	270	300	300	340
Minimum Seat Post Insertion Depth in mm	120	150	150	190
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	200 / 200	200 / 200	200 / 200	200 / 200
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	150	150	150	150
Battery capacity	360 Wh	360 Wh	360 Wh	360 Wh
Fitting Length	210X55	210X55	210X55	210X55
