Pathlite:ON 4 SUV step-through

Start your all-terrain adventures with the best value e-touring bike out there. A bike designed for weekend tours, microadventures, or carefree cruising, all at a more accessible price.

Weight: 56.01 lbs
Front Fork Travel: 80 mm

All components

30-day return policy

6 Year Warranty

Product Configuration

Colour:

Stone Grey

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Bike geometry

Sold out

Members only product.

Buying reasons

$2,899

Original price ~~$3,399~~

You save $500 (-15%)

Financing available for this product

Sold out

Product added to cart

Highlights Pathlite:ON 4 SUV step-through

Key features

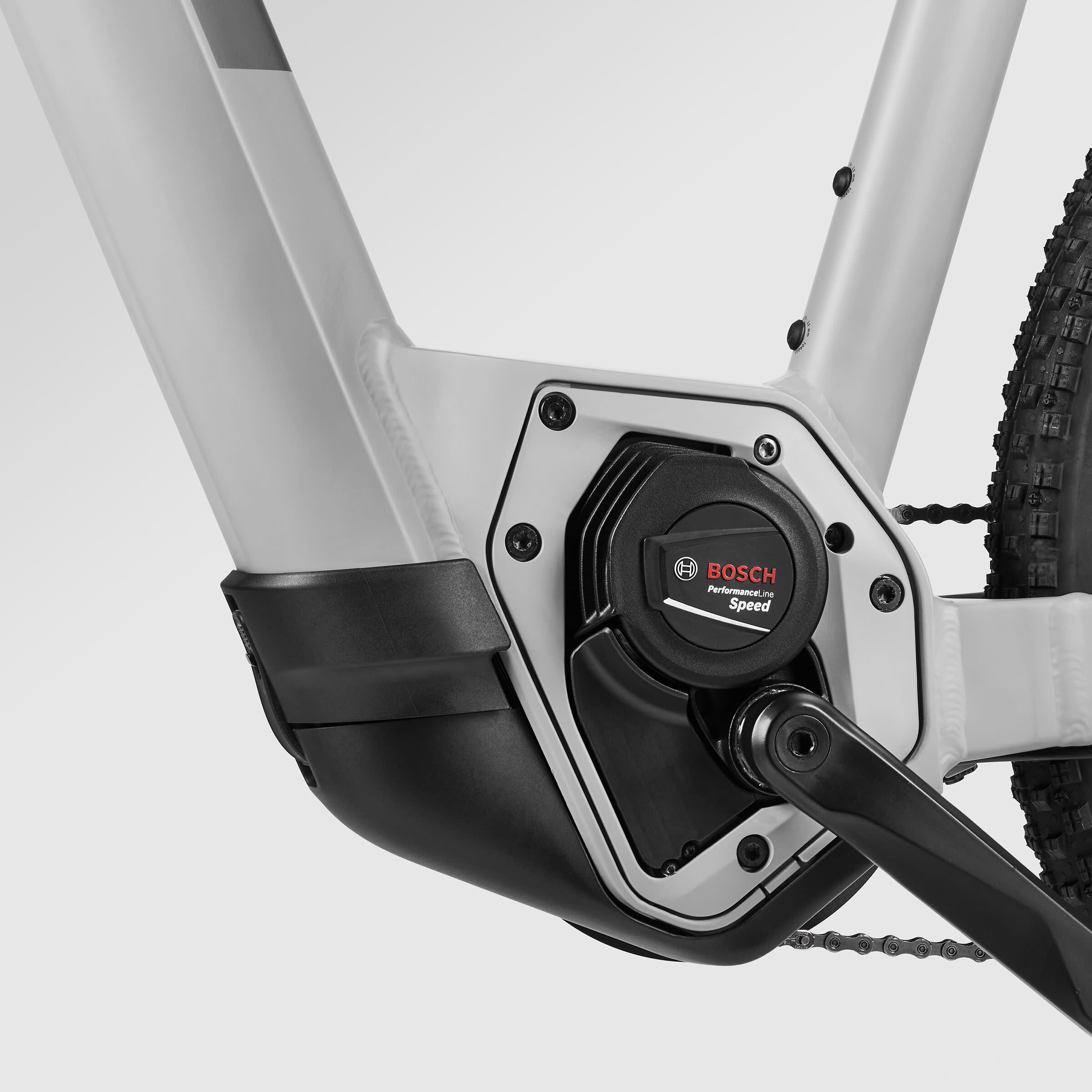

A powerful motor

The Bosch Performance Line Speed and Smart System has a huge 340% pedal assistance with 85 Nm of torque 600W max. And with the 625 Wh battery, there's loads of juice for long rides and steep climbs.Link the system with your smartphone to lock the system or use other features of the smart system

An easy-to-charge, easy-to-remove battery

The Pathlite:ON’s battery is perfectly integrated into the downtube. It's also incredibly easy to charge. Just pop it out, and plug in the charger included with your bike.

Reliable, precise, controlled braking even in the wet

The ever-reliable workhorse of Shimano’s hydraulic disc brake range, these Shimano MT200 disc brakes are durable, low-maintenance, and still have incredible power in all weather conditions, so you can always ride safe and stop fast. The levers work for people with smaller or larger hands, because you can adjust how far you have to reach.

Connected features, carefree riding

Managing your ride has never been so simple. The vibrant Bosch display shows your key ride numbers including speed and battery status. To activate advanced features like turn-by-turn navigation, Bike Lock anti-theft tech, and motor tuning, just connect your smartphone’s Bosch eBike Flow app. You can even use your phone as a larger display and control unit – simply mount it to the handlebar using a secure SP Connect case.

Components

Details are based on size M

Frame

Frame
- Canyon Pathlite:ON Step-Through
- A tough, feature-rich e-touring bike with a comfortable riding position and easy-to-mount design.
- Axle dimension 12x148 mm
- Material Aluminium (AL)
- Weight 1620 g
Suspension Fork
- SR Suntour XCM34 BOOST
- Axle dimension 15x110 mm
- Stanchion Diameter 34 mm
- Travel 100 mm
- Fork steer tube diameter 1 1/8" - 1,5"
Seatpost Clamp
- Canyon GP0170-01 Seatclamp

Drivetrain

Motor
- Bosch Performance Line
Battery
- Bosch BBP3755
- Battery capacity 500 Wh
Rear Derailleur
- Shimano Cues 10/11-speed
- Cage length short
- Weight 348 g
Shift Lever
- Shimano CUES U6000
- Weight 30 g
Cassette
- Shimano CUES LG300-10
- Number of sprockets 10
- Range 11-48
Crank
- FSA CK 220
- Number of chainrings 1
- Crank Length in mm 170,0
Chainring
- FSA Gen4 Spider Boost 42T
Chain
- Shimano Cues LG500

Brakes

Disc Brake
- Shimano MT200
- Number of pistons 2
Disc Brake
- Shimano MT200
- Number of pistons 2
Brake Rotor
- Shimano RT30
- Weight 191 g
- Disc Size in mm
- 180 / 180

Wheels

Front Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 15x110
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim height 21 mm
- Rim material Aluminium
Rear Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 12x148
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Rim height 21 mm
- Rim material Aluminium
- Wheel Size
- 27.5"
Tyre
- Maxxis Crossmark II Reflexstrip Clincher
- Width 2,25"
- Weight 750 g
Thru Axle
- Canyon GP0420 Rear Thru Axle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon ST0036 Adjustable
- Fork steer tube diameter 1 1/8"
- Clamping diameter 31,8 mm
- Stem Length in mm 65
Handlebar
- Iridium Flatbar
- Clamping diameter 31,8 mm
- Rise 5 mm
- Handlebar Width in mm 680
Grips
- Ergon GA3 mini-wing
Bells
- Knog Oi Classic

Seat

Saddle
- SR Royal Essenza+
- Width: 225 mm
- Gender Unisex
- Weight 561 g
Seatpost
- Canyon SP0067 Supension Post
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 552 g
- Seat Post Length in mm
- 400
- Dropper post travel in mm
- 50
- Maximum Seat Post Insertion Depth in mm
- 250
- Minimum Seat Post Insertion Depth in mm
- 100

Accessories

Bikestands
- Atran Edge HV
Battery Charger
- Bosch 2A
Pedals
- Flat Pedals
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Pedelec Manual 005-V04

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 170	≥ 180
a Seat Height in mm	583 - 733	673 - 823
b Seat Tube Length in mm	385	475
c Top Tube Length in mm	565	625
d Head Tube Length in mm	111	164
e Head Tube Angle	68,5°	68,5°
f Seat Tube Angle	73,5°	73,5°
g Chainstay Length in mm	460	460
h Wheel Base in mm	1.103	1.168
i Stack in mm	625	675
j Reach in mm	380	425
k Stand-over Height in mm	450	450
l Bottom Bracket Offset in mm	65	65

Download PDF

Pathlite:ON 4 SUV step-through support

-70%

Outlet
Canyon Women's Cycling Pants
$35.95
Original price ~~$119.95~~
You save $84

Free Ground Shipping
-71%

Outlet
Canyon Women's Softshell Jacket
$36.95
Original price ~~$125.95~~
You save $89

Free Ground Shipping
Canyon CORE Socks
$10.95

Free Ground Shipping

Bike classification

Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
