E-Bikes E-Touring Pathlite:ON

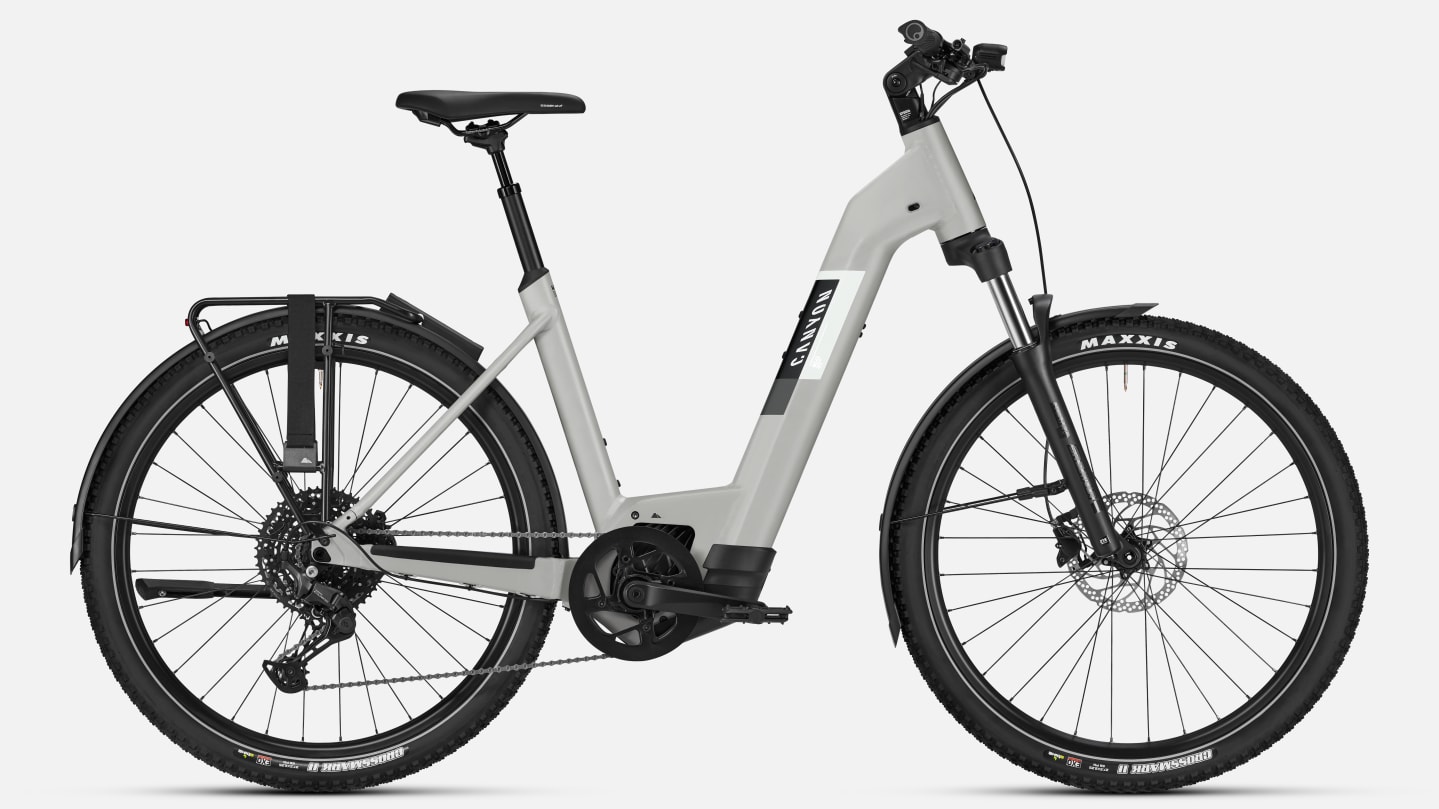

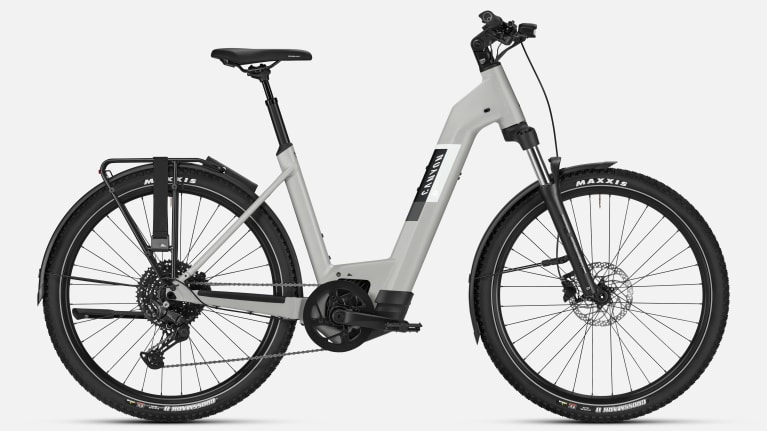

Pathlite:ON 7 step-through

$2,599

Original price ~~$4,299~~

You save $1,700 (-40%)

Financing available for this product

Adventure further with this beautifully comfortable, easy-to-ride touring bike. With high-quality components – reliable Shimano brakes and gearing, powerful Bosch motor and high-capacity 625 Wh battery – enjoy a smooth, powerful ride for the long haul.

30-day return policy

6 Year Warranty

Weight: 61.96 lbs
Front Fork Travel: 80 mm

All components

Product Configuration

Colour:

Stone Grey

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Delivery: Select frame size

Members only product.

Free Ground Shipping

$2,599

Original price ~~$4,299~~

You save $1,700 (-40%)

Financing available for this product

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Buying reasons

Financing with Affirm Financing

Financing available for this product

Financing with Klarna

Financing with PayPal

Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
Get ready-to-ride Delivery

Ready to ride delivery with velofix DIRECT

With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.

Collect & Ride

We ship direct to your local bike shop. They build it, you pick it up ready to ride.
How to choose Collect & Ride
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Protect your ride from theft and damage so you can buy and ride with total confidence.
Learn More

Delivery: Select frame size

Highlights Pathlite:ON 7 step-through

Key features

A powerful motor and battery

The Bosch Performance Line Speed and Smart System has a huge 340% pedal assistance with 85 Nm of torque (600 W maximum power). And with the 625 Wh battery, there's loads of juice for long rides and steep climbs. Link the system with your smartphone to lock the system or use other features of the smart system.

Adjust your riding position, simple

Five bolts. Two minutes. Adjusting your handlebar for the perfect fit has never been easier. With 6 cm of height adjustability, the Pathlite:ON fits like a glove

An easy-to-charge, easy-to-remove battery

The Pathlite:ON’s battery is perfectly integrated into the downtube. It's also incredibly easy to charge either on or off the bike. Just pop out the battery and plug in the charger we ship with your bike, or plug the charger into the easy-to-acess jack near the front of the bike.

Connected features, carefree riding

Managing your ride has never been so simple. The vibrant Bosch display shows your key ride numbers including speed and battery status. To activate advanced features like turn-by-turn navigation, Bike Lock anti-theft tech, and motor tuning, just connect your smartphone’s Bosch eBike Flow app. You can even use your phone as a larger display and control unit – simply mount it to the handlebar using a secure SP Connect case and charge using the bike's USB charger.

Components

Content is loading

All components are based on size M

Frame

Frame
- Canyon Pathlite:ON Step-Through
- A tough, feature-rich e-touring bike with a comfortable riding position and easy-to-mount design.
- Axle dimension 12x148 mm
- Material Aluminium (AL)
- Weight 1620 g
Suspension Fork
- SR Suntour XCM34 BOOST
- Axle dimension 15x110 mm
- Stanchion Diameter 34 mm
- Travel 100 mm
- Fork steer tube diameter 1 1/8" - 1,5"
Seatpost Clamp
- Canyon GP0170-01 Seatclamp

Drivetrain

Motor
- Bosch Performance Line
Battery
- Bosch PowerTube 625Wh
Rear Derailleur
- Shimano CUES 10/11-speed
- Cage length short
- Weight 348 g
Shift Lever
- Shimano CUES U6000
- Weight 30 g
Cassette
- Shimano CUES LG300-10
- Number of sprockets 10
- Range 11-48
Crank
- FSA CK 220
- Number of chainrings 1
Chainring
- FSA Gen4 Spider Boost 42T
Chain
- Shimano Cues LG500

Brakes

Disc Brake
- Shimano MT200
- Number of pistons 2
Disc Brake
- Shimano MT200
- Number of pistons 2
Brake Rotor
- Shimano RT30
- Size 180 mm
- Weight 191 g

Wheels

Front Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 15x110
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim height 21 mm
- Rim material Aluminium
Rear Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 12x148
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Rim height 21 mm
- Rim material Aluminium
Tyre
- Maxxis Crossmark II Reflexstrip Clincher
- Width 2,25"
- Weight 750 g
Thru Axle
- Canyon GP0420 Rear Thru Axle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon ST0036 Adjustable
- Fork steer tube diameter 1 1/8"
- Clamping diameter 31,8 mm
Handlebar
- Iridium Flatbar
- Clamping diameter 31,8 mm
- Rise 5 mm
Grips
- Ergon GA3 mini-wing
Bells
- Knog Oi Classic
Display
- Bosch Purion 200 BRC3800

Seat

Saddle
- SR Royal Essenza+
- Width 225 mm
- Gender Unisex
- Weight 561 g
Seatpost
- Canyon SP0067 Supension Post
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 552 g

Light

Lights
- Reflector Set
Lights
- Büchel Shiny 40 LED Front Light
Lights
- Sate-Lite M12 Rear Light

Accessories

Bikestands
- Atran Edge HV
Battery Charger
- Bosch 2A
Pedals
- Flat Pedals
Bike Racks
- Canyon Rack
Fender
- Plastic mudguards
Fender
- Canyon GP0563-01 Fender Kit
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Pedelec Manual 005-V04

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	155 - 170	170 - 190
a Seat Height in mm	583 - 733	673 - 823
b Seat Tube Length in mm	385	475
c Top Tube Length in mm	565	625
d Head Tube Length in mm	111	164
e Head Tube Angle	68,5°	68,5°
f Seat Tube Angle	73,5°	73,5°
g Chainstay Length in mm	460	460
h Wheel Base in mm	1.103	1.168
i Stack in mm	625	675
j Reach in mm	380	425
k Stand-over Height in mm	450	450
l Bottom Bracket Offset in mm	65	65

Component geometry

Detailed geometry table
Frame size
Spacer in mm	10,0	10,0
Stem Length in mm	65	65
Handlebar Width in mm	680	680
Crank Length in mm	170,0	170,0
Seat Post Diameter in mm	30,9	30,9
Dropper post travel in mm	50	50
Seat Post Length in mm	400	400
Maximum Seat Post Insertion Depth in mm	250	250
Minimum Seat Post Insertion Depth in mm	100	100
Wheel Size	27.5"	27.5"
Disc Size in mm	180 / 180	180 / 180
Front Fork Travel in mm	80	100
Battery capacity	625 Wh	625 Wh
Rim height in mm	21	21

Download PDF

Pathlite:ON 7 step-through support

-70%
Canyon Women's Cycling Pants
$35.95
Original price ~~$119.95~~
You save $84

Free Ground Shipping
-60%
Canyon Women's Longsleeve Merino Pro Cycling Jersey
$51.95
Original price ~~$129.95~~
You save $78

Free Ground Shipping
-71%
Canyon Women's Softshell Jacket
$36.95
Original price ~~$125.95~~
You save $89

Free Ground Shipping
-46%
Canyon Women's Cycling Undershort
$26.95
Original price ~~$49.95~~
You save $23

Free Ground Shipping
-40%
Canyon String Bag
$8.95
Original price ~~$14.95~~
You save $6

Free Ground Shipping
-72%
Canyon Women's Organic Cotton T-Shirt
$6.95
Original price ~~$24.95~~
You save $18

Free Ground Shipping
-32%
Canyon Organic Cotton Pullover
$40.95
Original price ~~$59.95~~
You save $19

Free Ground Shipping

Bike classification

Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
