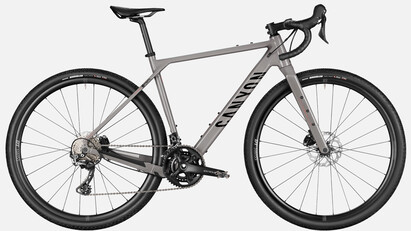

Grizl 7
-
Colour: grey/black -
Members only product. Log in here
Highlights Grizl 7

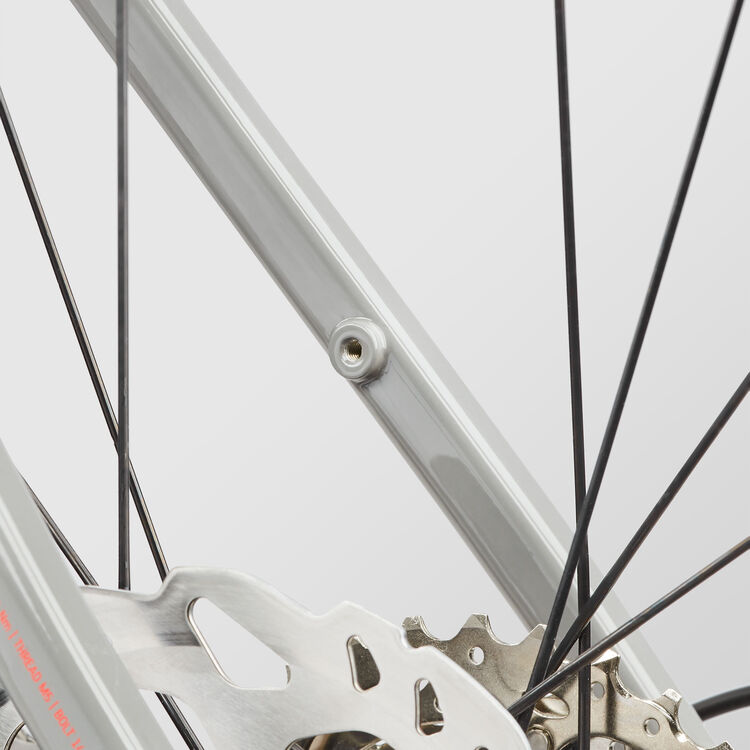

Rigged for racks
Refined aluminium frame
Fork mounts
Frame
-
Frame
- Canyon Grizl AL
- Aluminium frame with Gravel Pro geometry, a range of mounting points, and extended wheelbase for extra off-road stability.
-
Axle dimension 12x142 mm
-
Tyre clearance 50 mm
-
Material Aluminium (AL)
-
Weight 1,200 g
-
Fork
- Canyon FK0087 CF Disc
- Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages.
-
Axle dimension 12x100 mm
-
Fork steer tube diameter 1 1/4"
-
Tyre clearance 54 mm
-
Material Carbon (CF)
-
Weight 750 g
Drivetrain
-
Rear Derailleur
- Shimano GRX RX810 GS
-
Cage length long
-
Weight 252 g
-
Front Derailleur
- Shimano GRX RX810
-
Max chainring gear range 17T.
-
Weight 101 g
-
Cassette
- Shimano HG700 11-34 11s
-
Number of sprockets 11
-
Crank
- Shimano RX600
-
Number of chainrings 2
-
Bottom bracket
- Token Ninja Lite BB4124
-
Bottom bracket standard PF 86,5
-
Weight 85 g
-
Chain
- Shimano CN-HG601 11s
- Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Brakes
-
Shift-/ Brake Lever
- Shimano GRX RX600, 2s
-
Weight 541 g
-
Shift-/ Brake Lever
- Shimano GRX RX600 11s
-
Weight 541 g
-
Brake Rotor
- Shimano RT70
-
Size 160 mm
-
Weight 150 g
Wheels
-
Front Wheel
- DT Swiss Gravel LN
-
Axle dimension 12x100 mm
-
Rotor mount Center Lock
-
Rim height 25 mm
-
Inner width 24 mm
-
Rim material Aluminium
-
Weight 946 g
-
Rear Wheel
- WH DT GR LN CLA27.5 12X142 25 CL S11
-
Axle dimension 12x142 mm
-
Rotor mount Center Lock
-
Rim height 25 mm
-
Weight 928 g
-
Tyre
- Maxxis Rambler 45 mm
-
Thru Axle
- Canyon GP0197-01
-
Axle dimension 12x100 mm
-
Thru Axle
- Canyon GP0235-01
-
Axle dimension 12x142 mm
Cockpit
-
Stem
- Canyon V13
-
High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter 31.8 mm. Head tube diameter: 1 1/4".
-
Fork steer tube diameter 1 1/4"
-
Clamping diameter 31,8 mm
-
Handlebar
- Canyon HB0063 Ergo AL
-
Clamping diameter 31,8 mm
-
Width 420 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
-
Color black
Seat
-
Saddle
- WTB Volt Steel
-
Seatpost
- Canyon SP0057 VCLS
- With vibration-absorbing design for top rear-end comfort.
-
Setback 20 mm
-
Seatpost diameter 27,2 mm
-
Material Carbon (CF)
-
Weight 265 g
-
Seat Clamp
- Canyon Clamp SL
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
-
Manuals and Accessories
- Canyon Quick Start Guide
|
Body Height in cm
|
≤ 158 | 158 - 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 189 | 189 - 194 | ≥ 194 |
|---|---|---|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
593 - 693 | 623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
|
Seat Tube Length in mm
(b)
|
402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
|
Top Tube Length in mm
(c)
|
524 | 532 | 541 | 562 | 574 | 588 | 612 | 627 |
|
Head Tube Length in mm
(d)
|
115 | 122 | 135 | 121 | 141 | 166 | 186 | 205 |
|
Head Tube Angle
(e)
|
69° | 69,75° | 70,5° | 70,25° | 71,5° | 72° | 72,5° | 72,5° |
|
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
|
Chainstay Length in mm
(g)
|
420 | 420 | 420 | 435 | 435 | 435 | 435 | 435 |
|
Wheel Base in mm
(h)
|
1.007 | 1.009 | 1.012 | 1.044 | 1.045 | 1.055 | 1.074 | 1.089 |
|
Stack in mm
(i)
|
512 | 522 | 537 | 556 | 579 | 605 | 626 | 644 |
|
Reach in mm
(j)
|
372 | 377 | 382 | 397 | 402 | 409 | 427 | 436 |
|
Stand-over Height in mm
(k)
|
709 | 730 | 752 | 780 | 807 | 835 | 860 | 884 |
|
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 60 | 75 | 75 | 75 | 75 | 75 |
|
Stack+ in mm
|
602 | 612 | 626 | 645 | 670 | 697 | 717 | 738 |
|
Reach+ in mm
|
417 | 423 | 429 | 444 | 460 | 477 | 496 | 515 |
|
Spacer in mm
|
18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
|---|---|---|---|---|---|---|---|---|
|
Stem Length in mm
|
70 | 70 | 80 | 80 | 80 | 90 | 90 | 100 |
|
Handlebar Width in mm
|
380 | 400 | 400 | 420 | 420 | 440 | 460 | 460 |
|
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
|
Chainring Size
|
46/30 | 46/30 | 46/30 | 46/30 | 46/30 | 46/30 | 46/30 | 46/30 |
|
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
|
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
|
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 | 207 |
|
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
|
Wheel Size
|
27.5" | 27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" |
|
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
