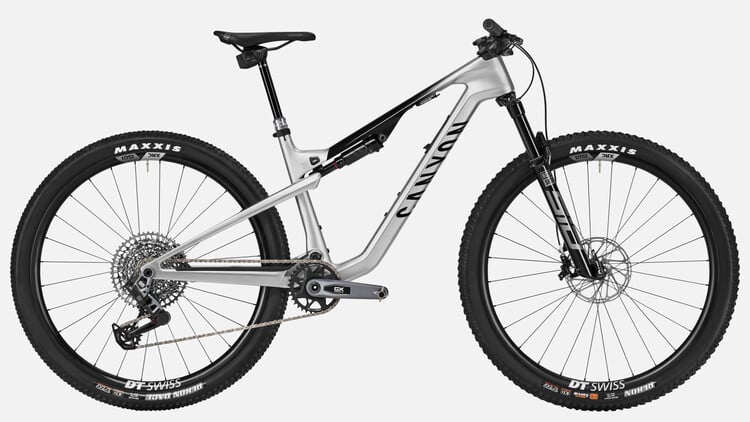

Lux Trail CF 9

Name: Lux Trail CF 9
Brand: Canyon
Price: 5099.00 USD
Availability: OutOfStock
Rating: 4 (42 reviews)

$5,099

Original price ~~$6,199~~

You save $1,100

Financing available for this product

Win on Sunday, shred on Monday. Combining wireless SRAM shifting with DT Swiss carbon wheels and frame-integrated storage, the Lux Trail CF 9 is race fast, and trail tough.

Front Fork Travel: 120 mm
Weight: 27.45 lbs

Weight

Weight is based on a size medium frame.

Reviews (42)

Press and awards (1)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Delivery: Select frame size

Members only product.

Free Ground Shipping

$5,099

Original price ~~$6,199~~

You save $1,100

Financing available for this product

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Financing with PayPal

Financing with Affirm Financing

Financing available for this product
Stress free New Bike Day

Our most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.

How to choose New Bike Day

Get ready-to-ride Delivery

Ready to ride delivery with velofix DIRECT

With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.

Collect & Ride

Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.

How to choose Collect & Ride
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More

Delivery: Select frame size

Highlights Lux Trail CF 9

Life on the Lux Trail

Pushing what's possible

Sometimes the greatest athletes race well beyond the tape. Adventure racers are a rare breed that live for the gruelling, the punishing, and the almost impossible. The Lux Trail was chosen by Neil Phillips on his attempt to claim the Lakeland 200 FKT, for its all day comfort, efficiency on the climbs and stability in the rough stuff.

Made for doing it all day long

Ride further into the unknown than ever before with a bike that's focused on all day performance. The brand new Lux Trail lets you create your own story with its incredibly efficient geometry that inspires fast lines and smashing climbs. Conquer demanding marathon rides and beat long-standing Strava records on the most capable 120 mm bike out there.

Key features

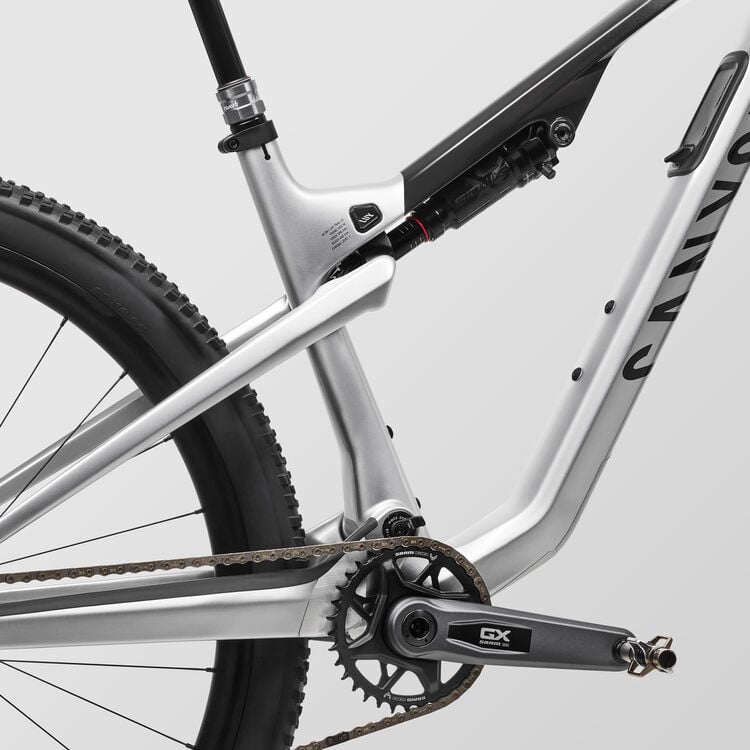

Total control linkage

Get brilliant traction and control with the Lux Trail's reactive suspension. 115 mm of rear travel is just a number, when you point it downhill it rides like a whole lot more.

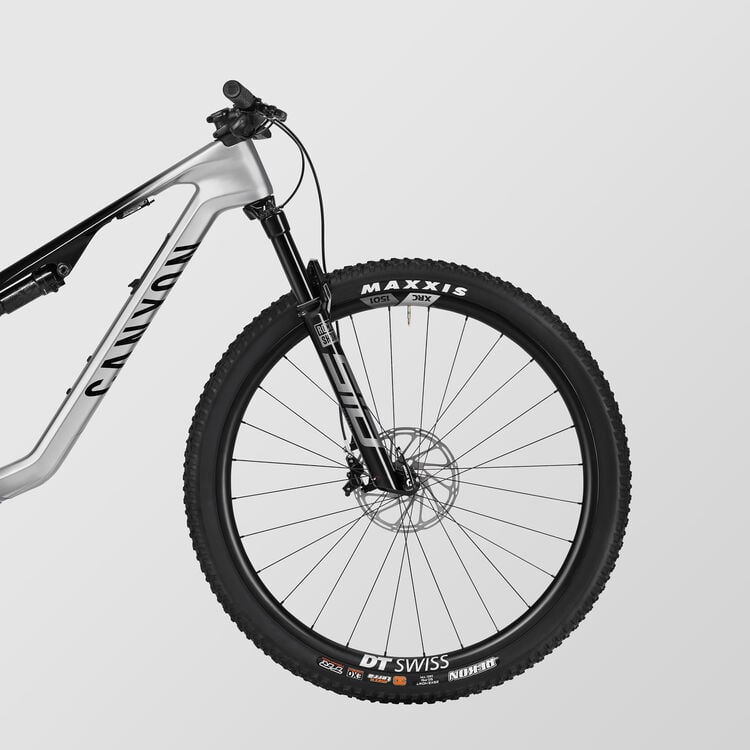

The right angles

We've found the sweetspot for trail riding geometry. Steep enough seat tubes that keep you riding efficiently and comfortably all day long. And a slack enough head angle that puts you in the driving seat on long and challenging descents.

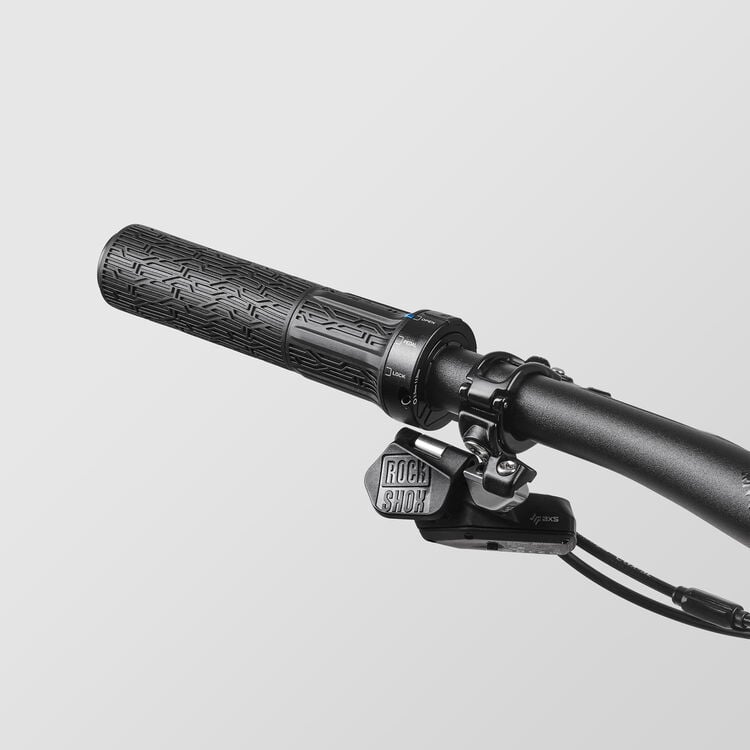

Remote lockout suspension

Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.

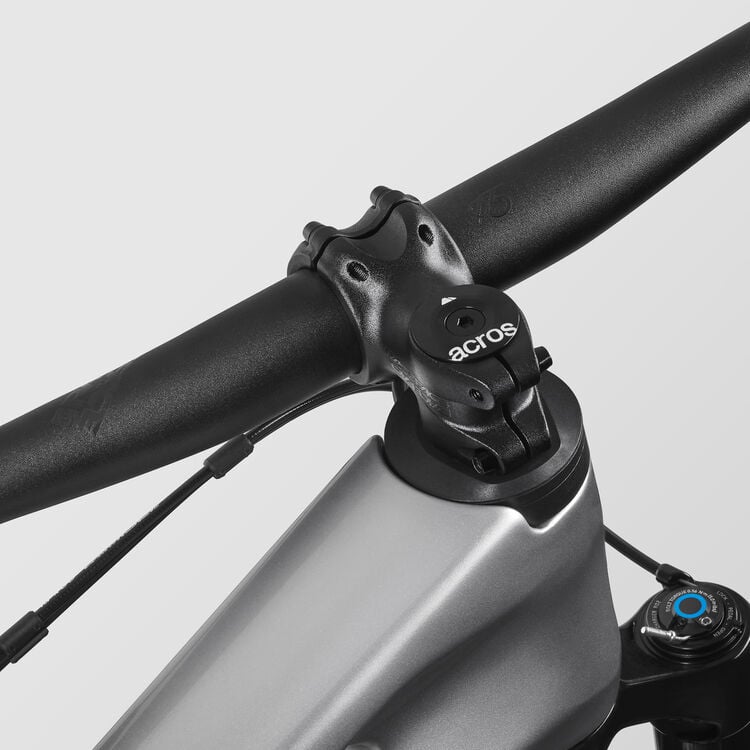

Proper frame protection

Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.

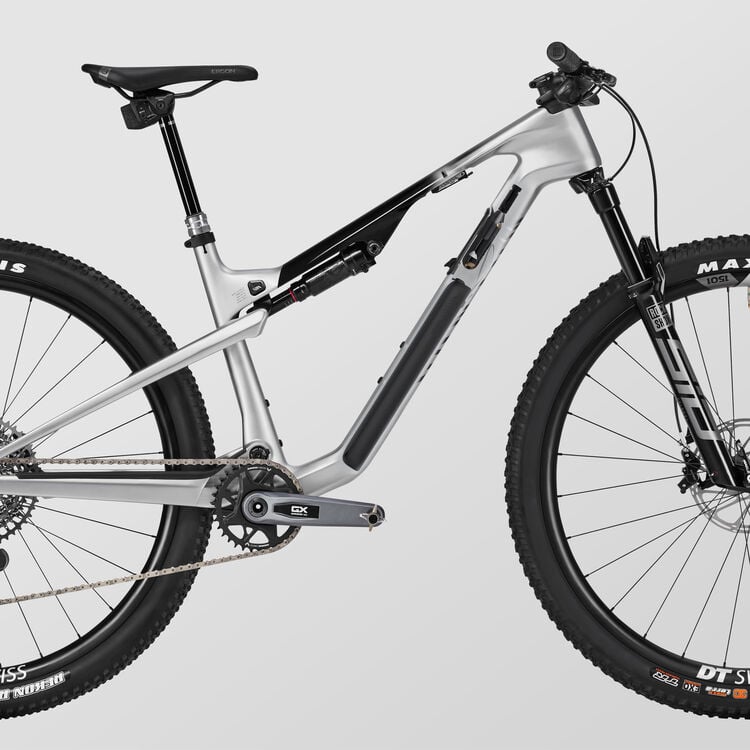

Clever storage

The fix is always within reach on the LUX Trail. Store a mini-tool in the top tube along with inflation and accessories in the downtube. Storage accessories sold separately

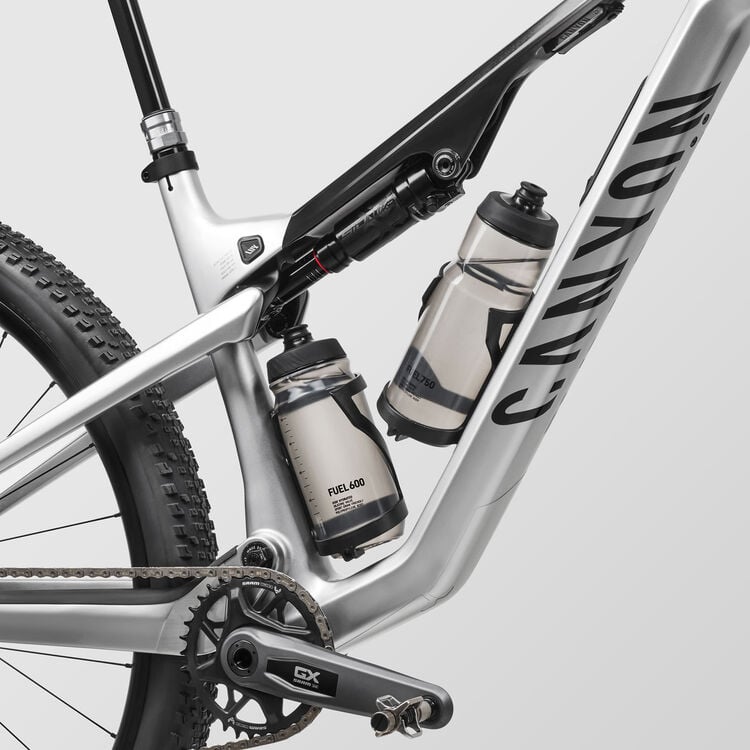

Drink more water

Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.

Components

Content is loading

Frame

Frame
- Canyon Lux Trail CF
- A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,060 g
Rear Shock
- Rock Shox SIDLuxe Select+ Remote
Suspension Fork
- Rock Shox SID Select+ Remote
- Axle dimension: 15x110 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1,562 g

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight: 462 g
Shift Lever
- SRAM AXS Pod
- Weight: 67 g
Shift Lever
- SRAM AXS POD Bridge
Cassette
- SRAM XS-1275 Eagle Transmission
- Number of sprockets: 12
- Range: 10-52
Crank
- SRAM GX Eagle
- Number of chainrings: 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- SRAM Level Silver Stealth 4 Piston
- Number of pistons: 4
Disc Brake
- SRAM Level Silver Stealth 2 Piston
- Number of pistons: 2
Brake Rotor
- SRAM Centerline Rounded
- Size: 160 mm
- Weight: 113 g
Brake Rotor
- SRAM Centerline Rounded
- Size: 180 mm
- Weight: 168 g

Wheels

Front Wheel
- DT Swiss XRC 1501 Spline S12 Hookless
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Rim material: Carbon
- Weight: 728 g
Rear Wheel
- DT Swiss XRC 1501 Spline S12
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Rim material: Carbon
- Weight: 816 g
Tyre
- Maxxis Rekon 3C Exo 2.4
- Width: 2.4"
- Weight: 500 g
Tyre
- Maxxis Rekon Race Dual Exo 2.35
- Width: 2.35"
- Weight: 1,028 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- RaceFace Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
Handlebar
- Race Face Ride Riserbar
- Clamping diameter: 35,0 mm
- Rise: 10 mm

Seat

Saddle
- Ergon SM10 Pro
- Gender: Male
- Weight: 270 g
Seatpost
- Rock Shox Reverb AXS
- Seatpost diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 710 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- CAYN SMALL BOX 2.0

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	628 - 723	658 - 778	683 - 828	713 - 858	743 - 888
Seat Tube Length in mm (b)	415	420	420	450	480
Top Tube Length in mm (c)	559	585	609	633	656
Head Tube Length in mm (d)	90	90	100	115	130
Head Tube Angle (e)	67°	67°	67°	67°	67°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	435	435	435	435	435
Wheel Base in mm (h)	1.129	1.155	1.180	1.206	1.232
Stack in mm (i)	589	589	598	612	626
Reach in mm (j)	412	438	460	480	500
Stand-over Height in mm (k)	768	768	772	777	783
Bottom Bracket Offset in mm (l)	38	38	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	0,0	0,0	0,0	0,0	0,0
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	760	760	760	760	760
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Dropper post travel in mm	100	125	150	150	150
Seat Post Length in mm	340	390	440	440	440
Maximum Seat Post Insertion Depth in mm	175	200	225	225	225
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	120	120	120	120	120
Rear Suspension Travel in mm	115	115	115	115	115
Fitting Length	210X50	210X50	210X50	210X50	210X50

Download PDF

Press and awards

2024

Bike Of The Year

No other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.

Bike Of The Year

No other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.

Content is loading

Lux Trail CF 9 support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Proposition 65 Warning

Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
