Dude CF 8.0

Name: Dude CF 8.0
Brand: Canyon
Price: 2199.00 USD
Availability: OutOfStock
Rating: 4 (3 reviews)

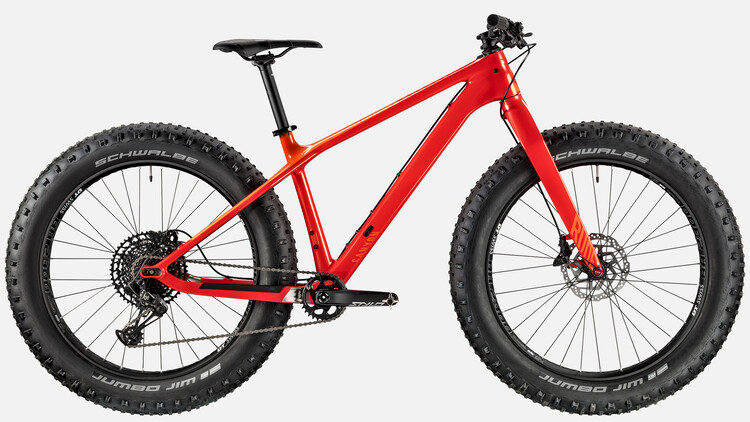

A lightweight carbon fatbike with a rigid carbon fork, 4.8” tyres and SRAM NX Eagle 12-speed drivetrain ensuring nothing will stand in your way when tackling demanding terrain from sand to snow.

Customer reviews (3)

Colour: Blaze Orange

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Members only product.

Sold out

Highlights Dude CF 8.0

Components

Content is loading

Frame

Frame
- Canyon Dude CF
- Material Carbon
- Axle Dimension 12 x 197 mm
- Brake Mount Post Mount

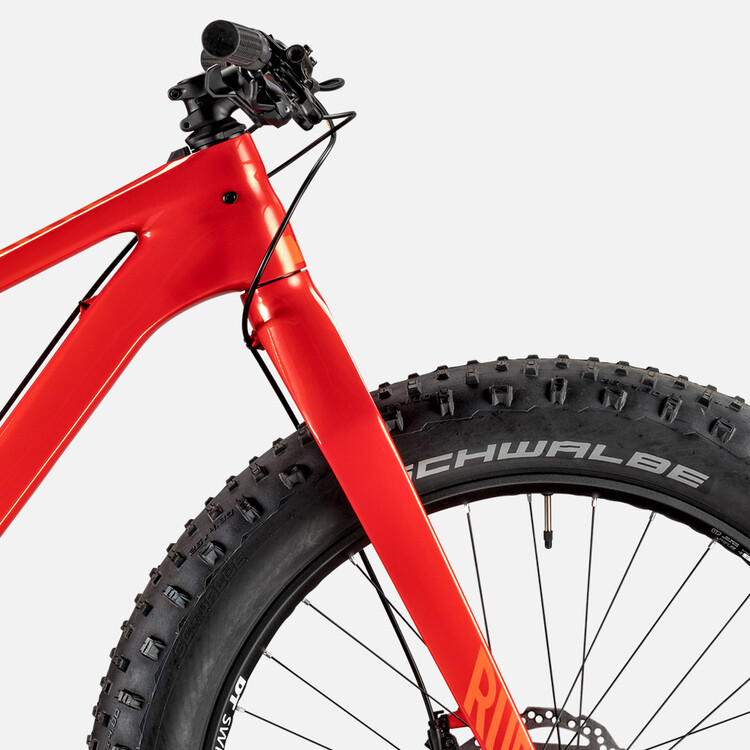

Fork
- Canyon Rude CF
- Developed by Canyon, the Rude CF carbon fork has enough clearance for huge 3.8” wide tyres. It’s extremely light and stiff, giving you precise handling and direct feedback off-road. Axle dimensions 15x150 mm.
- Material Carbon (CF)
- Weight 500 g

Drivetrain

Rear Derailleur
- SRAM NX Eagle
- Cage length long
- Weight 347 g
Shift Lever
- SRAM NX Eagle Trigger 12s
- Weight 128 g
Cassette
- SRAM PG-1230 Eagle 11-50 12s
- Number of sprockets 12
- Range 11-50 12S
Crank
- Truvativ Stylo 6K DUB 30T
- Number of chainrings 1
Bottom bracket
- SRAM Pressfit DUB
- Bottom bracket standard PF 121
- Weight 89 g
Chain
- SRAM NX Eagle 12s

Brakes

Disc Brake
- Shimano MT420
Disc Brake
- Shimano MT401
Brake Rotor
- Shimano RT10
- Size 180 mm
- Weight 211 g
Brake Rotor
- Shimano RT10
- Size 160 mm
- Weight 178 g

Wheels

Rear Wheel
- DT Swiss BR 2300
- Rotor mount Center Lock
Rear Wheel
- DT Swiss BR 2300 SH11
- Rotor mount Center Lock
Tyre
- Schwalbe Jumbo Jim 4.8"
- Width 4.8"

Cockpit

Stem
- Race Face Ride
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
Handlebar
- Race Face Ride Riserbar
- Clamping diameter 35,0 mm
- Width 760 mm
- Rise 10 mm
Grips
- Canyon Lock-On Grips

Seat

Saddle
- Selle Italia X-Base
- Max. Rider Weight 100 kg
- Weight 326 g
Seatpost
- SP HL C255 400 30,9
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 280 g

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- DT Swiss warranty & intended use manual
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon starter box

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 171	171 - 183	≥ 183
Seat Height in mm (a)	468 - 748	523 - 803	568 - 848
Seat Tube Length in mm (b)	390	445	490
Top Tube Length in mm (c)	569	605	642
Head Tube Length in mm (d)	95	120	145
Head Tube Angle (e)	68,5°	68,5°	68,5°
Seat Tube Angle (f)	74°	74°	74°
Chainstay Length in mm (g)	439	439	439
Wheel Base in mm (h)	1.103	1.143	1.182
Stack in mm (i)	605	628	652
Reach in mm (j)	395	425	455
Bottom Bracket Offset in mm (l)	60	60	60

Component geometry

Detailed geometry table

Spacer in mm	15,0	15,0	15,0
Stem Length in mm	60	60	60
Handlebar Width in mm	760	760	760
Crank Length in mm	170,0	175,0	175,0
Chainring Size	30	30	30
Seat Post Diameter in mm	30,9	30,9	30,9
Seat Post Length in mm	400	400	400
Maximum Seat Post Insertion Depth in mm	370	370	370
Minimum Seat Post Insertion Depth in mm	90	90	90
Wheel Size	26"	26"	26"
Disc Size in mm	180 / 160	180 / 160	180 / 160
