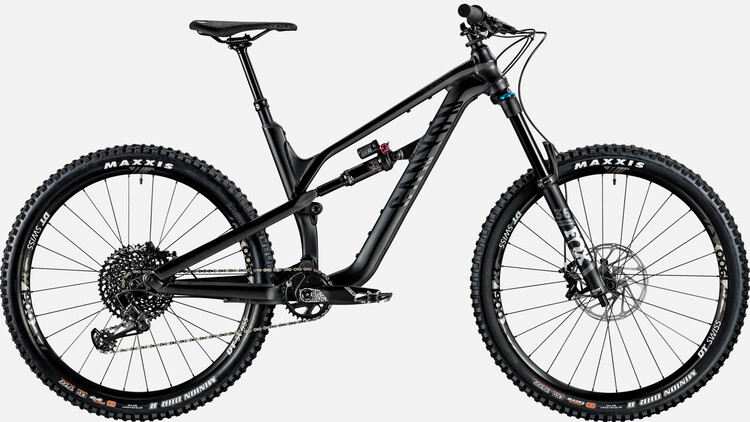

Spectral AL 6.0

-14%

The Spectral opens up a world of trail riding, from fast flowing singletrack to adventures off the beaten path. The modern geometry and suspension give you the confidence to attack any trail.

Colour: Stealth

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Members only product.

Sold out

Highlights Spectral AL 6.0

Components

Content is loading

Frame

Frame
- Canyon Spectral AL
- Material: Aluminium 6061
- Axle Dimension: 12 x 148 mm
- Brake Mount: Post Mount 180
Rear Shock
- FOX FLOAT DPX2 Performance
- Weight: 500 g
Suspension Fork

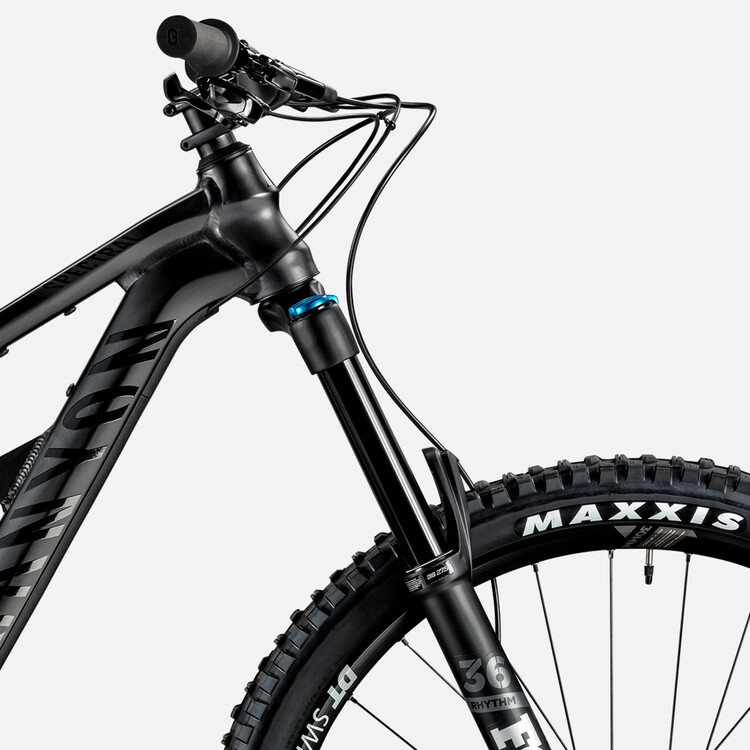

- FOX 36 Rhythm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1 1/4"

Drivetrain

Rear Derailleur
- SRAM GX Eagle
- Cage length: long
- Weight: 300 g
Shift Lever
- SRAM GX Eagle
- Weight: 128 g
Cassette
- SRAM XG-1275 Eagle 10-50 12s
- Number of sprockets: 12
- Range: 10-50
Crank
- Truvativ Descendant 6K AL DUB 32T
- Number of chainrings: 1
Bottom bracket
- SRAM Pressfit DUB
- Bottom bracket standard: PF 92
- Weight: 79 g
Chain
- SRAM GX Eagle
- Flowlink inner plate design reduces friction, solid pin construction, PowerLock tool-less master link.

Brakes

Disc Brake
- SRAM Hinge Clamp
Disc Brake
- SRAM Guide R
Disc Brake
- SRAM Guide R
Brake Rotor
- SRAM Centerline Rounded
- Size: 180 mm
- Weight: 168 g
Brake Rotor
- SRAM Centerline
- Size: 200 mm
- Weight: 190 g

Wheels

Front Wheel
- DT Swiss M 1900
- Rotor mount: IS 6-bolt
Rear Wheel
- DT Swiss M 1900 XD
- Rotor mount: IS 6-bolt
Tyre
- MAXXIS Minion DHR II 2.4''
- Width: 2.4"
- Weight: 900 g
Tyre
- MAXXIS Minion DHR II 2.4''
- Width: 2.4"
- Weight: 900 g
Thru Axle
- Canyon Quixle

Cockpit

Stem
- Canyon G5
- Fork steer tube diameter: 1 1/8"
Handlebar
- Canyon G5
- Our aluminum G5 Riser bar offers the perfect combination of width (780mm) and rise.
Grips
- Canyon G5

Seat

Saddle
- SDG Fly MTN
- Weight: 294 g
Seatpost
- Iridium Dropper
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 588 g

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 162	162 - 170	170 - 178	178 - 186	≥ 186
Seat Height in mm (a)	610 - 710	650 - 750	697 - 815	737 - 855	777 - 895
Seat Tube Length in mm (b)	385	425	440	480	520
Top Tube Length in mm (c)	560	582	605	633	661
Head Tube Length in mm (d)	88	84	116	143	170
Head Tube Angle (e)	66°	66°	66°	66°	66°
Seat Tube Angle (f)	74,5°	74,5°	74,5°	74,5°	74,5°
Chainstay Length in mm (g)	430	430	430	430	430
Wheel Base in mm (h)	1.122	1.139	1.172	1.204	1.235
Stack in mm (i)	588	588	605	634	655
Reach in mm (j)	400	419	440	460	482
Stand-over Height in mm (k)	735	742	763	783	797
Bottom Bracket Offset in mm (l)	27	27	22	22	22

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	760	760	780	780	780
Crank Length in mm	165,0	165,0	170,0	170,0	170,0
Chainring Size	32	32	32	32	32
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	125	150	150	150
Seat Post Length in mm	400	400	480	480	480
Maximum Seat Post Insertion Depth in mm	223	223	271	271	271
Minimum Seat Post Insertion Depth in mm	123	123	153	153	153
Wheel Size	27.5"	27.5"	27.5"	27.5"	27.5"
Disc Size in mm	200 / 180	200 / 180	200 / 180	200 / 180	200 / 180
Front Fork Travel in mm	160	160	160	160	160
Rear Suspension Travel in mm	140	140	150	150	150
Fitting Length	210X55	210X55	230X65	230X65	230X65
