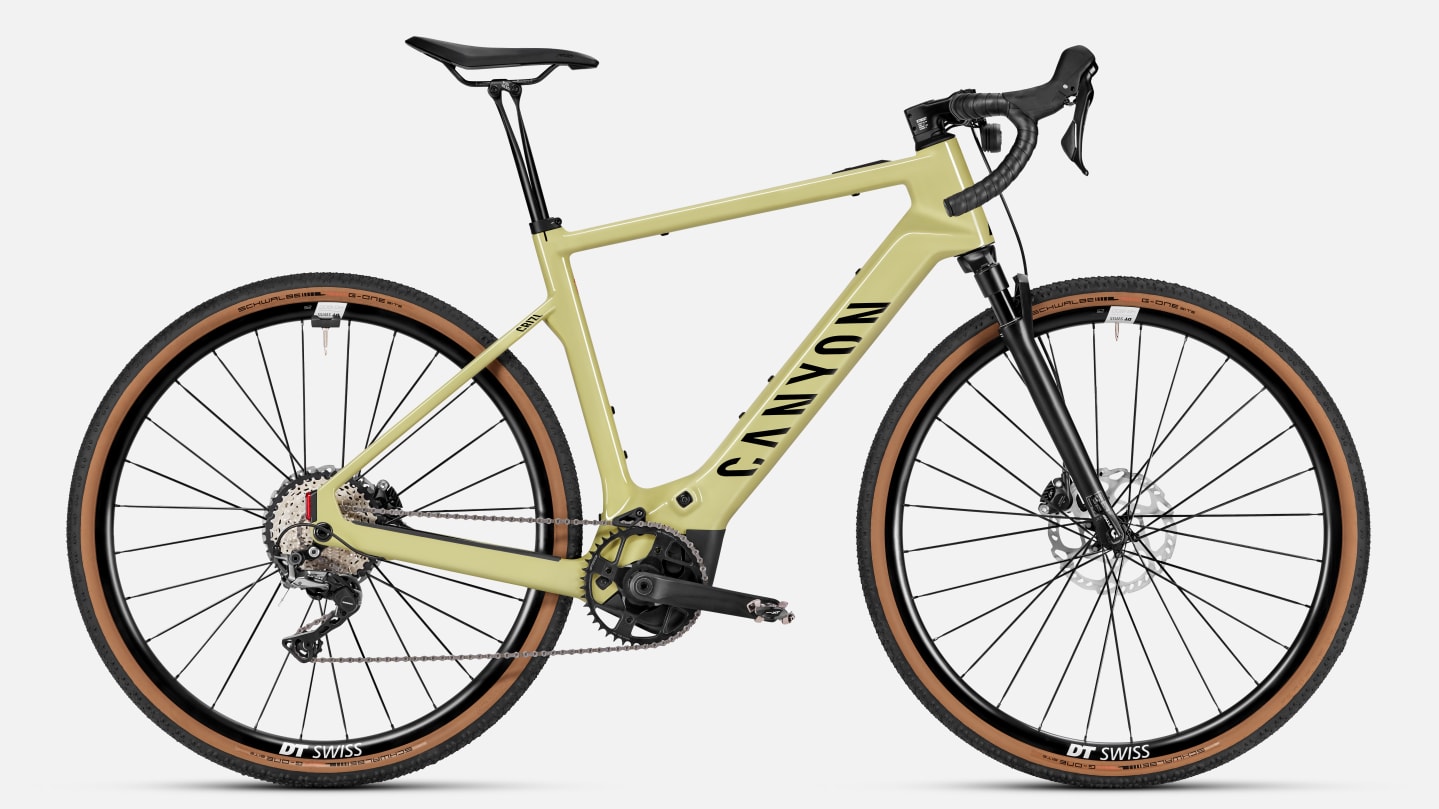

Grizl:ONfly CF 7

Refurbished bike in L

Your gateway to amplified escape. The latest generation Bosch Performance Line Sprint power, natural support up to 28 mph, capable off-road performance meets everyday practicality, ride your way with this adventure-ready e-bike.

Weight: 35.26 lbs
Material: Carbon (CF)

Colour: Grellow

Members only product.

Frame Size: L

Select your model

Ships within 1-3 business days

This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.

Attention: It is not always possible to show all signs of wear. You should expect other scratches, paint damage and/or signs of use. Pricing is adjusted according to the wear class (light, medium or heavy signs of use).

Members only product.

Ships within 1-3 business days

Wear level

Visual imperfections

Bikes and framesets in this category are unridden new bikes that may have minimal colour deviations, scratches or damage to paintwork. Please note, this bike is a final sale and may not be returned.

These images show model #0001112312

Highlights Grizl:ONfly CF 7

Components

Frame

Frame
- Canyon Grizl:ON CF
- Lightweight, strong carbon e-gravel frame. With a laid-back riding position for all-day comfort, and slackened angles for enhanced control.
- Axle dimension 12x142 mm
- Tyre clearance 50 mm
- Material Carbon (CF)
- Weight 1,620 g
Suspension Fork
- Rockshox Rudy 40 mm
- Axle dimension 12x100 mm
- Travel 40 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Tyre clearance 50 mm
- Weight 1,227 g
Seatpost Clamp
- Canyon GP0438-01 Seat Clamp

Drivetrain

Motor

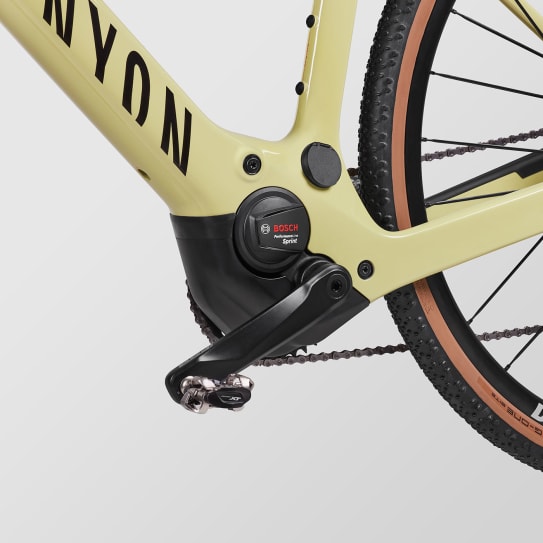

- Performance Line Sprint
Battery
- CompactTube 400
Rear Derailleur
- Shimano GRX RX812 GS
- Cage length long
- Weight 249 g
Chainguard
- Canyon GP0455-01 Chainguide
Cassette
- Shimano Deore XT M8000 11-42 11s
- Number of sprockets 11
Crank
- FSA CK-220 IS
Chainring
- FSA 44T Spider Bosch
Chain
- Shimano CN-HG601 11s
- Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.

Brakes

Brake
- Shimano Flat Mount Adapter +20mm
Shift-/ Brake Lever
- Shimano RX600
- Weight 541 g
Shift-/ Brake Lever
- Shimano RX600
- Weight 541 g
Brake Rotor
- Shimano SM-RT70
- Size 180 mm
- Weight 180 g

Wheels

Front Wheel
- DT Swiss HG1800 Spline 28
- Axle dimension 12x100 mm
- Rotor mount Center Lock
- Rim height 25 mm
- Inner width 24 mm
- Rim material Aluminium
- Weight 971 g
Rear Wheel
- DT Swiss HG1800 Hinterrad
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Rim height 25 mm
- Inner width 24 mm
- Rim material Aluminium
- Weight 1,105 g
Tyre
- Schwalbe G-One Bite 45mm
- Width 45 mm
- Weight 540 g
Thru Axle
- Canyon GP0433-01 Thru Axle
- Axle dimension 12x142 mm

Cockpit

Stem
- Canyon Stem ST0037
- Fork steer tube diameter 1 1/8"
- Clamping diameter 31,8 mm
Handlebar
- Canyon HB0064 Ergo
- Robust aluminium handlebar with flared drops for enhanced off-road control.
- Clamping diameter 31,8 mm
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color Black

Seat

Saddle
- Fizik Argo Terra X5
- Gender Unisex
- Weight 271 g
Seatpost
- Canyon S14 VCLS 2.0 CF
- Material Carbon
- Setback -2 mm / 10 mm
- Technology VCLS 2.0 | Fliphead
- Weight 220 g

Light

Lights
- Reflector Set
Lights

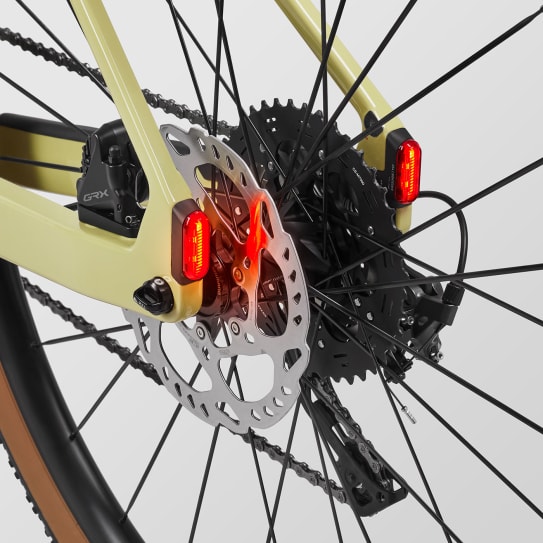

- Lupine C14 Tail Light R112 Set
Lights
- Lupine C14 Tail Light R112 Set

Accessories

Battery Charger
- Bosch 4A
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Quick Start Guide Grizl:On
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 172	172 - 178	178 - 184	184 - 189	≥ 189
Seat Height in mm (a)	653 - 753	683 - 783	713 - 813	743 - 843	773 - 873
Seat Tube Length in mm (b)	462	492	522	552	582
Top Tube Length in mm (c)	546	568	578	597	617
Head Tube Length in mm (d)	117	136	156	176	198
Head Tube Angle (e)	69,5°	69,5°	69,5°	69,5°	69,5°
Seat Tube Angle (f)	74°	74°	74°	74°	74°
Chainstay Length in mm (g)	445	445	445	445	445
Wheel Base in mm (h)	1.056	1.080	1.092	1.112	1.134
Stack in mm (i)	574	592	611	630	650
Reach in mm (j)	381	398	403	416	431
Stand-over Height in mm (k)	784	807	832	854	878
Bottom Bracket Offset in mm (l)	72	72	72	72	72
Stack+ in mm	661	679	698	717	737
Reach+ in mm	417	434	439	452	467

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Stem Length in mm	60	60	60	60	60
Handlebar Width in mm	420	440	440	440	460
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107
Wheel Size	28"	28"	28"	28"	28"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	40	40	40	40	40
Battery capacity	400 Wh	400 Wh	400 Wh	400 Wh	400 Wh
Rim height in mm	25	25	25	25	25

Download PDF

Grizl:ONfly CF 7 support

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
