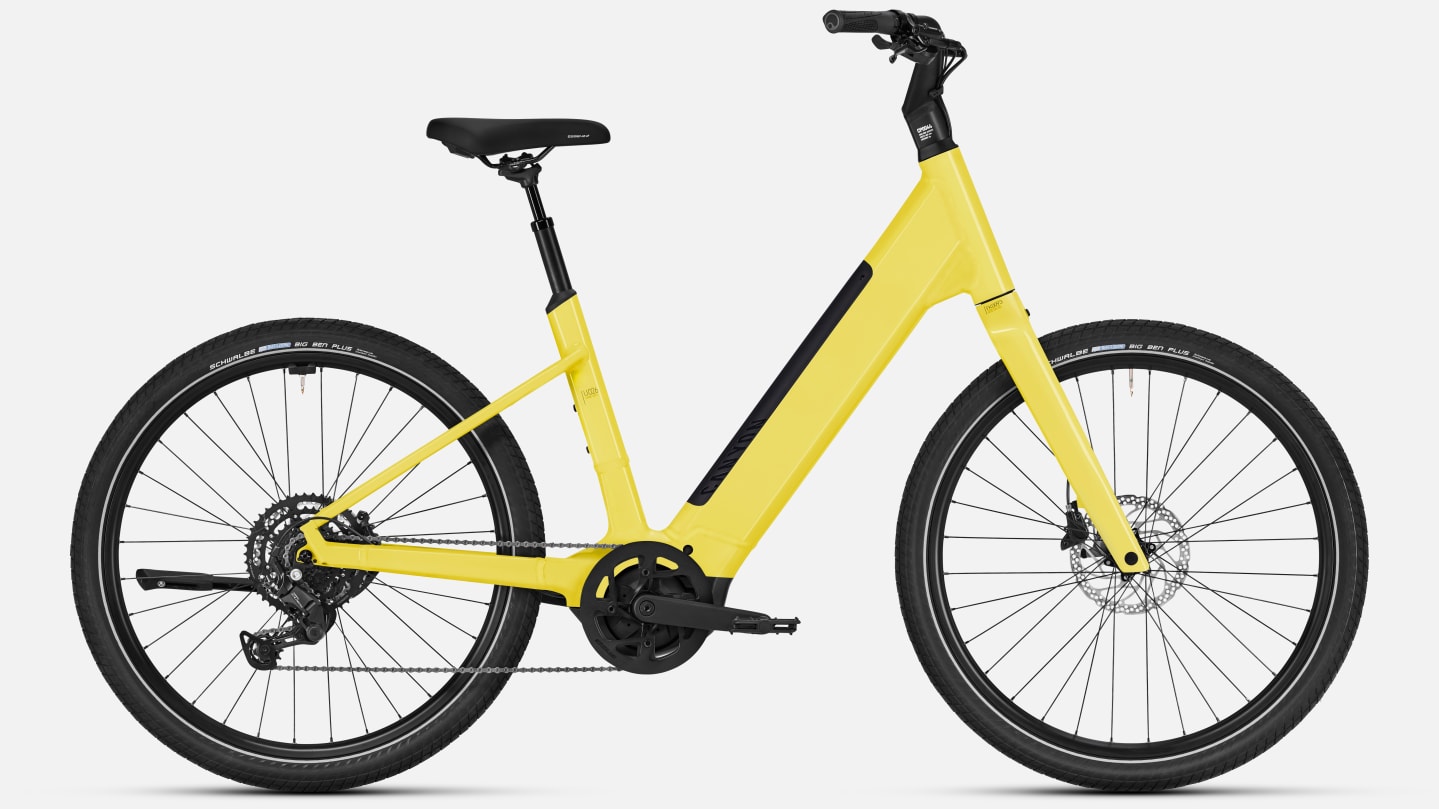

Precede:ON Comfort 5

Refurbished bike in UNI

City riding has never been so simple. With a one size-fits-all frame, strong, smooth Bosch motor power up to 28 mph, and a confident upright riding position, all you have to do is pedal.

Weight: 50.72 lbs
Material: Aluminium (AL)

All components

Product Configuration

Colour:

Light Yellow

Members only product.

Frame Size:

Unisize

Members only product.

Buying reasons

$2,199

Original price ~~From $3,199~~

Save up to $1,000.00 (-31%)

Financing available for this product

Sold out

Product added to cart

Highlights Precede:ON Comfort 5

Components

All components are based on size M

Frame

Frame
- Canyon Precede:ON
- Axle dimension 10x135 mm
- Material Aluminium (AL)
- Weight 1250 g
Fork
- Canyon FK0093 Disc
- Robust, sleek carbon fork.
- Fork steer tube diameter 1 1/8"
- Material Carbon (CF)
- Weight 400 g
Seatpost Clamp
- Canyon GP0170-01 Seatclamp

Drivetrain

Motor

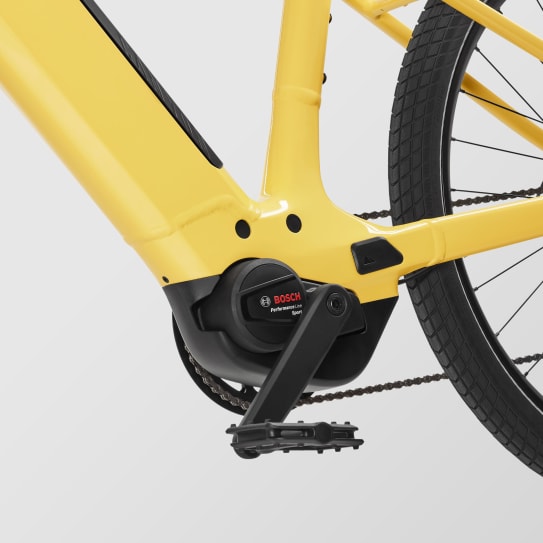

- Bosch Performance Line Sport
Battery
- Bosch PowerTube 500Wh
Rear Derailleur
- Shimano CUES U4000
- Cage length medium
- Weight 346 g
Shift Lever
- Shimano CUES U4000
Cassette
- Shimano CUES LG300
- Number of sprockets 10
Crank
- Miranda Delta
- Number of chainrings 1
Chainring
- FSA 44T Chainring incl. Guard
Chain
- Shimano Cues LG500

Brakes

Brake Rotor
- Shimano RT30
- Size 180 mm
- Weight 191 g

Wheels

Front Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT400 15x100
- Axle dimension 15X100 mm
- Rotor mount Center Lock
- Rim material Aluminium
Rear Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT4050 9x135
- Axle dimension 9x135 mm
- Rotor mount Center Lock
- Rim material Aluminium
Tyre
- Schwalbe Big Ben Plus Reflex 55mm
- Width 2,15"
Thru Axle
- Canyon EP1142 Front Thru Axle
- Axle dimension 15X100 mm

Cockpit

Cockpit
- Canyon CP0044 Comfort Cockpit
- Comfortable, ergonomic one-piece riser cockpit
- Material Aluminium (AL)
- Weight 936 g
Grips
- Ergon GA3 mini-wing
Bells
- Knog Oi Classic

Seat

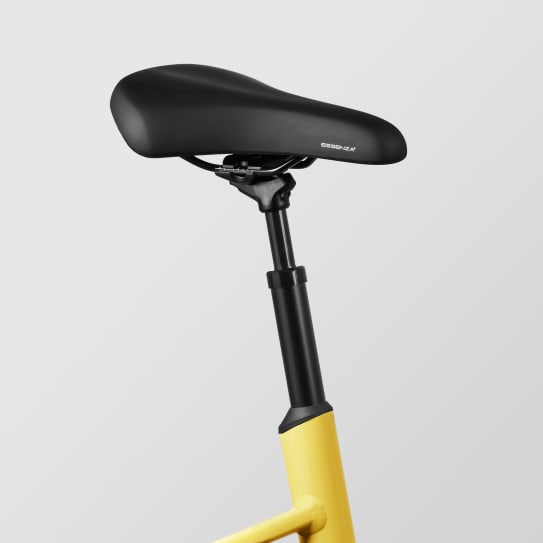

Saddle
- Selle Royal Essenza+ Moderate Wide
Seatpost
- Canyon SP0067 Supension Post
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 552 g

Light

Lights
- Reflector Set

Accessories

Bikestands
- Atran Edge HV
Battery Charger
- Bosch 2A
Pedals
- Flat Pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Quick Start Guide U026 Precede:ON Comfort

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	160 - 195
a Seat Height in mm	683 - 833
b Seat Tube Length in mm	485
c Top Tube Length in mm	626
d Head Tube Length in mm	229
e Head Tube Angle	68,5°
f Seat Tube Angle	72,5°
g Chainstay Length in mm	505
h Wheel Base in mm	1.214
i Stack in mm	671
j Reach in mm	435
k Stand-over Height in mm	450
l Bottom Bracket Offset in mm	75

Component geometry

Detailed geometry table
Frame size
Spacer in mm	10,0
Crank Length in mm	170,0
Seat Post Diameter in mm	30,9
Dropper post travel in mm	50
Seat Post Length in mm	400
Maximum Seat Post Insertion Depth in mm	250
Minimum Seat Post Insertion Depth in mm	100
Wheel Size	27.5"
Disc Size in mm	180 / 180
Battery capacity	500 Wh

Download PDF

Precede:ON Comfort 5 support

Bike classification

Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
