Spectral:ON CF 7
-
-26%
- Bomber-yet-lightweight, full-carbon frame
- Proven power, courtesy of Shimano EP8 motor
- RockShox Lyrik/Deluxe Select R fork and shock
- Shimano’s workhorse Deore drivetrain and brakes
- Mullet wheelsizing maximises playful handling
- Front Fork Travel: 150 mm
-
Weight:
50.80 lbs
Weight is based on a size M frame.
Colour:
Infinit Red
-
Colour: Infinit Red -
Colour: Boundless Grey
-
Members only product. Log in here
Select frame size
Hint: Use our recommendation and get the correct size first time.
Sold out
Members only product.
Log in here
Sold out
Highlights Spectral:ON CF 7
Uniquely nimble
There’s no other full-power e-MTB like the Spectral:ON. The bike’s big battery gives you the power to ride all-day while also improving the Spectral:ON’s handling. The battery’s unique, horizontal fuel-cell architecture helps lower the bike’s centre of gravity and creates an absolute ground-hugging, corner-slaying marvel.
Tough yet lightweight
The heart and soul of the Spectral:ON CF is its light-yet-durable, full-carbon frame. Built to withstand rigorous Category 4e strength and impact testing, the Spectral:ON CF easily shrugs off hard riding, season after season, while boasting a truly impressive frame weight of 3,180 grams (7.01 pounds).
Next-gen power. Smart and robust.
The new 800 Wh aluminium battery redefines e-MTB performance. Built with next-generation cells, it boasts faster charging, smarter energy management, and improved efficiency. With IP57 dust protection and waterproofing, double-sealed protection, and the seal of approval from independent testing authority SGS, it’s as durable as it is advanced.

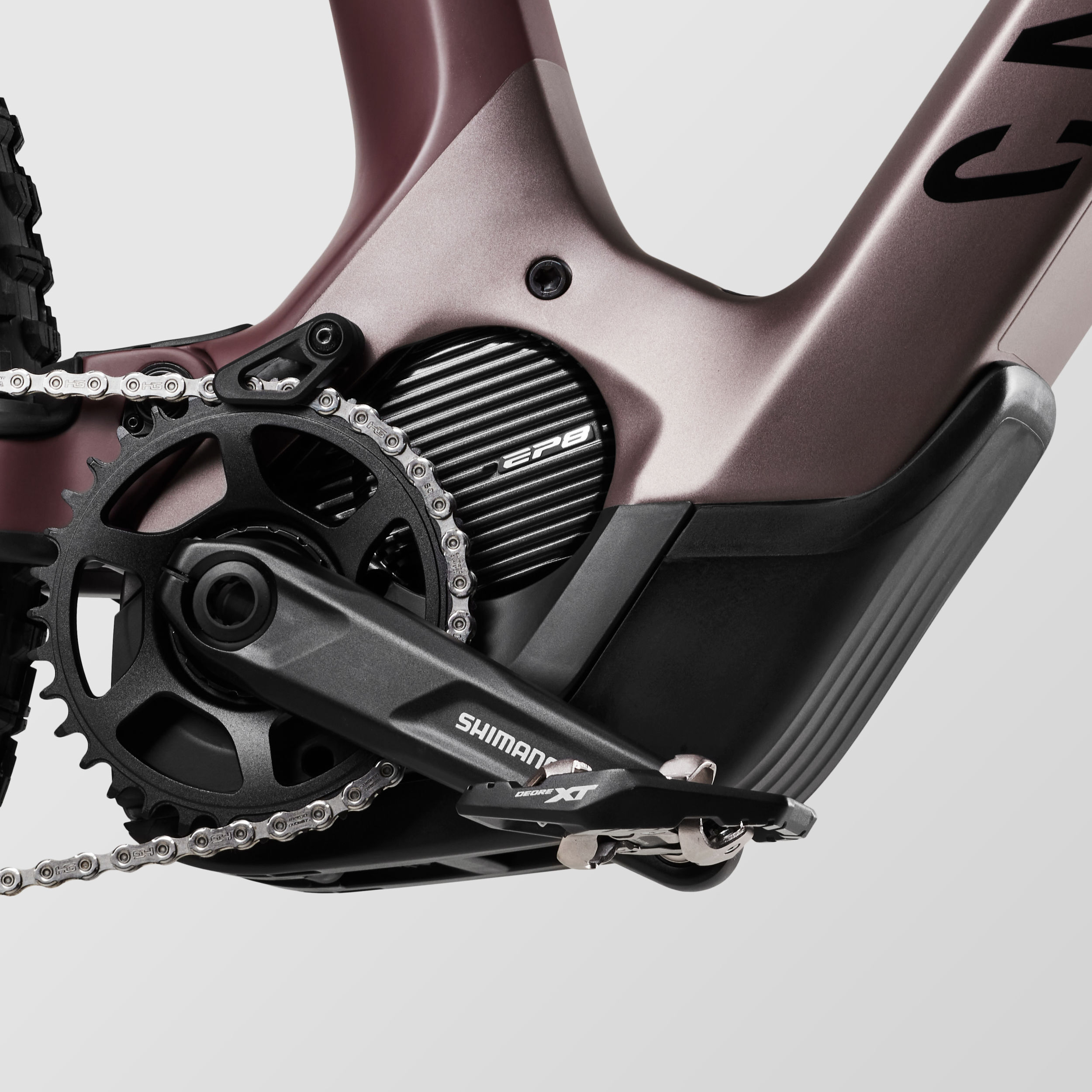

A motor built for anything
Light, powerful, versatile: Shimano’s EP8 motor offers excellent all-round performance which is perfect for E-MTB riding. With its smooth support, the ride feel is simply incredible and thanks to the longer range, you ride further on a single charge. Furthermore, you can also tune the motor to your riding style using an app. Ventilation openings on the underside of the motor cover use air currents to cool the system as you ride.
Control your ride
Developed in-house by our designers and engineers, this bar and stem combo was specially designed for our E-MTB range. The bombproof construction is not just durable, it also makes it easy to internally route the battery display’s cable through the handlebar to the integrated battery in the downtube – protecting it from any damage and creating an exceptionally clean look. A minimalistic control unit lets you quickly switch between support modes. Thanks to the tidy setup, you have a clear overview of everything that’s going on so you can focus on what really counts: enjoying the ride.
Content is loading
Frame
-
Frame
- Canyon Spectral:ON CF
- Carbon frame with integrated battery. Category: 4e.
- Material: Carbon (CF)
- Weight: 1,350 g
-
Rear Shock
- Rockshox Deluxe Select R
- Weight: 375 g
-
Suspension Fork
- RockShox Lyrik Select
- Axle dimension: 15x110 mm
- Travel: 150 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 2,340 g
-
Seatpost Clamp
- Canyon GP0279-01 Seatclamp
Drivetrain
-
Motor
- Shimano Steps EP8 Motor
-
Battery
- CANYON BT009
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 282 g
-
Chainguard
- Canyon Chainguide M091/M129
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano Steps
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano Deore BR-M6120
-
Disc Brake
- Shimano Deore M6120
- Number of pistons: 4
-
Brake Rotor
- Shimano SM-RT30
- Size: 203 mm
- Weight: 190 g
-
Brake Rotor
- Shimano RT-EM300 STEPS
- Size: 203 mm
- Weight: 10 g
Wheels
-
Front Wheel
- RaceFace AR30 | Shimano MT400
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Weight: 1,200 g
-
Rear Wheel
- RaceFace AR35 | Shimano MT510
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Weight: 1,250 g
-
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
-
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
-
Display
- ELPA SHIM SC-E7000 Display Set 35
-
Modeswitch
- Shimano STEPS power mode switch
Seat
-
Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Light
-
Lights
- Reflector Set
Accessories
-
Battery Charger
- Canyon Charger
-
Pedals
- VP-536 flat pedals
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- QSG 027-V02 M091/M129 SPT[ON]
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
|
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
|---|---|---|---|---|
|
Seat Height in mm
(a)
|
647 - 756 | 693 - 823 | 733 - 853 | 753 - 873 |
|
Seat Tube Length in mm
(b)
|
420 | 440 | 460 | 480 |
|
Top Tube Length in mm
(c)
|
589 | 613 | 637 | 663 |
|
Head Tube Length in mm
(d)
|
115 | 125 | 135 | 145 |
|
Head Tube Angle
(e)
|
65,5° | 65,5° | 65,5° | 65,5° |
|
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° |
|
Chainstay Length in mm
(g)
|
440 | 440 | 440 | 440 |
|
Wheel Base in mm
(h)
|
1.194 | 1.223 | 1.252 | 1.281 |
|
Stack in mm
(i)
|
634 | 643 | 652 | 661 |
|
Reach in mm
(j)
|
435 | 460 | 485 | 510 |
|
Stand-over Height in mm
(k)
|
809 | 814 | 820 | 825 |
|
Bottom Bracket Offset in mm
(l)
|
36 | 36 | 36 | 36 |
|
Spacer in mm
|
5 | 5 | 5 | 5 |
|---|---|---|---|---|
|
Stem Length in mm
|
45 | 45 | 45 | 45 |
|
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
|
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
|
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
|
Dropper post travel in mm
|
125 | 150 | 170 | 170 |
|
Seat Post Length in mm
|
378 | 425 | 465 | 465 |
|
Maximum Seat Post Insertion Depth in mm
|
199 | 220 | 240 | 240 |
|
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 120 | 120 |
|
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
|
Disc Size in mm
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
|
Front Fork Travel in mm
|
150 | 150 | 150 | 150 |
|
Rear Suspension Travel in mm
|
155 | 155 | 155 | 155 |
|
Battery capacity
|
800 Wh | 800 Wh | 800 Wh | 800 Wh |
|
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Download PDF
Content is loading
Spectral:ON CF 7 support
⚠︎ WARNING
Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
