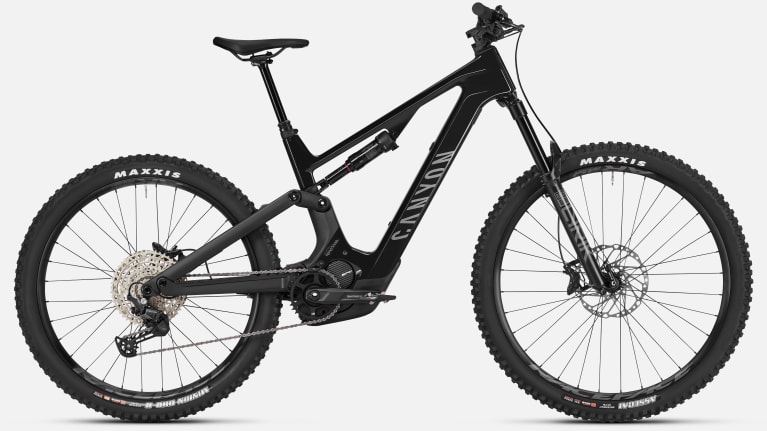

Spectral:ON CF 7

Refurbished bike in S
-34%

Bomber-yet-lightweight, full-carbon frame
Proven power, courtesy of Shimano EP8 motor
RockShox Lyrik/Deluxe Select R fork and shock
Shimano’s workhorse Deore drivetrain and brakes
Mullet wheelsizing maximises playful handling

Weight: 53.41 lbs
Material: Carbon (CF)

Colour: Stealth

Members only product.

Members only product.

Sold out

Highlights Spectral:ON CF 7

Play:ON repeat

Uniquely nimble

There’s no other full-power e-MTB like the Spectral:ON. The bike’s big battery gives you the power to ride all-day while also improving the Spectral:ON’s handling. The battery’s unique, horizontal fuel-cell architecture helps lower the bike’s centre of gravity and creates an absolute ground-hugging, corner-slaying marvel.

Tough yet lightweight

The heart and soul of the Spectral:ON CF is its light-yet-durable, full-carbon frame. Built to withstand rigorous Category 4e strength and impact testing, the Spectral:ON CF easily shrugs off hard riding, season after season, while boasting a truly impressive frame weight of 3,180 grams (7.01 pounds).

Components

Frame

Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 3,597 g
Rear Shock
- RockShox Deluxe Select R
- Tune: LINEAR REB-LC COMP TUNE
- Weight: 342 g
Suspension Fork
- RockShox Lyrik
- Axle dimension: 15x110 mm
- Stanchion Diameter: 35 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Volume Spacer Oe: 0/5
- Weight: 2,340 g
Seatpost Clamp
- Canyon GP0279-01 Seatclamp

Drivetrain

Motor
- Shimano EP801
Battery
- CANYON BT010
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
Chainguard
- Canyon Chainguide M091/M129
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
Crank
- Shimano Steps
Chainring
- Canyon EP1110-01 Chainring 34T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano Deore M6120
- Number of pistons: 4
Disc Brake
- Shimano Deore M6120
- Number of pistons: 4
Brake Rotor
- Shimano RT64
- Size: 203 mm
- Weight: 206 g
Brake Rotor
- Shimano Steps RT-EM600
- Size: 203 mm

Wheels

Front Wheel
- RaceFace AR30 | Shimano MT400
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Weight: 1,200 g
Rear Wheel
- RaceFace AR35 | Shimano MT510
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Weight: 1,250 g
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Rise: 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g

Light

Lights
- Reflector Set

Accessories

Battery Charger
- Canyon Charger
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox
Manuals and Accessories
- QSG 027-V04 M091/M129 SPT[ON]

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	647 - 756	693 - 823	733 - 853	753 - 873
Seat Tube Length in mm (b)	420	440	460	480
Top Tube Length in mm (c)	586	613	641	668
Head Tube Length in mm (d)	115	125	135	145
Head Tube Angle (e)	65,5°	65,5°	65,5°	65,5°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.194	1.223	1.252	1.281
Stack in mm (i)	630	639	648	657
Reach in mm (j)	435	460	485	510
Stand-over Height in mm (k)	809	814	820	825
Bottom Bracket Offset in mm (l)	36	36	36	36

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	165,0	165,0	165,0	165,0
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170
Seat Post Length in mm	378	425	465	465
Maximum Seat Post Insertion Depth in mm	199	220	240	240
Minimum Seat Post Insertion Depth in mm	90	90	120	120
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	155	155	155	155
Battery capacity	800 Wh	800 Wh	800 Wh	800 Wh
Fitting Length	230X60	230X60	230X60	230X60
