E-Bikes Electric Mountain Bikes Spectral:ON CF

Spectral:ON CF 8

Name: Spectral:ON CF 8
Brand: Canyon
Price: 4499.00 USD
Availability: OutOfStock
Rating: 4 (95 reviews)

Simply the best value in trail e-MTBs today. Full carbon frame, stellar components, and a price that just can’t be beat.

Bomber-yet-lightweight, full-carbon frame
Proven power, courtesy of Shimano EP8 motor
Reliable FOX 36 Rhythm fork and Float X shock
Durable Shimano XT/SLX drivetrain and brakes
Rugged, 800 Wh aluminium battery

Front Fork Travel: 160 mm
Weight: 54.02 lbs

Customer reviews (95)

Colour: Stealth

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Members only product.

Sold out

Highlights Spectral:ON CF 8

Play:ON repeat

Uniquely nimble

There’s no other full-power e-MTB like the Spectral:ON. The bike’s big battery gives you the power to ride all-day while also improving the Spectral:ON’s handling. The battery’s unique, horizontal fuel-cell architecture helps lower the bike’s centre of gravity and creates an absolute ground-hugging, corner-slaying marvel.

Tough yet lightweight

The heart and soul of the Spectral:ON CF is its light-yet-durable, full-carbon frame. Built to withstand rigorous Category 4e strength and impact testing, the Spectral:ON CF easily shrugs off hard riding, season after season, while boasting a truly impressive frame weight of 3,180 grams (7.01 pounds).

A masterpiece in raw carbon

Experience the refined elegance of this bike’s premium stealth artwork, designed to showcase its advanced unidirectional carbon structure. By revealing the intricate carbon layup, we’ve reduced weight and created a distinctive, textured aesthetic.

Key features

Full carbon electric trail bike

By making the full Spectral:ON line up carbon fibre we were able to optimise the frame architecture and improve strength at critical points while shaving overall weight. The added frame strength combines with huge 15 mm thru axles at the main and seatstay pivots to boost overall stiffness and noticeably improve handling precision and suspension performance.

Next-gen power. Smart and robust.

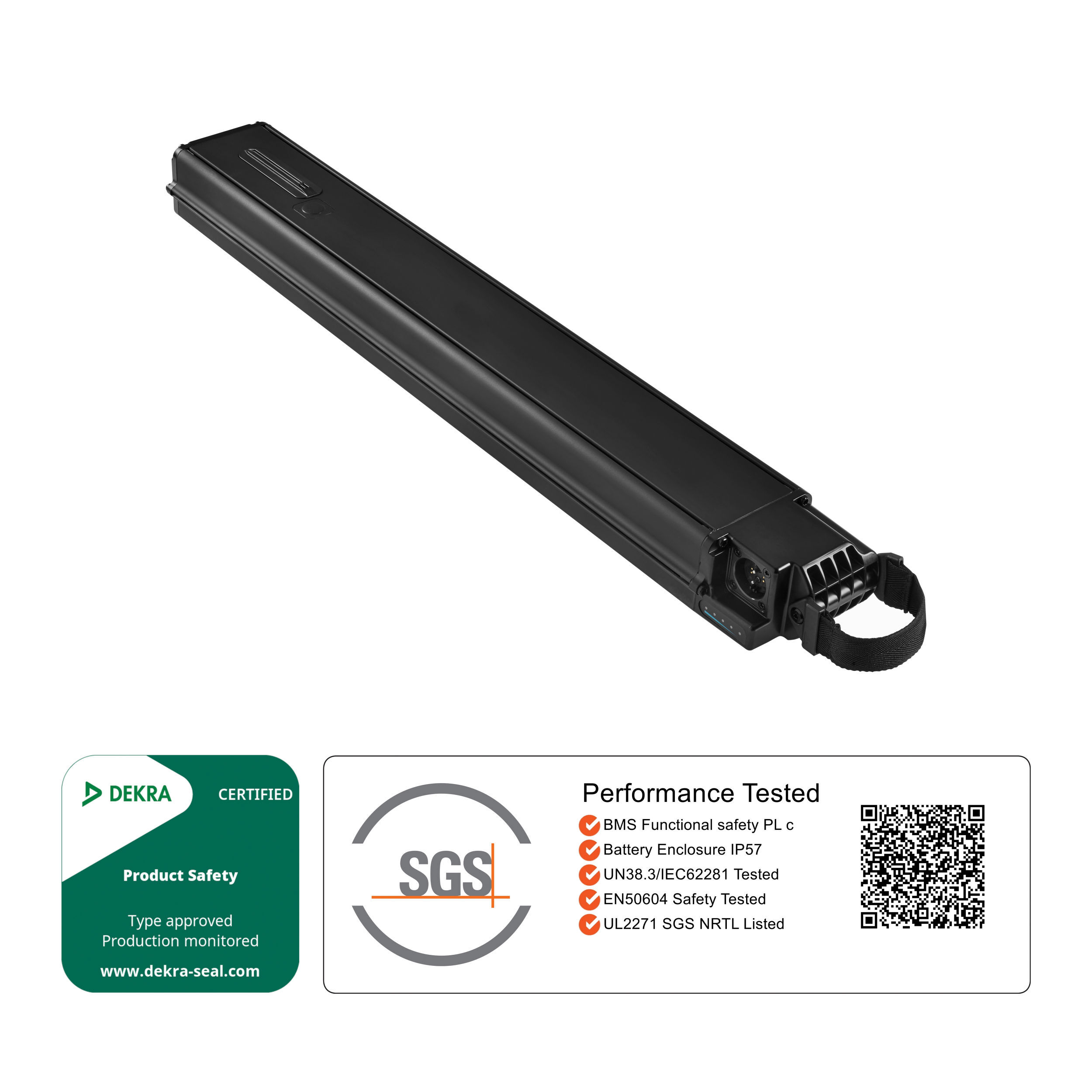

The new 800 Wh aluminium battery redefines e-MTB performance. Built with next-generation cells, it boasts faster charging, smarter energy management, and improved efficiency. With IP57 dust protection and waterproofing, double-sealed protection, and the seal of approval from independent testing authority SGS, it’s as durable as it is advanced.

Proven Shimano power

A great e-MTB needs to pack serious power under the hood without compromising handling and that’s exactly what the EP8 does. With a whopping 85 Nm of torque and 400% pedal assist, the motor will you have flying up steep trails and its compact size and light 2.7 kg weight ensure that the bike still handles like a champ

GPS Enabled

Whether you’re logging miles ridden and vert crushed or just keeping tabs on your baby, the GPS function of the Spectral:ON has got you covered. The new Canyon app logs the location of your bike and can even send an alarm notification if your bike gets tampered with. The GPS locator stays enabled if the bike runs out of battery.

Components

Content is loading

Frame

Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 1,250 g
Rear Shock
- Fox Float X Performance Evolution
- Tune CL, RM, Rezi LM
- Weight 280 g
Suspension Fork
- FOX 36 Rhythm Grip
- Axle dimension 15x110 mm
- Stanchion Diameter 36 mm
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Weight 2,290 g
Seatpost Clamp
- Canyon GP0279-01 Seatclamp

Drivetrain

Motor
- Shimano EP801
Battery
- Canyon BT010
Rear Derailleur
- Shimano SLX 12s
- Cage length long
- Weight 310 g
Chainguard
- Canyon Chainguide M091/M129
Shift Lever
- Shimano Deore SLX M7100
- Weight 143 g
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets 12
- Range 10-51
Crank
- Shimano Steps
- Number of chainrings 1
Chainring
- Canyon EP1110-01 Chainring 34T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano SLX M7120
Disc Brake
- Shimano SLX M7120
- Number of pistons 4
Brake Rotor
- Shimano RT64
- Size 203 mm
- Weight 206 g
Brake Rotor
- RT SHIM EM600 203 CL W/LR INT
- Size 203 mm
- Weight 10 g

Wheels

Front Wheel
- DT Swiss HLN350 15x110 30mm Centerlock
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Weight 1,026 g
Rear Wheel
- DT Swiss HLN350 12x142 30mm Centerlock
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Weight 1,258 g
Tyre
- Maxxis Assegai
- Width 2.5"
- Weight 1,072 g
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width 2.6"
- Weight 900 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length 45 mm
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter 35,0 mm
- Rise 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender Unisex
- Weight 272 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 567 g

Light

Lights
- Reflector Set

Accessories

Battery Charger
- Canyon Charger
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Quick Start Guide Spectral:ON

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	647 - 756	693 - 823	733 - 853	753 - 873
Seat Tube Length in mm (b)	420	440	460	480
Top Tube Length in mm (c)	589	613	637	663
Head Tube Length in mm (d)	115	125	135	145
Head Tube Angle (e)	65,5°	65,5°	65,5°	65,5°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.194	1.223	1.252	1.281
Stack in mm (i)	634	643	652	661
Reach in mm (j)	435	460	485	510
Stand-over Height in mm (k)	809	814	820	825
Bottom Bracket Offset in mm (l)	36	36	36	36

Component geometry

Detailed geometry table

Spacer in mm	15,0	15,0	15,0	15,0
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	165,0	165,0	165,0	165,0
Chainring Size	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170
Seat Post Length in mm	378	425	465	465
Maximum Seat Post Insertion Depth in mm	199	220	240	240
Minimum Seat Post Insertion Depth in mm	90	90	120	120
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	155	155	155	155
Battery capacity	800 Wh	800 Wh	800 Wh	800 Wh
Fitting Length	230X60	230X60	230X60	230X60

Download PDF

Content is loading

Spectral:ON CF 8 support

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
