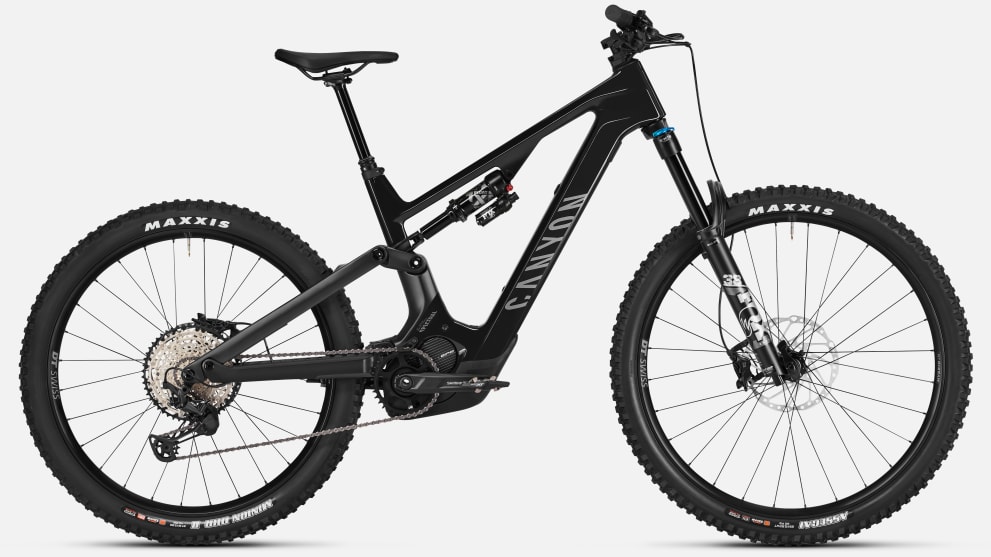

Spectral:ON CF 8

Refurbished bike in M

Simply the best value in trail e-MTBs today. Full carbon frame, stellar components, and a price that just can’t be beat.

Bomber-yet-lightweight, full-carbon frame
Proven power, courtesy of Shimano EP8 motor
Reliable FOX 38 Rhythm fork and Float X shock
Durable Shimano XT/SLX drivetrain and brakes
Rugged, removable 800 Wh aluminium battery
Up to 85 km range and 1,900 m of elevation gain

(46)

Front Fork Travel: 160 mm
Weight: 54.51 lbs

All components

30-day return policy

6 Year Warranty

Product Configuration

Colour:

Stealth

Members only product.

Frame Size:

Members only product.

Buying reasons

$3,599

Original price ~~From $5,549~~

Save up to $1,950.00 (-35%)

Financing available for this product

Sold out

Product added to cart

Highlights Spectral:ON CF 8

Uniquely nimble

There’s no other full-power e-MTB like the Spectral:ON. The bike’s big battery gives you the power to ride all-day while also improving the Spectral:ON’s handling. The battery’s unique, horizontal fuel-cell architecture helps lower the bike’s centre of gravity and creates an absolute ground-hugging, corner-slaying marvel.

Tough yet lightweight

The heart and soul of the Spectral:ON CF is its light-yet-durable, full-carbon frame. Built to withstand rigorous Category 4e strength and impact testing, the Spectral:ON CF easily shrugs off hard riding, season after season, while boasting a truly impressive frame weight of 3,180 grams (7.01 pounds).

Components

Details are based on size M

Frame

Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 3597 g
Rear Shock
- Fox Float X Performance Evolution
- Tune CL, RM, Rezi LM
- Weight 280 g
- Fitting Length in mm 230X60
- Rear Suspension Travel in mm 155
Suspension Fork
- Fox 38 Rhythm
- Axle dimension 15x110 mm
- Stanchion Diameter 38 mm
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
Seatpost Clamp
- Canyon GP0279-01 Seatclamp

Drivetrain

Motor
- Shimano EP801
Battery
- Canyon BT010
- Battery capacity 800 Wh
Rear Derailleur
- Shimano Deore XT M8100
- Cage length long
- Weight 282 g
Chainguard
- Canyon Chainguide M091/M129
Shift Lever
- Shimano Deore SLX M7100
- Weight 143 g
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets 12
- Range 10-51
Crank
- Shimano Steps
- Number of chainrings 1
- Crank Length in mm 165,0
- Chainring size 34
Chainring
- Canyon EP1110-01 Chainring 34T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano SLX M7120
- Number of pistons 4
Disc Brake
- Shimano SLX M7120
- Number of pistons 4
Brake Rotor
- Shimano RT64
- Weight 206 g
Brake Rotor
- Shimano RT-EM600
- Weight 10 g
- Disc Size in mm
- 203 / 203

Wheels

Front Wheel
- DT Swiss HLN350 15x110 30mm Centerlock
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 1026 g
Rear Wheel
- DT Swiss HLN350 12x142 30mm Centerlock
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 1258 g
- Wheel Size
- 29"/27.5"
Tyre
- Maxxis Assegai
- Width 2.5"
- Weight 1072 g
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width 2.6"
- Weight 900 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031
- Canyon E-MTB stem.
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
- Stem Length in mm 45
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter 35,0 mm
- Rise 30 mm
- Handlebar Width in mm

  S 760

  M - XL 780
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender Unisex
- Weight 272 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 567 g
- Seat Post Length in mm
- S 378

  M 425

  L - XL 465
- Dropper post travel in mm
- S 125

  M 150

  L - XL 170
- Maximum Seat Post Insertion Depth in mm
- S 199

  M 220

  L - XL 240
- Minimum Seat Post Insertion Depth in mm
- S - M 90

  L - XL 120

Accessories

Battery Charger
- Canyon Charger
Pedals
- Flat Pedals
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Quick Start Guide Spectral:ON

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	647 - 756	693 - 823	733 - 853	753 - 873
b Seat Tube Length in mm	420	440	460	480
c Top Tube Length in mm	586	613	641	668
d Head Tube Length in mm	115	125	135	145
e Head Tube Angle	65,5°	65,5°	65,5°	65,5°
f Seat Tube Angle	76,5°	76,5°	76,5°	76,5°
g Chainstay Length in mm	440	440	440	440
h Wheel Base in mm	1.194	1.223	1.252	1.281
i Stack in mm	630	639	648	657
j Reach in mm	435	460	485	510
k Stand-over Height in mm	809	814	820	825
l Bottom Bracket Offset in mm	32	32	32	32
