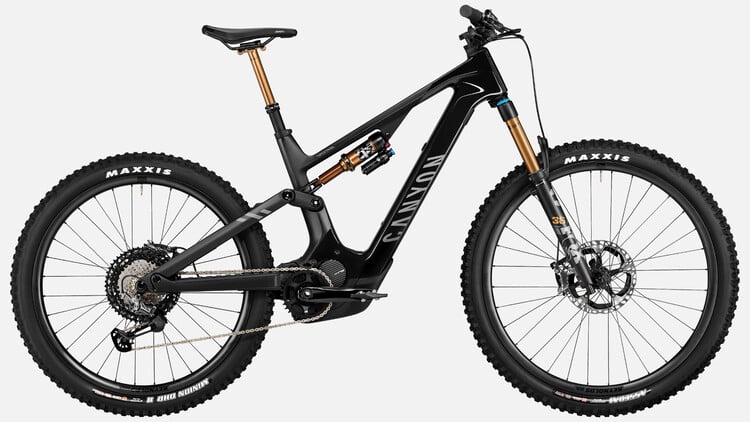

Spectral:ON CFR
Spectral:ON CFR raises the bar with a rugged-yet-ridiculously-light carbon frame, a category-leading 900Wh battery that delivers massive miles per charge, and the best components available today.
- Front Fork Travel: 150 mm
-
Weight:
50.16 lbs
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
Select frame size
Hint: Use our recommendation and get the correct size first time.
Sold out
Price differences: Size S bikes cost less as the Small frames only accomodate our smaller 720Wh batteries.
Members only product.
Log in here
Sold out
Highlights Spectral:ON CFR

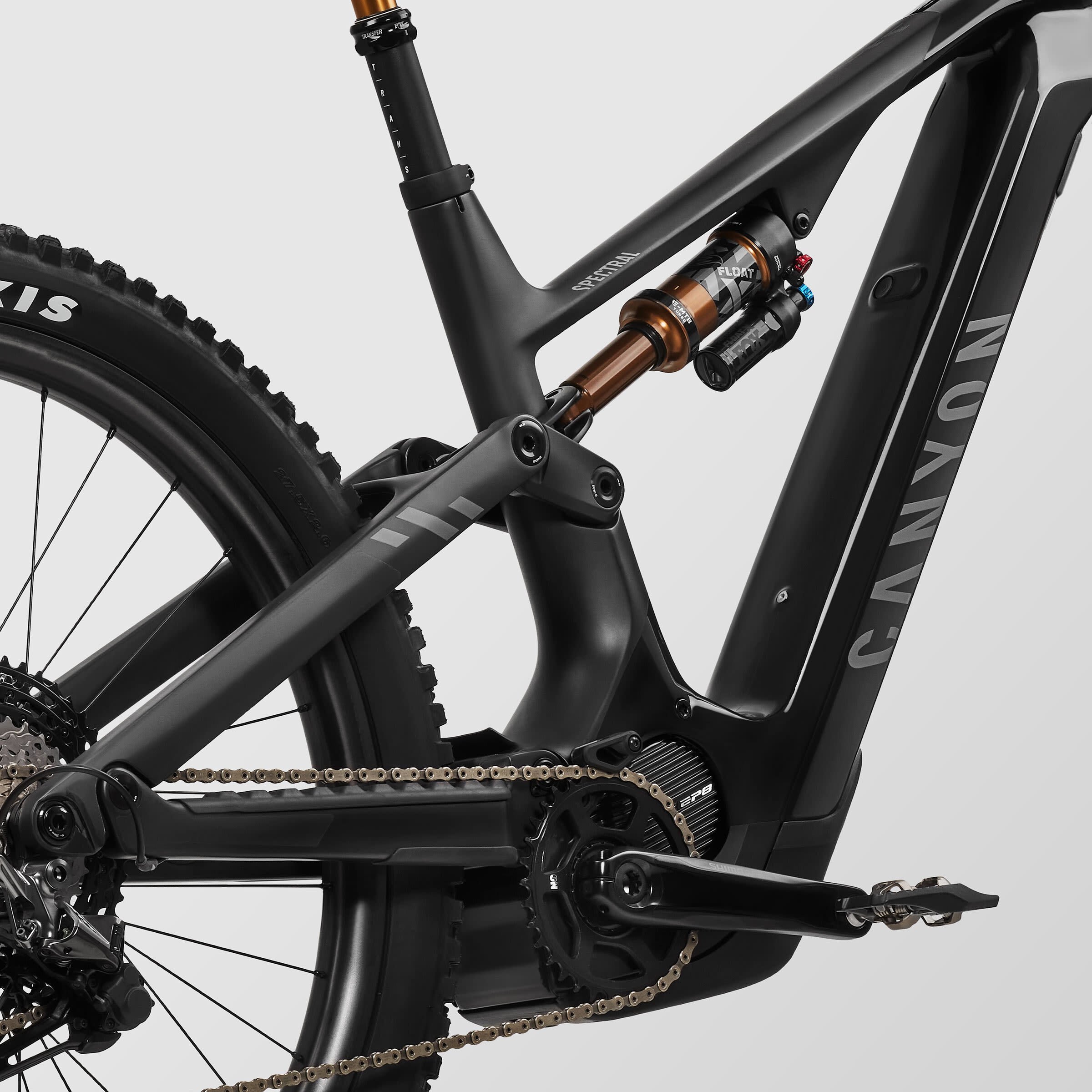

Cutting-Edge Carbon
You just might be looking at the lightest carbon, full-power eMTB chassis in existence. At just 6.3 pounds (sans battery), the Spectral:ON CFR kicks sand in the eye of conventional wisdom by proving that it’s possible to build an enduro-tough frame without packing on the pounds. Top-shelf composite technology, burly suspension hardware, plus a good dose of obsessive-compulsive engineering all add up to a brawler of a bike that feels remarkably light and playful on the trail.

Unrivaled Ride Quality

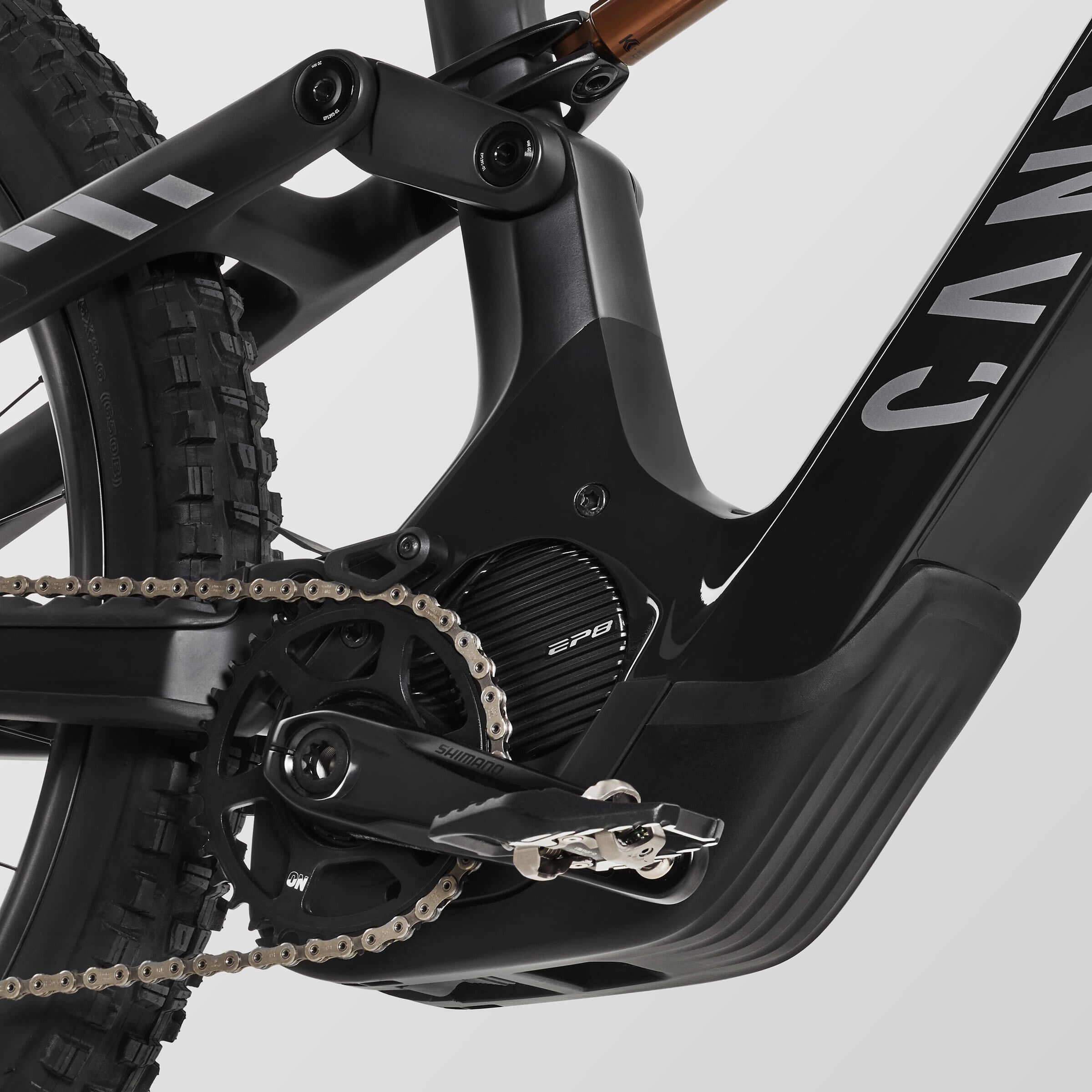

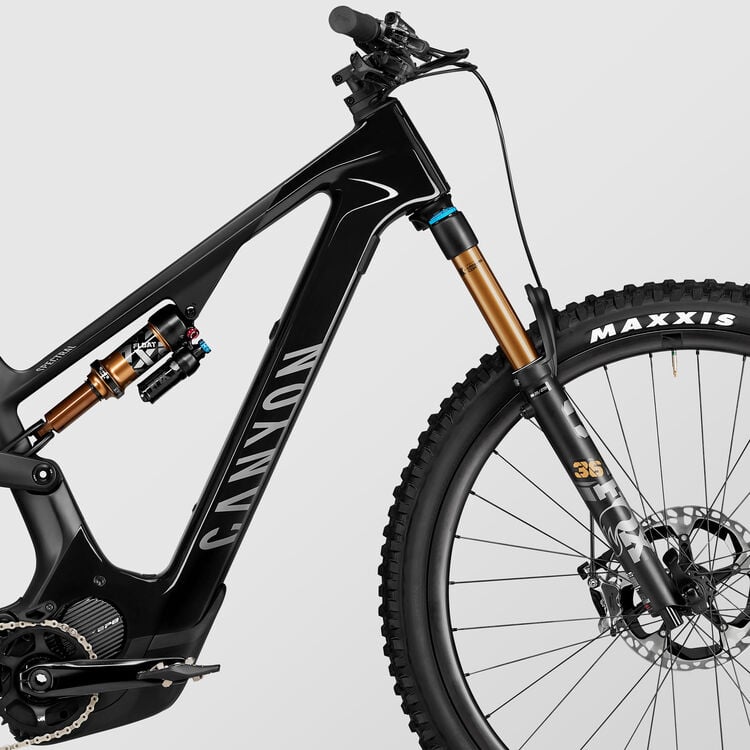

Mileage matters but strapping the biggest possible battery onto a bike can create a top-heavy, unbalanced bike that handles like a high-speed train wreck. So instead, we developed our own unique battery that not only boosts your mileage, but also delivers brilliant handling. We started by horizontally aligning the battery’s fuel cells, improving weight distribution within the battery. Next, we optimized battery placement within the frame itself. Tucking the battery below and in front of the Shimano EP8 motor (instead of above it), we lowered the Spectral:ON’s center of gravity and made it an absolute ground-hugging, ripper of a bike.

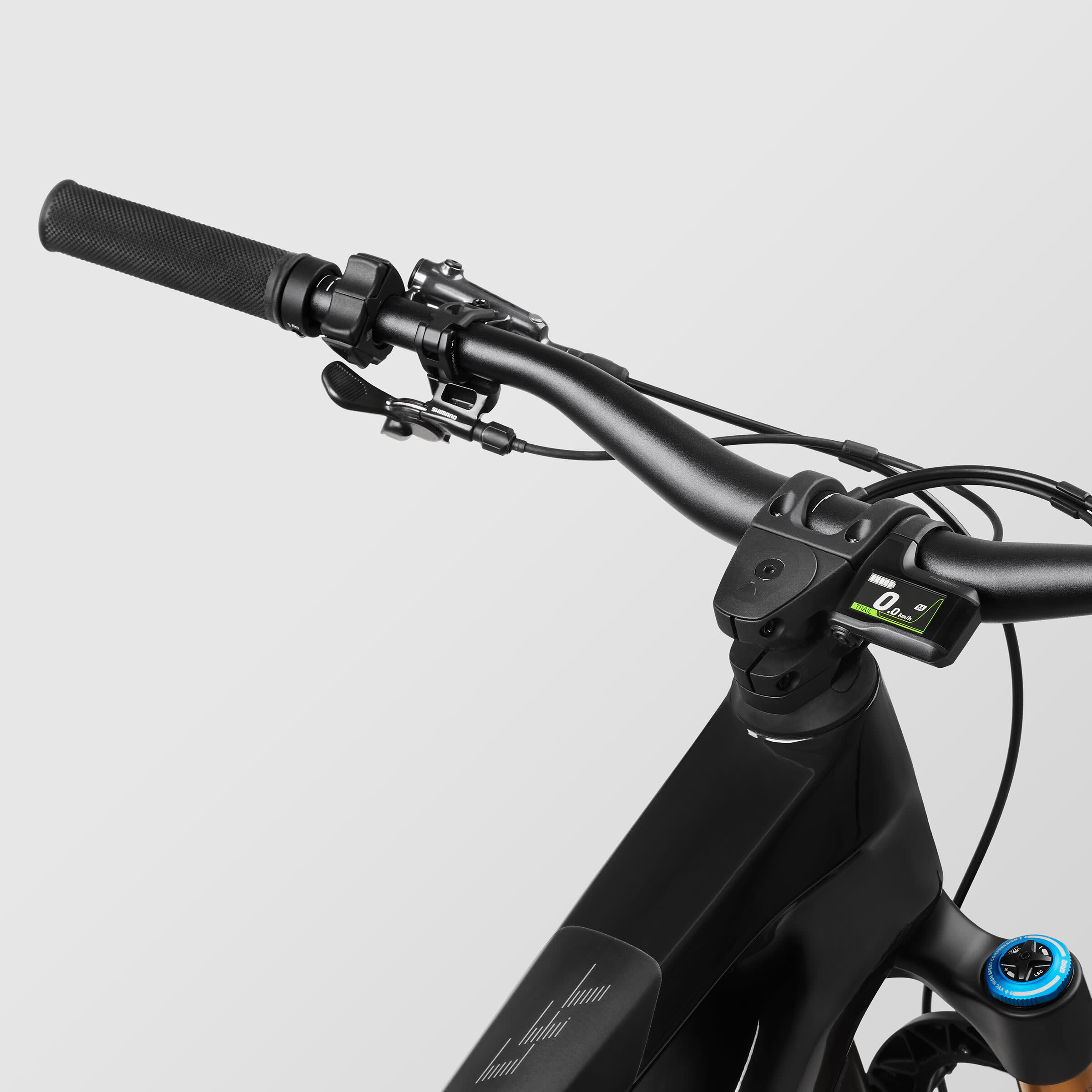

Brilliant Build Kits
Every component on the Spectral:ON delivers true on-trail performance, including Shimano’s ingenious EP8 control unit. The minimalist display and handlebar mounted controls let you toggle through different power-assist settings, manage your battery consumption, and dial in your ride without adding any clutter or confusion to the Spectral:ON’s cockpit. Sleek, simple, innovative—just the like the bike itself.
Content is loading
Frame
-
Frame
- CANYON Spectral:ON CFR
- Axle dimension: 12x148 mm
- Material: Carbon (CFR)
- Weight: 1,350 g
-
Rear Shock
- FOX Float X Factory EVOL
- Tune: CL, RM, Rezi LM
-

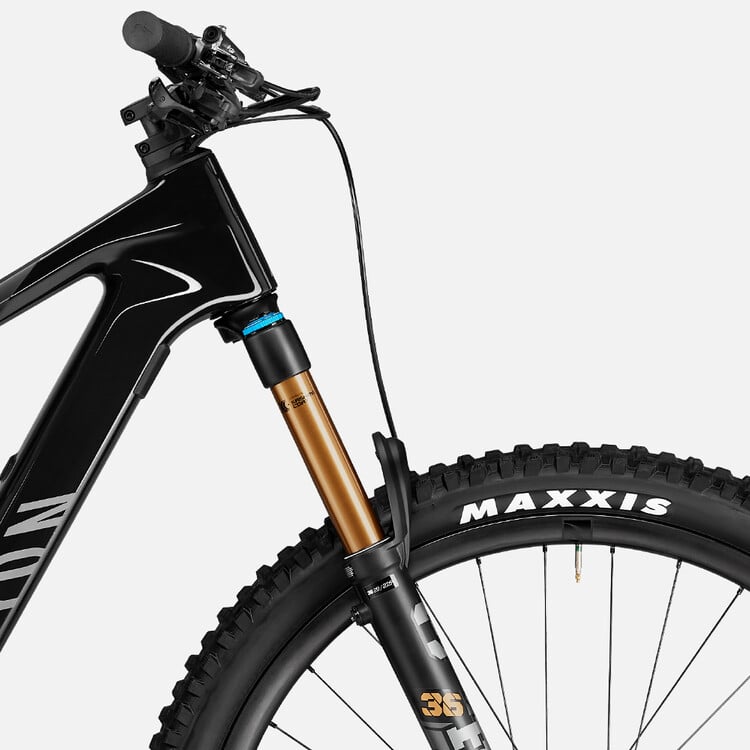

Suspension Fork
- FOX 36 Factory Grip2
- Axle dimension: 15x110 mm
- Stanchion Diameter: 38 mm
- Travel: 150 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
Drivetrain
-
Motor
- Shimano Steps EP8 Motor
-
Rear Derailleur
- Shimano XTR, 12-speed
- Cage length: long
- Weight: 243 g
-
Chainguard
- Canyon Chainguide M091/M129
-
Shift Lever
- Shimano XTR, 12-speed
- Weight: 128 g
-
Cassette
- Shimano XTR CS-M9101 12s 10-51
- Number of sprockets: 12
- Range: 10-51 12S
-
Crank
- Shimano Steps Hollowtech e-MTB crank arms
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano M9100 XTR Chain
- SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Brakes
-
Disc Brake
- Shimano XTR 4-piston front brake
-
Disc Brake
- Shimano XTR 4-piston rear brake
-
Brake Rotor
- Shimano XTR front rotor, 203mm
- Size: 203 mm
- Weight: 171 g
-
Brake Rotor
- Shimano XTR STEPS rear rotor, 203mm
- Size: 203 mm
- Weight: 172 g
Wheels
-
Front Wheel
- Reynolds TR 309 E, 29er
- Rotor mount: Center Lock
- Weight: 750 g
-
Rear Wheel
- Reynolds TR 367 E, 27.5"
- Rotor mount: Center Lock
- Weight: 524 g
-
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
-
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
Seat
-
Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
-
Seatpost
- Fox Transfer Factory
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
-
Seat Clamp
- Canyon GP0279-01 Seatclamp
Accessories
-
Battery Charger
- CANYON CHARGER
-
Battery Charger
- CANYON CHARGER
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- QSG 027-V02 M091/M129 SPT[ON]
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
654 - 774 | 699 - 844 | 771 - 933 | 791 - 953 |
Seat Tube Length in mm
(b)
|
420 | 440 | 460 | 480 |
Top Tube Length in mm
(c)
|
589 | 613 | 637 | 663 |
Head Tube Length in mm
(d)
|
115 | 125 | 135 | 145 |
Head Tube Angle
(e)
|
65,5° | 65,5° | 65,5° | 65,5° |
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° |
Chainstay Length in mm
(g)
|
440 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.194 | 1.223 | 1.252 | 1.281 |
Stack in mm
(i)
|
634 | 643 | 652 | 661 |
Reach in mm
(j)
|
435 | 460 | 485 | 510 |
Stand-over Height in mm
(k)
|
809 | 814 | 820 | 825 |
Bottom Bracket Offset in mm
(l)
|
36 | 36 | 36 | 36 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|
Stem Length in mm
|
45 | 45 | 45 | 45 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
125 | 150 | 175 | 175 |
Seat Post Length in mm
|
406 | 456 | 525 | 525 |
Maximum Seat Post Insertion Depth in mm
|
220 | 245 | 262 | 262 |
Minimum Seat Post Insertion Depth in mm
|
100 | 100 | 100 | 100 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
Front Fork Travel in mm
|
150 | 150 | 150 | 150 |
Rear Suspension Travel in mm
|
155 | 155 | 155 | 155 |
Battery capacity
|
800 Wh | 800 Wh | 800 Wh | 800 Wh |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
