Outlet E-Bikes Outlet

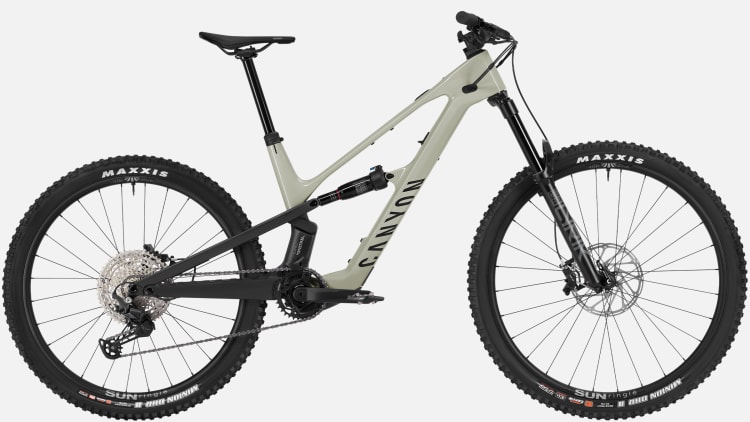

Spectral:ONfly CF 8

Out of stock

From $3,299

Original price ~~From $3,699~~

Save up to $400.00 (-11%)

Financing available for this product

An epic trail-capable eMTB with a compact motor, wrapped up in an affordable ‘ready for anything’ package.

Weight: 41.67 lbs
Material: Carbon (CF)

Colour: Barely Olive

Members only product.

Frame Size: M

Members only product.

From $3,299

Original price ~~From $3,699~~

Save up to $400.00 (-11%)

Financing available for this product

Delivery: Select batch number

Additional information

Current delivery times information. Read more

Financing with Affirm Financing

Financing available for this product

Financing with Klarna

Financing with PayPal
Get ready-to-ride Delivery

Ready to ride delivery with velofix DIRECT

With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.

Collect & Ride

Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Your bike arrives in our custom Bike Guard – built to absorb impacts in transit and keep every component locked in place. Tough, reusable, and ready to double as a stable stand for a fast setup.

Delivery: Select batch number

Highlights Spectral:ONfly CF 8

Trail through and through

More control. More fun.

We’ve equipped each Spectral:ONfly with K.I.S.—an ingenious spring mechanism housed inside the top tube that helps center your steering. End result? You experience more control on sketchy descents, more grip when its loose, and more fun in rough, off-camber conditions.

Fine tune your handling

You can custom tune how K.I.S. feels—with a simple twist of an allen wrench—to suit your own ride style and conditions. What’s more, K.I.S. is totally maintenance-free, protected from damage, and has a lifetime warranty. Don’t fancy K.I.S.? Each bike comes with an easy to install blanking plate that covers the adjuster slot.

What is :ONfly?

:ONfly is our line of innovative, lightweight e-bikes that range from e-MTB to e-gravel machines. Featuring sleek, compact motors and batteries, our :ONfly models hit the elusive sweetspot between traditional bikes and full power e-bikes.

CLLCTV approved

“Wait, this is an e-bike? There were multiple moments on the trail when I forgot I was riding an E-MTB. The bike feels super playful and lightweight. It’s nice to just pedal and not worry about how hard you are working.” — Samantha Soriano, Professional Freeride MTB athlete.

Components

Frame

Frame
- Canyon Spectral:ONfly CF
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 2700 g
Rear Shock
- Rockshox Deluxe Select +
Suspension Fork
- RockShox Lyrik
- Axle dimension 15x110 mm
- Stanchion Diameter 35 mm
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Volume Spacer Oe 0/5
- Weight 2340 g
Seatpost Clamp
- Canyon GP0446-01

Drivetrain

Motor
- TQ HPR 50 Motor
Battery
- TQ HPR Battery
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length long
- Weight 356 g
Chainguard
- Canyon GP0480-01 slim
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight 136 g
Cassette
- Shimano Deore M6100
- Number of sprockets 12
- Range 10-51
Crank
- FSA CK-745/IS Armset
Chainring
- Chainring FSA W0190
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- SRAM Code R
- Number of pistons 4
Disc Brake
- SRAM Code R
- Number of pistons 4
Brake Rotor
- SRAM Centerline Rounded
- Size 200 mm
- Weight 228 g

Wheels

Front Wheel
- Sunringle 329 Trail Expert
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 940 g
Rear Wheel
- Sunringle 327 Trail Expert
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 1050 g
Tyre
- Maxxis Minion DHR II Exo
- Width 2,4"
- Weight 1035 g
Tyre
- Maxxis Minion DHR II Exo+
- Width 2.4"
- Weight 1000 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031
- Canyon E-MTB stem.
- Length 45 mm
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter 35,0 mm
- Rise 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender Unisex
- Weight 251 g
Seatpost
- Canyon SP0070-01
- Cable actuated.
- Travel Dependent on frame size (see component geometry table.)
- 25mm of adjustable travel (5mm steps)
- Seatpost diameter 34,9 mm
- Material Aluminium (AL)
- Weight 654 g

Light

Lights
- Reflector Set

Accessories

Pedals
- Flat Pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Declaration of confirmity M095
Manuals and Accessories
- QSG M095
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	660 - 785	705 - 830	735 - 860	775 - 900
b Seat Tube Length in mm	400	415	445	455
c Top Tube Length in mm	594	621	648	675
d Head Tube Length in mm	105	115	125	135
e Head Tube Angle	64°	64°	64°	64°
f Seat Tube Angle	76,5°	76,5°	76,5°	76,5°
g Chainstay Length in mm	440	440	440	440
h Wheel Base in mm	1.221	1.251	1.280	1.309
i Stack in mm	620	629	638	647
j Reach in mm	445	470	495	520
k Stand-over Height in mm	734	739	743	747
l Bottom Bracket Offset in mm	31	31	31	31

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	170,0	170,0	170,0	170,0
Seat Post Diameter in mm	34,9	34,9	34,9	34,9
Dropper post travel in mm	170	200	200	230
Seat Post Length in mm	457	517	517	587
Maximum Seat Post Insertion Depth in mm	245	275	275	315
Minimum Seat Post Insertion Depth in mm	120	150	150	190
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	200 / 200	200 / 200	200 / 200	200 / 200
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	150	150	150	150
Battery capacity	360 Wh	360 Wh	360 Wh	360 Wh
Fitting Length in mm	210X55	210X55	210X55	210X55

Download PDF

Spectral:ONfly CF 8 support

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
