Spectral:ONfly CF CLLCTV

Refurbished bike in L

Hard hitting capability, meets no frills performance with a compact motor. If you’re looking for a bike that loves to be pushed hard – you’ve found it.

Weight: 43 lbs
Material: Carbon (CF)

All components

Product Configuration

Colour:

Stadtwald Sunset

Members only product.

Frame Size:

Members only product.

Buying reasons

From $4,149

Original price ~~$7,499~~

Save up to $3,350 (-45%)

Financing available for this product

Sold out

Product added to cart

Highlights Spectral:ONfly CF CLLCTV

Trail through and through

More control. More fun.

We’ve equipped each Spectral:ONfly with K.I.S.—an ingenious spring mechanism housed inside the top tube that helps center your steering. End result? You experience more control on sketchy descents, more grip when its loose, and more fun in rough, off-camber conditions.

Fine tune your handling

You can custom tune how K.I.S. feels—with a simple twist of an allen wrench—to suit your own ride style and conditions. What’s more, K.I.S. is totally maintenance-free, protected from damage, and has a lifetime warranty. Don’t fancy K.I.S.? Each bike comes with an easy to install blanking plate that covers the adjuster slot.

What is :ONfly?

:ONfly is our line of innovative, lightweight e-bikes that range from e-MTB to e-gravel machines. Featuring sleek, compact motors and batteries, our :ONfly models hit the elusive sweetspot between traditional bikes and full power e-bikes.

CLLCTV approved

“Wait, this is an e-bike? There were multiple moments on the trail when I forgot I was riding an E-MTB. The bike feels super playful and lightweight. It’s nice to just pedal and not worry about how hard you are working.” — Samantha Soriano, Professional Freeride MTB athlete.

Components

All components are based on size M

Frame

Frame
- Canyon Spectral:ONfly CF
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 2700 g

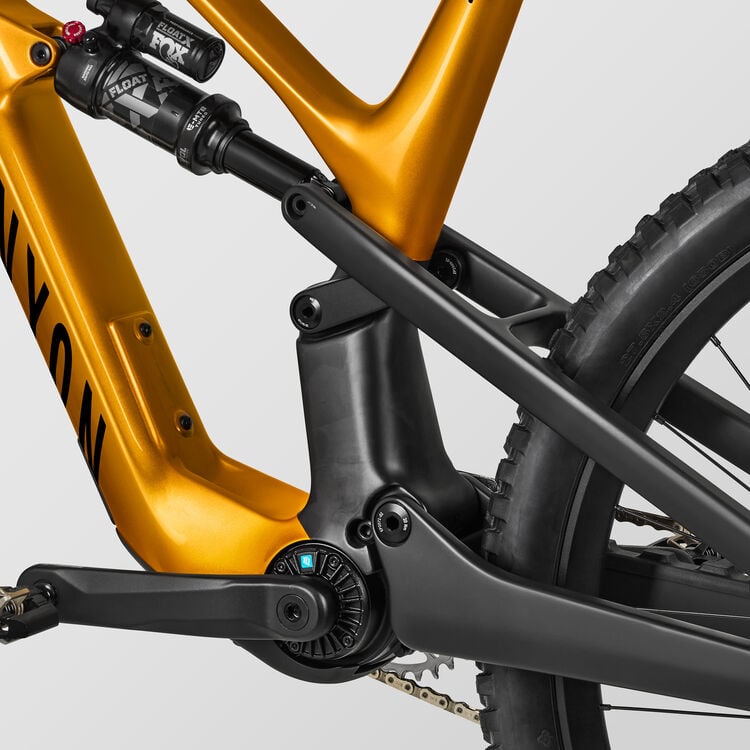

Rear Shock
- Fox Float x Performance
- Weight 500 g

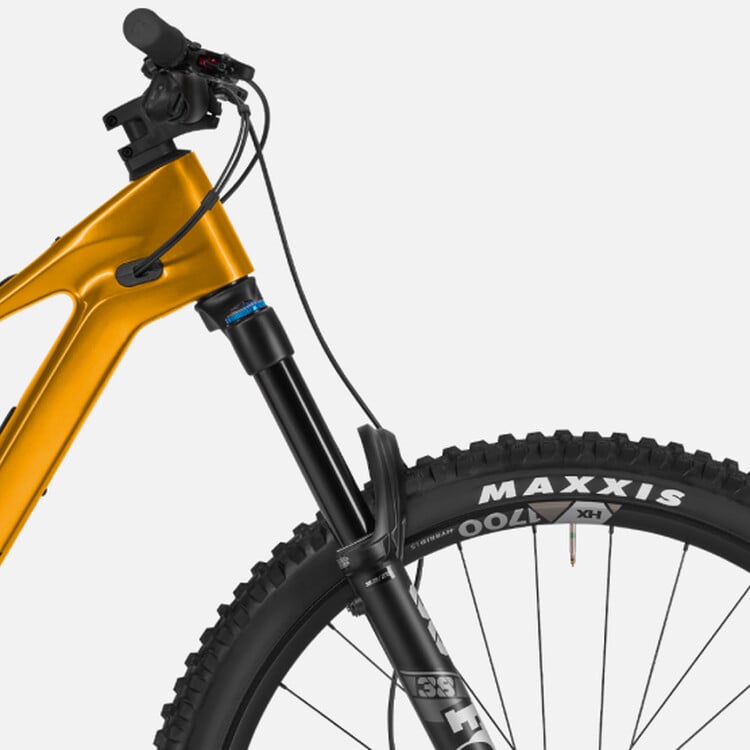

Suspension Fork
- Fox 38 Performance Elite
- Axle dimension 15x110 mm
- Stanchion Diameter 38 mm
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Volume Spacer Oe 3
- Weight 2190 g
Seatpost Clamp
- Canyon GP0446-01

Drivetrain

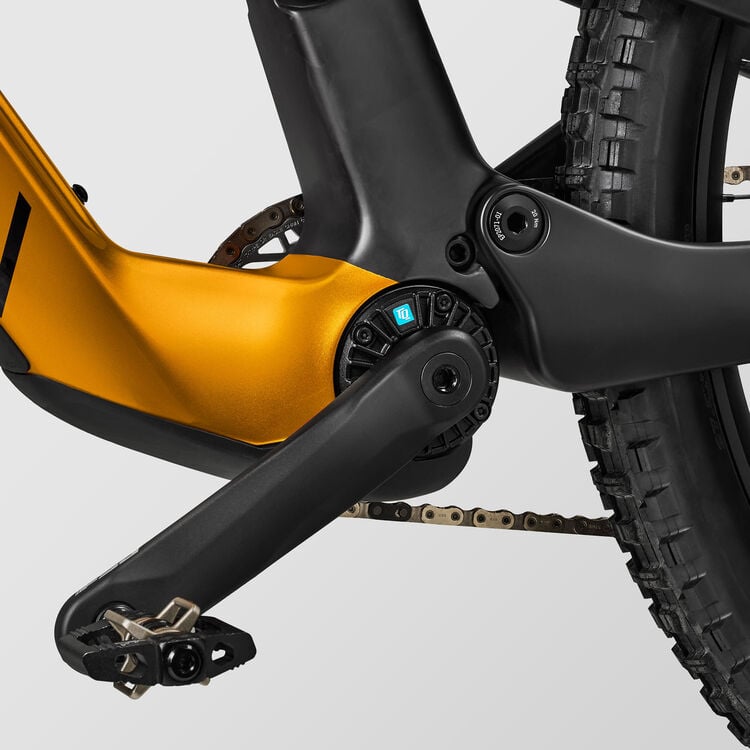

Motor
- TQ HPR 50 Motor
Battery
- SRAM Powerpack
Battery
- TQ HPR Battery
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight 462 g
Chainguard
- Canyon GP0480-01 slim
Shift Lever
- SRAM AXS Pod
- Weight 67 g
Cassette
- SRAM XS-1275 Eagle Transmission
- Number of sprockets 12
- Range 10-52
Crank
- FSA CK-745/IS Armset
Chainring
- SRAM XX Eagle Transmission DM E-MTB Chainring
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- SRAM Code Silver Stealth
- Number of pistons 4
Disc Brake
- SRAM Code Silver Stealth
- Number of pistons 4
Brake Rotor
- SRAM HS2
- Size 200 mm
- Weight 255 g

Wheels

Front Wheel
- DT Swiss HX1700
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim height 21 mm
- Inner width 30 mm
- Rim material Aluminium
- Weight 997 g
Rear Wheel
- DT Swiss HX 1700 Spline LS
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Aluminium
- Weight 1115 g
Tyre
- Maxxis Assegai
- Width 2.5"
- Weight 1072 g
Tyre
- Maxxis Minion DHR II Exo+
- Width 2.4"
- Weight 1000 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031
- Canyon E-MTB stem.
- Length 45 mm
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter 35,0 mm
- Rise 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender Unisex
- Weight 251 g

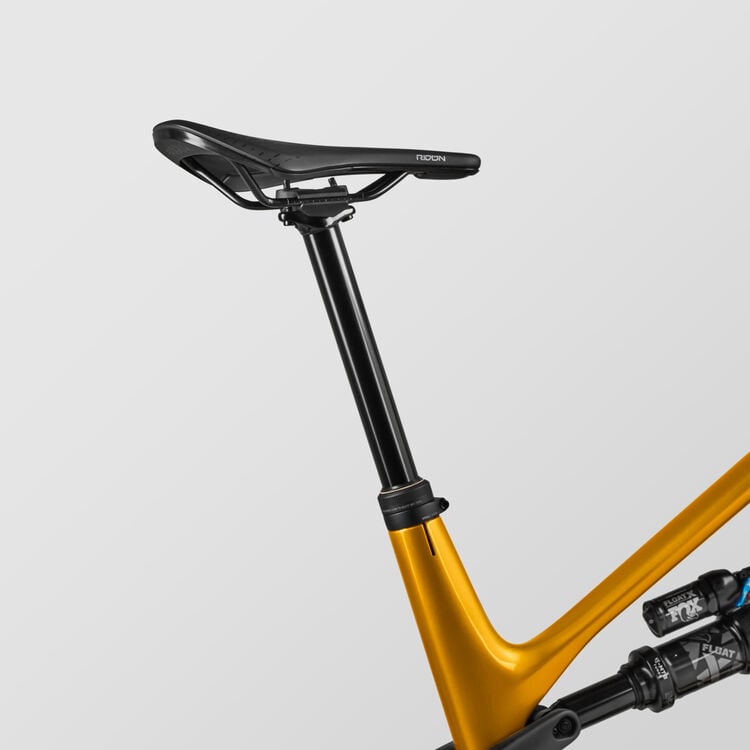

Seatpost
- Canyon SP0070-01
- Cable actuated.
- Travel Dependent on frame size (see component geometry table.)
- 25mm of adjustable travel (5mm steps)
- Seatpost diameter 34,9 mm
- Material Aluminium (AL)
- Weight 654 g

Light

Lights
- Reflector Set

Accessories

Pedals
- Flat Pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Declaration of confirmity M095
Manuals and Accessories
- QSG M095
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	660 - 785	705 - 830	735 - 860	775 - 900
b Seat Tube Length in mm	400	415	445	455
c Top Tube Length in mm	594	621	648	675
d Head Tube Length in mm	105	115	125	135
e Head Tube Angle	64°	64°	64°	64°
f Seat Tube Angle	76,5°	76,5°	76,5°	76,5°
g Chainstay Length in mm	440	440	440	440
h Wheel Base in mm	1.221	1.251	1.280	1.309
i Stack in mm	620	629	638	647
j Reach in mm	445	470	495	520
k Stand-over Height in mm	734	739	743	747
l Bottom Bracket Offset in mm	31	31	31	31

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	170,0	170,0	170,0	170,0
Seat Post Diameter in mm	34,9	34,9	34,9	34,9
Dropper post travel in mm	170	200	200	230
Seat Post Length in mm	457	517	517	587
Maximum Seat Post Insertion Depth in mm	245	275	275	315
Minimum Seat Post Insertion Depth in mm	120	150	150	190
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	200 / 200	200 / 200	200 / 200	200 / 200
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	150	150	150	150
Battery capacity	360 Wh	360 Wh	360 Wh	360 Wh
Fitting Length in mm	210X55	210X55	210X55	210X55
Rim height in mm	21	21	21	21
