Spectral 125 CF 8

Refurbished bike in S

This supremely capable mid-travel trail bike combines 125 mm of rear travel with low weight and a progressive geometry – for beautifully agile handling out on the trail.

(95)

All components

Product Configuration

Colour:

Big Bamboo

Members only product.

Frame Size:

Members only product.

Buying reasons

$3,549

Financing available for this product

Sold out

Product added to cart

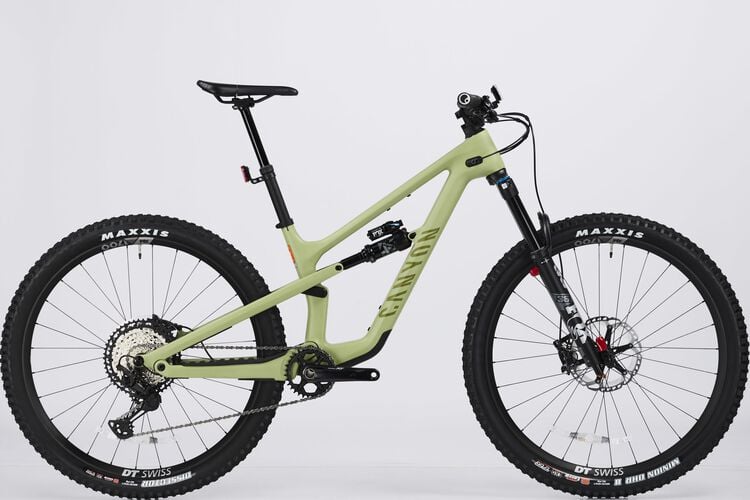

Highlights Spectral 125 CF 8

All mountain altitude

The Spectral 125 is a progressive short-travel 29er. Fun-loving geometry meets 125 mm of perfectly tuned rear travel and a 140 mm fork to create a bike that can handle hard riding in chunkier terrain while staying playful when the trail mellows out.

Crush the climbs

The taut 125 mm of rear suspension travel creates an impressively stable pedalling platform, offering extra efficiency when pushing the pace uphill. Better yet, the frame and build kits are lighter than the standard Spectral making it a bike that climbs like a goat and loves to get airborne.

Components

Details are based on size M

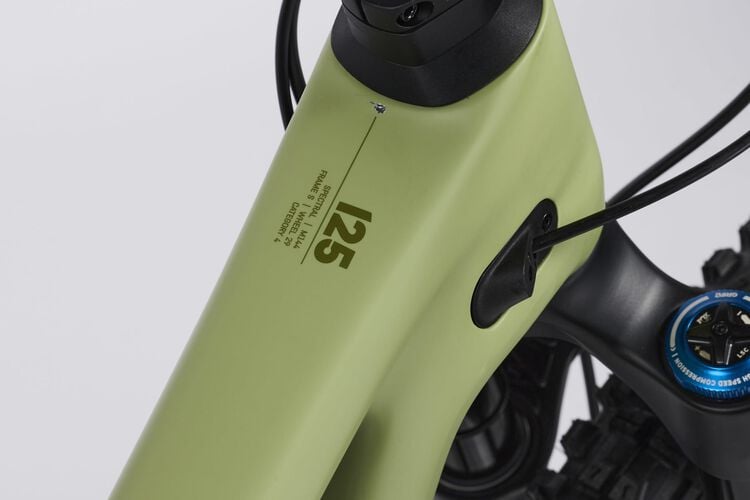

Frame

Frame
- Canyon Spectral 125 CF
- Lightweight, capable, agile short-travel MTB designed to extract maximum capability from its 125 mm rear travel. Category 4.
- Material Carbon (CF)
- Weight 1250 g
Rear Shock
- FOX Float X Performance
- Weight 501 g

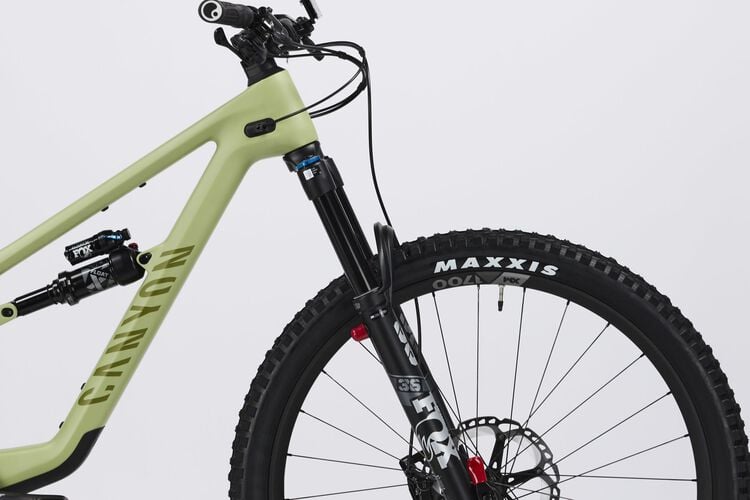

Suspension Fork
- FOX 36 Performance Elite
- Axle dimension 15x110 mm
- Stanchion Diameter 35 mm
- Travel 140 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Volume Spacer Oe 4
- Weight 1698 g
Seatpost Clamp
- Canyon SC0001

Drivetrain

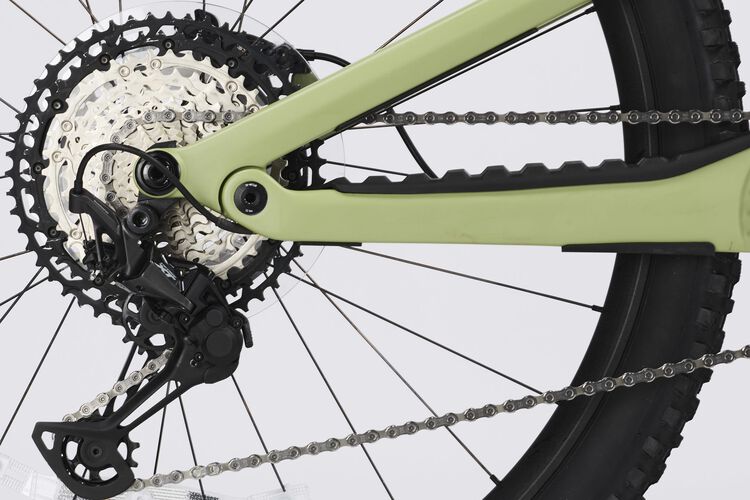

Rear Derailleur
- Shimano Deore XT M8100
- Cage length long
- Weight 282 g
Shift Lever
- Shimano Deore XT SL-M8100
- Weight 137 g
Cassette
- Shimano Deore XT CS-M8100
- Number of sprockets 12
- Range 10-51 12S

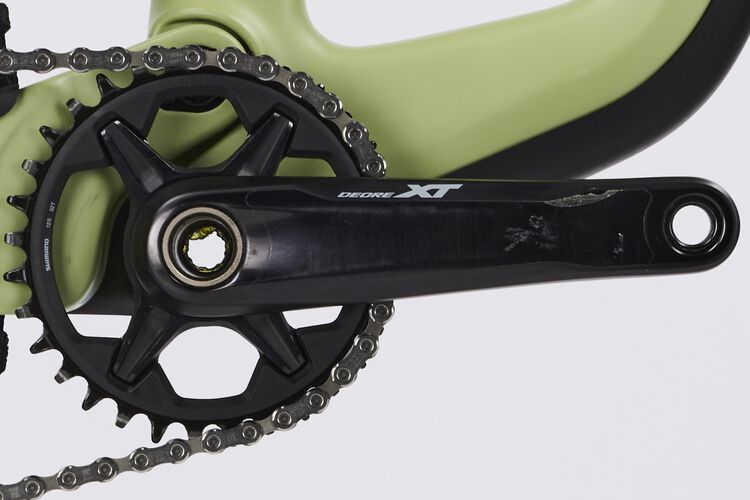

Crank
- Shimano DEORE XT M8120
- Number of chainrings 1
Bottom bracket
- Shimano MT801
- Bottom bracket standard BSA HT2 68/73
- Weight 79 g
Chain
- Shimano CN-M7100 12s

Brakes

Disc Brake
- Shimano DEORE XT M8120
- Number of pistons 4
Disc Brake
- Shimano DEORE XT M8120
- Number of pistons 4
Brake Rotor
- Shimano DEORE XT MT800
- Size 203 mm
- Weight 100 g
Brake Rotor
- Shimano DEORE XT MT800
- Size 180 mm
- Weight 145 g

Wheels

Front Wheel
- DT Swiss XM 1700
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim height 21 mm
- Inner width 30 mm
- Weight 895 g
Rear Wheel
- DT Swiss XM 1700
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Rim height 21 mm
- Inner width 30 mm
- Weight 10 g
Tyre
- Maxxis Dissector
- Width 2.4"
- Weight 948 g
Tyre
- Maxxis Minion DHR II Exo
- Width 2,4"
- Weight 1035 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon G5
- Modern design, extreme durability Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter 1 1/8"
- Clamping diameter 31,8 mm
- Material Aluminium (AL)
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter 31,8 mm
- Rise 30 mm
Grips
- Ergon GE10 Evo Slim

Seat

Saddle
- Ergon SM10 Enduro Comp
- Gender Unisex
- Weight 300 g
Seatpost
- Canyon G5
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 534 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Canyon Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 177	172 - 185	180 - 194	≥ 189
a Seat Height in mm	610 - 710	680 - 805	725 - 850	750 - 875
b Seat Tube Length in mm	395	420	435	460
c Top Tube Length in mm	587	615	642	669
d Head Tube Length in mm	110	120	130	140
e Head Tube Angle	64°	64°	64°	64°
f Seat Tube Angle	76°	76°	76°	76°
g Chainstay Length in mm	437	437	437	437
h Wheel Base in mm	1.200	1.230	1.259	1.288
i Stack in mm	613	622	632	641
j Reach in mm	435	460	486	511
k Stand-over Height in mm	756	762	763	768
l Bottom Bracket Offset in mm	35	35	35	35

Download PDF

Content is loading

Spectral 125 CF 8 support

Bike classification

This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
