Aeroad CF SL 7 Disc
The newly developed Aeroad CF SL frame takes the world-class design of the flagship Aeroad CFR and makes it available at an incredibly accessible price point. Uniting advanced aerodynamics, razor-sharp handling, and improved comfort levels, this is a truly uncompromising all-round road racer.
- Colour: Stealth - Grey
-
-
Members only product. Log in here
Select frame size
Hint: Use our recommendation and get the correct size first time.
Sold out
Cockpit information: Your bike will be equipped with either a CP10 or CP30 Cockpit due to availability. The clamping mechanisms may therefore differ.
Members only product.
Log in here
Sold out
Highlights Aeroad CF SL 7 Disc

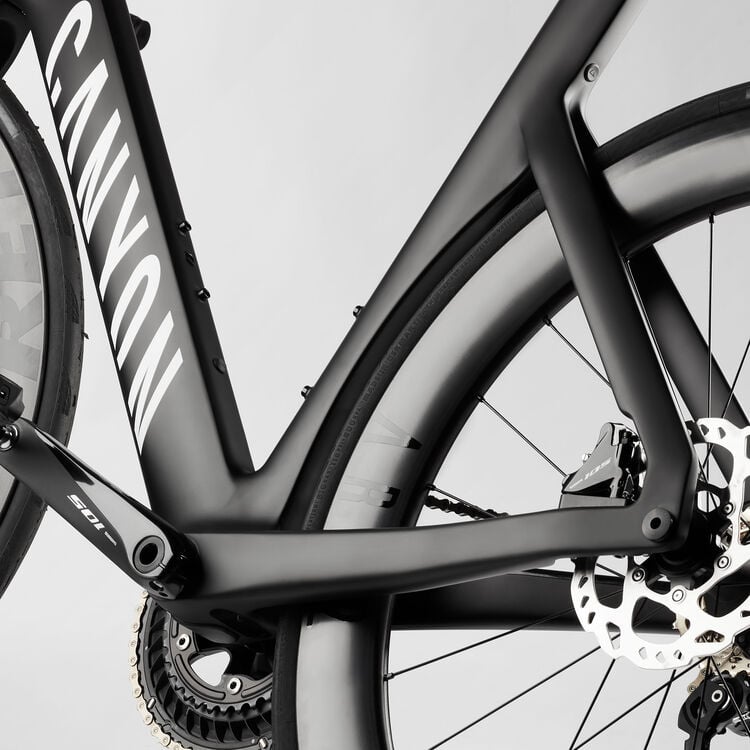

Superlight frame
When you combine world-class aerodynamics with super-lightweight construction, you get a race-winning bike. The CF SL frameset is even lighter than its predecessor, so you can save every watt on the climbs.

World-class aerodynamics
The Aeroad is our most intensive development ever, shaped in partnership with aero experts Swiss Side. Using CFD techniques normally reserved for developing F1 cars, we painstakingly, individually modelled every tube profile using supercomputers, then tested countless combinations in the wind tunnel. The result: a saving of 3 watts at 45 kph – a huge number when you’re already at the pinnacle of efficiency.
Content is loading
Frame
-
Frame
- Canyon Aeroad CF SL Disc
- Material: Carbon
- Axle Dimension: 12 x 142 mm
- Brake Mount: Flat Mount
- Weight: 1020 g (M)
-
Fork
- Canyon FK0099 CF SL Disc
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 750 g
Drivetrain
-
Rear Derailleur
- Shimano 105 R7000 SS
- Weight: 232 g
-
Front Derailleur
- Shimano 105 R7000
- Weight: 94 g
-
Cassette
- Shimano 105 R7000 11-28 11s
- Number of sprockets: 11
-
Crank
- Shimano 105 R7000
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano HG701 11-speed
- High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano 105 R7020 2s
- Weight: 541 g
-
Shift-/ Brake Lever
- Shimano 105 R7020 11s
- Weight: 541 g
-
Brake Rotor
- Shimano RT70
- Size: 160 mm
- Weight: 150 g
Wheels
-
Front Wheel
- Reynolds AR58 DB
- Rotor mount: Center Lock
- Weight: 810 g
-
Rear Wheel
- Reynolds AR62 DB SH11
- Rotor mount: Center Lock
- Weight: 920 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 260 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0030 Aerocockpit
- One-piece carbon cockpit integrating bar and stem into a single sleek unit.
- Material: carbon
- Shape: Ergo
- Reach: 74 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLS
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 10 g
-
Seatpost
- Canyon SP0046 Aero Seatpost
- Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
- Clamp diameter: 27,2 mm
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- BAG REY Acc Strike SLG C DB
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Smallbox
Content is loading
Content is loading
Body Height in cm
|
≤ 158 | 158 - 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
594 - 674 | 624 - 704 | 654 - 734 | 684 - 764 | 714 - 794 | 744 - 824 | 774 - 854 | 804 - 884 |
Seat Tube Length in mm
(b)
|
413 | 443 | 473 | 503 | 533 | 563 | 593 | 623 |
Top Tube Length in mm
(c)
|
501 | 520 | 533 | 549 | 559 | 573 | 598 | 613 |
Head Tube Length in mm
(d)
|
103 | 121 | 109 | 126 | 147 | 167 | 193 | 211 |
Head Tube Angle
(e)
|
71° | 71,5° | 71,5° | 72,75° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
405 | 405 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
951 | 967 | 977 | 984 | 989 | 1.002 | 1.025 | 1.038 |
Stack in mm
(i)
|
483 | 498 | 521 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
358 | 372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
708 | 729 | 759 | 785 | 810 | 834 | 860 | 884 |
Bottom Bracket Offset in mm
(l)
|
57 | 57 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
574 | 589 | 613 | 630 | 653 | 675 | 700 | 719 |
Reach+ in mm
|
415 | 430 | 446 | 459 | 473 | 490 | 509 | 529 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-370 | 90-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-430 | 120-430 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
202 | 202 | 202 | 202 | 202 | 202 | 202 | 202 |
Minimum Seat Post Insertion Depth in mm
|
122 | 122 | 122 | 122 | 122 | 122 | 122 | 122 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
