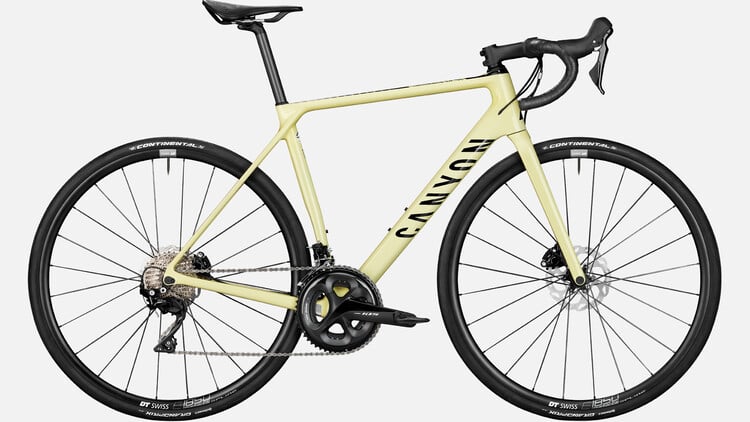

Endurace CF SL 7 Disc
With fast wheels and tires, comfortable carbon frame, pinpoint handling and long-distance geometry, this bike delivers control, comfort and speed in equal measure. A great place to be for long rides, even on the roughest roads.
- Material: Carbon (CF)
-
Weight:
18.74 lbs
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
Select frame size
Hint: Use our recommendation and get the correct size first time.
Sold out
Members only product.
Log in here
Sold out
Highlights Endurace CF SL 7 Disc

Comfort kink
The Endurace’s curved-back seatposts flex more, for more comfort. To maintain the optimal riding position, we added a kink in the seat tube. The result: huge comfort gains, no performance drawbacks.

Comfort-boosting seat clamp
The Endurace’s seat clamp is integrated into the frame. It increases comfort by gripping the seatpost lower. So it can flex more. And it’s lighter than a traditional design. And the moulded carbon junction looks super-clean.

Broad, flat top tube
The Endurace’s broad, flat top tube is specially reinforced to increase the frame’s stiffness. In turn, this additional stiffness lets us focus more on aero when designing areas most exposed to the wind, such as the down tube.
Frame
-
Frame
- Canyon Endurace CF SL
- Endurance road bike with aero-optimised tube shapes, and proven comfortable-yet-agile Sport Geometry for long-distance riding.
- Material: Carbon
- Axle dimensions: 12 x 142 mm
- Brake mount: flat mount
-
Fork
- Canyon FK0098 CF Disc
- A robust carbon fibre fork offering the optimal mix of robustness, stiffness, and lightness.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 395 g
Drivetrain
-
Rear Derailleur
- Shimano 105 R7000 GS
- Weight: 253 g
-
Front Derailleur
- Shimano 105 R7000
- Weight: 94 g
-
Cassette
- Shimano HG700 11-34 11s
- Number of sprockets: 11
-
Crank
- Shimano 105 R7000
- Number of chainrings: 2
-
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
-
Chain
- Shimano CN-HG601 11s
- Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano 105 R7020 2s
- Weight: 559 g
-
Shift-/ Brake Lever
- Shimano 105 R7020 11s
- Weight: 546 g
-
Brake Rotor
- Shimano RT70
- Size: 160 mm
- Weight: 150 g
Wheels
-
Front Wheel
- DT Swiss E 1850 Spline db
- Rotor mount: Center Lock
- Weight: 1,250 g
-
Rear Wheel
- DT Swiss E 1850 Spline db SH11
- Rotor mount: Center Lock
- Weight: 674 g
-
Tyre
- Continental Grand Prix SL 28 mm
- Width: 28 mm
- Weight: 270 g
-
Thru Axle
- Canyon GP0197-01
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm
Cockpit
-
Stem
- Canyon V13
- High-grade aluminium stem. With new handlebar clamp design for up to 40% more torsional stiffness.
- Clamp diameter: 31.8 mm
- Head tube diameter: 1 1/4”
-
Handlebar
- Canyon H17 Ergobar AL
- Ergonomic aluminium handlebar with curved design for optimal pressure distribution.
- Material: Aluminium
- Shape: Ergo
- Reach: 70 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia Model X
- Width: 145 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 310 g
-
Seatpost
- Canyon SP0043 VCLS CF
- Material: Carbon
- Setback: 20 mm
- Technology: VCLS
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- DT Swiss warranty & intended use manual
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
595 - 715 | 625 - 745 | 655 - 775 | 685 - 805 | 715 - 835 | 745 - 865 | 775 - 895 |
Seat Tube Length in mm
(b)
|
432 | 462 | 492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
511 | 527 | 541 | 553 | 568 | 592 | 607 |
Head Tube Length in mm
(d)
|
98 | 115 | 139 | 158 | 184 | 206 | 225 |
Head Tube Angle
(e)
|
69,2° | 71° | 72° | 73° | 73° | 73,25° | 73,25° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
415 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
980 | 982 | 988 | 990 | 1.006 | 1.028 | 1.043 |
Stack in mm
(i)
|
510 | 532 | 557 | 578 | 604 | 625 | 644 |
Reach in mm
(j)
|
360 | 370 | 376 | 382 | 389 | 407 | 417 |
Stand-over Height in mm
(k)
|
724 | 750 | 780 | 806 | 832 | 857 | 881 |
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
612 | 632 | 658 | 680 | 708 | 729 | 749 |
Reach+ in mm
|
411 | 424 | 441 | 458 | 475 | 494 | 513 |
Spacer in mm
|
37,5 | 37,5 | 37,5 | 37,5 | 37,5 | 37,5 | 37,5 |
---|---|---|---|---|---|---|---|
Stem Length in mm
|
80 | 80 | 90 | 100 | 110 | 110 | 120 |
Handlebar Width in mm
|
380 | 400 | 420 | 420 | 420 | 440 | 440 |
Crank Length in mm
|
165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
50/34 | 50/34 | 50/34 | 50/34 | 50/34 | 50/34 | 50/34 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
345 | 345 | 345 | 345 | 345 | 345 | 345 |
Maximum Seat Post Insertion Depth in mm
|
230 | 230 | 230 | 230 | 230 | 230 | 230 |
Minimum Seat Post Insertion Depth in mm
|
110 | 110 | 110 | 110 | 110 | 110 | 110 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
