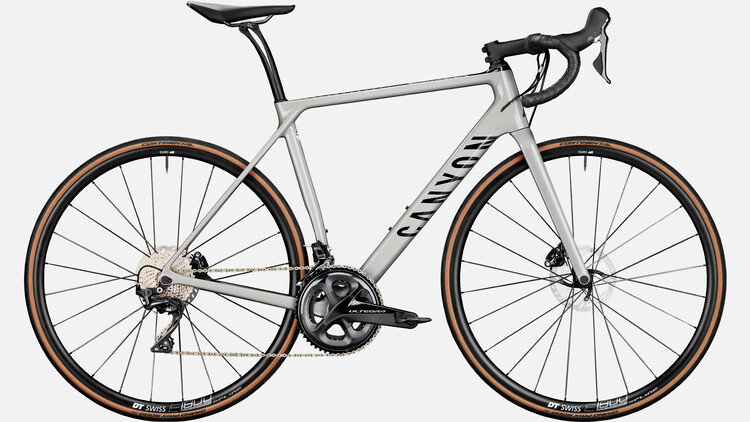

Endurace CF SL 8 Disc

A carbon fiber, disc brake endurance road bike built for your longest rides. This setup strikes the perfect balance between speed and comfort with a complete Shimano Ultegra groupset, lightweight DT Swiss E 1800 wheels and our award-winning VCLS 2.0 leaf spring seatpost.

Material: Carbon (CF)
Weight: 17.73 lbs

Colour: Stealth Grey

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Members only product.

Sold out

Highlights Endurace CF SL 8 Disc

Key features

Comfort kink

The Endurace’s curved-back seatposts flex more, for more comfort. To maintain the optimal riding position, we added a kink in the seat tube. The result: huge comfort gains, no performance drawbacks.

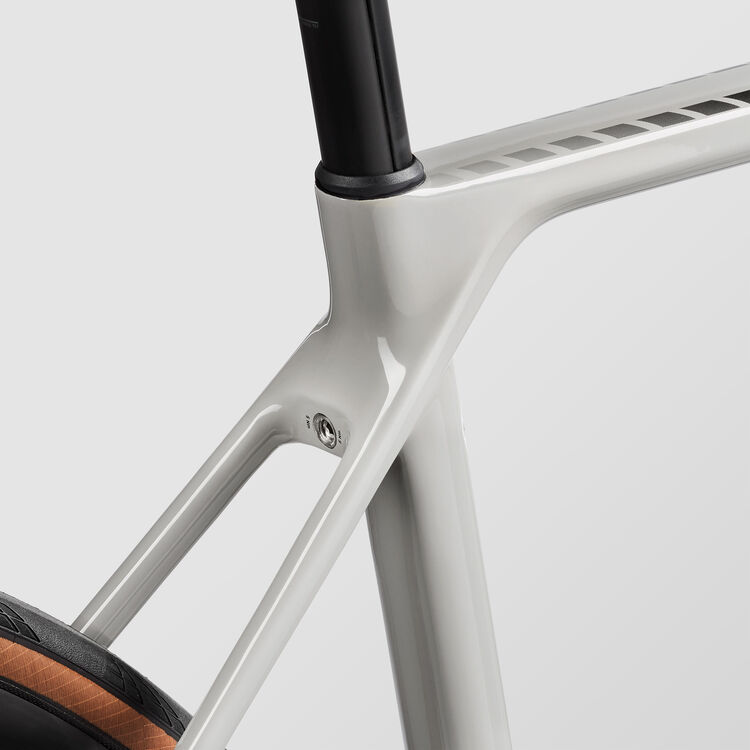

Comfort-boosting seat clamp

The Endurace’s seat clamp is integrated into the frame. It increases comfort by gripping the seatpost lower. So it can flex more. And it’s lighter than a traditional design. And the molded carbon junction looks super-clean.

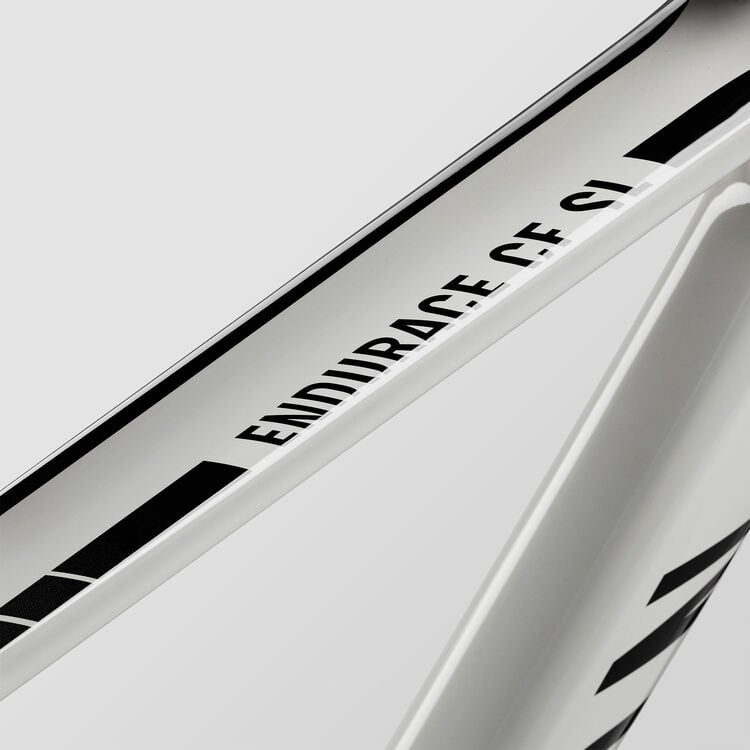

Broad, flat top tube

The Endurace’s broad, flat top tube is specially reinforced to increase the frame’s stiffness. In turn, this additional stiffness lets us focus more on aero when designing areas most exposed to the wind, such as the down tube.

Components

Frame

Frame
- Canyon Endurace CF SL
- Endurance road bike with aero-optimised tube shapes, and proven comfortable-yet-agile Sport Geometry for long-distance riding.
- Material Carbon
- Axle dimensions 12 x 142 mm
- Brake mount flat mount

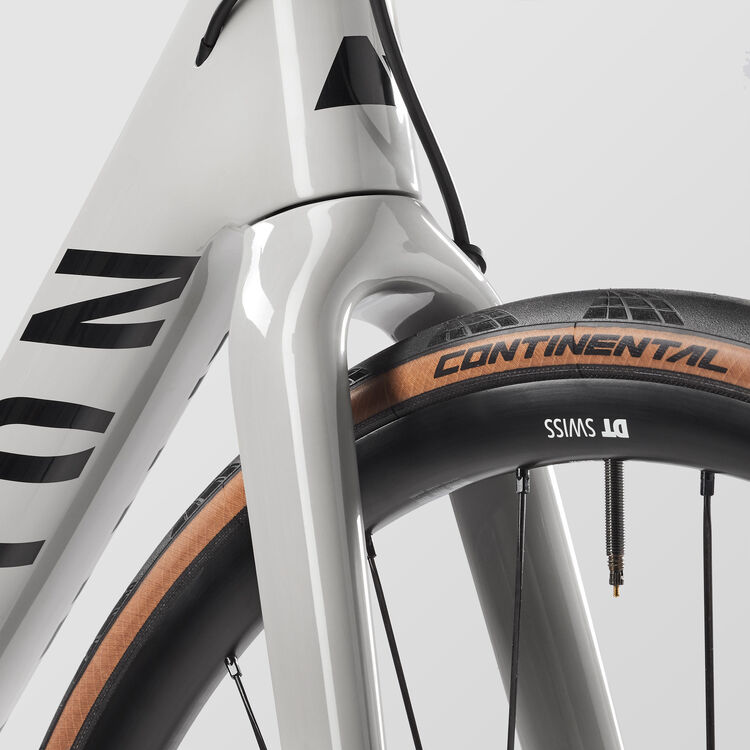

Fork
- Canyon FK0098 CF Disc
- A robust carbon fibre fork offering the optimal mix of robustness, stiffness, and lightness.
- Axle dimension 12x100 mm
- Fork steer tube diameter 1 1/4"
- Tyre clearance 31 mm
- Material Carbon (CF)
- Weight 395 g

Drivetrain

Rear Derailleur
- Shimano Ultegra R8000 SGS
- Cage length long
- Weight 210 g
Front Derailleur
- Shimano Ultegra R8000
- Weight 90 g
Cassette
- Shimano Ultegra HG800 11-34 11s
- Number of sprockets 11
Crank
- Shimano Ultegra R8000
- Number of chainrings 2
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard PF 86,5
- Weight 65 g
Chain
- Shimano CN-HG701 11s

Brakes

Brake
- Shimano Flat Mount Adapter +20mm
Shift-/ Brake Lever
- Shimano Ultegra R8020 2s
- Weight 486 g
Shift-/ Brake Lever
- Shimano Ultegra R8020 11s
- Weight 488 g
Brake Rotor
- Shimano RT800
- Size 160 mm
- Weight 120 g

Wheels

Front Wheel
- DT Swiss E 1800 Spline db
- Rotor mount Center Lock
- Rim height 23 mm
- Weight 10 g
Rear Wheel
- DT Swiss E 1800 Spline db SH11
- Rotor mount Center Lock
- Rim height 23 mm
- Weight 901 g
Tyre
- Continental Grand Prix 5000, 28 mm
- Width 28 mm
- Weight 245 g
Thru Axle
- Canyon GP0197-01
- Axle dimension 12x100 mm
Thru Axle
- Canyon GP0235-01
- Axle dimension 12x142 mm

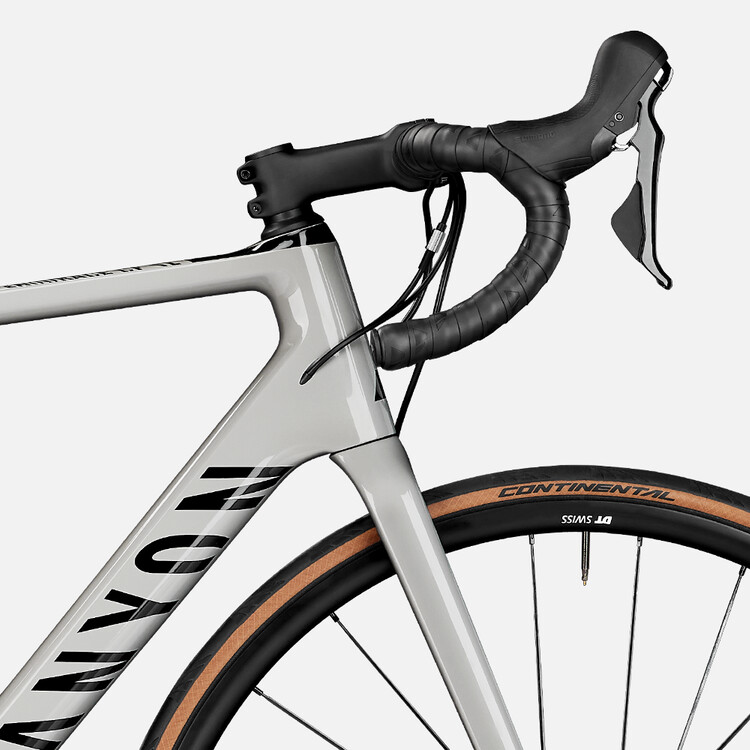

Cockpit

Stem
- Canyon V13
- High-grade aluminium stem. With new handlebar clamp design for up to 40% more torsional stiffness.
- Clamp diameter 31.8 mm
- Head tube diameter 1 1/4”
Handlebar
- Canyon H17 Ergobar AL
- Ergonomic aluminium handlebar with curved design for optimal pressure distribution.
- Material Aluminium
- Shape Ergo
- Reach 70 mm
- Drop 130 mm
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color black

Seat

Saddle
- Fizik Argo Tempo R5
- Gender Unisex
- Weight 248 g
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material Carbon
- Setback 13 mm / 25 mm
- Technology VCLS 2.0 | Fliphead
- Weight 220 g

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- DT Swiss warranty & intended use manual
Manuals and Accessories
- Canyon Starter Box
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Endurace Quick Start Guide

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
Seat Height in mm (a)	623 - 723	653 - 753	683 - 783	713 - 813	743 - 843	773 - 873	803 - 903
Seat Tube Length in mm (b)	432	462	492	522	552	582	612
Top Tube Length in mm (c)	511	527	541	553	568	592	607
Head Tube Length in mm (d)	98	115	139	158	184	206	225
Head Tube Angle (e)	69,2°	71°	72°	73°	73°	73,25°	73,25°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	415	415	415	415	415	415	415
Wheel Base in mm (h)	980	982	988	990	1.006	1.028	1.043
Stack in mm (i)	510	532	557	578	604	625	644
Reach in mm (j)	360	370	376	382	389	407	417
Stand-over Height in mm (k)	724	750	780	806	832	857	881
Bottom Bracket Offset in mm (l)	75	75	73	73	73	73	73
Stack+ in mm	612	632	658	680	708	729	749
Reach+ in mm	411	424	441	458	475	494	513

Component geometry

Detailed geometry table

Spacer in mm	37,5	37,5	37,5	37,5	37,5	37,5	37,5
Stem Length in mm	80	80	90	100	110	110	120
Handlebar Width in mm	380	400	420	420	420	440	440
Crank Length in mm	165,0	170,0	172,5	172,5	175,0	175,0	175,0
Chainring Size	50/34	50/34	50/34	50/34	50/34	50/34	50/34
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	350	350	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107	107	107
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	140 / 140	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
