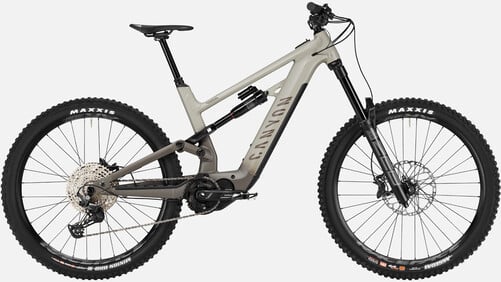

Torque:ON 7
-
-29%
- Front Fork Travel: 180 mm
-
Weight:
51.38 lbs
Weight is based on a size M frame.
-
Colour: Stealth -
Members only product. Log in here
Highlights Torque:ON 7
A masterpiece in raw carbon
More control
Integrated USB-C jack
Precise handling
Frame
-
Frame
- Canyon Torque:ON
- A progressive, hugely capable freeride e-MTB engineered to crush challenging trails with ease and power.
- Aluminium frame, 175mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203)
-
Rear Shock
- RockShox Super Deluxe Select, 250x70
- Weight: 480 g
-
Suspension Fork
- Rockshox ZEB R, 180mm
- Axle dimension: 15x110 mm
- Stanchion Diameter: 38 mm
- Travel: 180 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Tune: Debon Air
- Volume Spacer Oe: 0/4
- Weight: 2,400 g
Drivetrain
-
Motor
- Shimano Steps EP8 Motor
-
Battery
- Shimano BT-E8035-L Battery
-
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano Steps
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano Deore M6120
- Number of pistons: 4
-
Disc Brake
- Shimano Deore M6120
-
Brake Rotor
- RT SHIM EM600 203 CL W/LR INT
- Size: 203 mm
- Weight: 10 g
-
Brake Rotor
- Shimano Center Lock Bremsscheibe 220mm SM-RT64
- Size: 220 mm
- Weight: 190 g
Wheels
-
Front Wheel
- RaceFace AR30
- Rotor mount: Center Lock
- Weight: 820 g
-
Rear Wheel
- RaceFace AR30 | Shimano MT410
- Rotor mount: Center Lock
- Weight: 993 g
-
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
-
Tyre
- Maxxis Assegai 3C MaxxGrip
- Width: 2,5"
- Weight: 500 g
-
Thru Axle
- Canyon GP0255-01
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON Stem
- 35mm clamp diameter, 40mm length
-
Stem
- ST [ON] ST0030-01 FRONTPLATE
-
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
-
Display
- Shimano SC-E7000
-
Modeswitch
- Shimano Steps E7000
Seat
-
Saddle
- Fizik Gravita Alpaca X5
- Gender: Unisex
- Weight: 220 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Accessories
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- CAYN Manual MTB W/CD
-
Manuals and Accessories
- Canyon Shock Pump
-
Manuals and Accessories
- Canyon Shock Pump
-
Manuals and Accessories
- Canyon Drybag
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
|
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
|---|---|---|---|---|
|
Seat Height in mm
(a)
|
667 - 776 | 693 - 823 | 713 - 843 | 753 - 883 |
|
Seat Tube Length in mm
(b)
|
440 | 440 | 460 | 500 |
|
Top Tube Length in mm
(c)
|
612 | 639 | 667 | 694 |
|
Head Tube Length in mm
(d)
|
115 | 125 | 135 | 145 |
|
Head Tube Angle
(e)
|
63,5° | 63,5° | 63,5° | 63,5° |
|
Seat Tube Angle
(f)
|
74° | 74° | 74° | 74° |
|
Chainstay Length in mm
(g)
|
430 | 430 | 430 | 430 |
|
Wheel Base in mm
(h)
|
1.214 | 1.244 | 1.273 | 1.302 |
|
Stack in mm
(i)
|
616 | 625 | 634 | 643 |
|
Reach in mm
(j)
|
435 | 460 | 485 | 510 |
|
Stand-over Height in mm
(k)
|
777 | 780 | 786 | 790 |
|
Bottom Bracket Offset in mm
(l)
|
15 | 15 | 15 | 15 |
|
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 |
|---|---|---|---|---|
|
Stem Length in mm
|
40 | 40 | 40 | 40 |
|
Handlebar Width in mm
|
780 | 780 | 800 | 800 |
|
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
|
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
|
Dropper post travel in mm
|
125 | 150 | 150 | 150 |
|
Seat Post Length in mm
|
378 | 425 | 425 | 425 |
|
Maximum Seat Post Insertion Depth in mm
|
199 | 220 | 220 | 220 |
|
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 | 90 |
|
Wheel Size
|
27.5" | 27.5" | 27.5" | 27.5" |
|
Disc Size in mm
|
220 / 203 | 220 / 203 | 220 / 203 | 220 / 203 |
|
Front Fork Travel in mm
|
180 | 180 | 180 | 180 |
|
Rear Suspension Travel in mm
|
175 | 175 | 175 | 175 |
|
Battery capacity
|
504 Wh | 504 Wh | 504 Wh | 504 Wh |
|
Fitting Length
|
250X70 | 250X70 | 250X70 | 250X70 |
Torque:ON 7 support
Bike classification
This type of use stands for very challenging, highly blocked and extremely steep terrains, which can only be mastered by well-trained riders with technical skills. Rather high jumps at very high speeds as well as the intensive use of specific, identified bike parks or downhill trails are typical for this category. In the case of these bicycles it must be considered that a thorough check for possible damage is carried out after every ride. Preliminary damage with clearly inferior further stress can result in failure. A regular replacement of safety-relevant components should also be taken into account. Wearing special protectors is strongly recommended. Full suspension bikes with long suspension travel as well as dirt bikes are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
⚠︎ WARNING
Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
