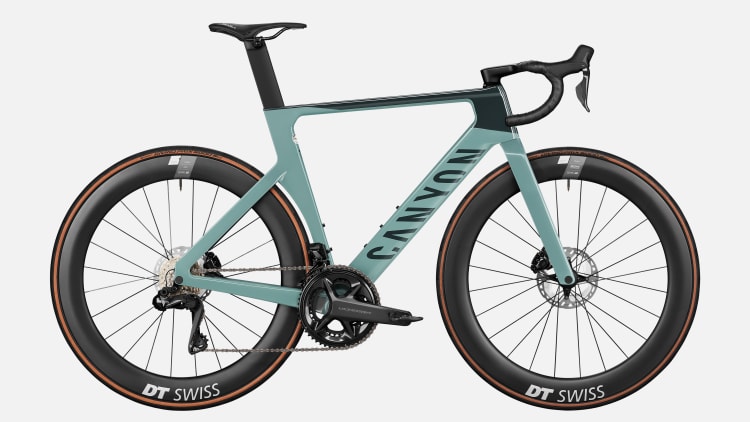

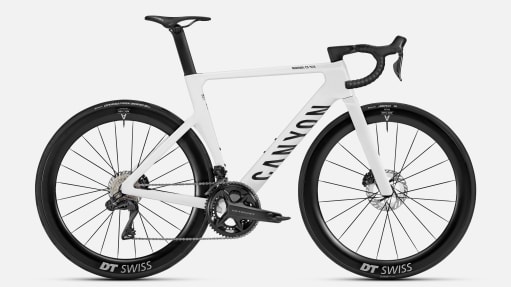

Aeroad CF SLX 8 Di2

Name: Aeroad CF SLX 8 Di2
Brand: Canyon
Price: 2599.00 USD
Availability: OutOfStock
Rating: 5 (175 reviews)

Wind tunnel-optimised tube profiles, premium aero carbon wheels, complete integration of all cables for reduced drag. This is our interpretation of a cutting-edge aero race bike.

Weight: 17.38 lbs

Customer reviews (175)

Colour: Pale Green

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Size specific rim height: Size 3XS, 2XS, XS and S bikes are specced with 50mm rims on the front to provide better handling and stability in crosswinds.

Members only product.

Sold out

Highlights Aeroad CF SLX 8 Di2

Key features

Advanced aerodynamics

The Aeroad CF SLX is built around a frame we developed together with the aero experts at Swiss Side. Tested in the wind tunnel, it combines supreme efficiency with agile handling and innovative adjustability. This is a race bike that makes zero compromises.

Balanced geometry

Many of our pro riders prefer the less aggressive Sport Pro geometry used on the Canyon Ultimate. So we implemented it on the Aeroad. The current Aeroad has a more relaxed, balanced riding position than its predecessor for less muscle fatigue, improved power transfer, and maximum speed.

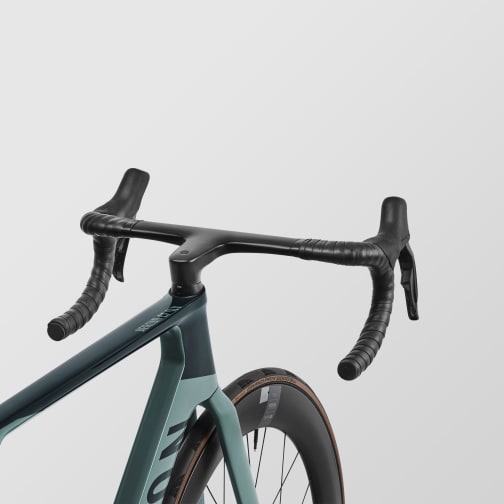

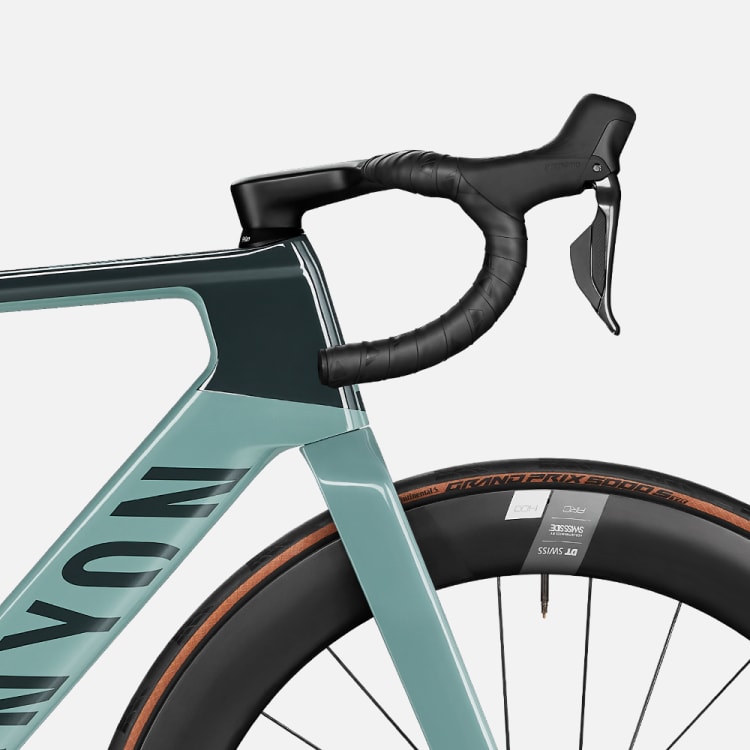

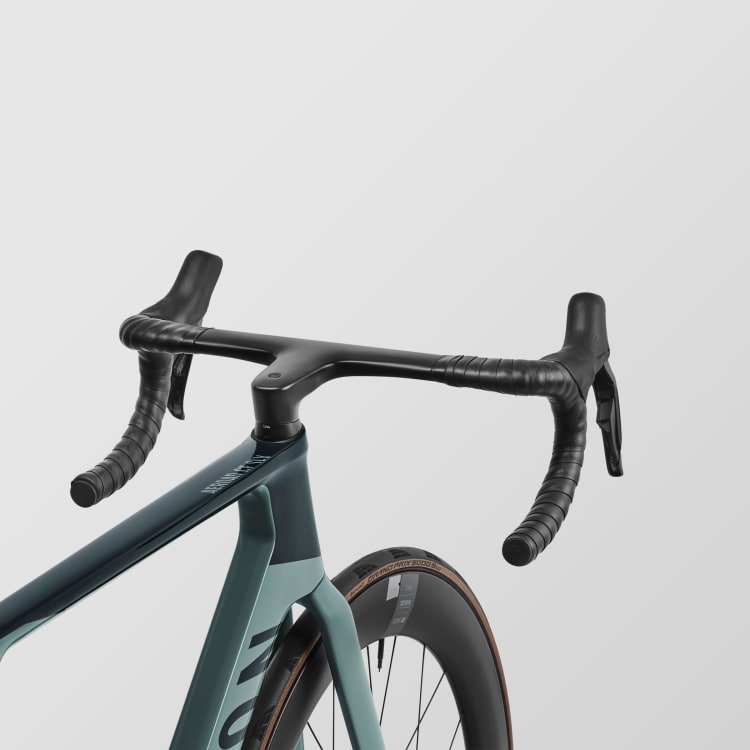

A pro-level cockpit

With complete cable and wire integration, get super-clean optics and reduced drag at the same time. And with single-tool adjustable height and width, big spacer stacks and time-consuming bar swaps are a thing of the past.

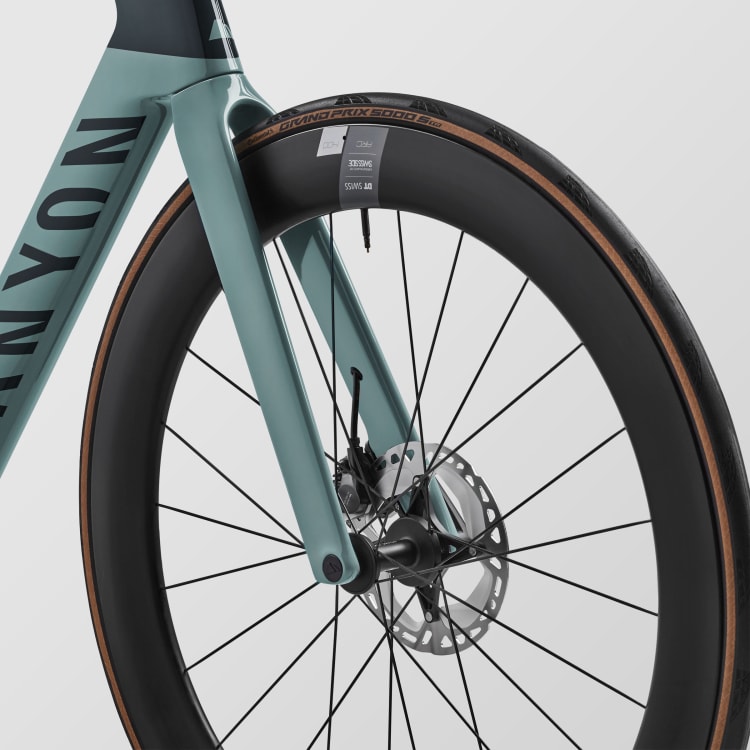

A light, stiff, aero fork

Aero, lightweight, stiff, durable: with fully integrated cable routing, this full-carbon fork works with the Aeroad’s dynamic frame lines to reduce the bike’s cross-sectional area to a minimum. The aerodynamically optimised blades slice through the air, further minimising drag.

Components

Content is loading

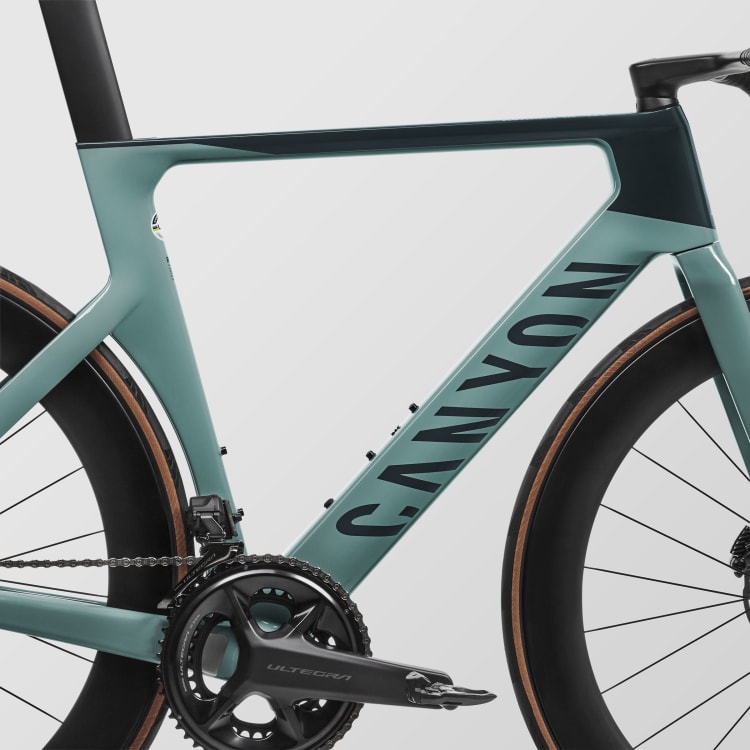

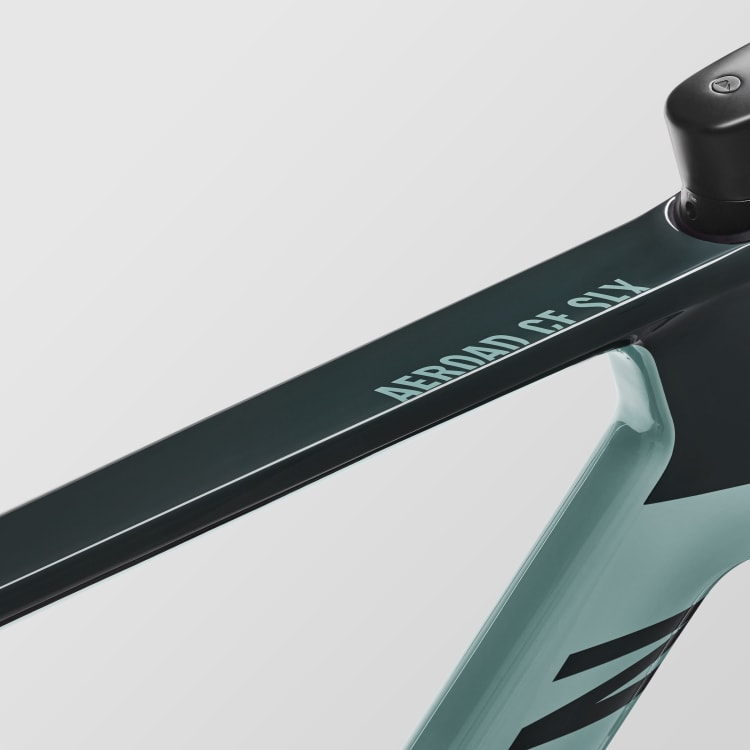

Frame

Frame
- Canyon Aeroad CF SLX Disc
- Lightweight carbon aero road racing frame. Shaped by extensive supercomputer analysis, validated in the wind tunnel.
- Axle dimension 12x142 mm
- Tyre clearance 31 mm
- Material Carbon (CF)
- Weight 1,250 g
Fork
- Canyon FK0060 CF Disc
- Aero design shaped using advanced CFD technology. Disc flat-mount disc standard. CT scanner tested and approved.
- Axle dimension 12x100 mm
- Fork steer tube diameter 1 1/8"
- Material Carbon (CF)
- Weight 330 g
Seatpost Clamp
- Canyon GP0223-02 Clamp Set 7x7
Seatpost Clamp
- Canyon GP0391-02 Seat Clamp

Drivetrain

Battery
- Shimano BT-DN300 Di2 Battery
Rear Derailleur
- Shimano Ultegra Di2
- Cage length short
- Weight 260 g
Front Derailleur
- Shimano Ultegra Di2 FD-R8150
- Weight 111 g
Cassette
- Shimano Ultegra CS-R8101 12s
- Number of sprockets 12
- Range 11-30
Crank
- Shimano Ultegra R8100 12speed
- Works with Apple FindMy
- Number of chainrings 2
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard PF 86,5
- Weight 65 g
Chain
- Shimano XT

Brakes

Brake
- Shimano Flat Mount Adapter +20mm
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8170
- Number of pistons 2
- Weight 199 g
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8170
- Number of pistons 2
- Weight 369 g
Brake Rotor
- Shimano Deore XT MT800
- Size 160 mm
- Weight 170 g

Wheels

Front Wheel
- DT Swiss ARC 1400 Dicut
- Axle dimension 12x100 mm
- Rotor mount Center Lock
- Rim height 62 mm
- Inner width 20 mm
- Rim material Carbon
- Weight 800 g
Rear Wheel
- DT Swiss ARC 1400 Dicut
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Rim height 62 mm
- Inner width 20 mm
- Rim material Carbon
- Weight 887 g
Tyre
- Continental GP 5000 S TR
- Width 25 mm
- Weight 246 g
Tyre
- Continental GP 5000 S TR
- Width 28 mm
- Weight 283 g
Thru Axle
- DT Swiss Through Axle
- Axle dimension 12x100 mm
Thru Axle
- DT Swiss Through Axle
- Axle dimension 12x142 mm

Cockpit

Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material Carbon (CF)
- Weight 195 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color black

Seat

Saddle
- Selle Italia SLR Boost Superflow S saddle
- Width 130 mm
- Gender Unisex
- Weight 181 g
Seatpost
- Canyon SP0079 Aero Seatpost
- Super-stiff, superlight carbon seatpost with unique blade form. Sculpted in the wind tunnel using advanced CFD technology.
- Material Carbon (CF)
- Weight 980 g

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Starter Box
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Endurace Quick Start Guide
Manuals and Accessories
- Quick start guide V07 Aeroad

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
Head Tube Angle (e)	70,5°	71,5°	72,75°	73,25°	73,25°	73,5°	73,75°
Stand-over Height in mm (k)	733	759	785	810	834	860	884

Component geometry

Detailed geometry table

Spacer in mm	16	16	16	16	16	16	16
Cockpit Dimensions in mm	80-390	90-390	90-390	100-410	110-410	110-410	120-410
Crank Length in mm	165,0	170,0	172,5	172,5	175,0	175,0	175,0
Chainring Size	52/36	52/36	52/36	52/36	52/36	52/36	52/36
Seat Post Length in mm	280	280	280	300	300	300	300
Maximum Seat Post Insertion Depth in mm	160	160	160	180	180	180	180
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80	80	80
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	140 / 140	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
