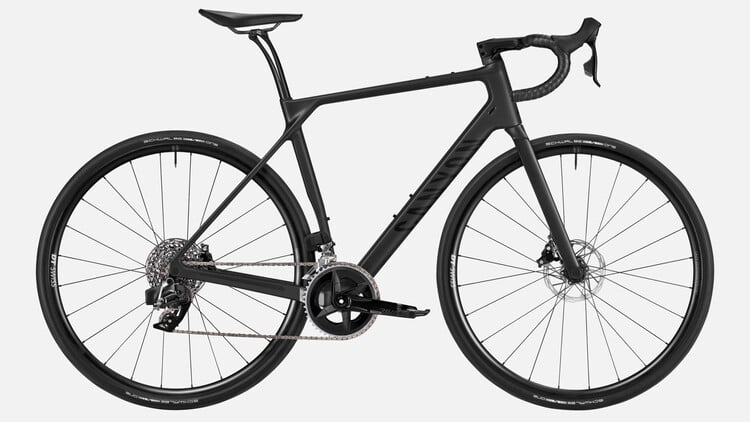

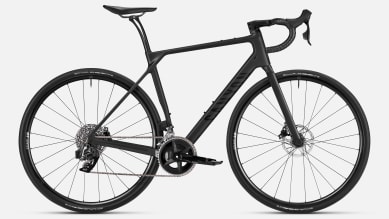

Endurace CF 7 AXS
-
Refurbished bike in XL
- Material: Carbon (CF)
-
Weight:
8.76 kg
Weight is based on a size M frame.
-
Colour: Stealth
-
Members only product. Log in here
Highlights Endurace CF 7 AXS
Further Faster from Port to Port
Across the Alps: Innsbruck to Lake Garda
Frame
-

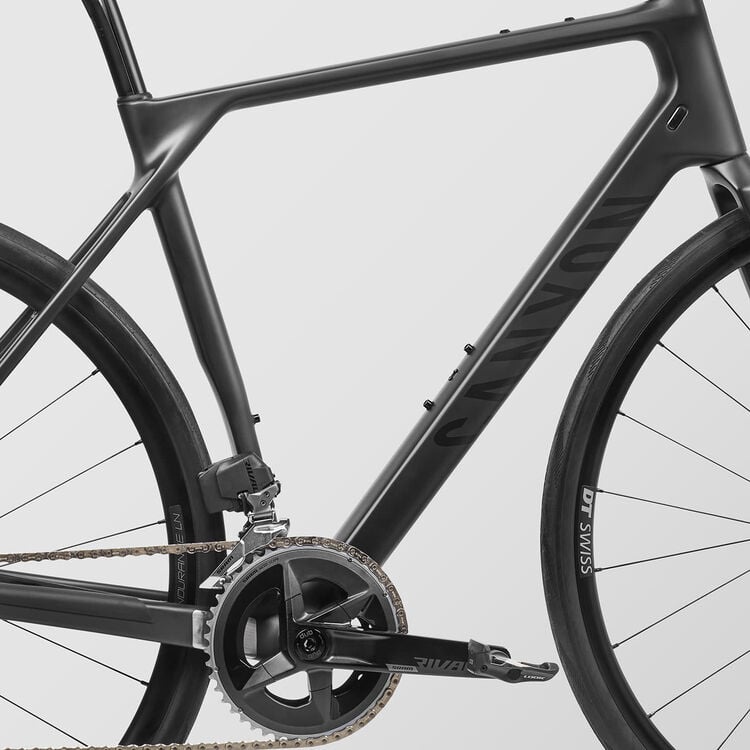

Frame
- Canyon Endurace CF Disc
- Comfortable carbon road frame with Canyon's hallmark relaxed-yet-responsive Sport geometry.
-
Axle dimension 12x142 mm
-

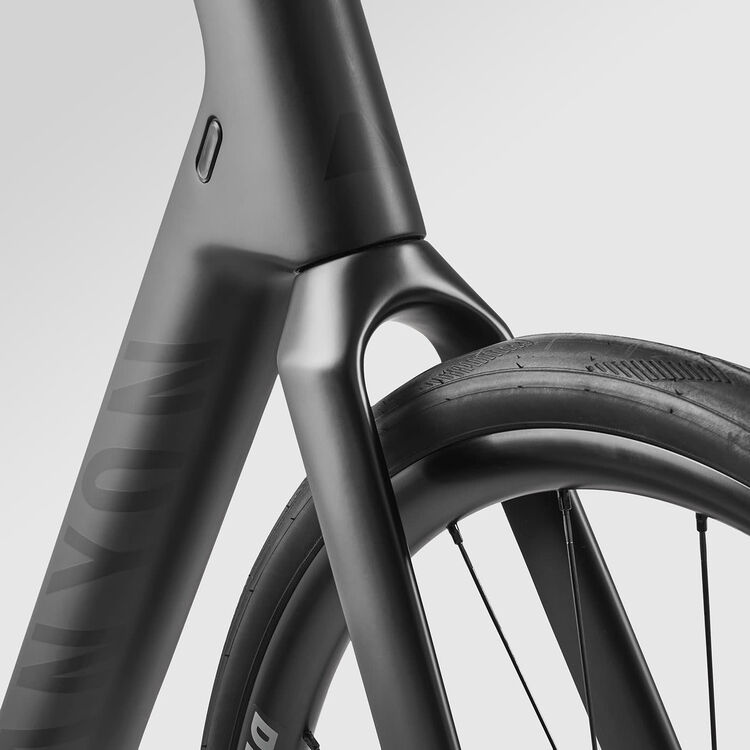

Tyre clearance 35 mm
-
Material Carbon (CF)
-
Weight 1,110 g
-
Fork
- Canyon FK0110 CF Disc
- Superlight carbon fork, engineered for high stiffness-to-weight and compliance.
-
Axle dimension 12x100 mm
-
Fork steer tube diameter 1 1/4"
-
Tyre clearance 36 mm
-
Material Carbon (CF)
-
Weight 507 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM Rival eTap AXS RD 12s
-
Weight 328 g
-
Front Derailleur
- SRAM Rival eTap AXS FD
-
Mounting type braze-on
-
Weight 164 g
-
Cassette
- SRAM Rival XG-1250, 12-speed, 10-36
-
Number of sprockets 12
-
Range 10-36
-
Crank
- SRAM Rival D1
-
Number of chainrings 2
-
Bottom bracket
- SRAM DUB Pressfit
-
Bottom bracket standard PF 86,5
-
Weight 67 g
-
Chain
- SRAM Rival D1 12s
Brakes
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS
-
Weight 412 g
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS HRD 12s
-
Number of pistons 2
-
Weight 479 g
-
Brake Rotor
- SRAM Paceline
-
Size 160 mm
-
Weight 159 g
Wheels
-
Front Wheel
- DT Swiss Endurance LN
-
Axle dimension 12x100 mm
-
Rotor mount Center Lock
-
Rim height 22 mm
-
Inner width 22 mm
-
Rim material Aluminium
-
Weight 901 g
-
Rear Wheel
- DT Swiss Endurance LN XDR
-
Axle dimension 12x142 mm
-
Rotor mount Center Lock
-
Rim height 22 mm
-
Inner width 22 mm
-
Rim material Aluminium
-
Weight 1,060 g
-
Tyre
- Schwalbe One, 30mm
-
Width 30 mm
-
Weight 378 g
-
Tyre
- Schwalbe One, 32mm
-
Width 32 mm
-
Weight 407 g
-
Thru Axle
- Canyon GP0197-01
-
Axle dimension 12x100 mm
-
Material Aluminium (AL)
-
Thru Axle
- Canyon GP0235-01
-
Axle dimension 12x142 mm
-
Material Aluminium (AL)
Cockpit
-

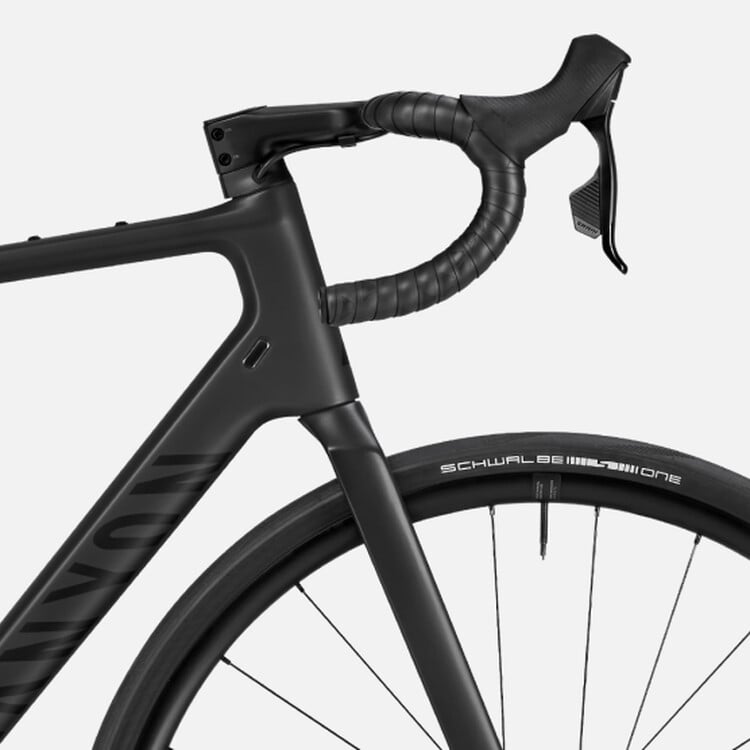

Cockpit
- Canyon CP0030 Aerocockpit
- One-piece carbon cockpit integrating bar and stem into a single sleek unit.
-
Material carbon
-
Shape Ergo
-
Reach 74 mm
-
Drop 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
-
Color Black
Seat
-
Saddle
- Fizik Argo Tempo R5
-
Gender Unisex
-
Weight 248 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
-
Seatpost diameter 27,2 mm
-
Material Carbon (CF)
-
Weight 247 g
Light
-
Lights
- Reflector Set
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
-
Manuals and Accessories
- Smallbox
|
Body Height in cm
|
≤ 158 | 158 - 164 | 164 - 170 | 170 - 177 | 177 - 184 | 184 - 191 | 191 - 197 | ≥ 197 |
|---|---|---|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
593 - 693 | 623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
|
Seat Tube Length in mm
(b)
|
402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
|
Top Tube Length in mm
(c)
|
491 | 501 | 522 | 533 | 543 | 558 | 584 | 599 |
|
Head Tube Length in mm
(d)
|
122 | 139 | 128 | 145 | 164 | 186 | 213 | 232 |
|
Head Tube Angle
(e)
|
70,5° | 71,5° | 71° | 72° | 73° | 73° | 73,25° | 73,25° |
|
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
|
Chainstay Length in mm
(g)
|
405 | 405 | 415 | 415 | 415 | 415 | 415 | 415 |
|
Wheel Base in mm
(h)
|
957 | 958 | 989 | 991 | 990 | 1.006 | 1.029 | 1.044 |
|
Stack in mm
(i)
|
510 | 529 | 548 | 568 | 590 | 611 | 637 | 656 |
|
Reach in mm
(j)
|
350 | 354 | 370 | 375 | 378 | 387 | 405 | 414 |
|
Stand-over Height in mm
(k)
|
708 | 733 | 762 | 788 | 814 | 838 | 866 | 887 |
|
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 73 | 73 | 73 | 73 | 73 | 73 |
|
Stack+ in mm
|
605 | 624 | 644 | 664 | 686 | 709 | 734 | 754 |
|
Reach+ in mm
|
394 | 410 | 425 | 441 | 455 | 474 | 493 | 512 |
|
Spacer in mm
|
22,5 | 22,5 | 22,5 | 22,5 | 22,5 | 22,5 | 22,5 | 22,5 |
|---|---|---|---|---|---|---|---|---|
|
Cockpit Dimensions in mm
|
70-370 | 80-370 | 80-370 | 90-390 | 100-410 | 110-410 | 110-430 | 120-430 |
|
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
|
Chainring Size
|
46/33 | 46/33 | 46/33 | 46/33 | 46/33 | 46/33 | 46/33 | 46/33 |
|
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
|
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
|
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 | 207 |
|
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
|
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
|
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
|
Rim height in mm
|
22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 |
Endurace CF 7 AXS support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
-
