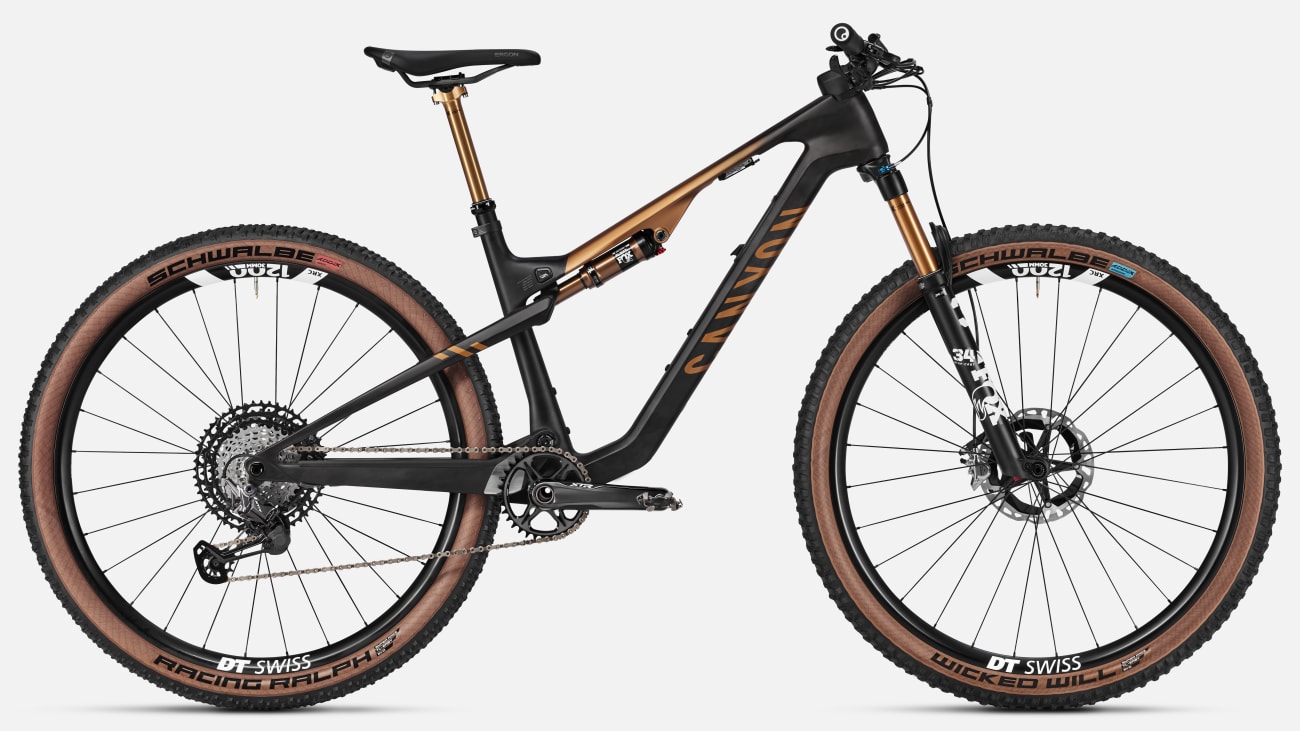

Lux Trail CFR
-
New stock
- Front Fork Travel: 120 mm
-
Weight:
11.25 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
-
No credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Ready to ride delivery with velofix DIRECT
With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Highlights Lux Trail CFR
Pushing what's possible
Made for doing it all day long
Formidable CFR frame
Total control linkage
The right angles
Remote lockout suspension
Proper frame protection
Clever storage
Drink more water
Frame
-
Frame
- Canyon Lux Trail CFR
- Superlight, pro-level CFR build of the ultra-capable Lux Trail down-country bike, delivering the highest levels of climbing efficiency and descending performance.
- Axle dimension: 12x148 mm
- Material: Carbon (CFR)
- Weight: 1,620 g
-
Rear Shock
- FOX Float SL Factory Remote
-
Suspension Fork
- FOX 34 Stepcast Factory 3-Pos Remote
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
-
Rear Derailleur
- Shimano XTR, 12-speed
- Cage length: long
- Weight: 243 g
-
Shift Lever
- Shimano XTR, 12-speed
- Weight: 128 g
-
Cassette
- Shimano XTR CS-M9101 12s 10-51
- Number of sprockets: 12
- Range: 10-51 12S
-
Crank
- Shimano XTR M9125 34T
- Number of chainrings: 1
-
Bottom bracket
- Shimano BSA BB93
- Bottom bracket standard: BSA 68/73
- Weight: 310 g
-
Chain
- Shimano M9100 XTR Chain
- SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Brakes
-
Disc Brake
- Shimano XTR
- Number of pistons: 2
-
Disc Brake
- Shimano M9110
- Number of pistons: 2
-
Brake Rotor
- Shimano RT-MT900, 180mm
- Size: 180 mm
- Weight: 146 g
-
Brake Rotor
- Shimano RT-MT900
- Size: 160 mm
- Weight: 122 g
Wheels
-
Front Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 679 g
-
Rear Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 799 g
-
Tyre
- Schwalbe Racing Ralph SR TLE EVO 2.35"
- Width: 2.35"
- Weight: 732 g
-
Tyre
- Schwalbe Wicked Will SR TLE EVO 2.4"
- Width: 2.4"
- Weight: 280 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Cockpit
- Canyon CP0037
- Material: Carbon (CF)
- Weight: 268 g
-
Grips
- Ergon GXR
Seat
-
Saddle
- Ergon SM10 Pro
- Gender: Male
- Weight: 235 g
-
Seatpost
- FOX Transfer SL Factory
- Seatpost diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 421 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
618 - 763 | 648 - 843 | 673 - 868 | 703 - 898 | 733 - 928 |
Seat Tube Length in mm
(b)
|
415 | 420 | 420 | 450 | 480 |
Top Tube Length in mm
(c)
|
559 | 585 | 609 | 633 | 656 |
Head Tube Length in mm
(d)
|
90 | 90 | 100 | 115 | 130 |
Head Tube Angle
(e)
|
67° | 67° | 67° | 67° | 67° |
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° | 76° |
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 | 435 |
Wheel Base in mm
(h)
|
1.129 | 1.155 | 1.180 | 1.206 | 1.232 |
Stack in mm
(i)
|
589 | 589 | 598 | 612 | 626 |
Reach in mm
(j)
|
412 | 438 | 460 | 480 | 500 |
Stand-over Height in mm
(k)
|
768 | 768 | 772 | 777 | 783 |
Bottom Bracket Offset in mm
(l)
|
38 | 38 | 38 | 38 | 38 |
Spacer in mm
|
0,0 | 0,0 | 0,0 | 0,0 | 0,0 |
---|---|---|---|---|---|
Cockpit Dimensions in mm
|
50-740 | 50-760 | 50-760 | 50-760 | 50-760 |
Crank Length in mm
|
170,0 | 170,0 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
34 | 34 | 34 | 34 | 34 |
Seat Post Diameter in mm
|
31,6 | 31,6 | 31,6 | 31,6 | 31,6 |
Dropper post travel in mm
|
100 | 125 | 150 | 150 | 150 |
Seat Post Length in mm
|
380 | 455 | 480 | 480 | 480 |
Maximum Seat Post Insertion Depth in mm
|
225 | 275 | 275 | 275 | 275 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 |
Wheel Size
|
29" | 29" | 29" | 29" | 29" |
Disc Size in mm
|
180 / 160 | 180 / 160 | 180 / 160 | 180 / 160 | 180 / 160 |
Front Fork Travel in mm
|
120 | 120 | 120 | 120 | 120 |
Rear Suspension Travel in mm
|
115 | 115 | 115 | 115 | 115 |
Fitting Length
|
210X50 | 210X50 | 210X50 | 210X50 | 210X50 |
-
2024Bike Of The YearNo other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.Bike Of The YearNo other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.
Lux Trail CFR support
Other riders also bought
- Colour: Night Sky
- Colour: Thyme
- Colour: Tillandsia Purple
- Colour: Creole Pink
- Colour: Night Sky
- Colour: Thyme
- Colour: Tillandsia Purple
- Colour: Creole Pink
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
